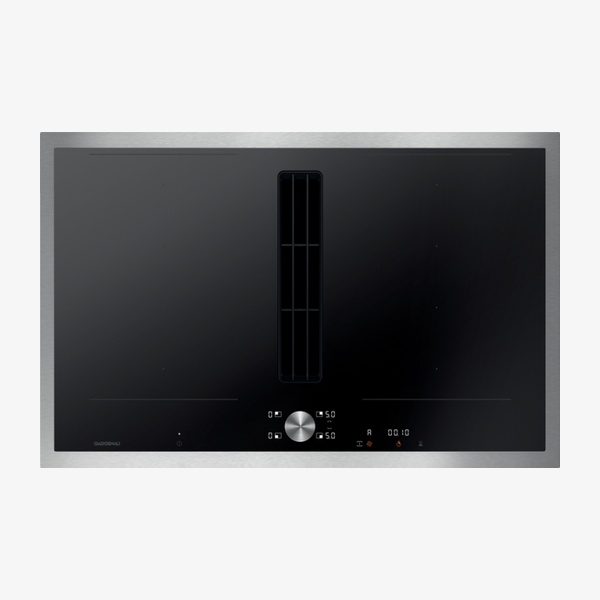

Gaggenau 200 Series CV282111 Venting FlexInduction Hob

The CV282111 is an 80 cm flex induction cooktop with an integrated, highly efficient ventilation system for air extraction or recirculation. It features two pairs of flex induction cooking areas, automatic pot detection and a fully automatic ventilation function with energy-saving, low-noise fan. Twist-Pad control with removable magnetic knob and two colour displays allows easy operation, while Home Connect enables selected digital services including remote monitoring and diagnostics.

SKU:CV282111

EAN:4242006289744

Category::Hobs

Quantity:

Key Features

Flex induction cooktop with integrated ventilation for combined cooking and extraction in an 80 cm appliance.

Fully automatic ventilation system functions with automatic sensor-controlled performance adjustment and run-on.

2 flex induction cooking areas per side (23×19 cm, 2200 W, booster 3700 W) that can be linked to 23×38 cm areas.

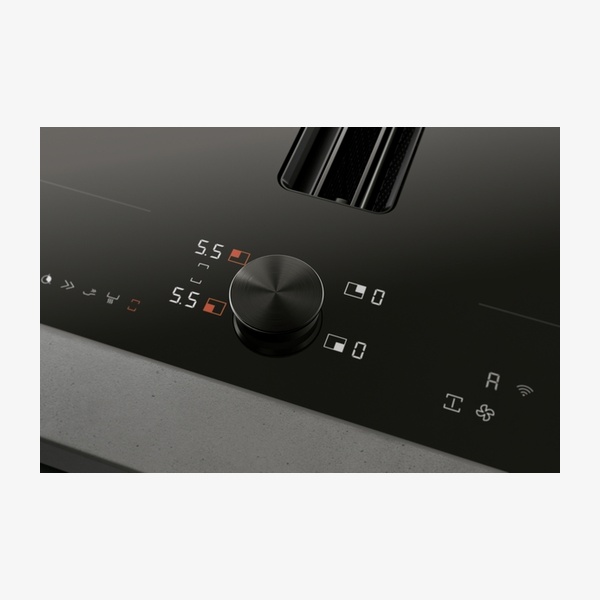

Twist-Pad control with removable magnetic knob for easy operation of cooking zones and ventilation.

User-friendly two colour display (white / orange) for clear indication of power levels and functions.

Variable 17-stage power settings for each cooking zone for precise electronic power control.

Booster functions for pots and pans plus professional cooking, cooking sensor and frying sensor functions.

Keep warm, stopwatch and timers including cooking timer up to 99 minutes and short-term timer.

Large-scale metal grease filter that is easy to remove and dishwasher-safe, with saturation indicator.

Integrated activated charcoal filter removable from above for air recirculation system.

Energy efficiency class A with ventilation efficiency class A and grease filter efficiency class B.

Energy-saving, low-noise fan with airflow-optimised interior and brushless DC motor.

Home Connect digital services including remote control and monitoring of ventilation and cooking zones.

Comprehensive safety features such as child lock, safety shut-off and residual heat indicators.

Detachable overflow protection and container with dishwasher-safe components and 0.9-litre capacity.

Sturdy stainless steel frame and high-grade black zinc die-cast cover for the ventilation system.

Suitable for magnetic (induction) cookware only , with sandwich bottom cookware recommended for optimal heat distribution.

Technical Spec

Product typeFlex induction cooktop with integrated ventilation system 200 series

Width80 cm

Model codeCV282111

Cooking zones4 flex induction cooking areas: 2 × 23×19 cm (2200 W, booster 3700 W) per side, linkable to 2 × 23×38 cm (3300 W, booster 3700 W)

Flex functionFlex function for combining the rectangular cooking areas

Power levelsVariable 17-stage power settings for each zone

Ventilation modeAir extraction or recirculation system

Air extraction performance532 / 636 m³/h (output level 3 / Intensive, according to DIN EN 61591)

Air recirculation performance487 / 611 m³/h (output level 3 / Intensive, according to DIN EN 61591)

Sound power level70 / 74 dB (A) re 1 pW (air extraction, EN 60704-3)

Sound pressure level55 / 61 dB (A) re 20 µPa (air recirculation, EN 60704-13)

Energy efficiency classA (range A+++ to D)

Energy consumption56.9 kWh/year

Ventilation efficiency classA

Grease filter efficiency classB

Sound level (normal mode)Min. 61 dB / max. 70 dB

Control typeTwist-Pad control with removable magnetic knob, two colour display (white / orange)

Digital connectivityIntegrated WiFi module for selected digital services (Gaggenau Home Connect)

Total connected load7.4 kW

Power consumption standby (display off)0.5 W

Power consumption standby (network)2 W

Connecting cable1.50 m without plug

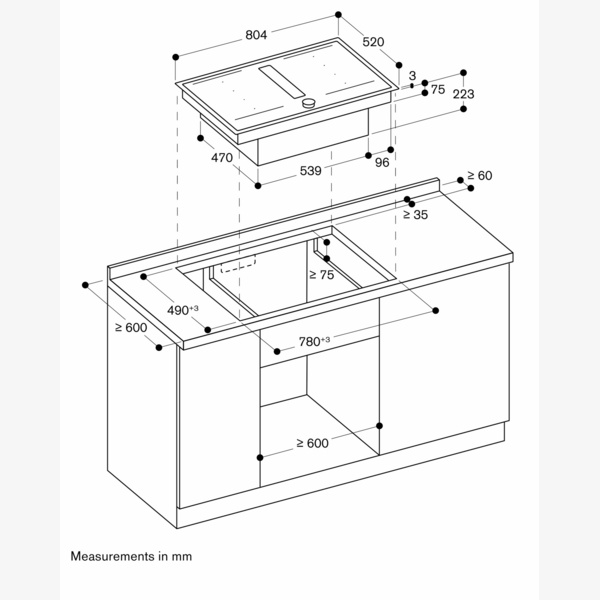

Bottom cabinet widthMinimum 60 cm

Worktop depth (unducted recirculation)Minimum 60 cm

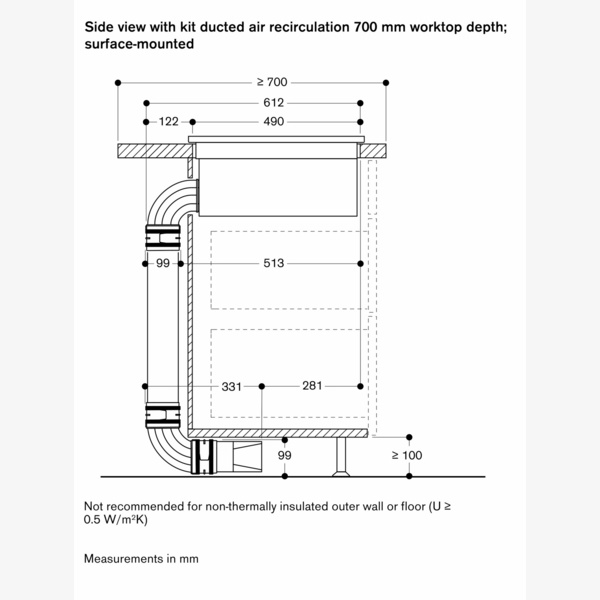

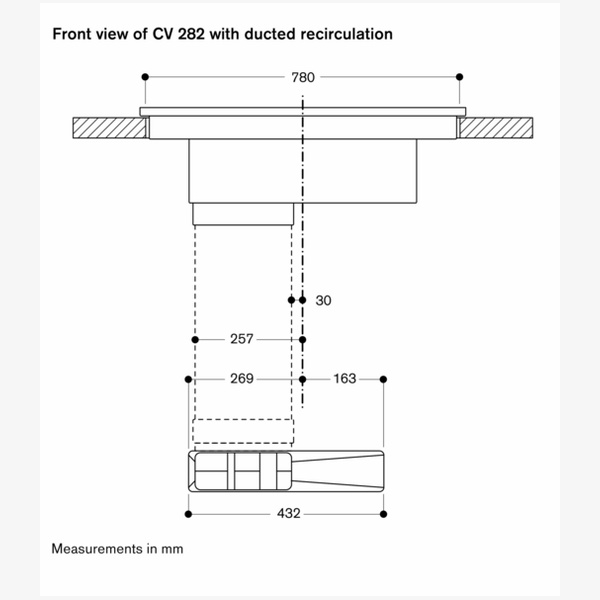

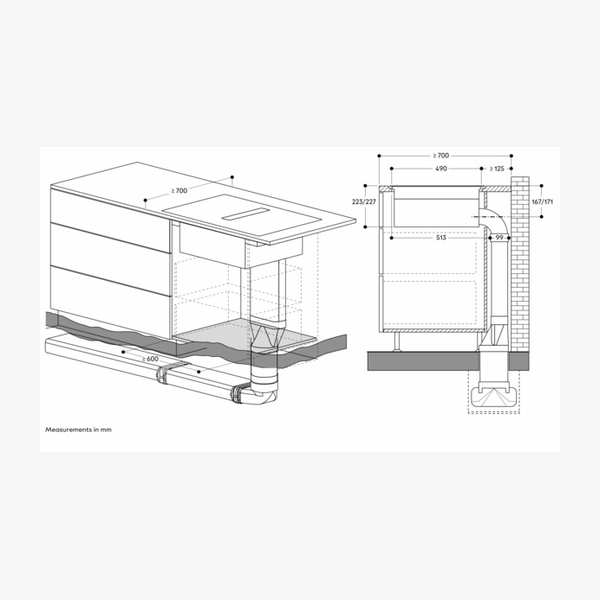

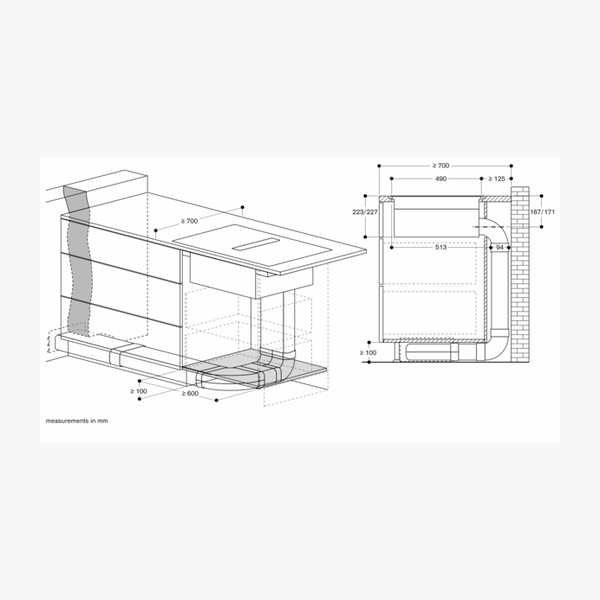

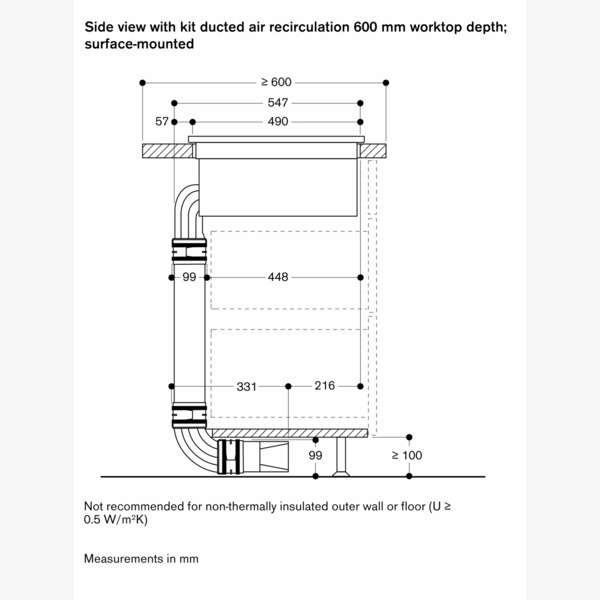

Worktop depth (ducted recirculation / extraction)Minimum 65 cm

Immersion depth223 mm

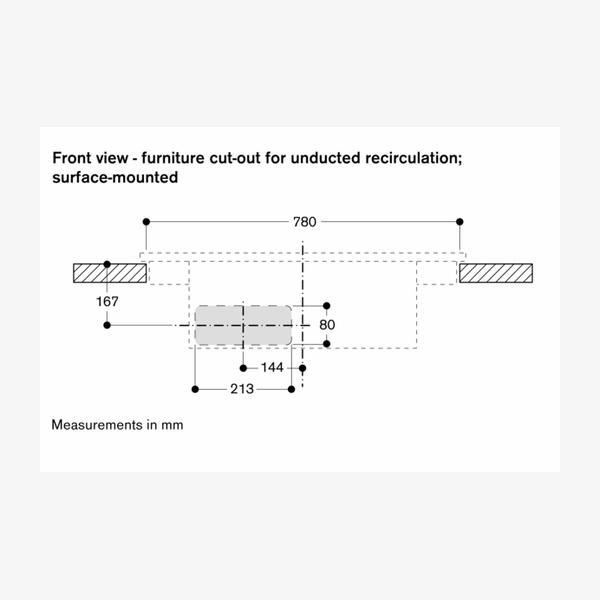

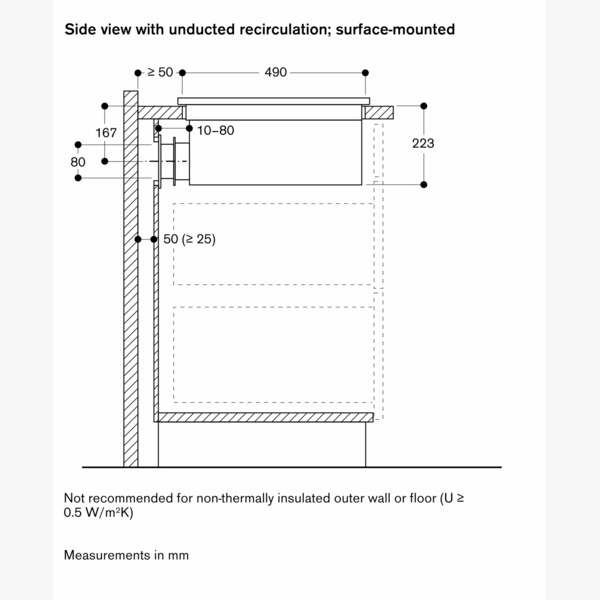

Vertical aperture for unducted recirculation setMinimum 25 mm behind back panel (50 mm suggested for ideal performance)

Recommended outflow surface area (recirculation)At least 400 cm²

Equivalent ducting lengthLmax 28 m to ensure good performance

Overflow container capacity0.9 litre

Minimum clearance to overflow container undersideMinimum 300 mm to remove and empty container

Appliance weightApprox. 28 (unit not stated in source)

Downloads

Download product documentation, manuals, and specification sheets.

CV282111 Spec

PDF

Frequently Asked Questions

What type of cookware can I use with the CV282111?

The appliance operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, the use of sandwich bottom cookware is recommended.

Does the cooktop provide automatic ventilation control?

Yes. The ventilation system offers automatic sensor-controlled performance adjustment and automatic activation when a cooking zone is used. It also has an automatic sensor-controlled or manual run-on function and interval ventilation for 6 minutes.

How easy is it to clean the grease and charcoal filters?

The cooktop includes a large-scale metal grease filter that is easy to remove and dishwasher-safe. The integrated activated charcoal filter for air recirculation is easily removable from above. There is also a saturation indicator for the grease filter and activated charcoal filter.

What safety features are included?

Safety features include a main switch, operation indicator, pot detection, 2-stage residual heat indicators for each zone, child lock, safety shut-off and a detachable, dishwasher-safe two-stage overflow protection with removable 0.9-litre overflow container.

Is the CV282111 compatible with Home Connect?

Yes. The appliance has an integrated WiFi module for selected digital services (Gaggenau Home Connect), including remote control and monitoring of ventilation, remote monitoring of cooking zones and remote diagnostics. Availability of Home Connect services depends on the country.

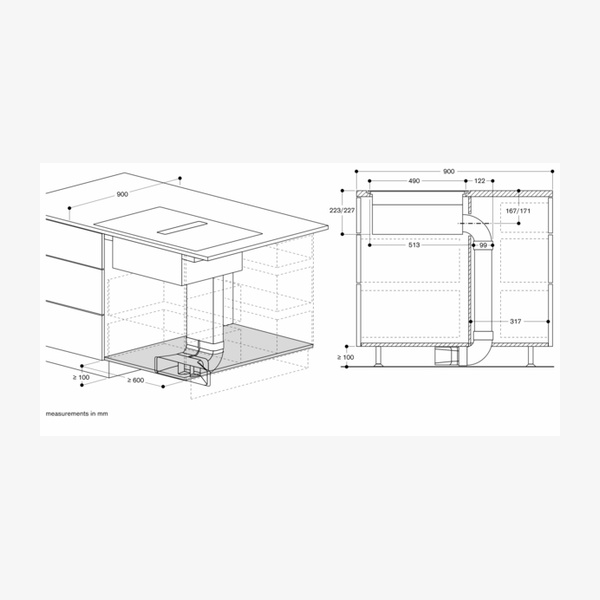

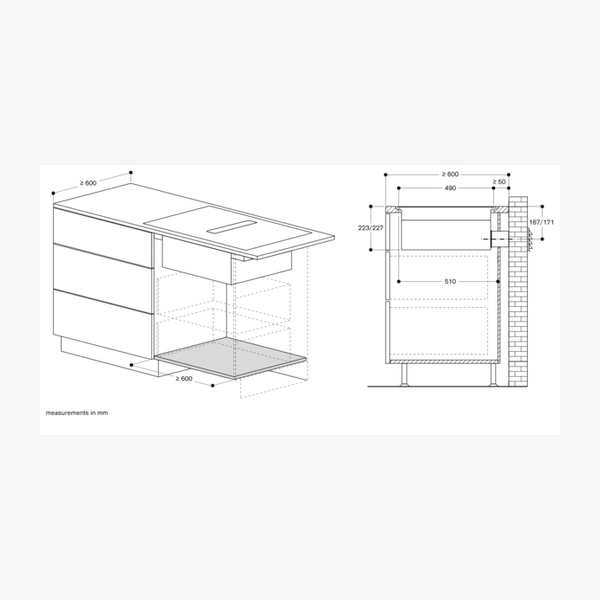

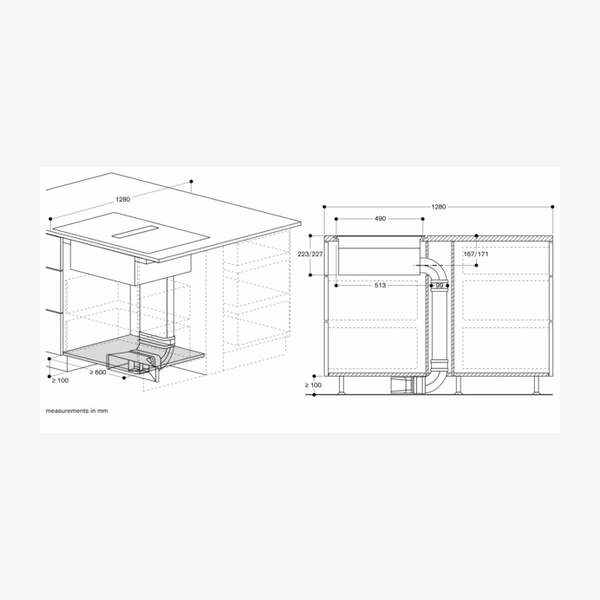

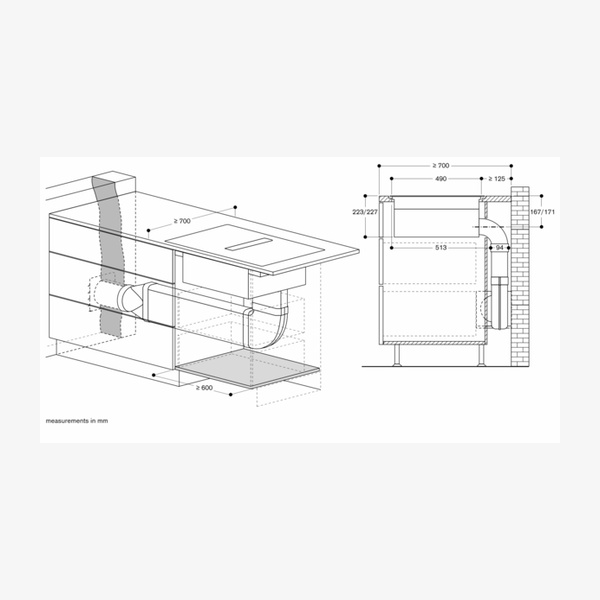

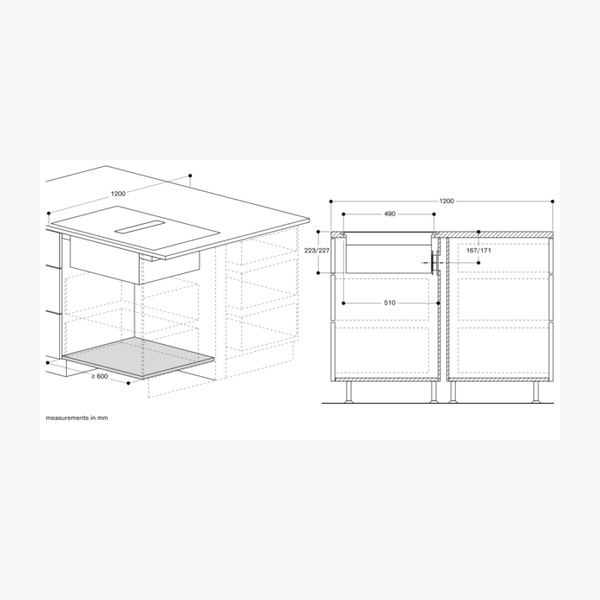

What are the key installation requirements?

A minimum bottom cabinet width of 60 cm and minimum worktop depth of 60 cm (unducted recirculation) or 65 cm (ducted recirculation/extraction) is required. Immersion depth is 223 mm, and the appliance must be fixed from underneath and freely accessible from below. Specific apertures and clearances are recommended for recirculation and overflow container access.
