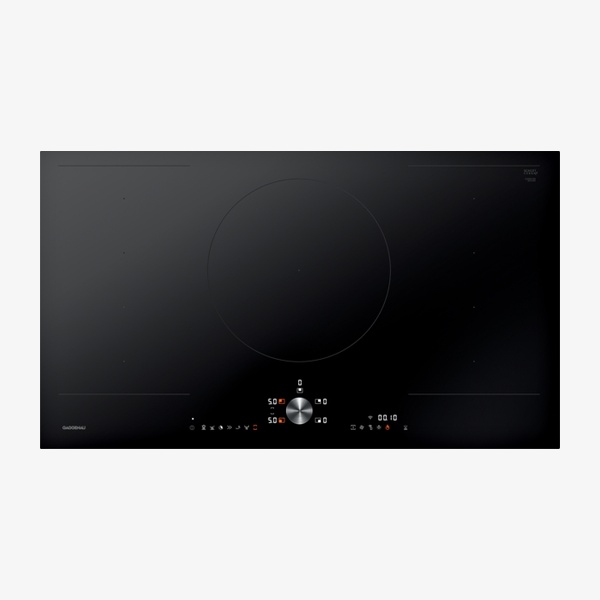

Gaggenau 200 Series CI292102 Induction Hob

The CI292102 is a 90 cm flex induction cooktop in the 200 series, designed for magnetic iron pots and pans. It offers flex induction cooking areas, a large induction zone for pots up to ø 32 cm and a professional cooking function that splits the surface into predefined heat areas. With Twist-Pad control, integrated WiFi for selected digital services and flush installation options, it supports flexible, precise cooking and easy cleaning.

SKU:CI292102

EAN:4242006293192

Category::Hobs

Quantity:

Key Features

Flex induction cooktop 200 series, 90 cm for versatile cooking with multiple induction zones.

Magnetic Twist-Pad control with removable knob in stainless steel or black for easy, precise operation.

Professional cooking function for splitting the cooktop into 3 predefined heat areas.

Flex function for rectangular cooking areas allowing flexible positioning of cookware inside combined zones.

Free positioning of cookware option enabling effortless movement and rearrangement of pots and pans.

Large induction cooking zone up to ø 32 cm with automatic switching between ø 21, 26 and 32 cm.

Cooking sensor function for temperature control in pots (with cooking sensor CA 060 300).

Frying sensor function for temperature control in pans, with dedicated frying sensor pans available.

Booster functions for pots and pans providing higher power when needed.

Keep warm function plus stopwatch, cooking timer up to 99 minutes and short-term timer.

Flush-Top Frame installation for a seamless transition with the worktop, helping cleaning and integration.

Frameless option for flush installation for a minimalist, integrated appearance.

Two colour display (white / orange) for user-friendly control feedback.

17 output levels via electronic power control for fine power adjustment.

Integrated WiFi module (Home Connect) enabling selected digital services, remote monitoring and diagnostics.

Cooktop-based ventilation control with a suitable hood.

Comprehensive safety features including main switch, child lock, pot detection and 2 stage residual heat indicators.

Optional accessories including flex pans, Teppan Yaki, griddle plate and magnetic knob.

Technical Spec

Product nameFlex induction cooktop 200 series

Model referenceCI292102

Width90 cm

Cooking zones – left2 flex induction areas 23×20 cm (2200 W, booster 3700 W), linked 23×40 cm (3300 W, booster 3700 W)

Cooking zones – right2 flex induction areas 20×23 cm (2200 W, booster 3700 W), linked 40×23 cm (3300 W, booster 3700 W)

Central cooking zoneInduction zone ø 21 cm (2200 W, booster 3700 W), auto switch to ø 26 cm (2600 W, booster 3700 W) and ø 32 cm (3300 W, booster 3700 W)

Power levels17 output levels with electronic power control

Total connected load11.1 kW

Connecting cable1.10 m without plug

Standby – display off0.5 W

Standby – network2 W

Control typeTwist-Pad control with removable magnetic knob

DisplayTwo colour display (white / orange)

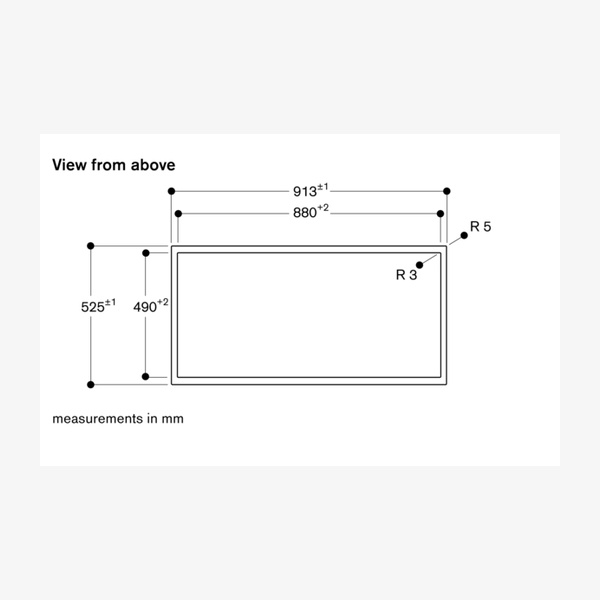

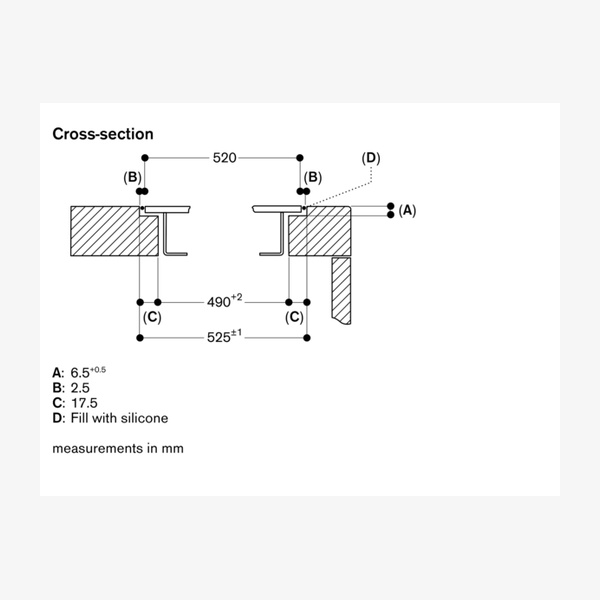

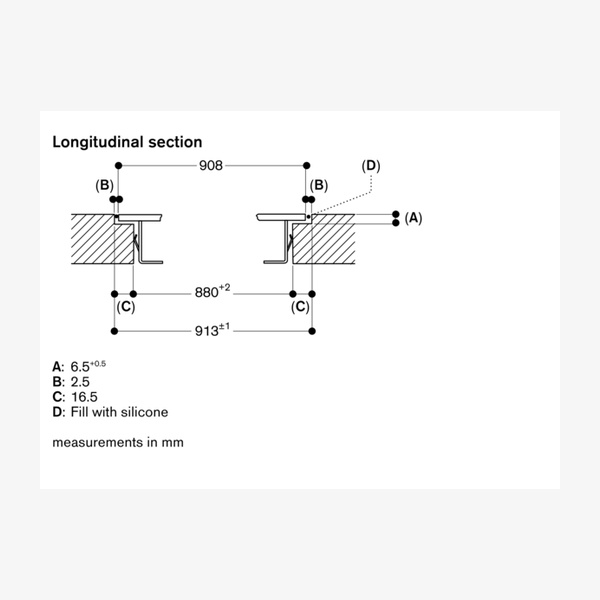

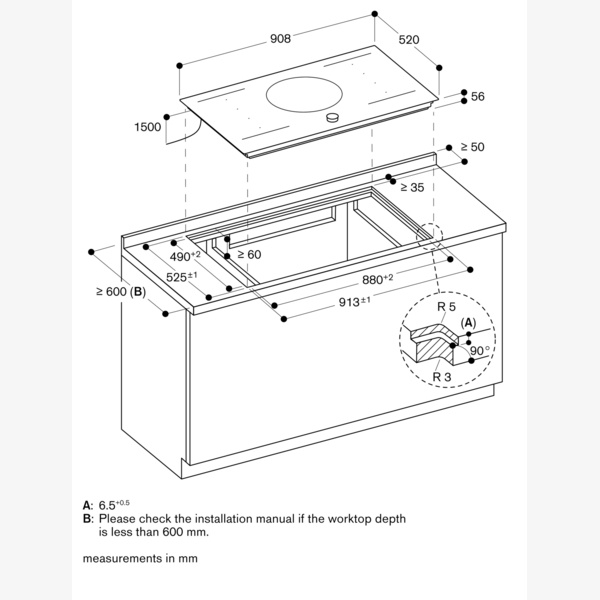

Installation styleFlush-Top Frame installation; frameless for flush installation

Appliance weightApprox. 26 (unit not stated in source)

WiFi / connectivityIntegrated WiFi module for digital services (Home Connect)

Compatible cookwareOperates with magnetic (induction) iron pots and pans only

Recommended cookware baseSandwich bottom cookware recommended for optimal heat distribution

Incompatible accessoryWok pan WP 400 001 cannot be used with this appliance

Fixing methodAppliance must be fixed from underneath

Downloads

Download product documentation, manuals, and specification sheets.

CI292102 Spec

PDF

Frequently Asked Questions

What type of cookware can I use on the CI292102 cooktop?

The cooktop operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, the use of sandwich bottom cookware is recommended. The wok pan WP 400 001 cannot be used with this appliance.

How does the professional cooking function work?

The professional cooking function splits the cooktop into 3 predefined heat areas. This allows cookware to be moved between zones with different heat levels without changing the settings on the control.

What are the advantages of the flex induction cooking areas?

The flex function combines rectangular cooking areas so that cookware can be positioned flexibly inside the combined zones. This supports free positioning of pots and pans and makes it easier to use larger cookware.

Does the cooktop have WiFi and remote functions?

Yes. The CI292102 includes an integrated WiFi module for selected digital services (Home Connect), such as cooktop-based ventilation control with a suitable hood, remote monitoring and remote diagnostics, depending on the availability of Home Connect Services in the country.

What safety features are provided?

Safety features include a main switch, operation indicator, pot detection, 2 stage residual heat indicator (Hh) for each zone, child lock and safety shut-off.

In which worktops can this cooktop be installed?

Installation is possible in worktops made of stone, synthetics or solid wood, provided the cut edges are heat resistant and watertight. For other materials, the worktop manufacturer should be consulted. The appliance must be fixed from underneath.
