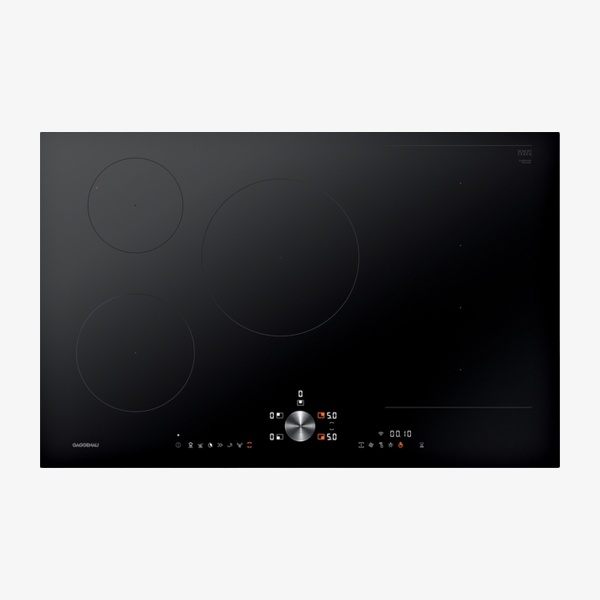

Gaggenau 200 Series CI283103 Induction Hob

The CI283103 is an 80 cm flex induction cooktop 200 series, frameless for flush installation. It offers flex function for combining rectangular cooking areas, professional cooking function with 3 predefined heat areas, and cooking and frying sensor functions for temperature control in pots and pans. Twist-Pad control with removable magnetic knob and two colour displays support easy, user-friendly operation. Selected digital services via an integrated WiFi module enable Home Connect functions.

SKU:CI283103

EAN:4242006293611

Category::Hobs

Quantity:

Key Features

Flex induction cooktop 200 series with 80 cm width and frameless design for flush installation.

Flex function for combining rectangular cooking areas and flexible positioning of cookware inside combined areas.

Professional cooking function for splitting the cooktop into 3 predefined heat areas.

Cooking sensor function for temperature control in pots (in use with cooking sensor CA 060 300).

Frying sensor function for temperature control in pans.

Twist-Pad control with removable magnetic knob and user-friendly two colour display (white / orange).

Five induction zones including 2 linked flex areas 21×20 cm, and round zones ø 24 cm, ø 18 cm and ø 15 cm.

Booster functions for pots and pans to increase power when needed.

Convenience functions including keep warm, stopwatch, cooking timer up to 99 minutes, short-term timer and options menu.

Power management to control the total connected load.

Selected digital services via Gaggenau Home Connect, including cooktop-based ventilation control, remote monitoring and remote diagnostics.

Integrated WiFi module for digital services (Home Connect), with switch-off described in the user manual.

Safety functions including main switch, operation indicator, pot detection, 2 stage Hh residual heat indicator, child lock and safety shut-off.

Compatible cookware requirement: operates with magnetic (induction) iron pots and pans; sandwich bottom cookware recommended.

Optional accessories include flex pans, Teppan Yaki, griddle plate, large flex pan and magnetic knob in black.

Technical Spec

Product seriesFlex induction cooktop 200 series

ModelCI283103

Width80 cm

DesignFrameless for flush installation

Flex induction areas2 flex induction cooking areas 21×20 cm (2200 W, with booster 3700 W), linked together 21×40 cm (3300 W, with booster 3700 W)

Induction zone ø 24 cm2200 W, with booster 3700 W

Induction zone ø 18 cm1800 W, with booster 3100 W

Induction zone ø 15 cm1400 W, with booster 2200 W

Control typeTwist-Pad control with removable magnetic knob; two colour display (white / orange)

Power levelsElectronic power control in 17 output levels

Total connected load7.4 KW

Connecting cable1.10 m without plug

Standby consumption (display off)0.5 W

Standby consumption (network)2 W

WiFi moduleIntegrated WiFi module for digital services (Home Connect)

Appliance weightApprox. 16 (unit not stated in source)

Installation requirementAppliance must be fixed from underneath

Date of information2025-12-12

Additional Details – Installation, Use and Safety

Installation guidance

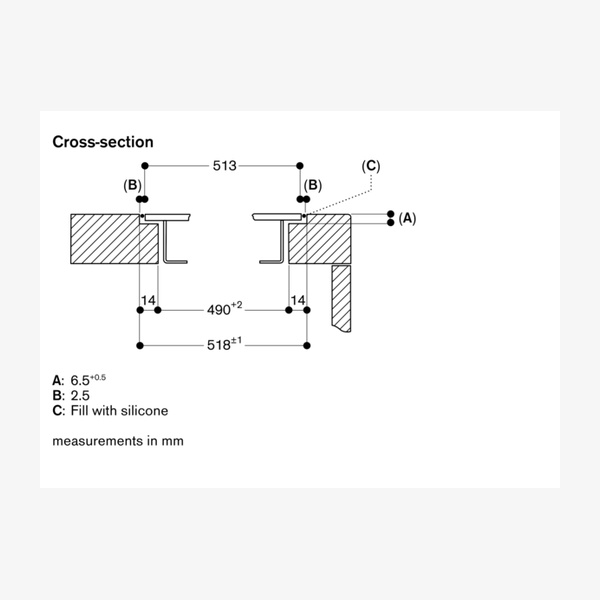

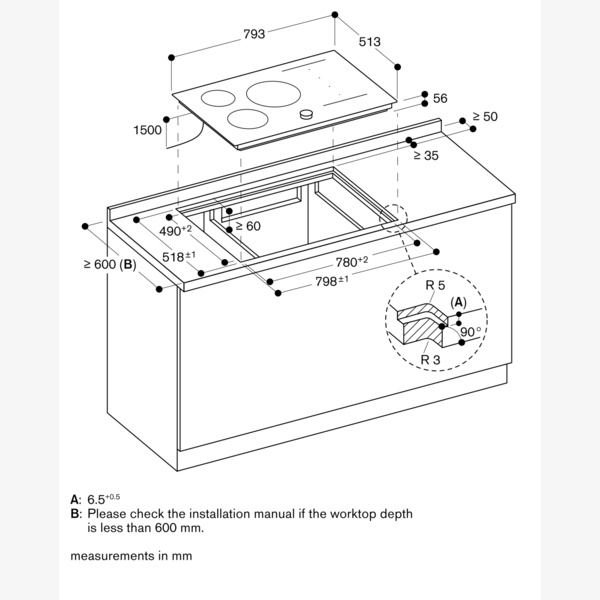

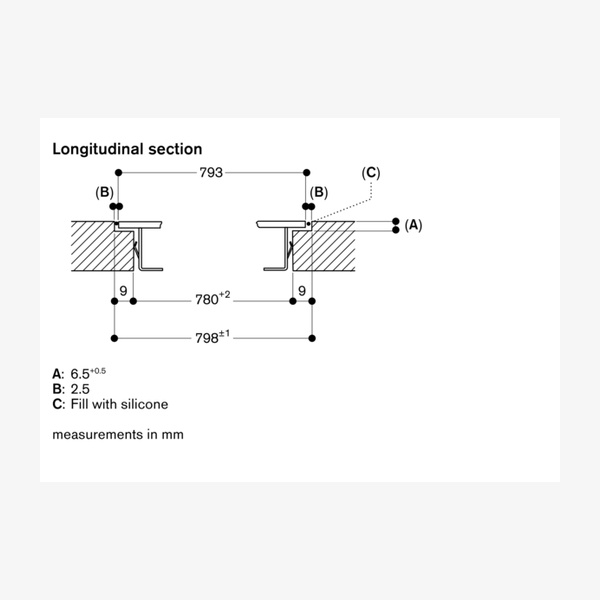

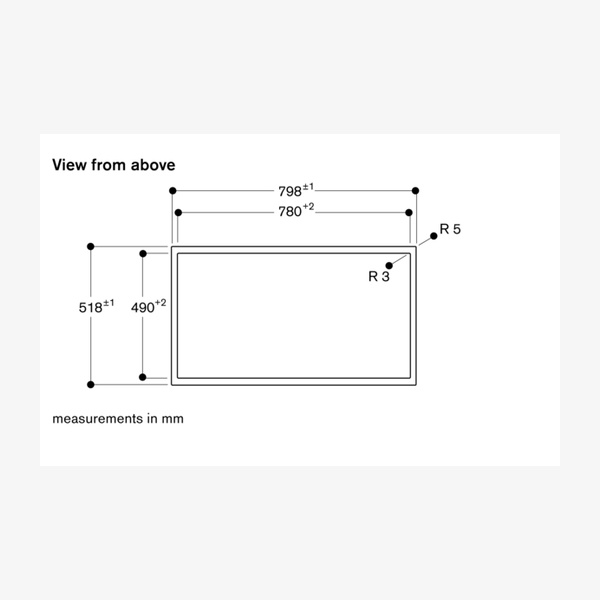

Installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. For other materials, the worktop manufacturer should be consulted. The appliance must be fixed from underneath. Measurements are given in millimetres in the planning diagrams (not reproduced here).

Operation and functions

Twist-Pad control with removable magnetic knob for adjusting settings.
User-friendly control with two colour display (white / orange).
Cooking zone and cooking area marking for orientation.
Electronic power control in 17 output levels across all zones.
Flex function for rectangular cooking areas for flexible cookware placement.
Professional cooking function for 3 predefined heat areas.
Booster function for pots and separate booster for pans.
Keep warm function to maintain temperature.
Stopwatch, cooking timer up to 99 minutes and short-term timer.
Options menu and power management for tailored operation.

Digital services (Home Connect)

Selected digital services (Gaggenau Home Connect) are supported, including cooktop-based ventilation control with a suitable hood, remote monitoring and remote diagnostics. The availability of the Home Connect functionality depends on the availability of the Home Connect Services in the country, and Home Connect Services are not available in every country. The user manual explains how to switch off the WiFi module.

Cookware compatibility

The cooktop operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, the use of sandwich bottom cookware is recommended. The wok pan WP 400 001 cannot be used with this appliance.

Safety features

Main switch for overall control.
Operation indicator for active status.
Pot detection to recognise suitable cookware.
2 stage Hh residual heat indicator for each zone.
Child lock to help prevent unintended operation.
Safety shut-off function.

Optional accessories and special accessories

CA050300: Flex pan set, 3 pcs.
CA051301: Teppan Yaki.
CA052300: Griddle Plate.
CA055300: Flex pan large.
CA230100: Magnetic knob, black.
Part No. 17006018: Frying sensor pan, ø 20 cm.
Part No. 17006184: Frying sensor pan, ø 24 cm.

Downloads

Download product documentation, manuals, and specification sheets.

CI283103 Spec

PDF

Frequently Asked Questions

What type of cookware can I use on the CI283103?

The cooktop operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, sandwich bottom cookware is recommended. The wok pan WP 400 001 cannot be used with this appliance.

How many cooking zones does this cooktop have?

It has 2 flex induction cooking areas 21×20 cm that can be linked to 21×40 cm, plus 3 round induction zones with diameters of 24 cm, 18 cm and 15 cm.

What is the purpose of the professional cooking function?

The professional cooking function allows the cooktop to be split into 3 predefined heat areas, supporting different temperature zones on the same surface.

Does the CI283103 support smart home features?

Yes. It includes an integrated WiFi module for selected digital services (Gaggenau Home Connect), such as cooktop-based ventilation control with a suitable hood, remote monitoring and remote diagnostics, subject to service availability in the country.

What safety features are included?

Safety features include a main switch, operation indicator, pot detection, 2 stage Hh residual heat indicator for each zone, child lock and safety shut-off.

What is the total connected load of the cooktop?

The total connected load is 7.4 KW, with a 1.10 m connecting cable supplied without plug.
