The CG291210 is a 90 cm gas cooktop from the 200 series designed for natural gas 20 mbar. It offers mechanical power level regulation with 9 power levels for precise, reproducible flame size and comfortable, secure operation via a dedicated control panel. With a powerful multi-ring burner at 5 KW, additional standard and economy burners, electric ignition and a thermoelectric safety pilot, it provides efficient gas cooking with practical safety and installation features.

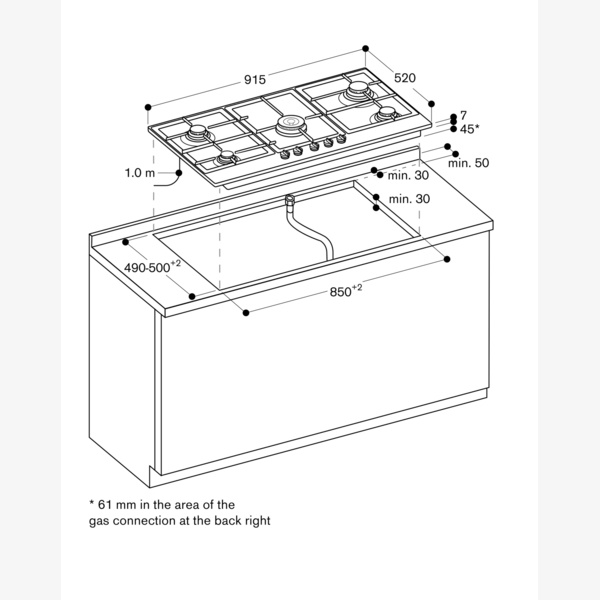

This cooktop is designed for surface-mounted installation in an 85 cm niche or an 88 cm niche using the included spacers. Air is taken in from above, an intermediate shelf is required and the appliance must be fixed from underneath.
A minimum clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed, or thermal insulation fitted. The minimum distance between the cooktop surface and a cabinet above made of combustible material is 65 cm. The minimum distance to a ventilation unit above is as shown in the planning hints for the individual ventilation product.
With a total connected load of more than 11 kW, local regulations concerning room ventilation, room size and the combination of extraction or recirculation hoods must be observed.
It is designed for natural gas 20 mbar.
The cooktop has mechanical power level regulation for 9 power levels, allowing exact setting and reproduction of flame size.
It provides 2 two-ring wok burners (300 W – 5000 W), 2 standard burners (350 W – 1750 W) suitable for pots up to max. ø 20 cm, and 1 economy burner (330 W – 1000 W) suitable for pots up to max. ø 14 cm.
Yes, the cooktop is equipped with a thermoelectric safety pilot.
The optional accessory listed is the WP400001 wok pan.
