Installation and Usage Details

Handling and Controls

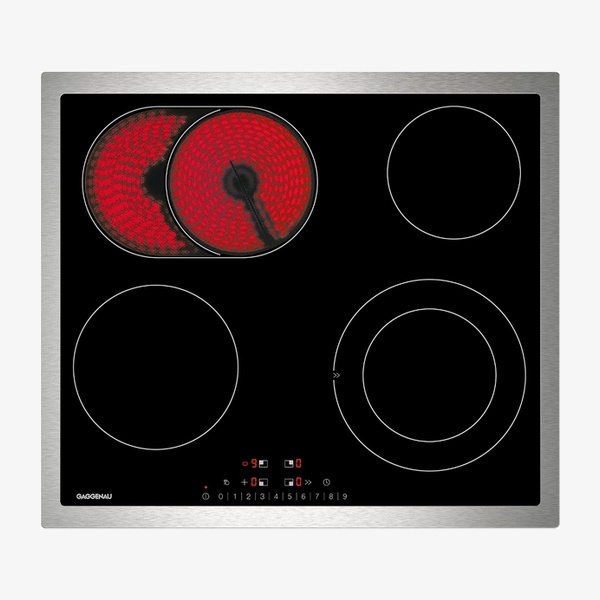

The cooktop is operated via sensor control with direct selection of output level. Each cooking zone is clearly identified with cooking zone marking. Electronic power control provides Variable 17-stage power settings for each zone, allowing fine adjustment of heat output.

Functions and Timers

• Booster function on the ø 21 cm cooking zone (up to 2600 W).
• Cooking timer for up to 99 minutes.
• Short-term timer for additional timing tasks.
• Options menu for configuring further settings.

Safety Information

• Main switch to power the cooktop on and off.
• Operation indicator showing when the appliance is active.
• 2 stage Hh residual heat indicator for each zone to signal remaining heat.
• Child lock to help prevent unauthorised operation.
• Safety shut-off for additional protection during use.

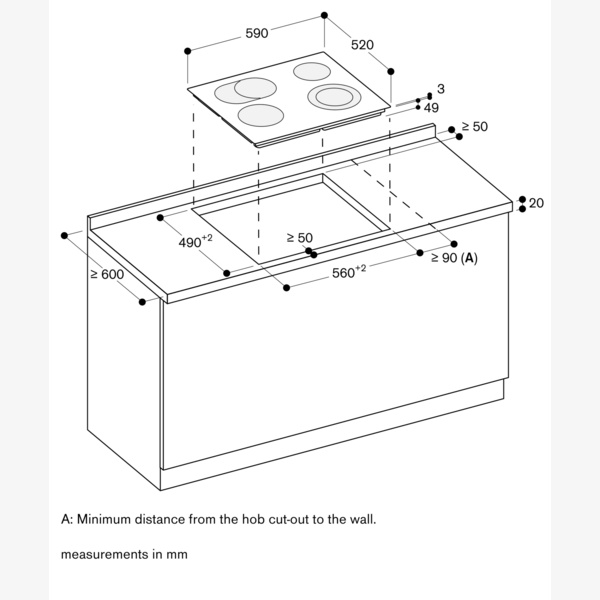

Planning and Installation Notes

• Immersion depth 49 mm; depth at plug socket 50 mm.
• Under the plug socket, a 10 mm clearance must be observed from side panels or from an intermediate shelf.
• The cooktop must be freely accessible from underneath to detach the base in a downward direction.
• Installation is possible in a 60 cm wide lower cabinet.
• The appliance must be fixed from underneath.
• Cooktop clamping range is 20 – 50 mm.
• A connection cable must be planned for the total connected load of 8.3 kW.
