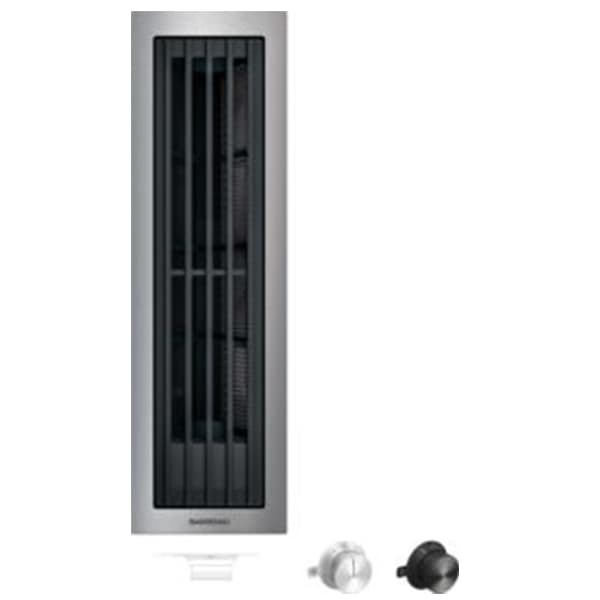

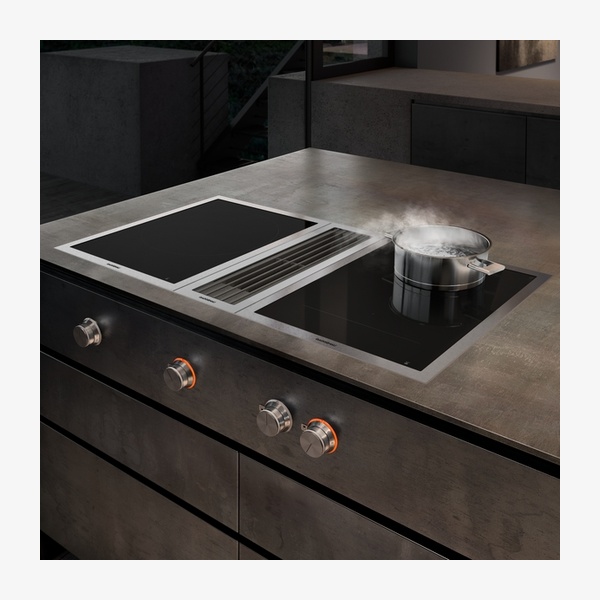

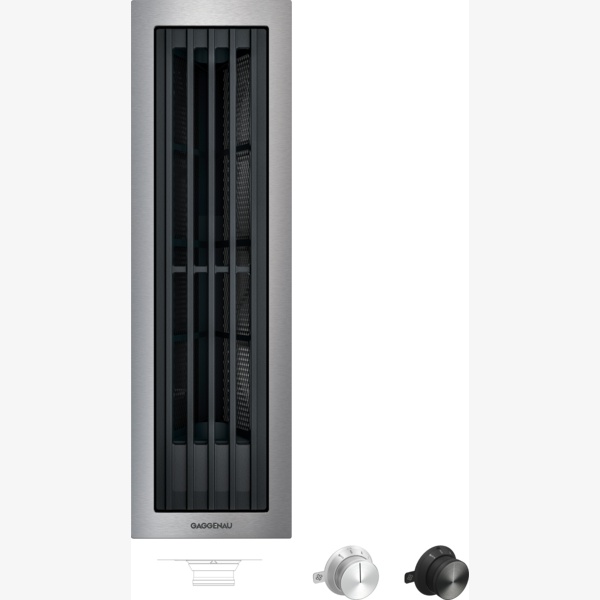

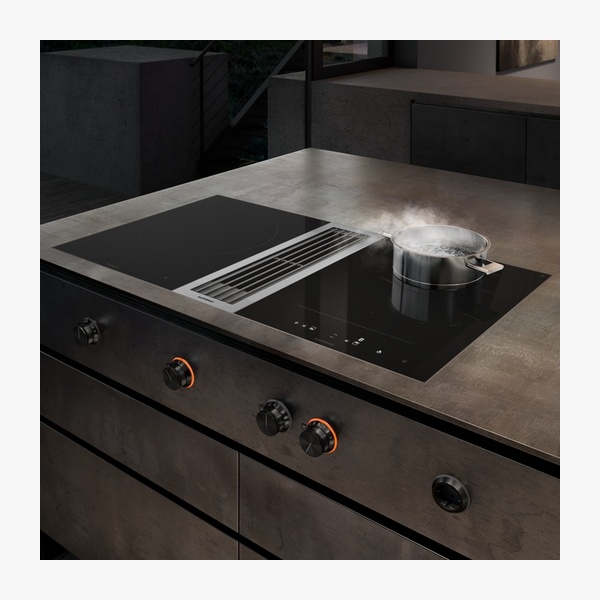

The VL414115 Vario downdraft ventilation 400 series is a highly efficient, low-noise ventilation system in 15 cm stainless steel. Designed for surface or flush installation, it offers automatic, sensor-controlled power adjustment and run-on functions. It can be combined with other Vario appliances of the 400 series and is especially effective with a remote fan unit. With dishwasher-safe components and selected digital services via Home Connect, it supports modern, integrated kitchen ventilation.

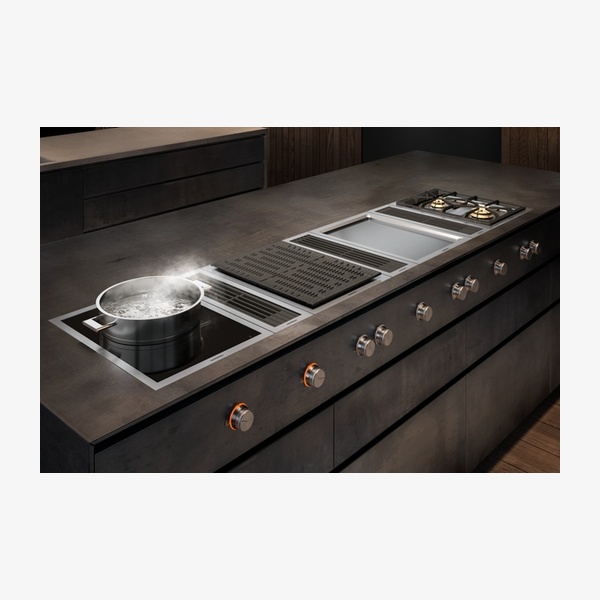

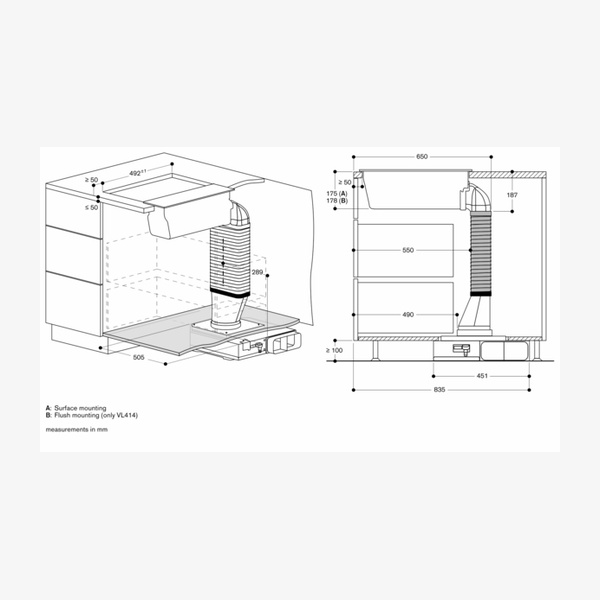

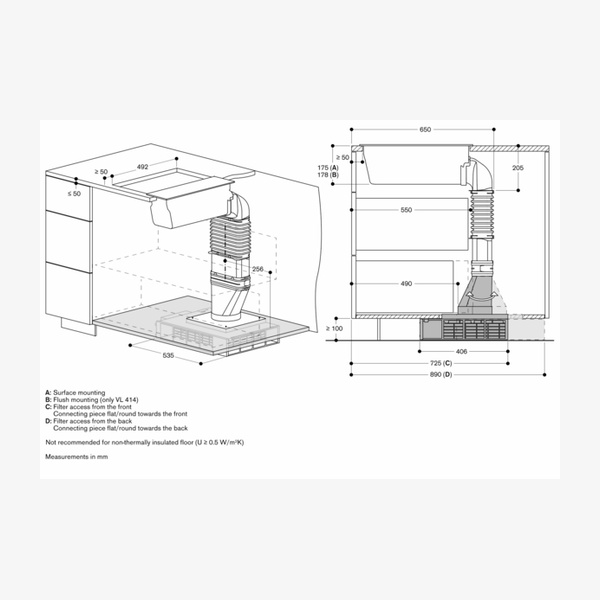

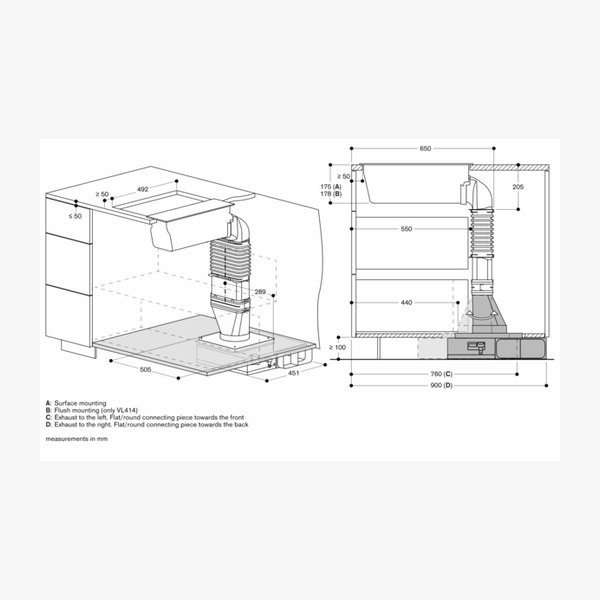

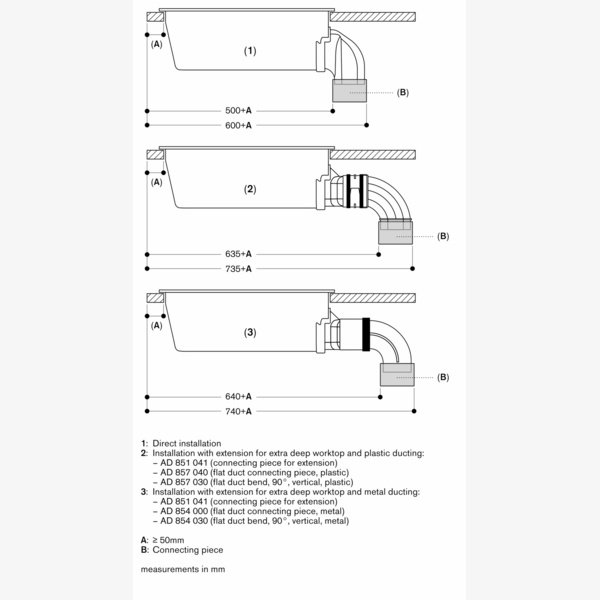

The appliance is suitable for surface installation with a visible edge or for flush installation. It can be snapped into the worktop from above. For each VL unit one remote fan unit is recommended. Vario cooktops such as the Vario electric grill and Vario gas wok should be placed between two VL units, and the maximum cooktop width between two VL units is 80 cm (except with the CX 482).
When combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances, with the type of strip depending on the installation. The bearing capacity and stability of the worktop, particularly thin worktops, must be supported with suitable substructures, taking into account the appliance weight and additional loads.

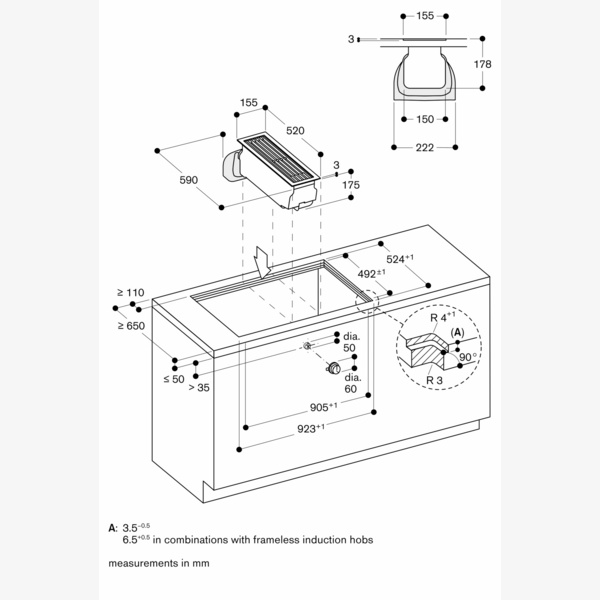

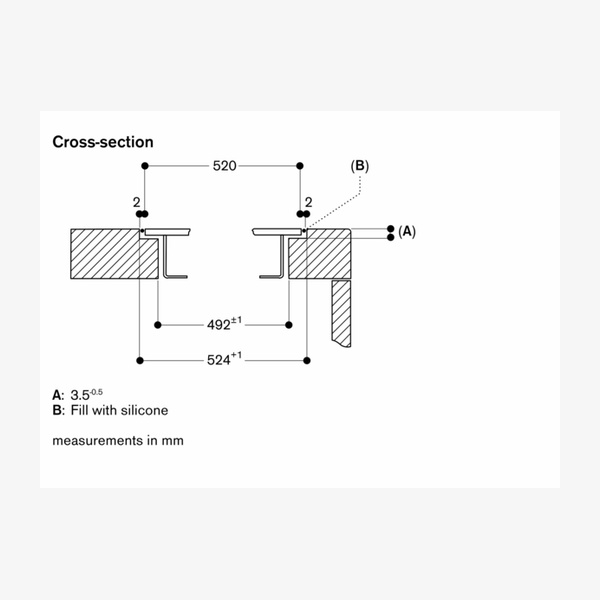

Flush installation is possible in worktops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the cut edges must be observed. For other materials, the worktop manufacturer should be consulted. The groove must be continuous and even so the appliance can be placed uniformly on the gasket; discontinuous lining should not be used. The joint width may vary due to size tolerances of the combinations and of the worktop cut-out.

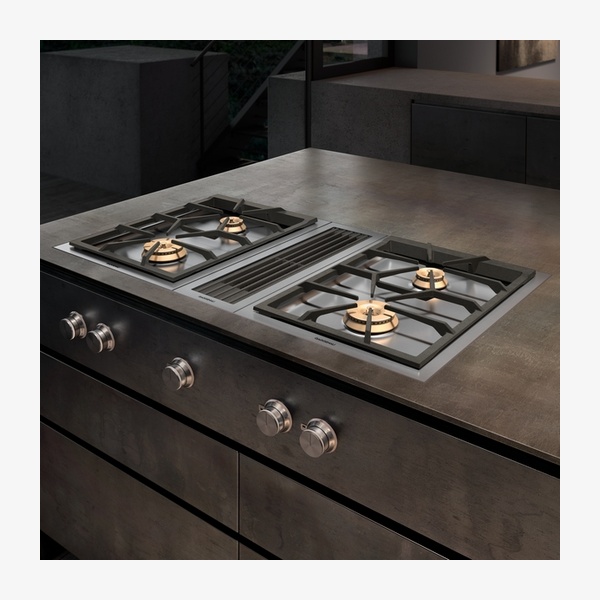

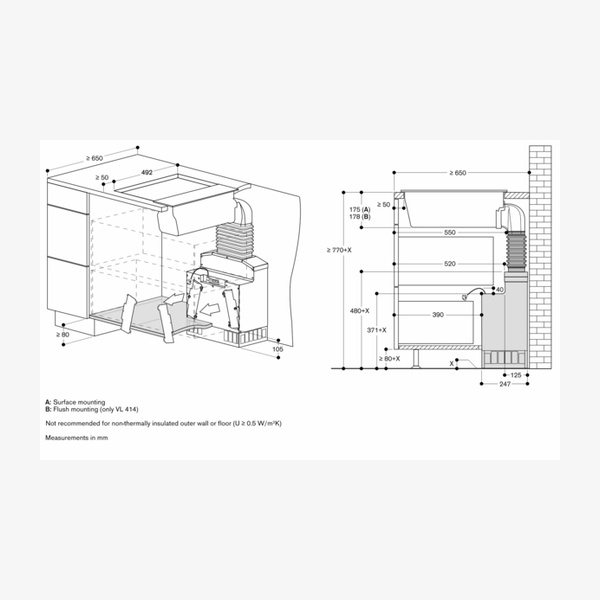

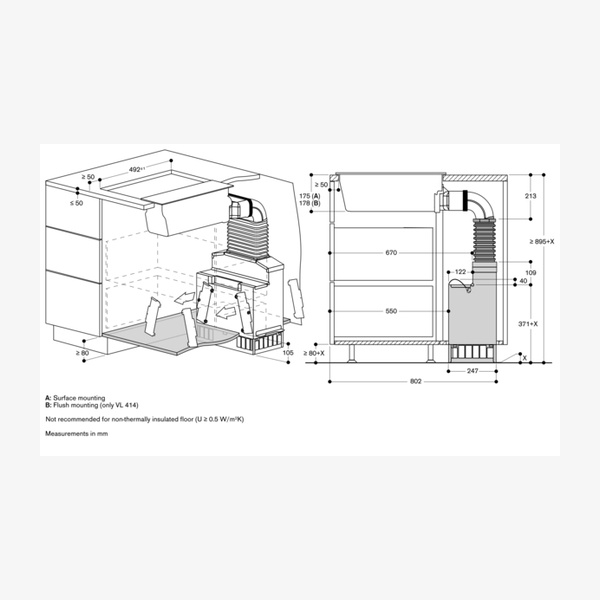

For optimum performance in air recirculation mode, an outflow surface area of at least 400 cm² is recommended. If the unit is operated next to gas appliances, the air baffle AA 414 010 is recommended to ensure maximum performance of the cooktop.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood’s power supply line needs to feature a suitable safety switch.
The product offers selected digital services via Gaggenau Home Connect, including cooktop-based ventilation control (with a suitable cooktop), remote control and monitoring, and remote diagnostics. Home network integration for digital services is possible via cable connection LAN (recommended) or wireless via WiFi. The availability of Home Connect functionality depends on the availability of Home Connect Services in the respective country.
A LAN cable should be planned for installation. Power consumption in standby with display off is 0.2 W. Instructions on how to switch off the WiFi module are provided in the user manual (not stated in source here).
The large-scale metal grease filter and the enamelled ventilation grille are removable and dishwasher-safe, supporting straightforward cleaning. The appliance features saturation indicators for both the grease filter and the activated charcoal filter, signalling when maintenance is required.

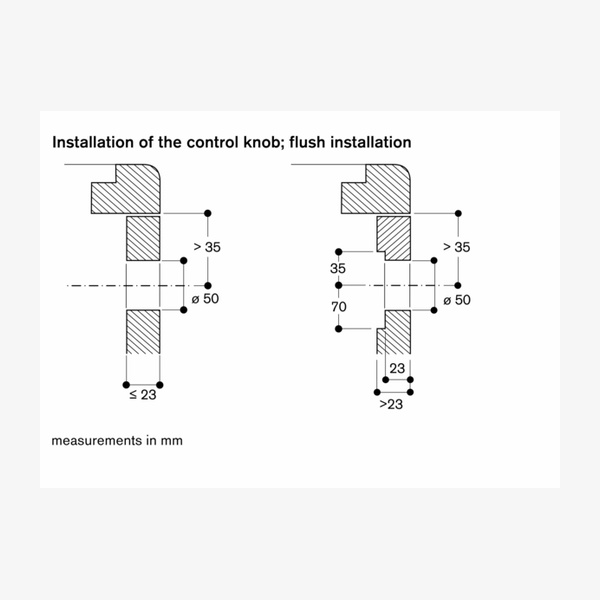

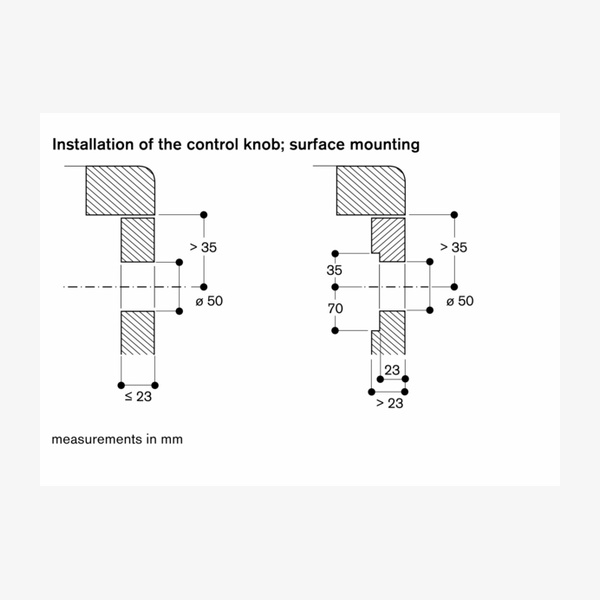

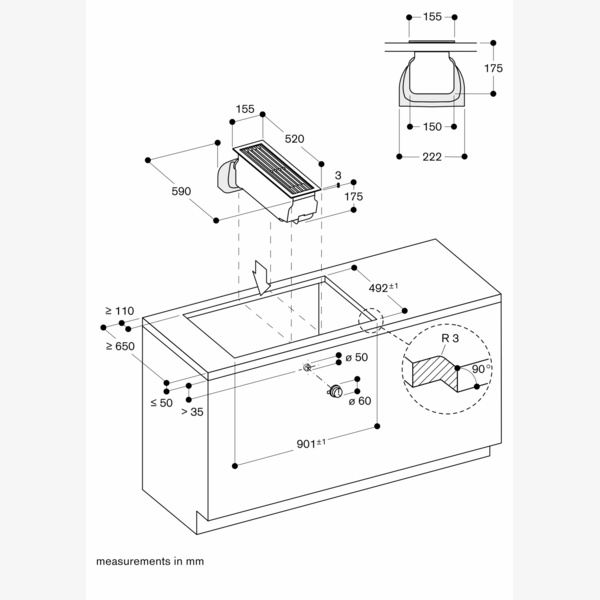

The VL414115 can be installed as a surface-mounted unit with a visible edge or as a flush-mounted unit in the worktop. It can be snapped into the worktop from above. Flush installation is suitable for worktops made of stone, synthetics or solid wood, with attention to heat resistance and watertight sealing of cut edges.
Yes. The appliance has a function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours. It also offers an automatic sensor-controlled or manual run-on function to continue ventilation after cooking.
The VL414115 includes a large-scale metal grease filter with high grease absorption. The grease filter unit is removable and dishwasher-safe, as is the enamelled ventilation grille. The appliance features saturation indicators for both the grease filter and the activated charcoal filter to show when maintenance is required.
The product offers selected digital services via Gaggenau Home Connect, including cooktop-based ventilation control (with a suitable cooktop), remote control and monitoring, and remote diagnostics. Home network integration is possible via LAN (recommended) or WiFi, but the availability of Home Connect Services depends on the country.

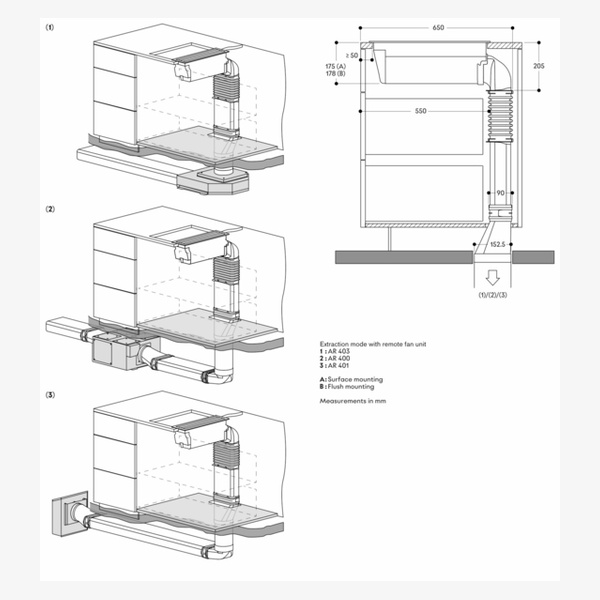

For each VL414115, one remote fan unit is recommended. The ventilation system is described as especially efficient with remote fan unit AR 410 110, and consumption data provided for the product is referred to a configuration with remote fan unit AR 403 122.
The VL414115 has an energy efficiency class of A+ (on a scale from A+++ to D), with annual energy consumption of 40.4 kWh/year when configured with remote fan unit AR 403 122. The ventilation efficiency class is A, the grease filter efficiency class is B, and the sound level in normal mode is between 57 dB (minimum) and 71 dB (maximum).
