Gaggenau 200 Series DF261101 Dishwasher

The DF261101 is a 60 cm built-in Dishwasher 200 series with 6 programmes, 3 options and a flexible basket system designed for up to 13 place settings. It offers bright interior lighting, remaining time projection on the kitchen floor and very quiet operation at 43 dB. With glass protection using zeolite, selectable digital services via an integrated WiFi module and an energy efficiency class B rating, it is suitable for households seeking efficient, versatile dishwashing.

SKU:DF261101
EAN:
Category::Dishwashers
2 Year Warranty

Key Features

6 programmes with aqua sensor and 3 options including Power from 57 minutes and Intensive for thorough cleaning in the lower basket.
Very quiet operation with a noise level of 43 dB (re 1 pW).
Flexible basket system on all levels with adjustable upper basket and multiple folding spines and racks.
Optimal glass protection thanks to low temperature drying with zeolite, elaborated basket design and intelligent water softening.
Bright interior lighting from two LED lights positioned at the top front.
Remaining time projection onto the kitchen floor for clear programme status.
TFT display and touch key operation showing remaining or end time, refill indicators and water inflow.
Flexible cycle time reduction , available even during an active cycle.
Personalisation function for saving individual combinations of programmes (default setting: Pre-rinse).
Drying assistant enabling optional door opening at the end of the programme.
Energy efficiency class B at a range of energy efficiency classes from A to G.
Low water and energy consumption from 9.5 l water and from 0.635 kWh.
13 place setting capacity with a maximum glass loading capacity of 23 wine glasses.
Comprehensive protection systems including aqua sensor, load sensor, regeneration electronics, heat exchanger, aqua stop and triple self-cleaning filter system.
Selected digital services (Gaggenau Home Connect) such as Programme assistant, downloadable programmes, temporary noise reduction and software updates.
Integrated WiFi module for digital services (Home Connect), subject to service availability in the country.
Flexible installation planning with height-adjustable feet and rear feet adjustable from the front.
Included accessories of 1 x baking tray spray head and 1 x stainless steel trim kit.
Optional accessories available including retractable hinge for high corpus dimensions, cutlery drawer, glassware holders and hose extension.

Technical Spec

Product seriesDishwasher 200 series
ModelDF261101
Width60 cm
Place setting capacity13 place setting capacity
Maximum glass loading capacity23 wine glasses
Energy efficiency classB (range A to G)
Water consumptionFrom 9.5 l water
Energy consumptionFrom 0.635 kWh
Noise level43 dB (re 1 pW)
Programmes6 programmes: Auto 35 °C – 45 °C; Auto 45 °C – 65 °C; Auto 65 °C – 75 °C; Eco 50 °C; Quick wash 45 °C (35 min.); Personalisation function (default setting: Pre-rinse).
OptionsIntensive; Power; Half Load; Machine Care.
Interior lightingTwo LED lights at the top front.
Display and controlsTFT display; touch key operation.
ProjectionRemaining time projection onto the kitchen floor.
Glass protectionGlass protection with zeolite and intelligent water softening.
Sensors and systemsAqua sensor; load sensor; automatic detergent function; regeneration electronics; heat exchanger; continuous flow heater; triple filter system, self-cleaning.
SafetySoft lock; aqua stop.
Digital servicesSelected digital services (Gaggenau Home Connect): Programme assistant; downloadable programmes; temporary noise reduction; software updates.
ConnectivityIntegrated WiFi module for digital services (Home Connect); availability depends on country services.
Upper basket featuresOver extension; optional extra cleaning area via additional spray nozzles; Rackmatic with 3 levels (height adjustable up to 5 cm); 6 folding spines; 4 folding racks for glass protection.
Lower basket features8 folding spines; 2 folding racks for glass protection; dividable glass support; cutlery basket.
Maximum dish sizes (upper/lower)29/28, 26.5/30.5 or 24/34 cm respectively.
Included accessories1 x baking tray spray head; 1 x stainless steel trim kit.
Optional accessoriesDA021000: Retractable hinge for high corpus dimensions; DA041061: Cutlery Drawer; DA042030: Silver polishing cassette; DA043000: Holder for long-stemmed glasses; DA045060: 3. Basket; GZ010011: inlet and outlet hose extension.
Installation accessoriesDA021000: Retractable hinge for high corpus dimensions; GH045010: Handle ss 45 cm; GZ010011: inlet and outlet hose extension.
Height-adjustmentHeight-adjustable feet; rear feet adjustable at front.
Appliance plinth recess100 mm (with further notes on projection and plinth height reduction).
Door weightUp to 10 kg.
Door panel dimensionsDependent on plinth height of kitchen furniture.
Total connected load2.0 KW – 2.4 KW.
Connecting cablePlugable.
Water connection3/4 ' screw joint; connection to hot or cold water possible.
Power consumption standby/network2 W.
Power consumption left-on-mode0.5 W.
Power consumption off-mode0.5 W.
Time auto-standby/network2 min.
Left-on-mode duration0 min.
WiFi module deactivationPlease check the user manual for how to switch off the WiFi module.

Programmes, Operation and Installation

Programmes and options

The appliance provides 6 programmes with aqua sensor: three Auto programmes (35 °C – 45 °C, 45 °C – 65 °C, 65 °C – 75 °C), Eco 50 °C, Quick wash 45 °C (35 minutes) and a Personalisation function (default: Pre-rinse). Options include Intensive, Power, Half Load and Machine Care.

Handling and controls

A TFT display indicates remaining or end time, refill for salt and rinsing agent, and inflow of water. Operation is via touch keys. Features include flexible cycle time reduction (even during an active cycle), a personalisation function for saving programme combinations, a drying assistant for optional door opening, an information key with use indications, time delay up to 24 hours, and visual and acoustic end of programme indicators.

Interior layout

The flexible basket system comprises an upper basket with over extension, optional extra cleaning area via additional spray nozzles, Rackmatic with 3 height levels (up to 5 cm), 6 folding spines and 4 folding racks for glass. The lower basket includes 8 folding spines, 2 folding racks for glass protection, a dividable glass support and a cutlery basket, allowing flexible loading and glass care.

Installation notes

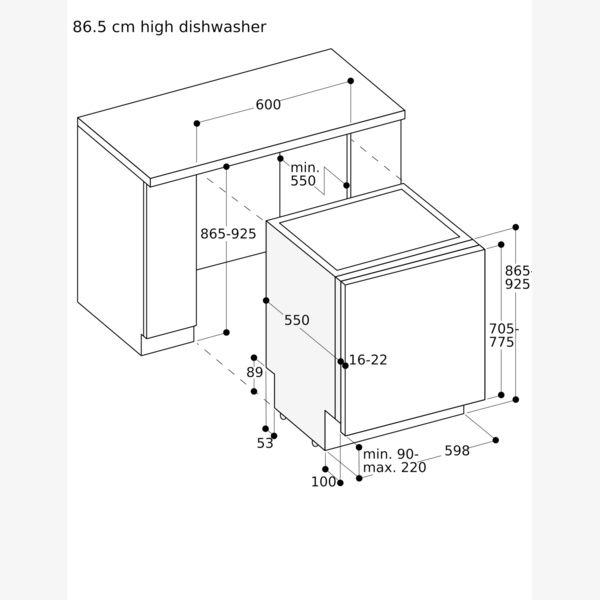

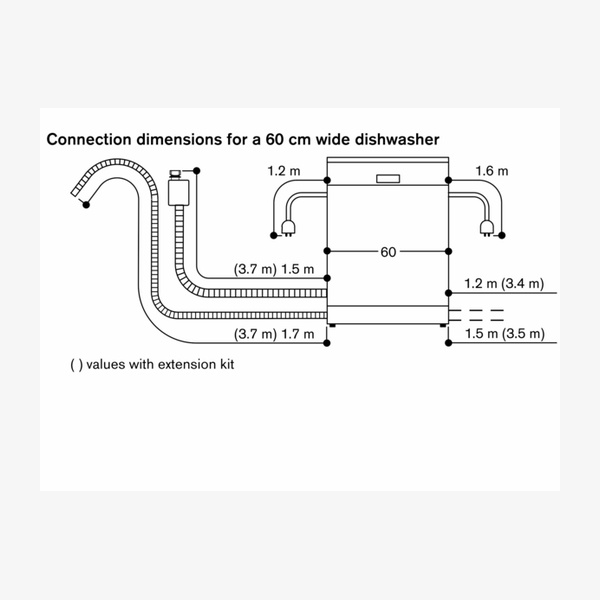

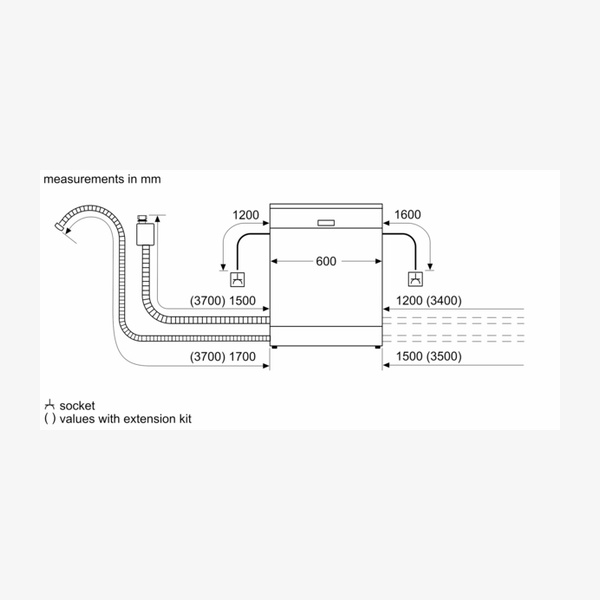

The appliance has height-adjustable feet with rear feet adjustable from the front. The appliance plinth recess is 100 mm. To display the remaining time projection, a minimum plinth protrusion is required (40 mm plus furniture front thickness), and the maximum plinth height must be reduced by 30 mm for optimal display. Door weight can be up to 10 kg and door panel dimensions depend on the plinth height of the kitchen furniture. Water connection uses a 3/4 ' screw joint to hot or cold water.

Downloads

Download product documentation, manuals, and specification sheets.

DF261101 Spec

PDF

Frequently Asked Questions

How many place settings does the DF261101 hold?

The DF261101 has a 13 place setting capacity and can hold up to 23 wine glasses.

What are the main wash programmes available?

The dishwasher offers 6 programmes: Auto 35 °C – 45 °C, Auto 45 °C – 65 °C, Auto 65 °C – 75 °C, Eco 50 °C, Quick wash 45 °C (35 minutes) and a Personalisation function with default setting Pre-rinse.

How does this dishwasher protect delicate glassware?

Glassware is protected by low temperature drying with zeolite, an elaborated basket design, intelligent water softening, folding glass racks, a dividable glass support and options such as a holder for long-stemmed glasses as an accessory.

Is the DF261101 suitable for open-plan kitchens?

The dishwasher operates at 43 dB (re 1 pW), described as very quiet, and offers temporary noise reduction via selected digital services, which can be beneficial in open-plan environments.

Does the appliance support Home Connect features?

Yes, an integrated WiFi module enables selected digital services (Gaggenau Home Connect) including Programme assistant, downloadable programmes, temporary noise reduction and software updates, subject to the availability of Home Connect services in the country.

Can I reduce the running time of a programme that has already started?

The appliance offers flexible cycle time reduction, even during an active cycle, allowing you to shorten the programme duration.
