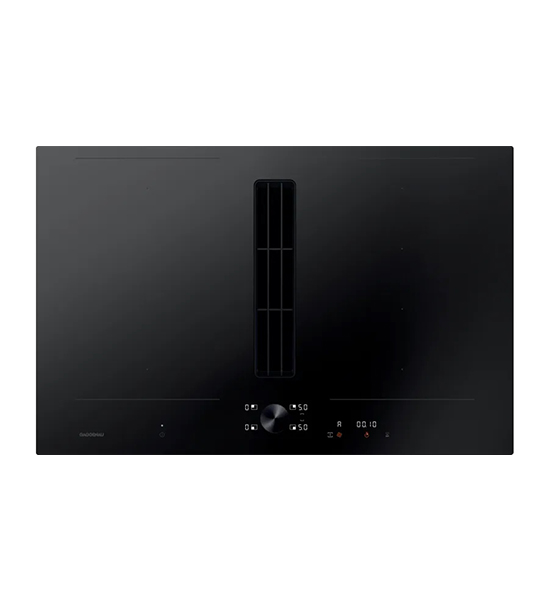

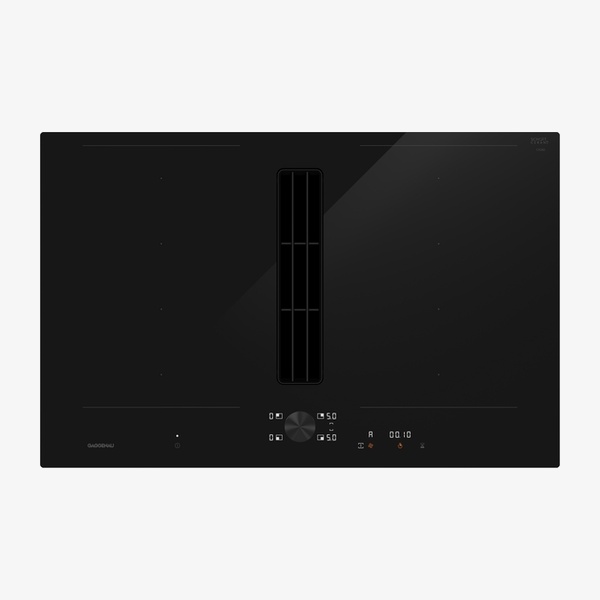

Gaggenau 200 Series CV282101 Venting FlexInduction Hob

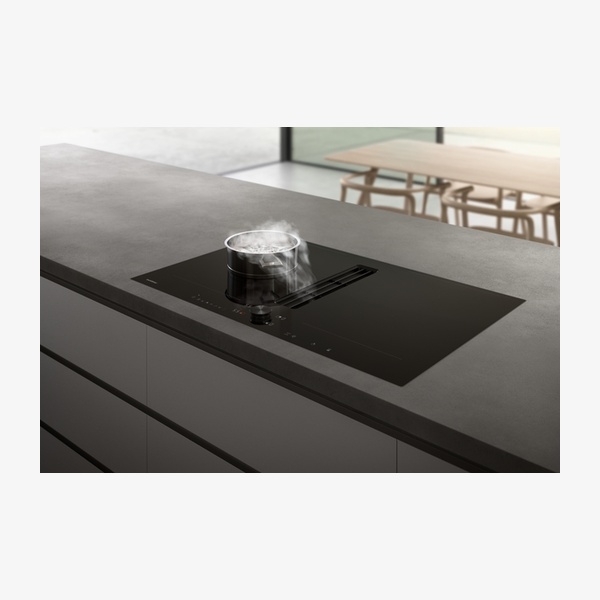

The CV282101 is an 80 cm flex induction cooktop with a highly efficient ventilation system integrated into the cooking surface. It offers flexible positioning of cookware with two flex induction areas that can be combined, plus fully automatic ventilation functions with energy–saving, low–noise fan technology. With Twist–Pad control, sensor–assisted cooking options and selected digital services via Home Connect, it is designed for modern kitchens using either air extraction or recirculation.

SKU:CV282101

EAN:4242006289737

Category::Hobs

Quantity:

Key Features

Flex induction cooktop with integrated ventilation for highly efficient extraction directly at the cooktop.

Fully automatic ventilation system functions with automatic sensor–controlled performance adjustment and run–on.

Two flex induction cooking areas 24×20 cm that can be linked to form 24×40 cm cooking zones for flexible cookware positioning.

Large–scale metal grease filter , removable from above, dishwasher–safe with saturation indicator.

Air extraction or recirculation system with integrated activated charcoal filter easily removable from above for recirculation.

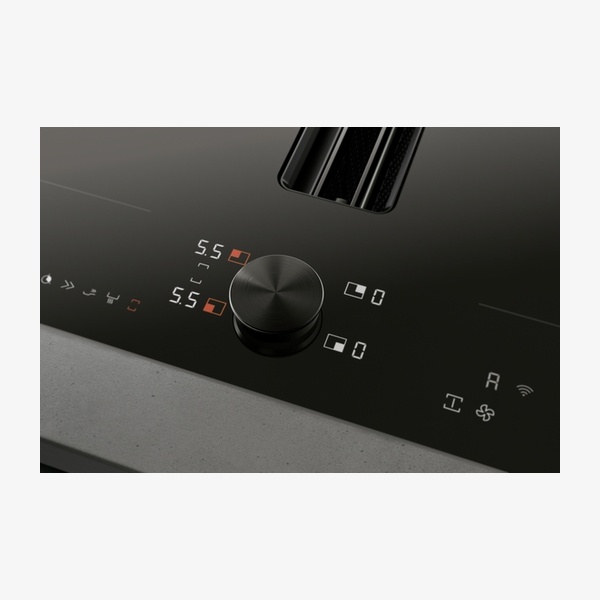

Twist–Pad control with removable magnetic knob and user–friendly control using two–colour display (white / orange).

Variable 17–stage power settings for each cooking zone plus booster function for pots and pans.

Professional cooking, cooking sensor and frying sensor functions (cooking sensor in use with cooking sensor CA 060 300).

Keep warm function and memory function, plus options menu and power management.

Automatic activation of the ventilation system when a cooking zone is used, with interval ventilation (6 min).

Fan technology with highly efficient, brushless DC motor and airflow–optimised interior for efficient air circulation.

Selected digital services (Gaggenau Home Connect) including remote control and monitoring of ventilation and cooking zones, plus remote diagnostics.

Energy efficiency class A with ventilation efficiency class A and grease filter efficiency class B.

Multiple timer options including stopwatch, cooking timer up to 99 minutes and short–term timer.

High–grade black zinc die–cast cover for the ventilation system, removable and dishwasher–safe.

Detachable, dishwasher–safe two–stage overflow protection and removable 0.9–litre overflow container.

Operates with magnetic (induction) iron pots and pans only ; sandwich bottom cookware is recommended for optimal heat distribution.

Technical Spec

Product typeFlex induction cooktop with integrated ventilation system 200 series

Model codeCV282101

Width80 cm (cooktop width stated as 80 cm)

Cooking zones2 flex induction cooking areas 24×20 cm (2200 W, with booster 3700 W), each pair linkable to 24×40 cm (3300 W, with booster 3700 W); 2 such flex areas in total

Power settingsVariable 17–stage power settings for each zone; booster function for pots and booster function for pans

Ventilation performance – air extraction532 / 636 m³/h at output level 3 / Intensive (according to DIN EN 61591)

Ventilation performance – air recirculation487 / 611 m³/h at output level 3 / Intensive (according to DIN EN 61591)

Sound power level – air extraction70 / 74 dB(A) re 1 pW at level 3 / Intensive (according to EN 60704–3)

Sound power / pressure – air recirculation67 / 72 dB(A) re 1 pW; 55 / 61 dB(A) re 20 μPa at level 3 / Intensive (according to EN 60704–3 / EN 60704–13)

Sound level (normal mode)Minimum 61 dB / maximum 70 dB in normal mode

Energy efficiency classA (range of energy efficiency classes from A+++ to D)

Annual energy consumption56.9 kWh/year

Ventilation efficiency classA

Illumination efficiency class–

Grease filter efficiency classB

Control typeTwist–Pad control with removable magnetic knob; two–colour display (white / orange)

Ventilation power levels3 electronically controlled power levels plus 1 Intensive mode

Integrated filtersLarge–scale metal grease filter and integrated activated charcoal filter (for air recirculation), both removable from above; grease and charcoal filter saturation indicator

Overflow containerRemovable overflow container, 0.9–litre capacity, dishwasher–safe; detachable, dishwasher–safe two–stage overflow protection

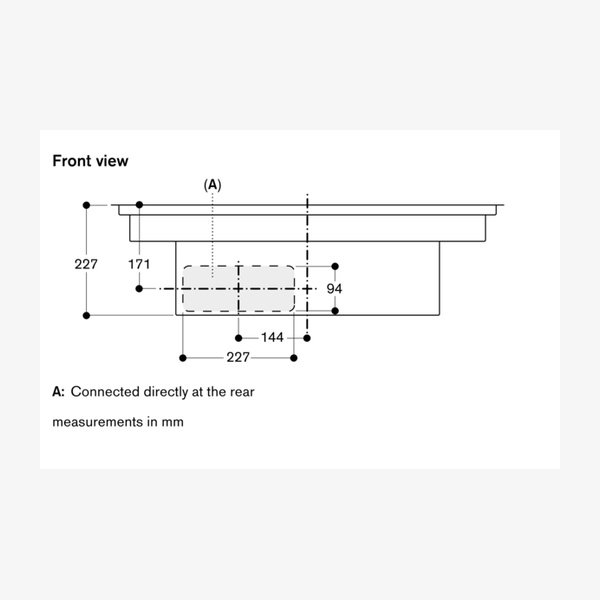

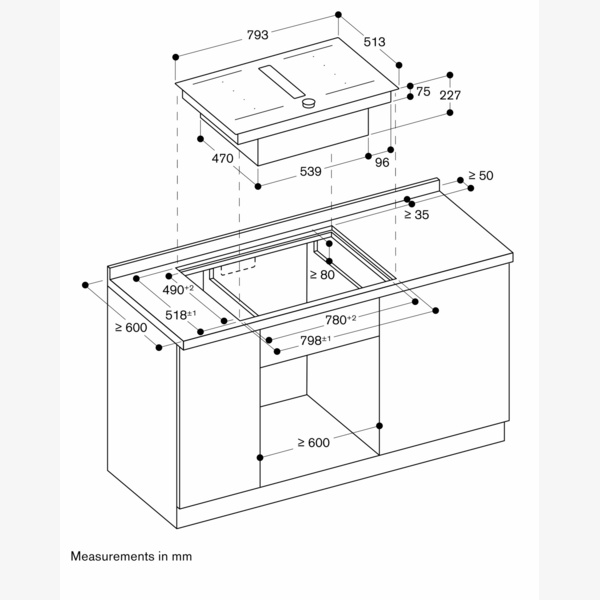

Immersion depth227 mm

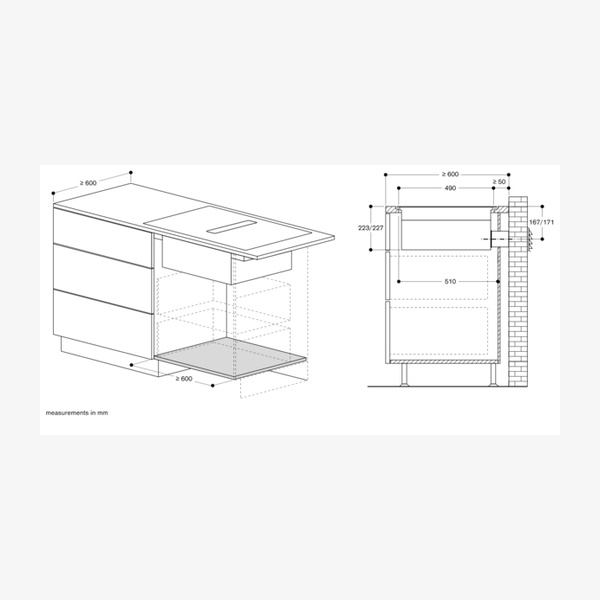

Bottom cabinet width (minimum)60 cm minimum

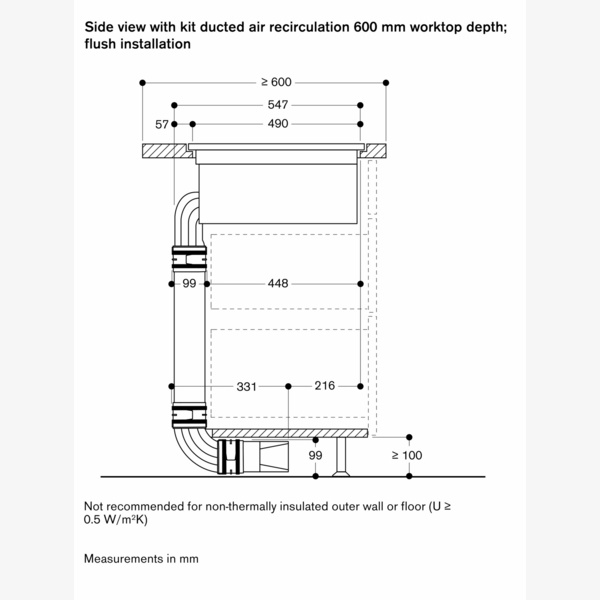

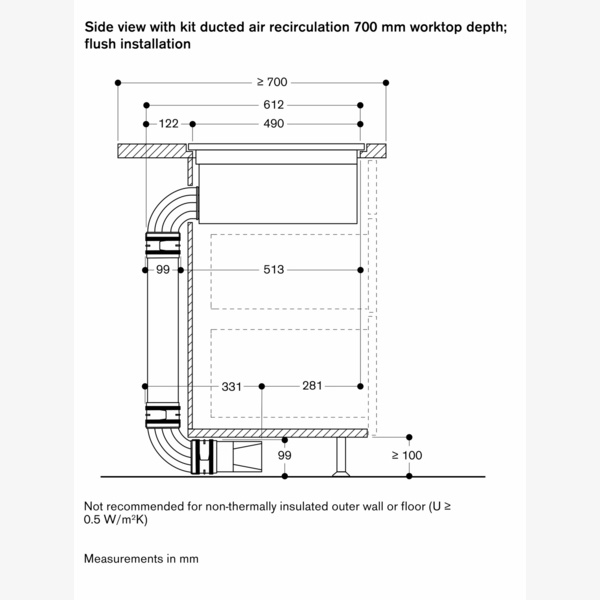

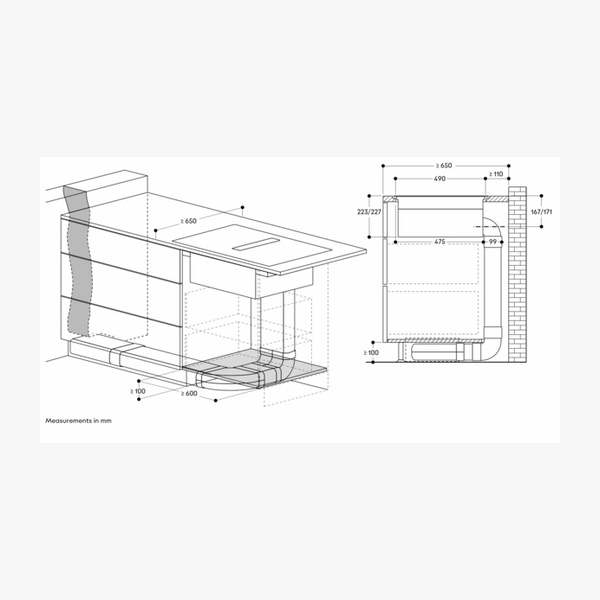

Worktop depth (minimum)60 cm with unducted recirculation; 65 cm with ducted recirculation / extraction

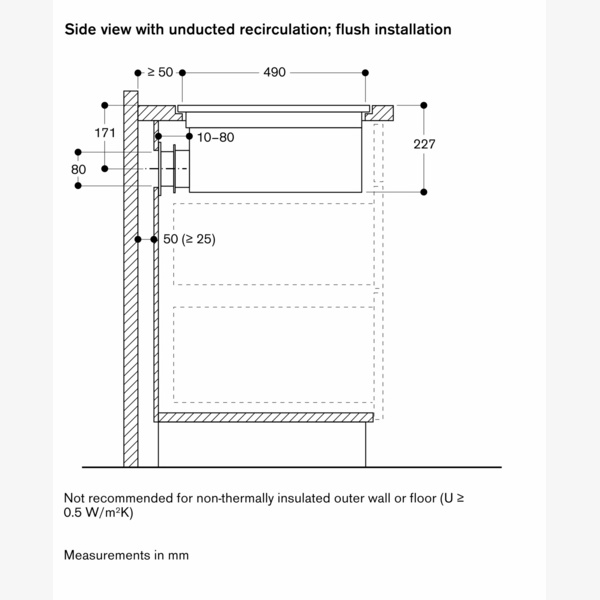

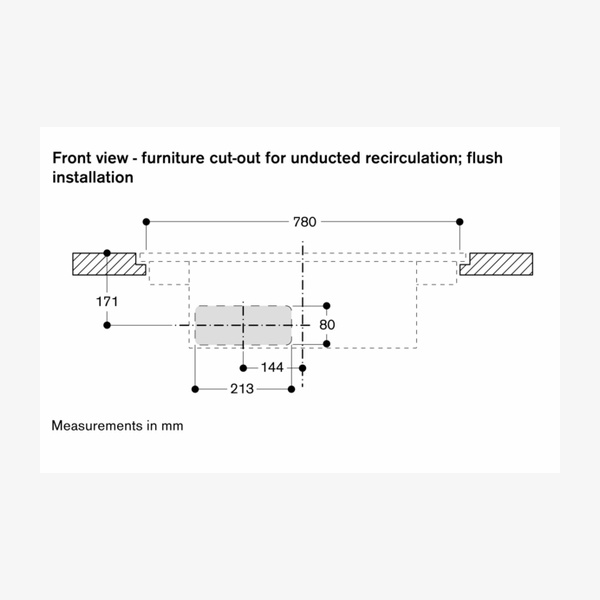

Vertical aperture for unducted recirculation set CA 082 011Minimum 25 mm behind furniture back panel; 50 mm suggested for ideal performance

Recommended outflow surface area (recirculation)At least 400 cm² for optimum performance

Equivalent ducting lengthLmax 28 m to ensure good performance

Appliance weightApprox. 27 kg (stated as approx. 27)

Total connected load7.4 kW

Connecting cable1.50 m without plug

Standby power consumption (display off)0.5 W

Standby power consumption (network)2 W

WiFi / Home ConnectIntegrated WiFi module for digital services (Home Connect); availability depends on Home Connect Services in the respective country

Compatible cookwareMagnetic (induction) iron pots and pans only; sandwich bottom cookware recommended for optimal heat distribution

Downloads

Download product documentation, manuals, and specification sheets.

CV282101 Spec

PDF

Frequently Asked Questions

Can the CV282101 be used with both extraction and recirculation?

Yes. The ventilation system can operate as an air extraction or recirculation system. For recirculation, an integrated activated charcoal filter is used and can be removed easily from above. Installation kits are available for unducted recirculation and ducted recirculation.

What cookware is compatible with this flex induction cooktop?

The appliance operates with magnetic (induction) iron pots and pans only. For optimal heat distribution, the use of sandwich bottom cookware is recommended.

How do I clean the grease filter and ventilation cover?

The large–scale metal grease filter unit is removable and dishwasher–safe. The high–grade black zinc die–cast cover for the ventilation system is also removable and dishwasher–safe, making cleaning straightforward.

Does the cooktop have child safety features?

Yes. The CV282101 includes a child lock, a main switch, operation indicator, pot detection and a two–stage residual heat indicator for each zone, along with a safety shut–off function.

What digital functions are available via Home Connect?

Selected digital services include remote control and monitoring of the ventilation, remote monitoring of cooking zones and remote diagnostics. An integrated WiFi module enables these Home Connect functions, subject to service availability in the respective country.

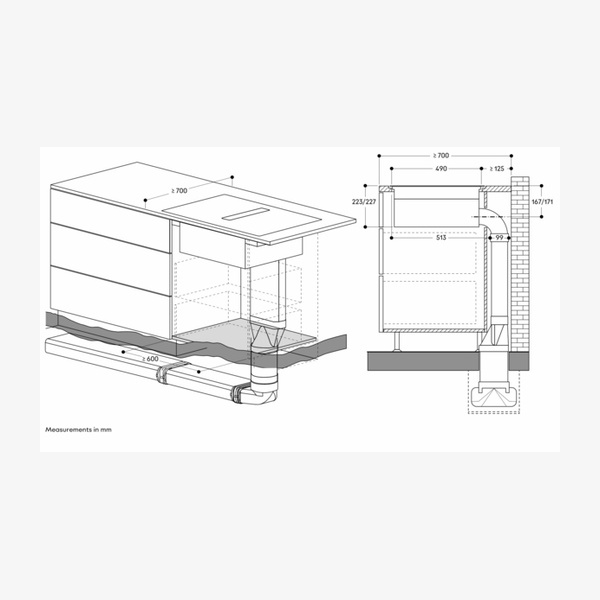

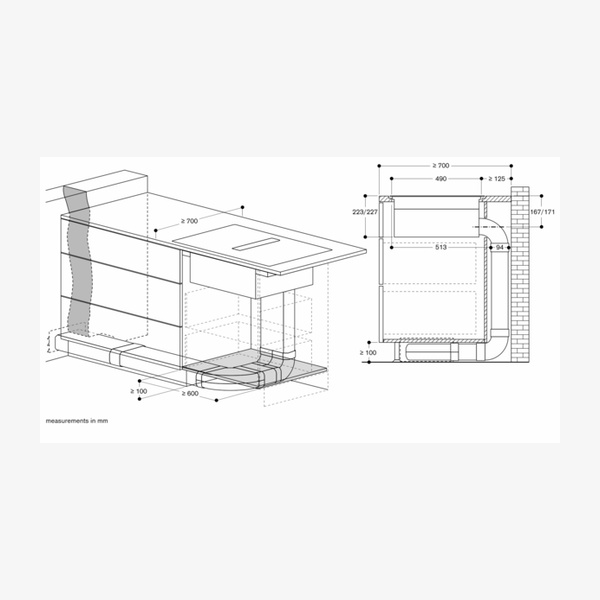

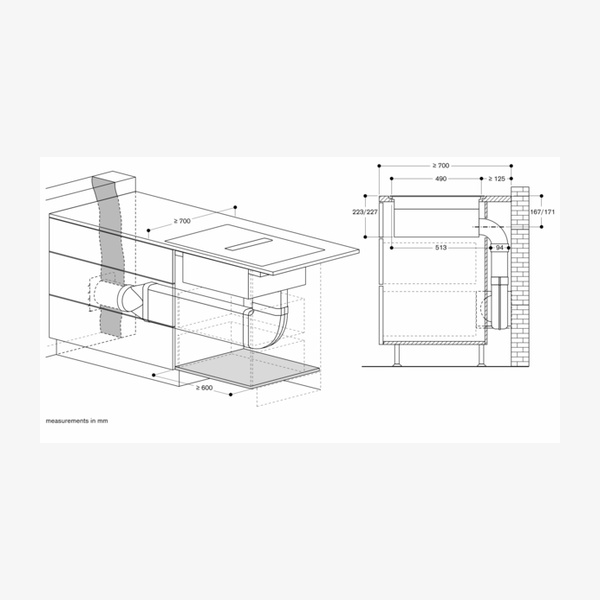

What are the minimum cabinet and worktop dimensions required?

A minimum bottom cabinet width of 60 cm is required. Worktop depth must be at least 60 cm for unducted recirculation and 65 cm for ducted recirculation or extraction.
