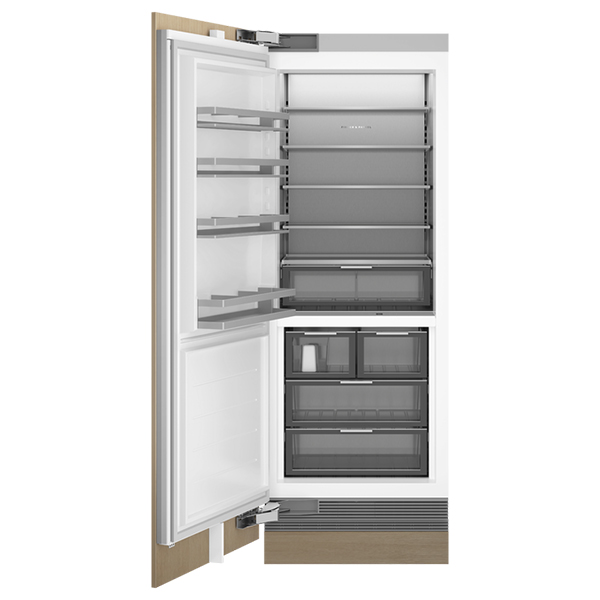

Fisher & Paykel Series 11 RS7621FRJE1 Freezer

This 76cm Series 11 Integrated Column Freezer with ice combines premium functionality and style in an elegant, built-in design. Featuring a refined interior and two Variable Temperature Zones, it allows you to choose Freeze, Soft Freeze or Deep Freeze to suit different foods. Designed to optimise energy performance and efficiency, it integrates seamlessly on its own or paired with another Column, and can be customised with cabinetry or stainless steel door panels.

SKU:RS7621FRJE1

EAN:

Category::Freezers

Quantity:

Key Features

Premium interior design – Seamless finish, considered interior lighting and a sleek, understated aesthetic that integrates effortlessly into any kitchen.

Optimised energy performance – Highly efficient vacuum insulation reduces heat transfer so the freezer uses only the energy it needs while keeping food fresher for longer.

Two Variable Temperature Zones – Flexible storage with Soft Freeze, Freeze or Deep Freeze modes, depending on what you are storing and when you plan to use it.

Deep Freeze Mode –25°C – Halts bacterial activity to store food safely for extended periods and helps retain quality and nutrients when food is defrosted.

Integrated, mix & match flexibility – Mix and match Column fridges and freezers of different sizes, install separately or pair, and complete the look with customised cabinetry or stainless steel panels.

Perfect fit flush installation – Fits flush with only 3mm gaps, with no visible hinges or grilles, enabling a clean, understated appearance behind your kitchen cabinetry.

Easy installation – Integrated Column Refrigerators and Freezers are designed to slide into place and include a joiner kit when pairing, plus front-adjustable levelling feet.

Automatic ice maker with Ice Boost – Integrated ice-making capability with Ice Boost function for increased ice production when needed.

Smart appliance – SmartTouch interface at counter height and smart appliance capability for convenient control.

ActiveSmart™ Foodcare – Performance features including ActiveSmart Foodcare, adaptive defrost, dual evaporator and inverter controlled compressor.

Efficient LED lighting – LED bin, ceiling and side lighting provide clear visibility throughout the freezer interior.

Sabbath mode – Includes Sabbath mode functionality.

Door alarms – Door alarm functions help alert you if a door is left open in both fridge and freezer features lists.

Technical Spec

Product type76cm Series 11 Integrated Column Freezer, Ice

ModelRS7621FLJE1 (left hinge)

Height2134 mm

Width756 mm

Depth610 mm

Total gross capacity477 L

Volume freezer442 L

Energy ratingE

Energy usage319kWh/year

In-use energy carbon emissions estimate61.9kgCO2e/year

Noise emissions42 dBA (Class D)

Variable temperature zones2 – Soft freeze; Freeze; Deep Freeze

Deep Freeze temperature–25°C (Deep freezing)

ActiveSmart™ FoodcareYes

Frost freeYes

Dual evaporatorYes

Inverter controlled compressorYes

Sabbath modeYes

Adjustable door shelves4

Adjustable glass shelves3 (cantilevered)

Freezer bins4

Ice makerAutomatic ice maker with Ice Boost

LightingLED bin, LED ceiling, LED side lighting

Smart applianceYes, with SmartTouch interface at counter height

Rated current10 A

Supply frequency50 Hz

Supply voltage220 – 240 V

Cabinetry height with trim kit2134 mm

Minimum inside width of cabinetry frame762 mm

Minimum internal depth of cabinetry635 mm

Minimum internal height of cabinetry2134 mm

Packaged weight156 kg

Unpackaged weight133 kg

SKU26960

Included accessoriesJoiner kit AJ-RS21LR

Optional stainless steel door panelsLeft hinge 762mm RD7621L10D; Right hinge 762mm RD7621R10D

Optional handle kitsClassic AHCLRDSF; Contemporary round aluminium AHSRDSF; Contemporary square fine aluminium AHD5RDSF; Contemporary square fine black AHD5RDSFB; Professional round flush AHP3RDSF

Optional toe kicksStainless steel 762mm AKRS7610; 1372mm AKRS13710; 1524mm AKRS15210

Water filter replacement847200 – FWC3

Downloads

Download product documentation, manuals, and specification sheets.

RS7621FRJE1 Spec

PDF

Frequently Asked Questions

What are the main freezing modes available?

This Column Freezer has two Variable Temperature Zones and offers three main food modes: Soft Freeze, Freeze and Deep Freeze. You can select the mode based on what you are storing, how fresh it is and when you plan to use it. Deep Freeze at –25°C is designed for long-term storage and to help preserve quality and nutrients.

Can this freezer be paired with other appliances?

Yes. Integrated Column Refrigeration offers the flexibility to mix and match. You can choose different-sized Column fridges and freezers that can be installed individually or paired together. A joiner kit is included when pairing refrigerators and freezers, and you can complete the look with customised cabinetry or stainless steel door panels.

Is this model suitable for a flush, integrated kitchen design?

Yes. These models fit flush and have only 3mm gaps around them with no visible hinges or grilles. They can be seamlessly hidden behind kitchen cabinetry for an understated and clean look with any kitchen layout.

What lighting does the freezer use inside?

The interior features LED bin lighting, LED ceiling lighting and LED side lighting. This is designed to balance form and function, contributing to the premium interior and providing clear visibility throughout the freezer.

What energy information is available for this model?

The energy rating is E, with an energy usage of 319kWh/year. The in-use energy carbon emissions estimate is 61.9kgCO2e/year. An in-use energy carbon emissions estimate is intended to help customers compare products by indicating emissions resulting from in-use energy.
