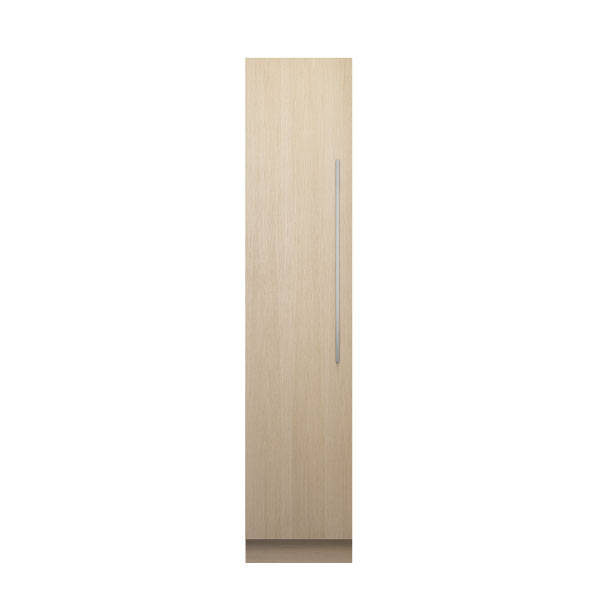

Fisher & Paykel Series 11 RS4621FRJE1 Freezer

This 45.7cm Series 11 Integrated Column Freezer with left hinge combines premium interior design with advanced freezing performance. It offers flexible storage with two Variable Temperature Zones, including Soft Freeze, Freeze and Deep Freeze modes. Designed to fit flush with minimal gaps and no visible hinges or grilles, it can be installed alone or paired with other Columns, and finished with customised cabinetry or stainless steel panels for a sleek, understated kitchen look.

SKU:RS4621FRJE1

EAN:

Category::Freezers

Quantity:

Key Features

Premium interior design – Seamless finish and considered interior lighting create a sleek, understated aesthetic that integrates effortlessly into any kitchen.

Two Variable Temperature Zones – Flexible storage with modes for Soft Freeze, Freeze or Deep Freeze to optimise food care and convenience.

Deep Freeze Mode –25°C – Halts bacterial activity so food can be stored safely for extended periods while helping protect quality and retain nutrients.

Flush integrated installation – Fits flush with only 3mm gaps, with no visible hinges or grilles, allowing it to be hidden behind cabinetry for a clean look.

Mix & match Column flexibility – Can be installed individually or paired with other Column fridges and freezers, with the option of customised or stainless steel door panels.

Clever energy performance – Highly efficient vacuum insulation reduces heat transfer, using only the energy needed while keeping food fresher for longer.

Automatic ice maker with Ice Boost – Built-in automatic ice maker with Ice Boost function and bottle chill for added convenience.

Advanced food care technologies – Includes ActiveSmart™ Foodcare, dual evaporator, inverter controlled compressor and frost free freezer.

Smart appliance capability – Smart appliance with SmartTouch interface at counter height for easy control.

Thoughtful LED lighting – LED bin, ceiling and side lighting enhance visibility throughout the freezer interior.

Easy installation features – Integrated Column design with included joiner kit when pairing, front-adjustable levelling feet and slide-in installation as separate units.

Energy and emissions information – Energy rating E with estimated annual energy usage of 244kWh and in-use energy carbon emissions estimate of 47.3kgCO2e/year.

Technical Spec

Product type45.7cm Series 11 Integrated Column Freezer, Ice

ConfigurationIntegrated Column Freezer, left hinge

Height2134 mm

Width451 mm

Depth610 mm

Total gross capacity242 L

Volume220 L

Volume freezer220 L

Variable temperature zones2

Variable food modesSoft freeze; Freeze; Deep Freeze

Deep Freeze temperature–25°C (Deep freezing)

Energy ratingE

Energy usage244kWh/year

In-use energy carbon emissions estimate47.3kgCO2e/year

Noise emissions42 dBA

Noise emissions classD

ActiveSmart™ FoodcareYes

Dual evaporatorYes

Inverter controlled compressorYes

Frost free freezerFrost free; Frost free freezer

Sabbath modeYes

Smart applianceYes

SmartTouch interfaceSmartTouch interface at counter height

Automatic ice makerYes, with Ice Boost

Freezer bins4

Bottle chillYes

Door alarmYes

Fast freezeYes

Adjustable door shelves4

Adjustable glass shelves3 adjustable glass cantilevered shelves

Interior lightingLED bin lighting; LED ceiling lighting; LED side lighting

Water filter847200 – FWC3 (Water filter replacement)

Rated current10 A

Supply frequency50 Hz

Supply voltage230 V

Minimum inside width of cabinetry frame457 mm

Minimum internal depth of cabinetry635 mm

Minimum internal height of cabinetry2134 mm

Packaged weight118 kg

Unpackaged weight100 kg

SKU26940

Accessories includedJoiner kit AJ-RS21LR

Accessories sold separately – door panelsDoor panel stainless steel Left hinge 457mm RD4621L10D; Door panel stainless steel Right hinge 457mm RD4621R10D

Accessories sold separately – handle kitsHandle kit Classic AHCLRDSF; Contemporary round aluminium AHSRDSF; Contemporary square fine aluminium AHD5RDSF; Contemporary square fine black AHD5RDSFB; Professional round flush AHP3RDSF

Accessories sold separately – toe kicksToe kick stainless steel 457mm AKRS04610; 1067mm AKRS10710; 1220mm AKRS12210; 1676mm AKRS16810; 1828mm AKRS18310

Customer support24 Hours 7 Days a Week Customer Support – T 08000 886 605

Downloads

Download product documentation, manuals, and specification sheets.

RS4621FRJE1 Spec

PDF

Frequently Asked Questions

What are the dimensions of the 45.7cm Series 11 Integrated Column Freezer?

The product dimensions are 2134 mm in height, 451 mm in width and 610 mm in depth. The minimum internal cabinetry dimensions are 2134 mm height, 457 mm inside width of cabinetry frame and 635 mm internal depth.

How many Variable Temperature Zones does this freezer have?

The freezer has two Variable Temperature Zones. These can be set to Soft Freeze, Freeze or Deep Freeze Mode depending on what you are storing, how fresh it is and when you plan to use it.

What is Deep Freeze Mode and what temperature does it reach?

Deep Freeze Mode deep freezes at –25°C. This halts bacterial activity so food can be stored safely for extended periods. Freezing food quickly at this temperature helps protect quality and retain nutrients for when the food is defrosted.

Can this freezer be paired with other appliances for a matched look?

Yes. Integrated Column Refrigeration offers flexibility to mix and match different-sized Column fridges and freezers. They can be installed individually or paired together, and you can use customised door panels or stainless steel door panels to achieve a seamless look with your kitchen cabinetry.

Does the freezer include an ice maker?

Yes. The freezer features an automatic ice maker with Ice Boost, as well as bottle chill and LED bin, ceiling and side lighting for convenience.

What accessories are available?

A joiner kit AJ-RS21LR is included. Accessories sold separately include stainless steel door panels for left and right hinges, multiple handle kits (Classic, Contemporary round, Contemporary square fine, Contemporary square fine black, Professional round flush), stainless steel toe kicks in various widths and a water filter replacement 847200 – FWC3.
