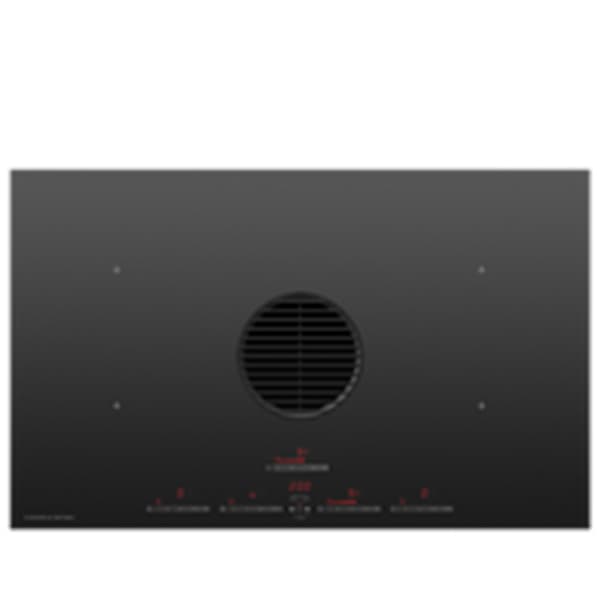

A true two-in-one appliance, this 83cm Series 9 induction hob with integrated ventilation combines the precision of induction cooking with powerful extraction in one seamless, stylish hob. Designed for islands or spaces without overhead ventilation, it offers four cooking zones with SmartZone pairing, nine fan speeds plus boost, and a minimal black glass finish with durable matte black detailing to suit a considered, cohesive kitchen design.

Key Features

Two-in-one hob with integrated ventilation – combines induction cooking and powerful extraction in one seamless appliance.
Seamless kitchen integration – eliminates the need for bulky overhead ventilation and is ideal for islands or homes with high ceilings.
Four cooking zones with SmartZone – simple pairing of two zones to create a SmartZone for flexible cooking.
Nine fan speeds plus boost – choose the perfect extraction rate, with a boost function for quickly removing odours and steam.
Minimal, elegant design – sleek black glass with durable matte black detailing for a cohesive, considered kitchen look.
Precise temperature control – induction technology with Touch&Slide controls allows you to sear, sauté and temper with very high to very low heats.
Effective, unobtrusive extraction – integrated ventilation works in the background to remove steam and cooking odours.
Safety of induction – heats only the pot or pan when it is on the surface and stops heating as soon as it is removed.
Easy to clean surfaces – flat glass cooking surface and flush ventilation grille allow effortless wiping and sliding of pots.
Dishwasher safe grease filter – grease filter tray is designed for simple removal and effective capture of spills.
Superior efficiency – only the cookware is heated, making induction cooking more energy-efficient than electric or gas hobs.
Energy rating A+ – supports efficient operation.
Nine heat settings with PowerBoost – adjust heat precisely, with PowerBoost for extra-high power when needed.
Gentle heat and pause function – additional performance settings to suit different cooking tasks.
Soft-touch electronic controls – Touch and slide operation for quick temperature adjustments.
Comprehensive safety features – keylock, pan detection system, safety time out and surface hot indicators.

Technical Specifications

Product type	83cm Series 9 4 Zone Induction Hob with Integrated Ventilation
Series	Series 9 \| Minimal
Number of zones	4
SmartZone	SmartZone 3700 W
Dimensions – Height	218 mm
Dimensions – Width	830 mm
Dimensions – Depth	515 mm
Energy rating	A+
Heat settings	9
Induction technology	Induction cooking technology •
Control type	Soft-touch electronic controls; Touch and slide controls; Touch&Slide controls
Timers	Auto cut-off timer for each zone; Minute timer
Performance functions	Gentle heat •; Pause function •; PowerBoost •; SmartZone •
Fan speeds	9 + boost
Air outlet size	220mm W x 90 mm H
Ducting direction	Side, Rear
Ducting type	Ducted externally
Motor type	Brushless motor •
Maximum air flow (Boost)	660 m³/hr
Maximum air flow (Level 9)	623 m³/hr
Minimum air flow	192 m³/hr
Maximum noise level (Boost)	70 dBA
Maximum noise level (Level 9)	69 dBA
Minimum noise level	38 dBA
Maximum power	7.4 kW
Supply voltage	220 – 240 V
Supply frequency	50 Hz
Electrical connection	Terminal block
Zone rating – Left front	2100W (3000W with PowerBoost)
Zone rating – Left rear	2100W (3000W with PowerBoost)
Zone rating – Right front	2100W (3000W with PowerBoost)
Zone rating – Right rear	2100W (3000W with PowerBoost)
Surface material	Minimal style, sleek black glass finish
Grease filter	Dishwasher safe grease filter; grease filter tray designed for simple removal
Cleaning features	Flat easy clean glass surface •; Flush grille •
Safety features	Keylock •; Pan detection system •; Safety time out •; Surface hot indicators •
Accessories (sold separately)	Square grille & butterfly valve for wall exhaust 82393 DO-G-SS (optional)
Optional ducting accessories	Duct 1m Connector 222x89 82389 D1-C-222-89; Ducting adaptor 82392 DA-219-98-150; Elbow 90° horizontal 222x89 82390 E90-H-222-89; Elbow 90° vertical 222x89 82391 E90-V-222-89
SKU	82228

Additional Details and Usage

Seamless integration and installation options

The hob offers true design freedom and can be placed anywhere, eliminating the need for bulky overhead ventilation and helping to create a seamless flow between kitchen and living spaces. It can be installed raised or flush, making it particularly suitable for kitchen islands or homes with high ceilings.

Cooking performance and control

The four induction zones, including SmartZone pairing, provide flexible cooking space. Extremely accurate temperature control ranges from very high to very low heats, so you can sear, sauté and temper. Touch&Slide and soft-touch electronic controls react immediately when you adjust the temperature, and PowerBoost, gentle heat and pause functions add further control.

Ventilation performance

Designed for busy homes, the integrated downdraft ventilation works effectively and unobtrusively in the background. With nine air speeds plus a boost function, it quickly removes steam and odours. A brushless motor, ducted external configuration and side or rear ducting directions support performance, with air flow rates from 192 m³/hr to 660 m³/hr.

Safety of induction

Induction zones heat only when a pot or pan is placed on the surface and stop heating as soon as it is removed. Additional safety features include a keylock, pan detection system, safety time out and surface hot indicators.

Cleaning and maintenance

The flat glass cooking surface is easy to wipe clean, while the flush ventilation grille allows pots to slide smoothly across the hob. The grease filter tray is designed for simple removal and effectively captures spills, and the grease filter is dishwasher safe for convenient cleaning.

Energy use

Less heat is wasted during induction cooking because only the cookware is heated, not the hob surface, making it more energy-efficient than electric or gas hobs. The hob has an energy rating of A+.

Frequently Asked Questions

How many cooking zones does this induction hob have?

This hob has four cooking zones, with the option to simply pair two zones to create a SmartZone.

Does this hob require overhead ventilation?

No. The hob has integrated ventilation, providing powerful extraction without the need for bulky overhead ventilation.

How is the integrated ventilation controlled?

The integrated ventilation offers nine fan speeds plus a boost function, allowing you to select the perfect extraction rate for your cooking.

Is the grease filter easy to clean?

Yes. The grease filter tray is designed for simple removal and effectively captures spills, and the grease filter is dishwasher safe.

What safety features are included with this hob?

Safety features include the inherent safety of induction, keylock, pan detection system, safety time out and surface hot indicators.

What are the dimensions of this hob?

The hob has a height of 218 mm, a width of 830 mm and a depth of 515 mm.

CID834DTB4

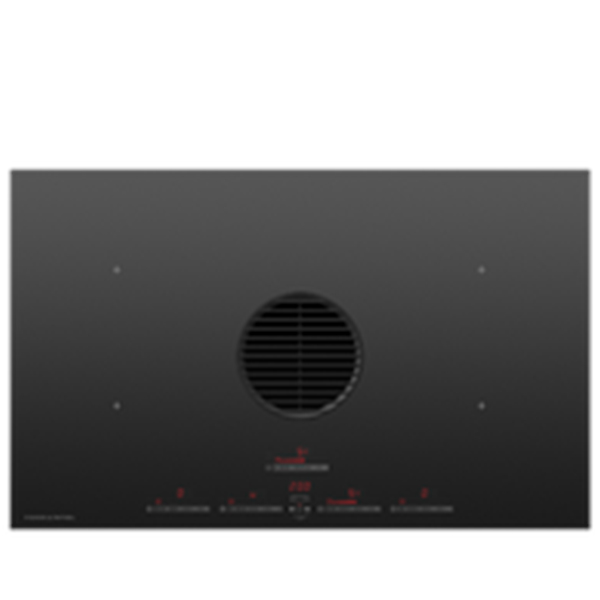

Fisher & Paykel CID834DTB4 Venting Induction Hob
