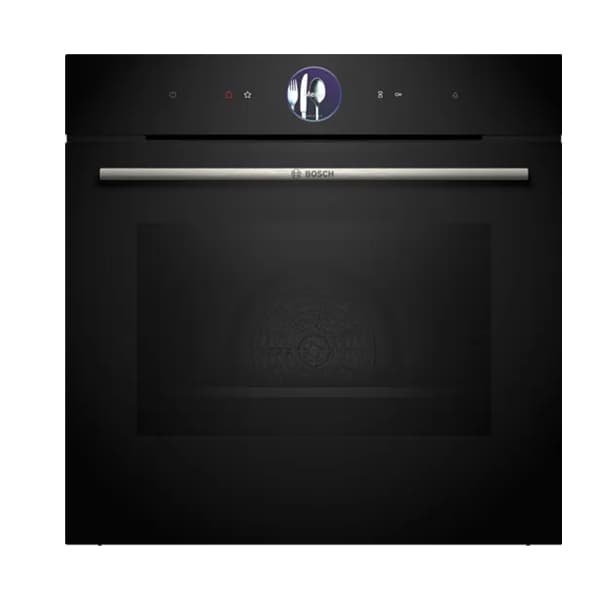

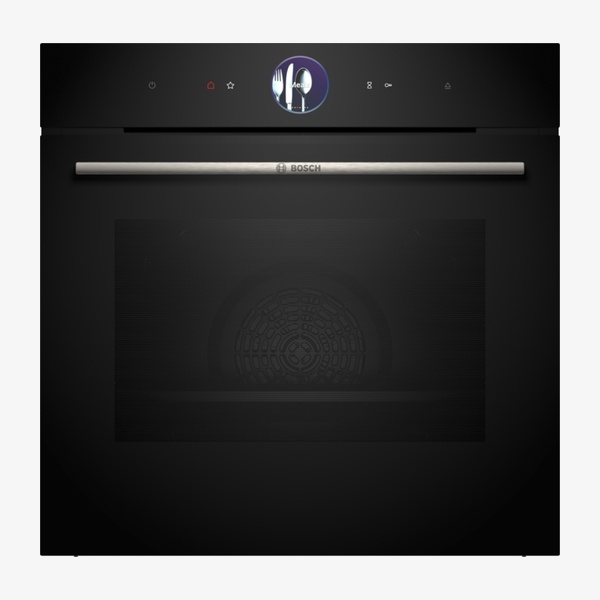

Bosch Series 8 HRG7764B1B Single Oven inc Pulse Steam

The Series 8 HRG7764B1B is a built-in black oven with added steam function and a 71 litre cavity. It features a Digital Control Ring and TFT Touch Display Plus for simple, intuitive control. With 20 heating methods, added steam function, PerfectRoast Plus, PerfectBake Plus and BoschAssist, it supports a wide range of cooking tasks. Pyrolytic and hydrolytic cleaning, a CoolTouch quadruple glazed door and Home Connect readiness further enhance everyday convenience.

SKU:HRG7764B1B

EAN:4242005327102

Category::Ovens

Quantity:

Key Features

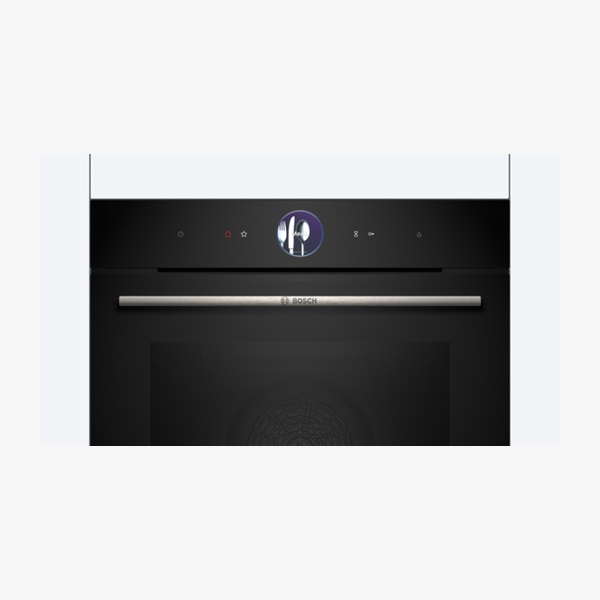

Digital Control Ring – simple and intuitive oven control with touch controls with steel trim.

TFT Touch Display Plus – enlarged TFT touchscreen with intuitive control using the Digital Control Ring.

Added Steam Function – helps keep food crispy on the outside and juicy on the inside.

Steam boost – add 3 minutes of intensive steam at the touch of a button, with selectable steam levels (high, middle, low).

20 heating methods – including conventional top and bottom heat, 4D Hotair, full width and half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat gentle, reheating with steam, Dough proving, Hot air grilling, warming and top/bottom heat.

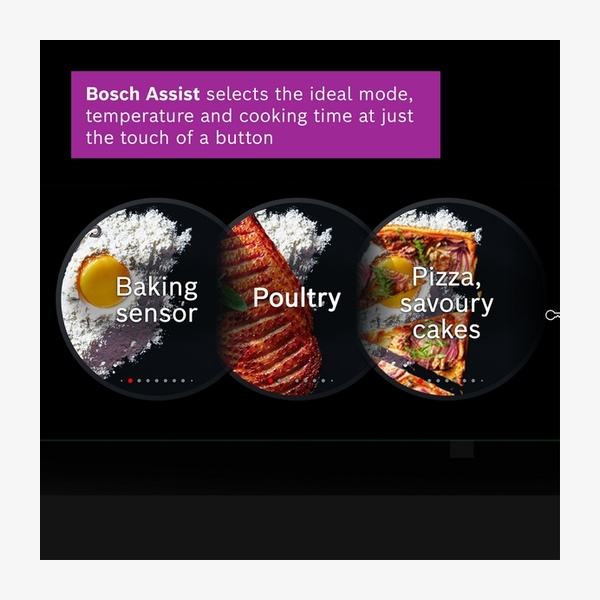

Assist function for meals – automatically prepares dishes so they are crispy and juicy, with BoschAssist and PerfectRoast Plus, PerfectBake Plus.

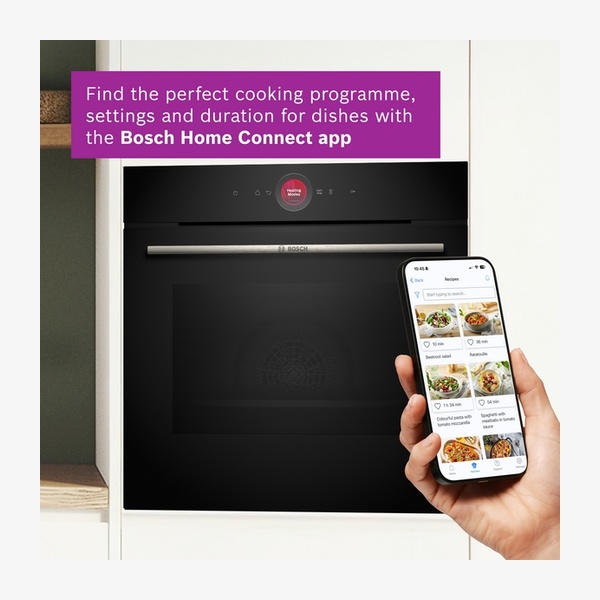

Home Connect ready – control via the App is supported.

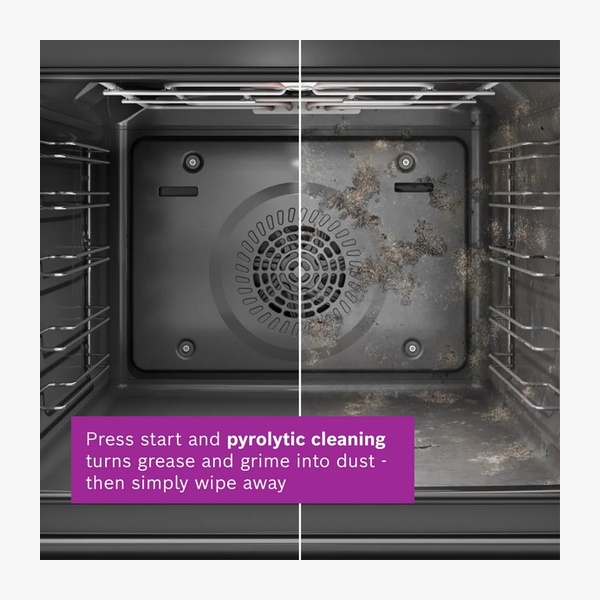

Pyrolytic self-cleaning – automatic oven cleaning leaving wipe-away ash, plus a hydrolyse programme and full glass inner door.

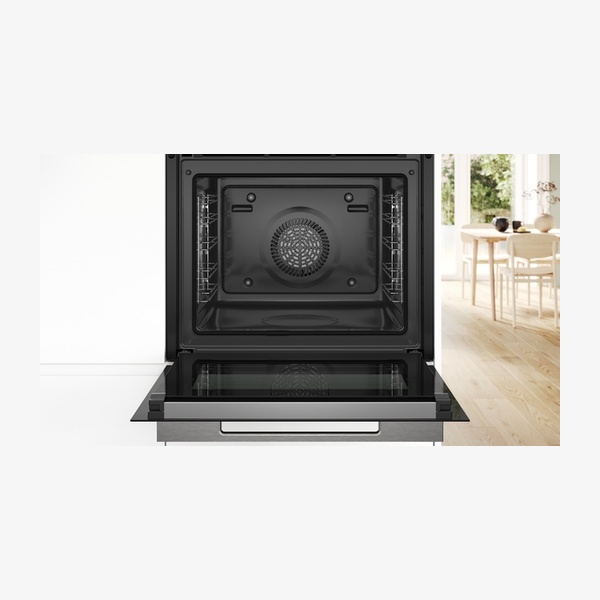

Spacious 71 litre cavity – provides generous space with 5 shelf positions and anthracite enamel interior.

Low door temperature – maximum window temperature 30°C with quadruple glazed CoolTouch door and low door temperature during pyrolytic cleaning.

Comprehensive safety features – electronic door lock, control panel lock, automatic safety switch off, residual heat indicator, door contact switch and start button.

Automatic switch-off – stops cooking as soon as the dish is done.

Fast pre-heating function – reduces waiting time before cooking.

Temperature range 30°C – 275°C – supports gentle warming through to high temperature cooking.

LED lighting – LED light with on/off function when the oven door is opened or closed.

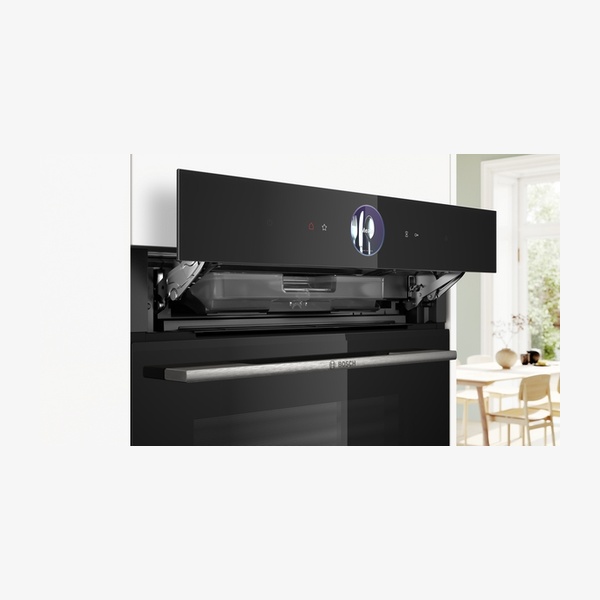

Water tank located outside cavity – with water tank empty indicator for steam functions.

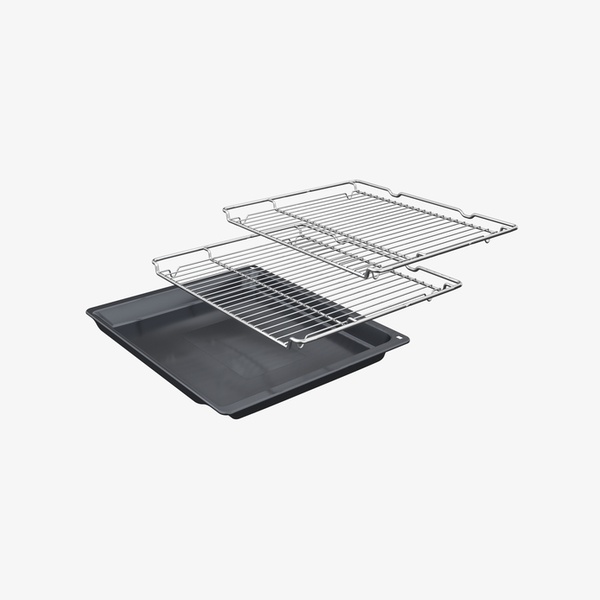

Included accessories – supplied with 2 x combination grid and 1 x universal pan.

Optional accessories available – including pizza stone, wireless food thermometer, baking trays, pans, Air Fry & Grill trays and telescopic rails.

Energy efficiency rating A+ – with specified energy consumption for conventional and fan-forced convection modes.

Technical Spec

Product nameSeries 8, Built-in oven with added steam function, 60 x 60 cm, Black, HRG7764B1B

Built-in / Free-standingBuilt-in

Integrated cleaning systemPyrolytic+Hydrolytic; Pyrolytic self-cleaning function; hydrolyse program

Cavity volume71 litre capacity; usable volume of cavity 71 l

Appliance dimensions (H x W x D)595 x 594 x 548 mm

Required niche size (H x W x D)585–595 x 560–568 x 550 mm; Niche dimension (hxwxd): 585 mm – 595 mm x 560 mm – 568 mm x 550 mm

Packed product dimensions (H x W x D)675 x 660 x 690 mm

Control panel materialGlass

Door materialGlass; quadruple glazed door with heat reflective glass glazed CoolTouch door; full glass inner door

Cavity inner surfaceEnamel anthracite

Net weight40.5 kg

Number of cavities1; Number of cavities (2010/30/EC): 1; Number of cavities: Main cavity

Heat sourceElectrical

Temperature range30°C – 275°C

Heating methods / cooking methodsOven with 20 heating methods: conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat gentle, reheating with steam, Dough proving, Hot air grilling, warming, 4D Hot air, Top/bottom heat; additional listing: Regeneration, 4D Hotair, Defrost, Air fry, Full width grill, Hotair gentle, Half width grill, Conventional heat, Conventional heat gentle, Pizza setting, low temperature cooking, Bottom heat, Hot air grilling, pre-heating, warming.

Level independent telescopic rails5 shelf positions; level independent telescopic rails available as an additional accessory, pyrolitic proof

Cable length120 cm; Length electrical supply cord: 120 cm

Connection rating / total connected load3600 W; Total connected load electric: 3.6 KW

Nominal voltage220 – 240 V; Voltage: 220-240 V

Frequency50; 60 Hz

Fuse protection16 A

Plug typeNo plug (electrical connection by electrician)

Energy efficiency ratingA+ (acc. EU Nr. 65/2014); Energy efficiency rating (2010/30/EC): A+

Energy consumption (conventional)0.87 kWh/cycle; Energy consumption per cycle in conventional mode: 0.87 kWh

Energy consumption (fan-forced convection)0.69 kWh/cycle; Energy consumption per cycle in fan-forced convection mode: 0.69 kWh; Energy consumption per cycle forced air convection (2010/30/EC): 0.69 kWh/cycle

Energy efficiency index81.2 % (2010/30/EC)

Maximum window temperature30°C

Door featuresDrop down door, SoftClose, SoftOpen; low door temperature during pyrolitic cleaning; quadruple glazed door with heat reflective glass glazed CoolTouch door

Controls and displaysDigital Control Ring; touch controls with steel trim; TFT Touch Display Plus; electronic clock timer; digital temperature display with proposal; actual temperature display; heating-up indicator; LED light; Light on/off when oven door opened/closed

Sensors and assistanceOven Assistant with Voice Control; Assist function for meals; BoschAssist; PerfectRoast Plus; PerfectBake Plus; temperature probe; Fast pre-heating function; Automatic Switch-off

Steam featuresAdded Steam Function; steam boost – add for 3 min intensive steam with a touch of a button; steam level high, steam level middle, steam level low; water tank empty indicator; location of water tank: outside cavity

Cooling systemIntegral cooling fan

ConnectivityHome Connect ready; control via the App

Safety featuresElectronic door lock; control panel lock; automatic safety switch off; residual heat indicator; start button; door contact switch; low door temperature during pyrolitic cleaning

Included accessories2 x combination grid, 1 x universal pan

Optional accessoriesHEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non-stick ceramic coated; HEZ532010 Universal pan, non-stick ceramic coated; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ634000 Baking and roasting grid; HEZ635001 AirFry & Grill Set; HEZ636000 Glass pan; HEZ638070 Full ext rails, level independent, pyro; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L

EAN code4242005327102

Installation note“For-details-on-installation-and-ventilation requirements – please refer to the installation manual prior to fitting.”

Downloads

Download product documentation, manuals, and specification sheets.

HRG7764B1B Spec

PDF

Frequently Asked Questions

What is the capacity of the HRG7764B1B oven?

The oven has a cavity volume of 71 litres, with a usable cavity volume of 71 l. It provides 5 shelf positions within this space.

Which cleaning functions does this oven have?

The oven features a pyrolytic self-cleaning function that turns residues into wipe-away ash, as well as a hydrolyse programme. It also has a full glass inner door and enamel anthracite cavity surface.

What steam options are available?

The appliance offers an added steam function, a steam boost that adds 3 minutes of intensive steam at the touch of a button, and selectable steam intensities (high, middle, low). The water tank is located outside the cavity and has an empty indicator.

Is the oven compatible with smart home control?

The oven is Home Connect ready and can be controlled via the App. It also includes an Oven Assistant with Voice Control and BoschAssist for guided cooking.

What is the energy efficiency rating and consumption?

The energy efficiency rating is A+. Energy consumption per cycle in conventional mode is 0.87 kWh, while in fan-forced convection mode it is 0.69 kWh. The energy efficiency index is stated as 81.2 %.

What accessories are included and what can be added?

Included accessories are 2 x combination grid and 1 x universal pan. Optional accessories include items such as a pizza stone, wireless food thermometer, various baking trays and pans, Air Fry & Grill trays, full extension rails and a glass roasting dish.
