Bosch Series 8 HMG7764B1B Single Oven inc Microwave

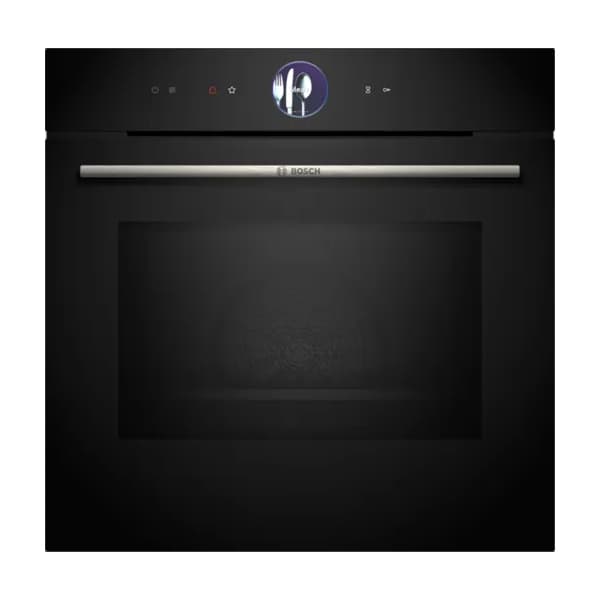

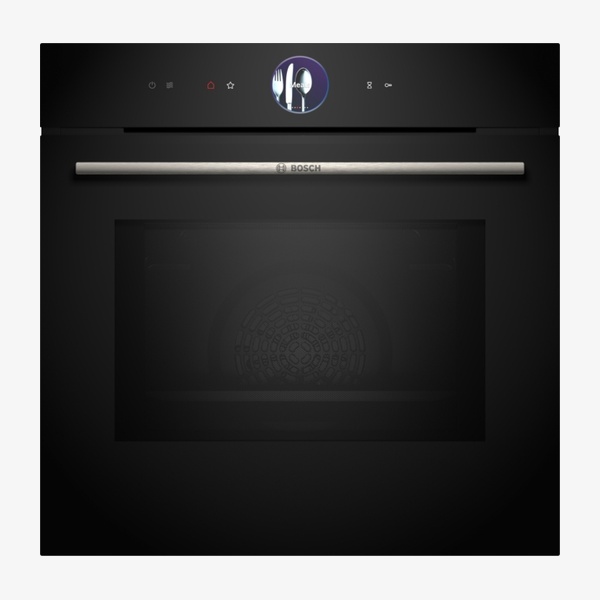

The Series 8 HMG7764B1B is a 60 x 60 cm built-in black oven with integrated microwave, offering 20 heating methods and a 67 litre cavity. It features a Digital Control Ring with TFT Touch Display Plus for intuitive operation, Home Connect readiness, and convenient pyrolytic self-cleaning with hydrolyse programme. With microwave inverter technology, Hotair Gentle and a wide 30 °C – 275 °C temperature range, it is designed for flexible cooking, baking and roasting in a modern kitchen.

SKU:HMG7764B1B

EAN:4242005326952

Category::Ovens

Quantity:

Key Features

Built-in oven with microwave function – 60 x 60 cm black appliance combining oven and microwave capabilities.

20 heating methods – including conventional top and bottom heat, full width variable grill, half width grill, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Conventional heat gentle, Microwave, 4D Hot air, Conventional heat, Hot air grilling and more.

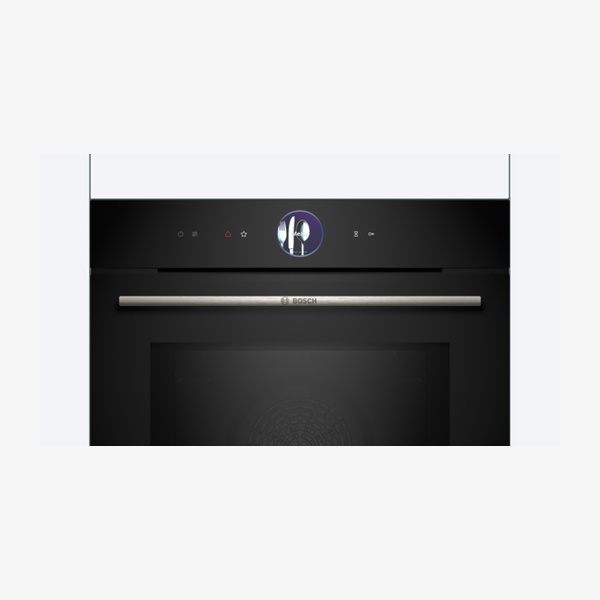

Digital Control Ring – simple and intuitive oven control with touch controls and steel trim.

TFT Touch Display Plus – enlarged TFT touchscreen for intuitive control together with the Digital Control Ring.

Home Connect ready – with Remote Control and Monitoring to discover the full potential of a smart oven.

Pyrolytic self-cleaning – automatic oven cleaning, leaving wipe-away ash, plus a hydrolyse programme.

Hotair Gentle – designed to save energy while baking and roasting.

Microwave inverter technology – max. microwave power 800 W with 5 power settings; output regulated to 600 W in longer operation for gentler cooking.

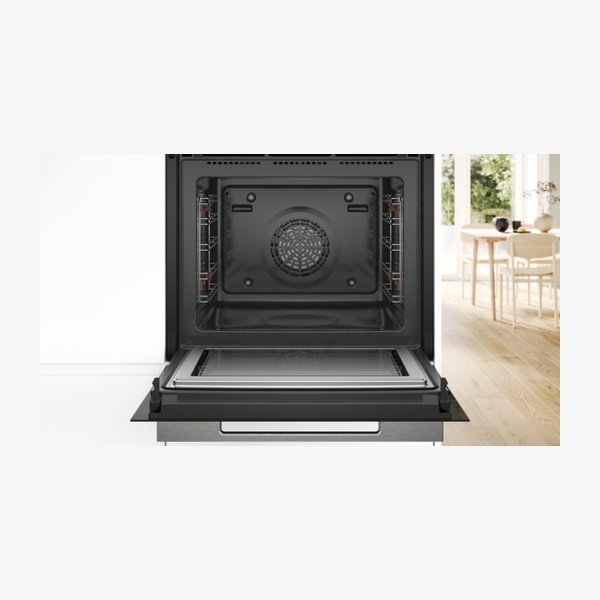

Large 67 litre cavity – with enamel anthracite interior and 5 shelf positions for flexible cooking.

Level independent telescopic rails – for convenient access to dishes on different levels.

Wide temperature range – adjustable from 30 °C to 275 °C for various cooking methods.

SoftClose and SoftOpen drop down door – for smooth, comfortable door operation.

LED lighting – with light on/off when the oven door is opened or closed.

Safety features – electronic door lock, control panel lock, automatic safety switch off, residual heat indicator, start button and door contact switch.

CoolTouch door – quadruple glazed door with heat reflective glass and maximum window temperature of 30 °C.

Oven Assistant with Voice Control – plus BoschAssist, electronic clock timer and temperature probe.

Fast pre-heating function – with heating-up indicator and actual temperature display.

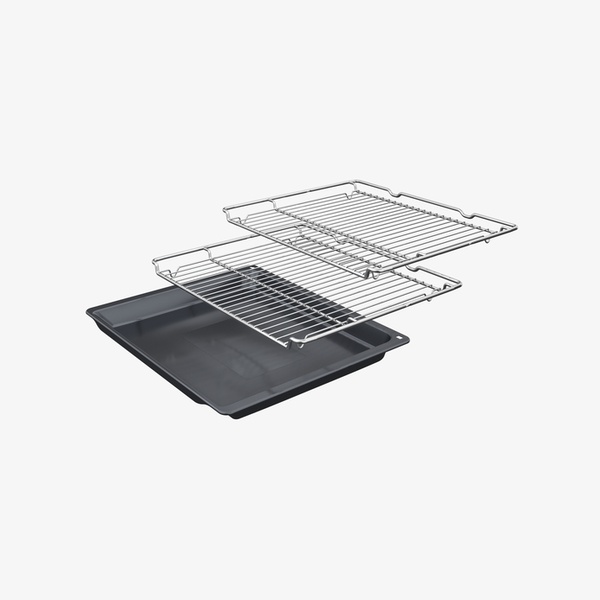

Included accessories – 2 x combination grid and 1 x universal pan.

Optional accessories available – including baking and roasting grids, glass roasting dish, pizza stone, baking trays, universal pans, pizza pan, Air Fry & Grill tray, multipurpose pan, professional pans and glass pan (see accessories section below).

Technical Spec

Product nameSeries 8, Built-in oven with microwave function, Black

Model codeHMG7764B1B

Type of microwave ovenMW-Combi

Control typeElectronic with Touch controls and Digital Control Ring

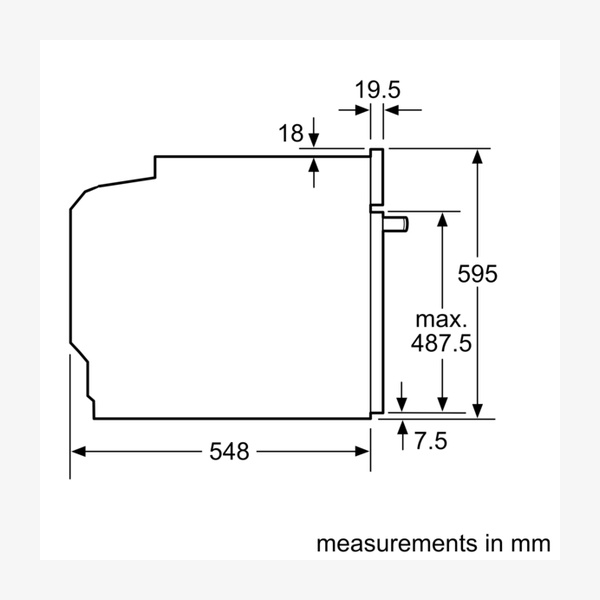

Appliance dimensions (H x W x D)595 mm x 594 mm x 548 mm

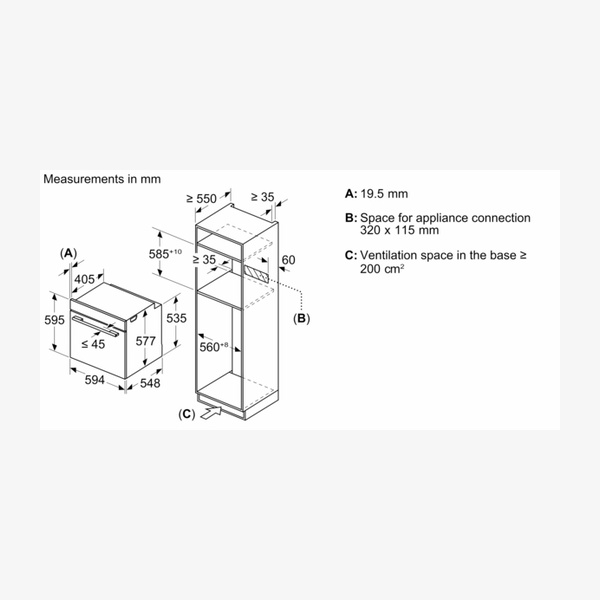

Niche dimensions (H x W x D)585 mm – 595 mm x 560 mm – 568 mm x 550 mm

Cavity dimensions (H x W x D)357 mm x 480 mm x 392 mm

Cavity volume67 litres

Shelf positions5 shelf positions with level independent telescopic rails

Cavity surfaceEnamel anthracite

Max. microwave power800 W (regulated to 600 W in longer operation with intelligent inverter technology)

Microwave power settings5 settings: 90 W, 180 W, 360 W, 600 W, boost

Temperature range30 °C – 275 °C

Connection rating3.6 kW (Total connected load electric: 3.6 kW)

Voltage220 – 240 V

Frequency50; 60 Hz

Fuse protection16 A

Power supply cord length120 cm cable length

Plug typeNo plug (electrical connection by electrician)

Net weight43.6 kg

Gross weight46.9 kg

EAN code4242005326952

Door glazingQuadruple glazed door with heat reflective glass

Maximum window temperature30 °C

Downloads

Download product documentation, manuals, and specification sheets.

HMG7764B1B Spec

PDF

Frequently Asked Questions

What is the capacity of the oven cavity?

The cavity volume is 67 litres, with cavity dimensions of 357 mm x 480 mm x 392 mm and 5 shelf positions.

What microwave power levels are available?

The appliance has a maximum microwave power of 800 W and offers 5 power settings: 90 W, 180 W, 360 W, 600 W and boost. With intelligent inverter technology, maximum output power is regulated to 600 W when used in longer operation for gentler cooking.

Does the oven have a self-cleaning function?

Yes, it features a pyrolytic self-cleaning function for automatic oven cleaning that leaves wipe-away ash, as well as a hydrolyse programme.

Which safety features are included?

The oven includes an electronic door lock, control panel lock, automatic safety switch off, residual heat indicator, start button, door contact switch and a quadruple glazed CoolTouch door with maximum window temperature of 30 °C.

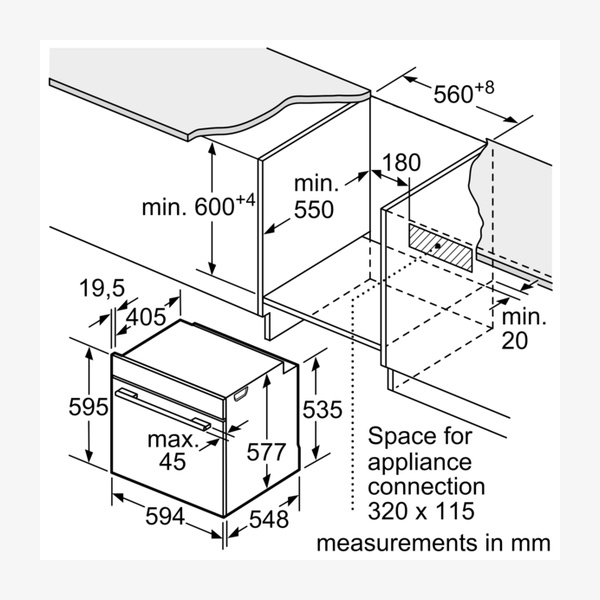

What are the installation requirements?

The appliance dimensions are 595 mm x 594 mm x 548 mm and it fits a niche of 585 mm – 595 mm height, 560 mm – 568 mm width and 550 mm depth. It has a 120 cm cable, requires a 220 – 240 V supply with 16 A fuse protection and electrical connection by an electrician.
