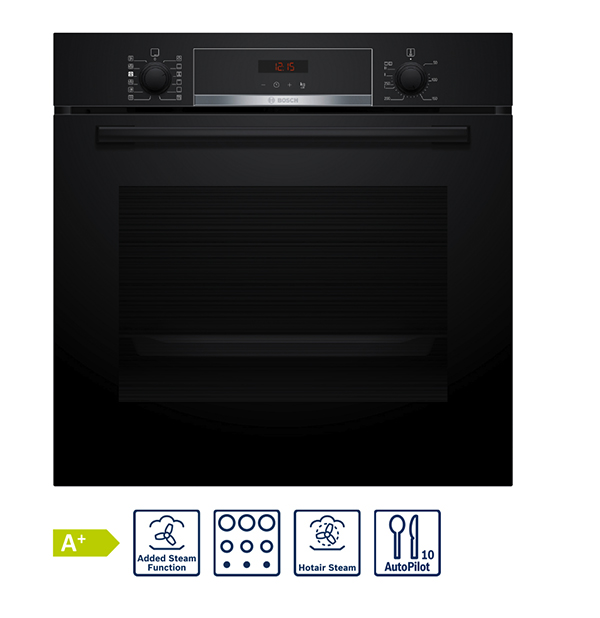

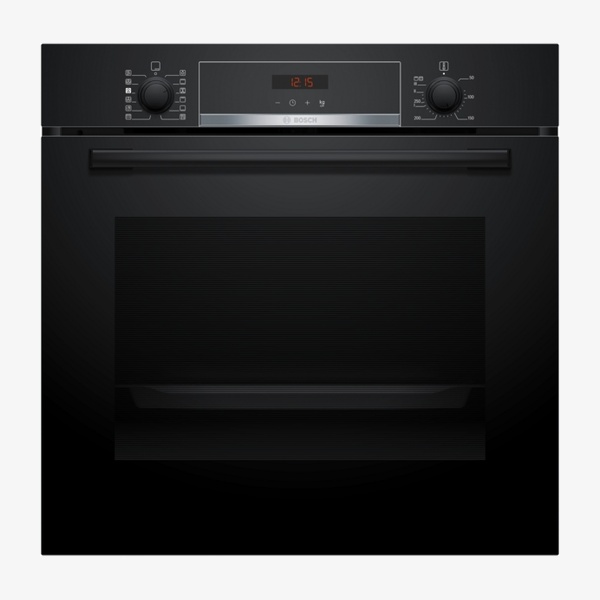

Bosch Series 4 HQA574BB3B Single Oven

The Series 4 HQA574BB3B is a 60 x 60 cm built-in black oven with added steam function, designed for versatile everyday cooking. It offers 8 heating methods, Hotair Steam and AutoPilot 10 automatic programmes to help deliver crispy, juicy results. With A+ energy efficiency, a 71 litre cavity, fast pre-heating and Pyrolytic self-cleaning, it combines performance and convenience for users looking for an extra large capacity oven with modern features.

SKU:HQA574BB3B

EAN:4242005465613

Category::Ovens

Quantity:

Key Features

Added steam function – by adding steam, baked food turns out crispy on the outside and fluffy on the inside.

Hotair Steam – heat and humidity are distributed equally within the oven interior so food turns out crispy on the outside and juicy on the inside.

Pyrolytic self-cleaning – automatically cleans the oven; after the cycle you simply wipe out the ash.

Energy efficiency class A+ – thanks to improvement of the oven construction you can save energy while cooking.

AutoPilot 10 automatic programmes – 10 pre-set automatic programmes help make every dish a perfect success.

8 heating methods – 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle, hot air and steam combined.

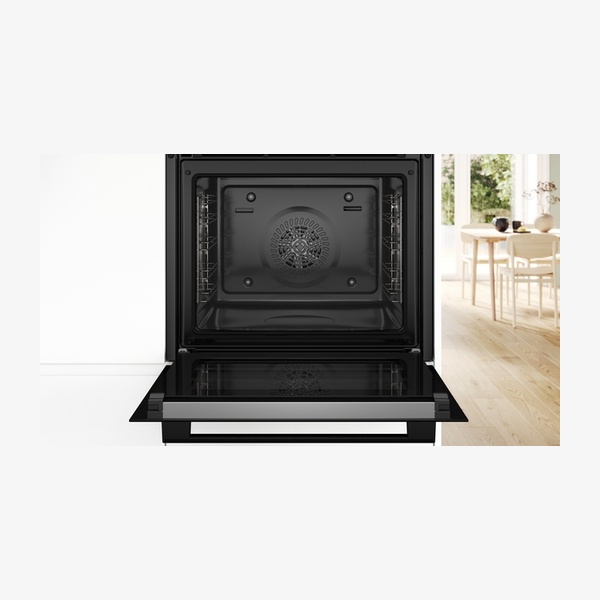

71 litre cavity volume – extra large capacity oven with 5 shelf positions.

Temperature range 50 °C – 275 °C – supports low and high temperature cooking.

LED-display control (red) – with electronic clock timer, heating-up indicator, automatic start and automatic programmes.

Fast pre-heating function – quickly brings the oven up to temperature.

Safety features – maximum window temperature 30 °C, low door temperature during pyrolitic cleaning, quadruple glazed CoolTouch door, electronic door lock, control panel lock and automatic safety switch off.

Design details – rotary dial, retractable control dials with steel trim, straight bar handle and enamel anthracite cavity inner surface.

Interior lighting and visibility – interior halogen light and full glass inner door, with light on/off when the door is opened or closed.

Integrated cleaning systems – Pyrolytic and Hydrolytic cleaning options.

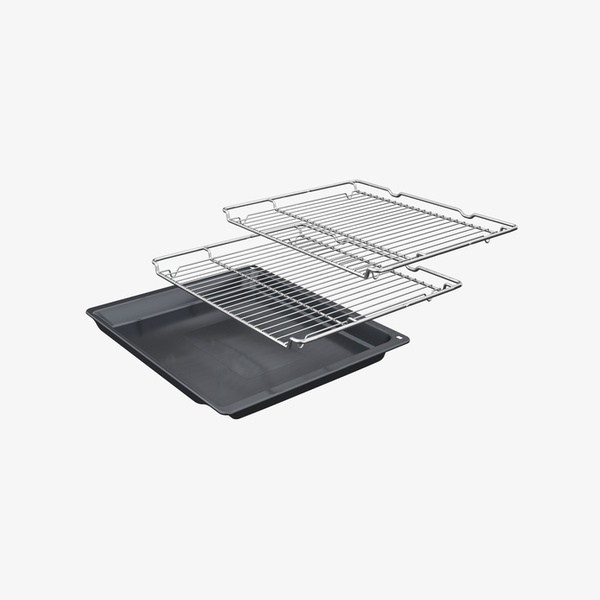

Included accessories – 2 x combination grid and 1 x universal pan.

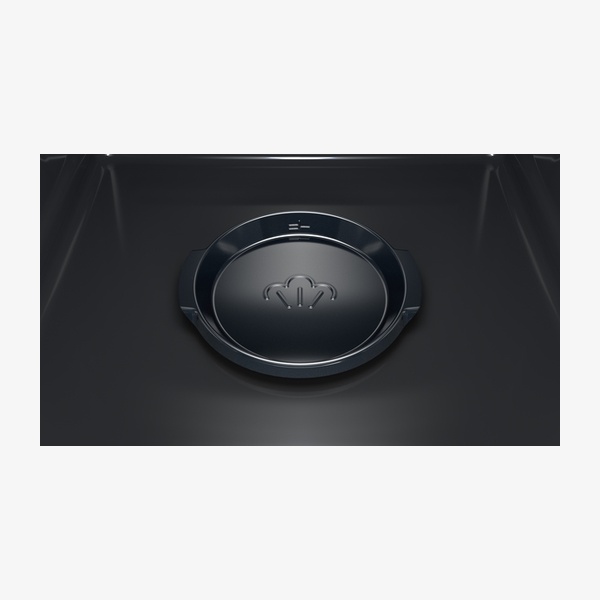

Water bowl – water bowl with a volume of 250 ml for steam-related functions.

Optional accessories available – including pizza stone, wireless food thermometer, various trays, pans, telescopic rails and glass roasting dish (see Technical Specifications section for list).

Technical Spec

Product nameSeries 4, Built-in oven with added steam function, 60 x 60 cm, Black HQA574BB3B

Built-in / Free-standingBuilt-in

Energy efficiency ratingA+ (acc. EU Nr. 65/2014)

Integrated cleaning systemPyrolytic+Hydrolytic; Pyrolytic self-cleaning function

Cavity volume71 litre capacity; usable volume of cavity 71 l

Number of cavities1 (Main cavity; Number of cavities (2010/30/EC): 1)

Heat sourceElectrical

Heating methods3D Hotair; conventional top and bottom heat; Hotair grilling; full width variable grill; pizza function; bottom heat; Hotair gentle; hot air and steam combined; Full width grill; Hotair gentle; Hot Air; Conventional heat; Pizza setting; Bottom heat; Hot air grilling

Temperature range50 °C – 275 °C

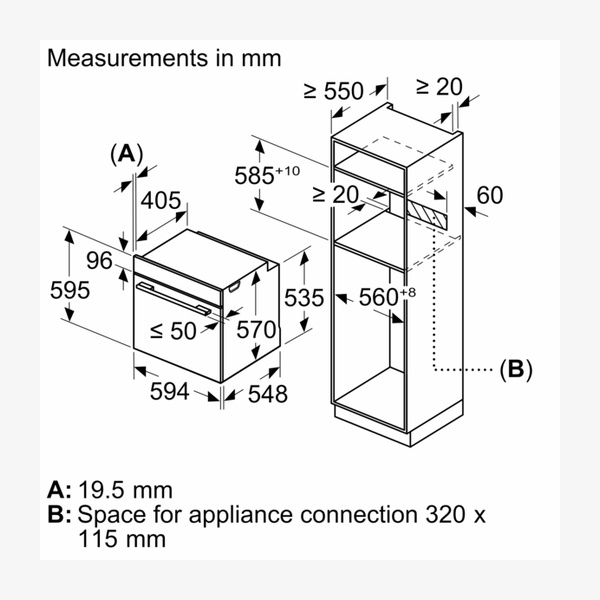

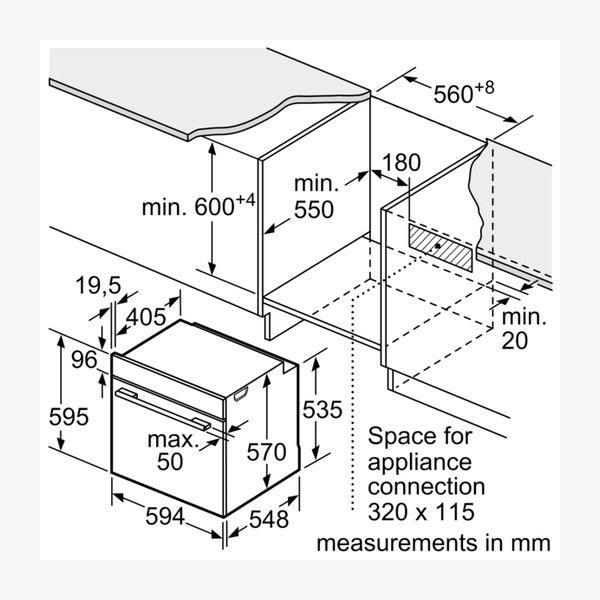

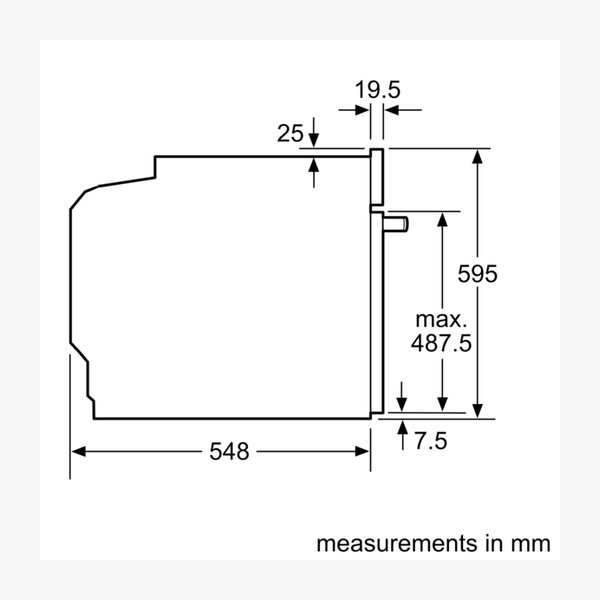

Appliance dimensions (H x W x D)595 mm x 594 mm x 548 mm; Dimensions: 595x594x548 mm

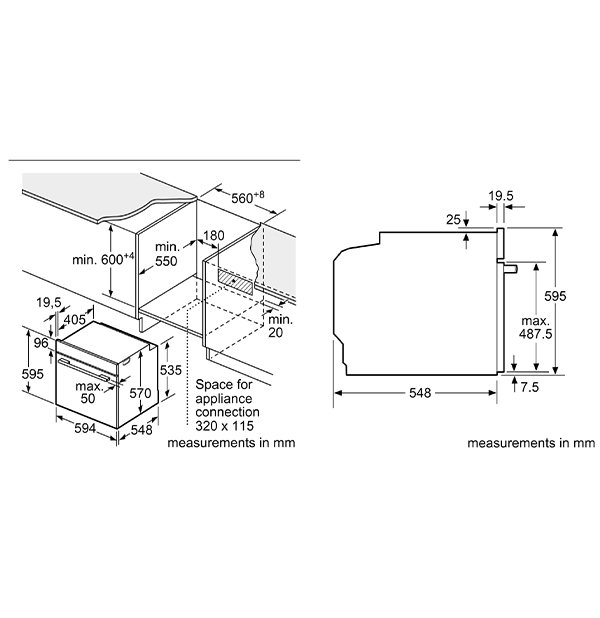

Required niche size (H x W x D)585–595 mm x 560–568 mm x 550 mm; Niche dimension (hxwxd): 585 mm – 595 mm x 560 mm – 568 mm x 550 mm

Packed product dimensions (H x W x D)675x660x690 mm

Net weight36.9 kg

Control panel materialGlass

Door materialGlass; quadruple glazed door with heat reflective glass glazed CoolTouch door; full glass inner door

Cavity inner surfaceEnamel anthracite

Control typeRotary dial; Retractable control dials, round with steel trim; LED-display control (red)

HandleStraight bar handle

Shelf positions5 shelf positions; level independent telescopic rails available as an additional accessory

Maximum window temperature30 °C

Cooling and safetyIntegral cooling fan; low door temperature during pyrolitic cleaning; electronic door lock; control panel lock; automatic safety switch off

Interior lightInterior halogen light; light on/off when oven door opened/closed

Water bowl volume250 ml

Electrical connection ratingTotal connected load electric: 2.99 KW; Connection rating: 2990 W

Voltage220–240 V; Nominal voltage: 220 - 240 V

Frequency50; 60 Hz

Fuse protection13 A

Plug typeNo plug (electrical connection by electrician)

Cable length120 cm; Length electrical supply cord: 120 cm

Energy consumption (conventional)0.94 kWh/cycle; Energy consumption per cycle in conventional mode: 0.94 kWh

Energy consumption (fan-forced)0.69 kWh/cycle; Energy consumption per cycle in fan-forced convection mode: 0.69 kWh; Energy consumption per cycle forced air convection (2010/30/EC) 0.69 kWh/cycle

Energy efficiency index81.2 % (2010/30/EC)

EAN code4242005465613

Included accessories2 x combination grid, 1 x universal pan

Optional accessoriesHEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non-stick ceramic coated; HEZ532010 Universal pan, non-stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L

Downloads

Download product documentation, manuals, and specification sheets.

HQA574BB3B Spec

PDF

Frequently Asked Questions

What is the capacity of the Series 4 HQA574BB3B oven?

The oven has a cavity volume of 71 litres, described as an extra large capacity oven with 5 shelf positions.

Which heating methods does this oven offer?

It offers 8 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle, and hot air and steam combined. Additional references include full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat and Hot air grilling.

How does the added steam function work for cooking?

By adding steam, baked food turns out crispy on the outside and fluffy on the inside. Hotair Steam distributes heat and humidity equally within the oven interior so food becomes crispy on the outside and juicy on the inside. A 250 ml water bowl is provided.

What cleaning options are available?

The oven features Pyrolytic self-cleaning, which automatically cleans the interior so you just wipe out the ash afterwards. It also lists an integrated Pyrolytic+Hydrolytic cleaning system, a full glass inner door and enamel anthracite cavity surface to support cleaning.

What safety features does the door have?

The door is quadruple glazed with heat reflective glass and is described as a CoolTouch door. It has a maximum window temperature of 30 °C, low door temperature during pyrolitic cleaning, an electronic door lock and a control panel lock.

What accessories are included and which are optional?

Included accessories are 2 x combination grid and 1 x universal pan. Optional accessories include items such as a pizza stone, wireless food thermometer, various baking trays and pans (some enamelled or non-stick ceramic coated), telescopic rails, baking and roasting grids and a 5.4 L glass roasting dish.
