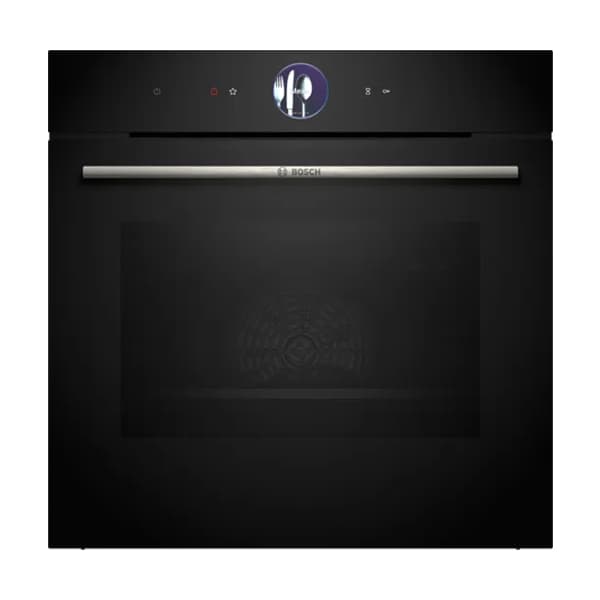

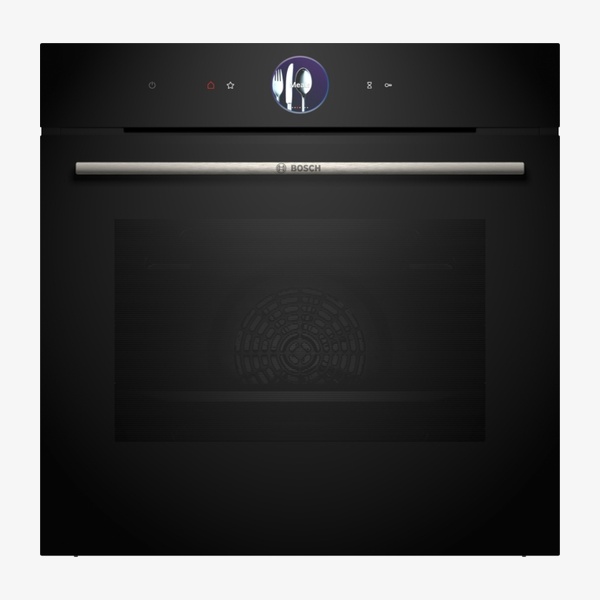

Bosch Series 8 HBG7764B1B Single Oven

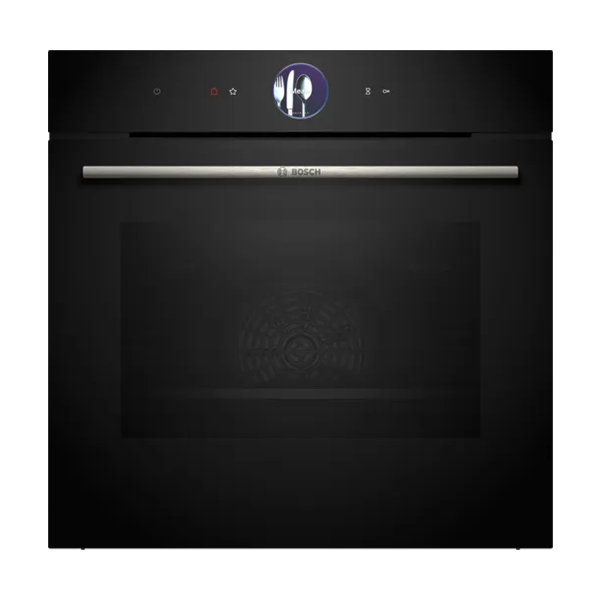

The Series 8 HBG7764B1B is a 60 x 60 cm black built–in oven with a Digital Control Ring and TFT Touch Display Plus for simple, intuitive operation. It offers 14 heating methods including 4D Hotair and Air fry, a 71 litre cavity and a temperature range from 30 °C to 275 °C. Pyrolytic self–cleaning, hydrolyse programme and Home Connect readiness support convenient cooking and cleaning in a modern kitchen.

SKU:HBG7764B1B

EAN:4242005326686

Category::Ovens

Quantity:

Key Features

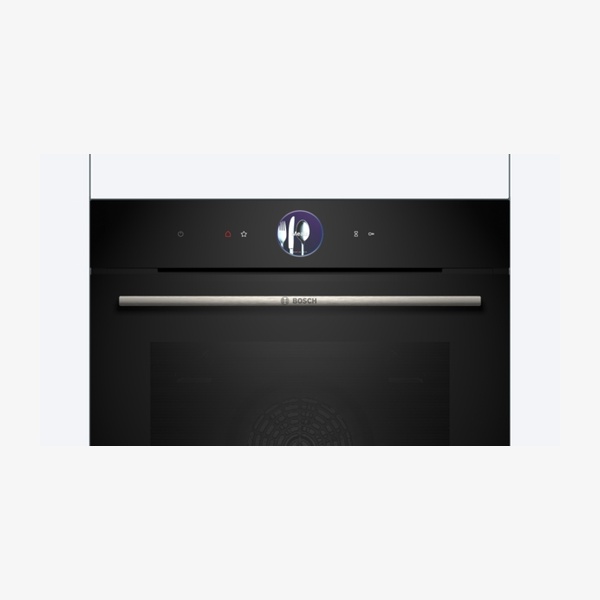

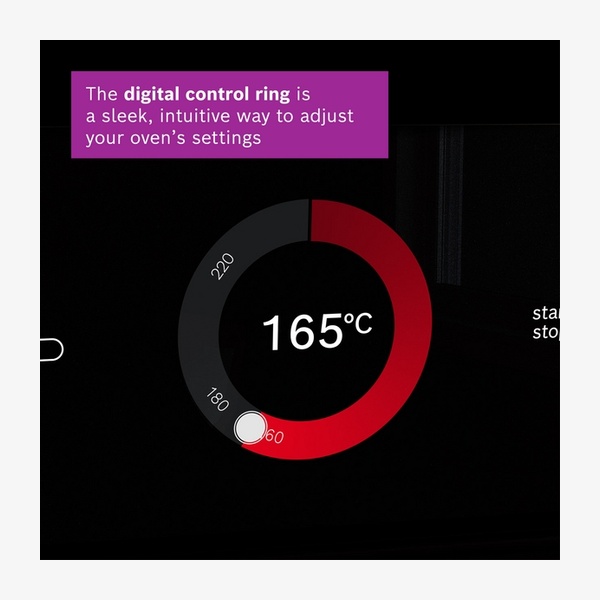

Digital Control Ring for simple and intuitive oven control.

TFT Touch Display Plus with enlarged touchscreen for intuitive control with the Digital Control Ring.

14 heating methods including 4D Hotair, Air fry, Hotair grilling, conventional top and bottom heat, pizza function and more.

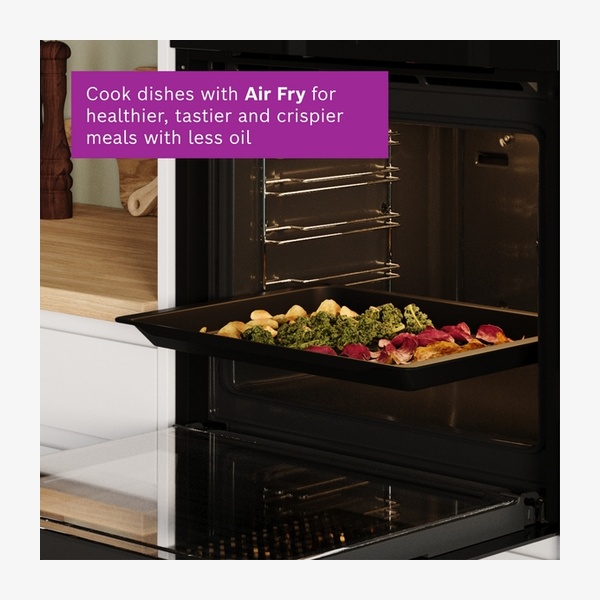

Air Fry function with optional Air Fry & Grill tray and AirFry & Grill Set accessories.

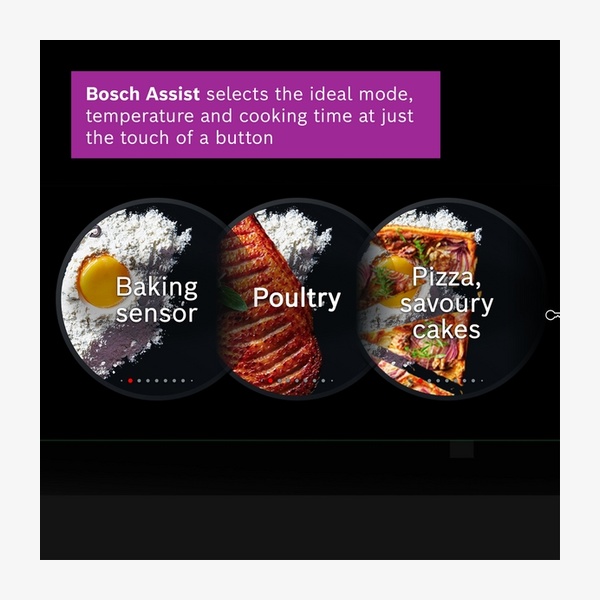

Assist function for meals with BoschAssist and Oven Assistant with Voice Control.

PerfectBake Plus and PerfectRoast Plus for supported baking and roasting (details of operation: Not stated in source).

Automatic switch–off that stops cooking as soon as the dish is done.

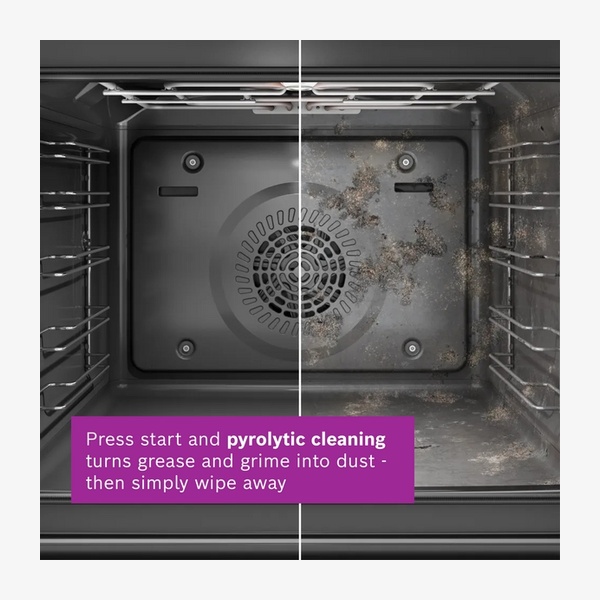

Pyrolytic self–cleaning and hydrolyse programme for automatic cleaning with wipe–away ash.

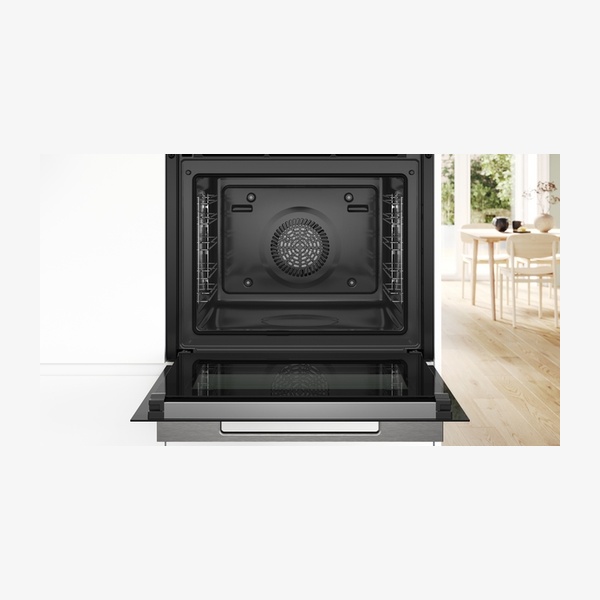

71 litre cavity volume with 5 shelf positions for flexible cooking.

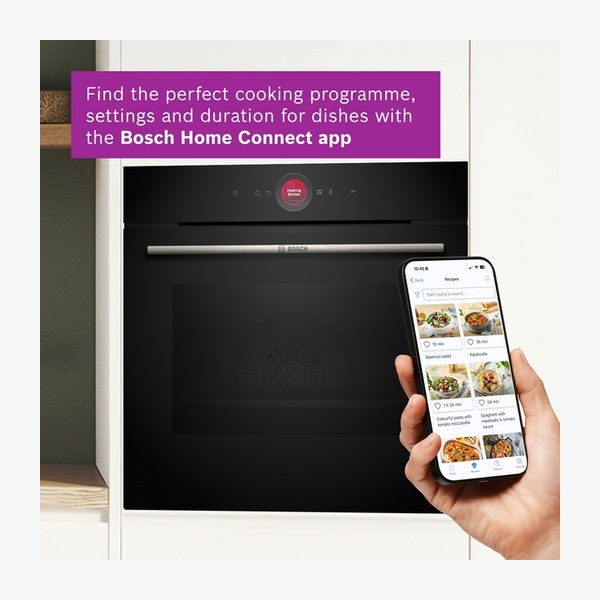

Home Connect ready with Remote Control and Monitoring for control via the app.

Low door temperature with quadruple glazed CoolTouch door and maximum window temperature 30 °C.

SoftClose and SoftOpen drop down door for controlled opening and closing.

Safety features including electronic door lock, control panel lock, automatic safety switch off and residual heat indicator.

LED oven light with light on/off when the oven door is opened or closed.

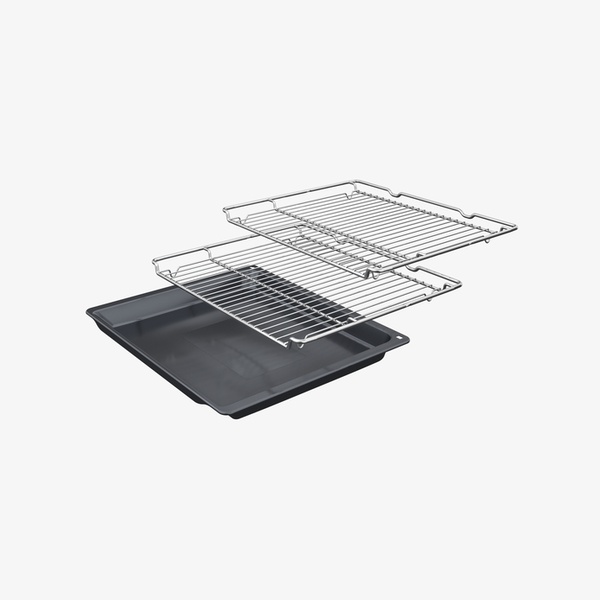

Included accessories : 1 x enamel baking tray, 2 x combination grid, 1 x universal pan.

Optional accessories available including pizza stone, wireless food thermometer, baking trays, pans, rails and glass pans.

Energy efficiency rating A+ with fan–forced convection energy consumption of 0.69 kWh per cycle.

Technical Spec

Product nameSeries 8, Built–in oven, 60 x 60 cm, Black, HBG7764B1B

Built–in / Free–standingBuilt–in

Integrated cleaning systemPyrolytic+Hydrolytic; Pyrolytic self–cleaning function; hydrolyse program

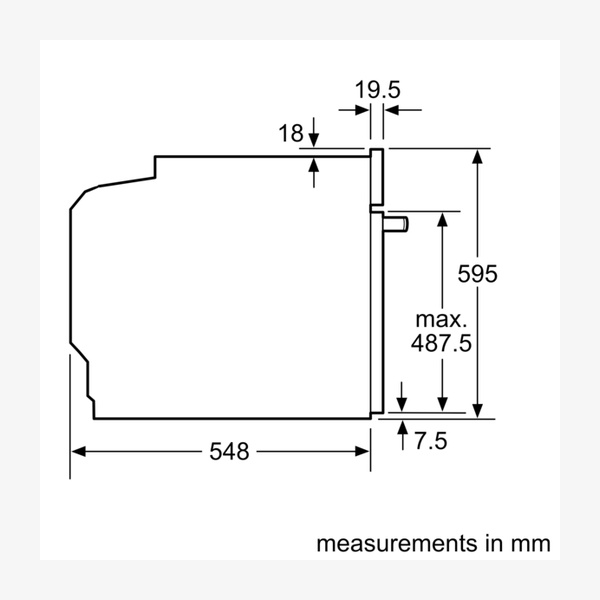

Appliance dimensions (H x W x D)595 mm x 594 mm x 548 mm

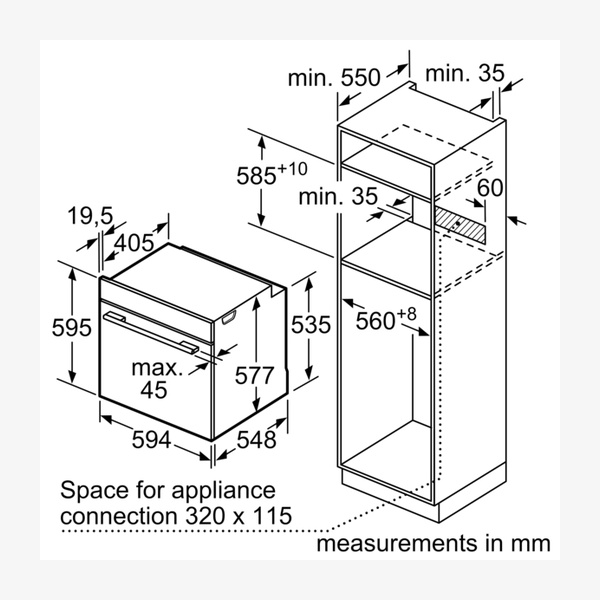

Niche dimensions (H x W x D)585 mm – 595 mm x 560 mm – 568 mm x 550 mm

Required niche size for installation (H x W x D)585–595 x 560–568 x 550 mm

Packed product dimensions (H x W x D)670 x 670 x 680 mm

Control panel materialGlass

Door materialGlass; full glass inner door; quadruple glazed CoolTouch door

Cavity inner surfaceEnamel anthracite

Net weight37.5 kg

Usable cavity volume71 l / 71 litre capacity

Number of cavities1 (Main cavity)

Cooking methods4D Hotair, Defrost, Air fry, Full width grill, Hotair gentle, Half width grill, Conventional heat, Conventional heat gentle, Pizza setting / pizza function, low temperature cooking, Bottom heat, Hot air grilling, pre–heating, warming, plate warming, keep warm, conventional top and bottom heat, full width variable grill

Temperature range30 °C – 275 °C

Maximum window temperature30 °C

Level independent telescopic railsAvailable as an additional accessory, pyrolitic proof

Shelf positions5 shelf positions

Energy efficiency ratingA+ (acc. EU Nr. 65/2014; 2010/30/EC)

Energy consumption (conventional)0.87 kWh per cycle

Energy consumption (fan–forced convection)0.69 kWh per cycle

Energy efficiency index81.2 %

Heat sourceElectrical

Connection rating / Total connected load3600 W / 3.6 KW

Nominal voltage220 – 240 V

Frequency50; 60 Hz

Fuse protection16 A

Plug typeno plug (electrical connection by electrician)

Length electrical supply cord120 cm / 120 cm Cable length

EAN code4242005326686

Included accessories1 x enamel baking tray, 2 x combination grid, 1 x universal pan

Optional accessoriesHEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ531010 Baking tray, non–stick ceramic coated; HEZ532010 Universal pan, non–stick ceramic coated; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ635001 AirFry & Grill Set; HEZ636000 Glass pan; HEZ638070 Full ext rails, level independent, pyro; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ634000 Baking and roasting grid; HEZ915003 Glass roasting dish, 5,4 L

Downloads

Download product documentation, manuals, and specification sheets.

HBG7764B1B Spec

PDF

Frequently Asked Questions

What heating methods does the HBG7764B1B oven offer?

The oven provides 14 heating methods: 4D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, half width grill, pizza function, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Hotair gentle, Conventional heat gentle and Air fry.

What is the capacity of the oven cavity?

The oven has a cavity volume of 71 litres with 5 shelf positions.

Does this oven have a self–cleaning function?

Yes, it features a pyrolytic self–cleaning function and a hydrolyse program. The pyrolytic function enables automatic oven cleaning with wipe–away ash.

Is the oven door designed to stay cool?

The oven has a quadruple glazed door with heat reflective glass, a CoolTouch door and a maximum window temperature of 30 °C. It also has low door temperature during pyrolitic cleaning.

Which accessories are included with the oven?

Included accessories are 1 x enamel baking tray, 2 x combination grid and 1 x universal pan.

Is the oven compatible with smart home features?

The oven is Home Connect ready and offers Remote Control and Monitoring via the app. It also includes Oven Assistant with Voice Control and BoschAssist.
