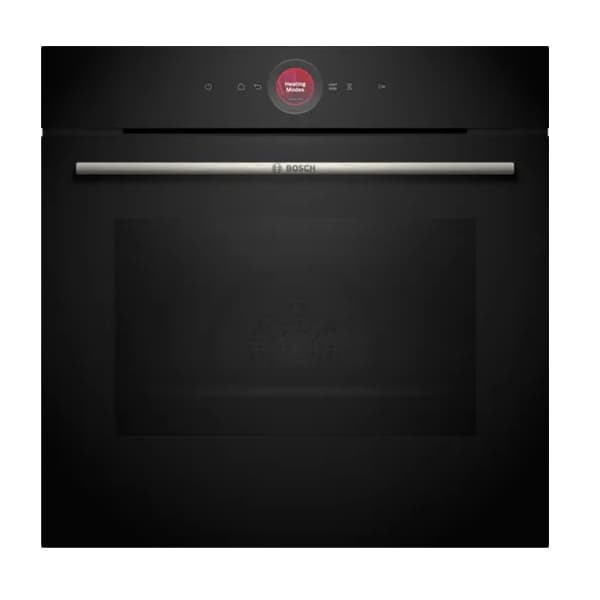

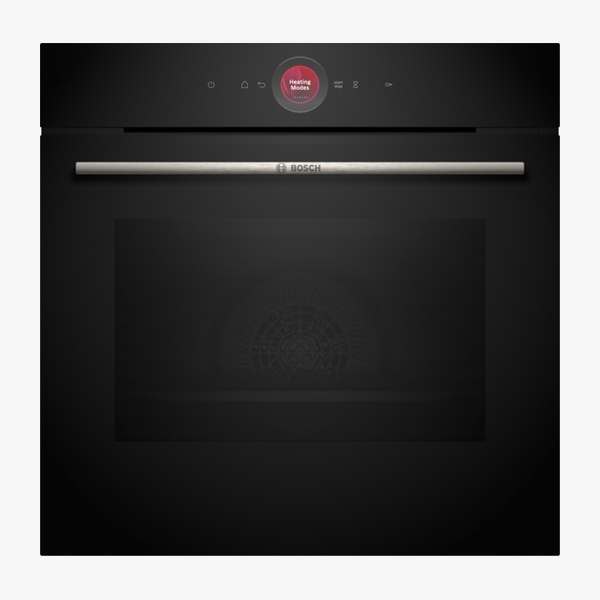

Bosch Serie 8 HBG7741B1B Single Oven

The Series 8 HBG7741B1B is a 60 x 60 cm black built–in electric oven with a 71 litre cavity, designed for versatile home cooking. It offers 14 heating methods, including Air Fry, 3D Hotair and pizza function, plus a temperature range from 30°C to 275°C. With a Digital Control Ring, TFT touch display, Oven Assistant with Voice Control and Home Connect readiness, it combines intuitive control with convenient features such as pyrolytic self–cleaning and hydrolyse cleaning.

SKU:HBG7741B1B

EAN:4242005326587

Category::Ovens

Quantity:

Key Features

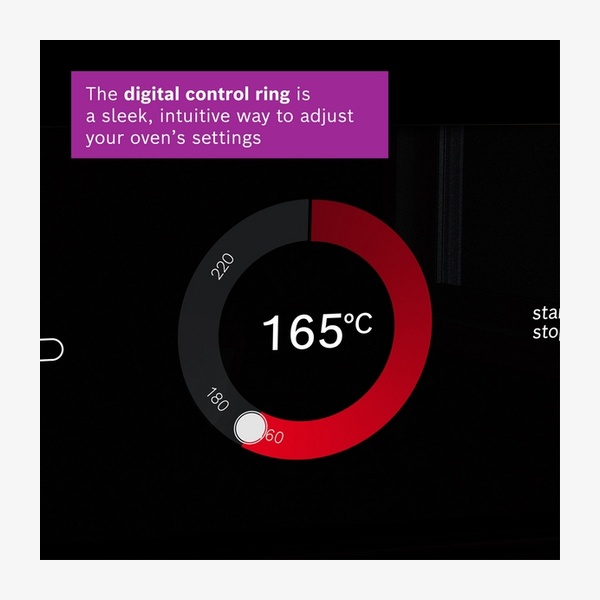

Digital Control Ring – simple and intuitive oven control with touch controls and steel trim.

TFT Touch Display – intuitive operation combining the Digital Control Ring and TFT touchscreen.

14 heating methods – including 3D Hotair, conventional top and bottom heat, Hotair grilling, full and half width grill, pizza function, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Hotair gentle, Conventional heat gentle and Air fry.

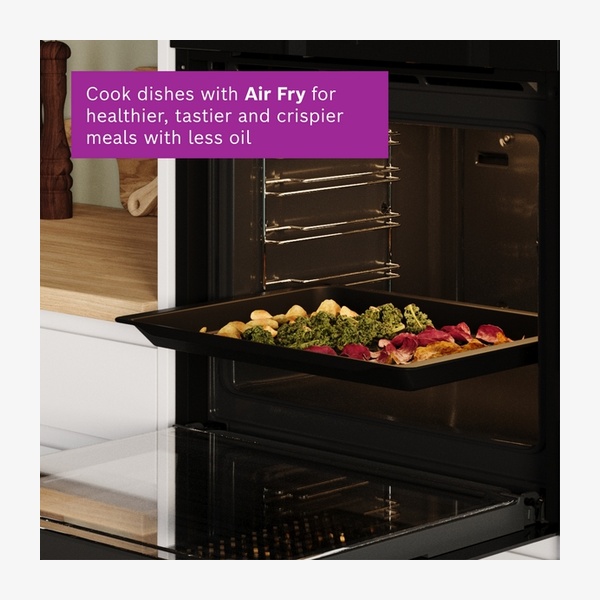

Air Fry function – dedicated setting for air frying within the oven.

Large 71 litre cavity – generous usable volume for everyday cooking and baking.

Temperature range 30°C – 275°C – suitable for gentle warming through to high–temperature roasting and baking.

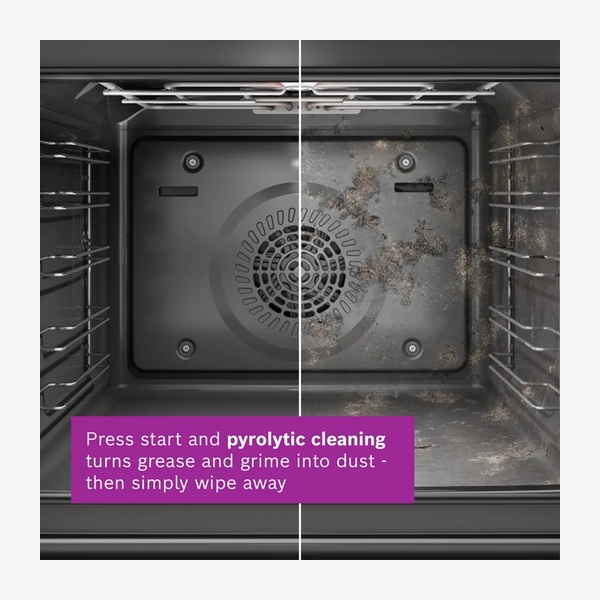

Pyrolytic self–cleaning – automatic oven cleaning leaving wipe–away ash.

Hydrolyse cleaning programme – additional integrated hydrolytic cleaning support.

Oven Assistant with Voice Control – helps set the right programme easily.

Home Connect ready – can be controlled via an App.

Automatic Switch–off – stops cooking as soon as the dish is done.

BoschAssist – supports selection of suitable settings for dishes.

Fast pre–heating function – reduces waiting time before cooking.

LED oven light – with automatic on/off when the door is opened or closed.

SoftClose and SoftOpen drop–down door – smooth, controlled door movement.

Quadruple glazed CoolTouch door – heat reflective glass and low maximum window temperature of 30°C.

Low door temperature during pyrolytic cleaning – enhanced safety while cleaning.

Comprehensive safety features – including electronic door lock, control panel lock, automatic safety switch–off, residual heat indicator, start button and door contact switch.

Level independent telescopic rails (optional) – available as an additional, pyrolytic–proof accessory.

Enamel anthracite cavity – durable cavity inner surface with full glass inner door.

Integrated cooling fan – helps manage appliance temperature during operation.

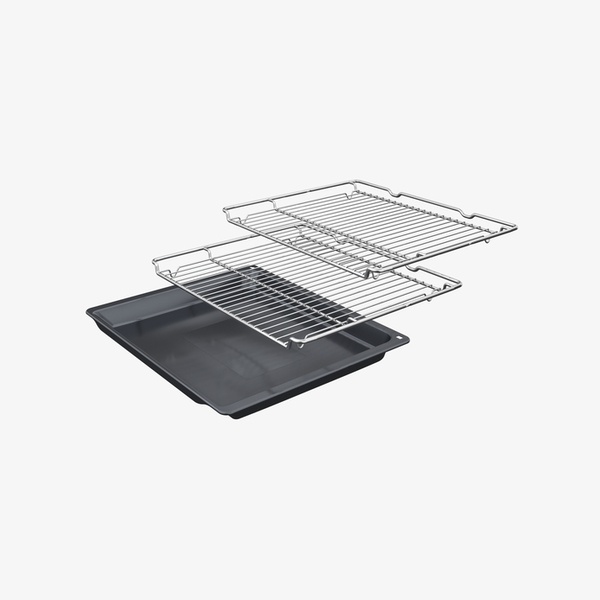

Included accessories – 2 x combination grid and 1 x universal pan are supplied.

Wide choice of optional accessories – including pizza pan, Air Fry & Grill tray, baking trays, multipurpose and professional pans, glass pans, glass roasting dish, full extension rails, pizza stone, wireless food thermometer and non–stick trays and pans.

Energy efficiency rating A+ – with specified consumption values for conventional and fan–forced convection modes.

Technical Spec

Product name / modelSeries 8, Built–in oven, 60 x 60 cm, Black, HBG7741B1B

Installation typeBuilt–in

Heat sourceElectrical

Integrated cleaning systemPyrolytic + Hydrolytic

Cavity volume71 litre capacity (usable volume 71 l)

Number of cavities1 (main cavity)

Temperature range30°C – 275°C

Heating methods3D Hotair; conventional top and bottom heat; Hotair grilling; full width variable grill; half width grill; pizza function; bottom heat; low temperature cooking; defrost; plate warming; keep warm; Hotair gentle; Conventional heat gentle; Air fry

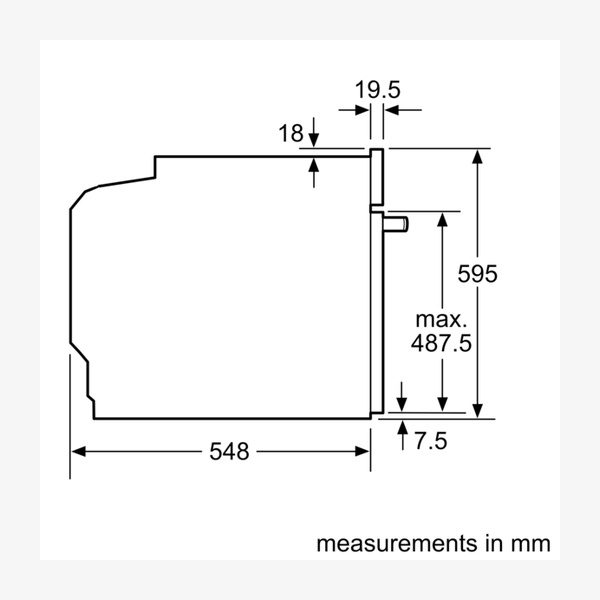

Appliance dimensions (H x W x D)595 mm x 594 mm x 548 mm (also stated as 595 x 594 x 548 mm)

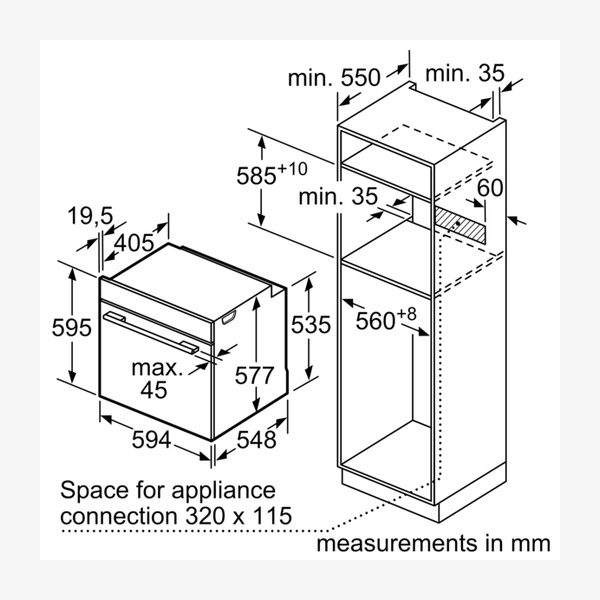

Niche dimensions (H x W x D)585 mm – 595 mm x 560 mm – 568 mm x 550 mm (also stated as 585–595 x 560–568 x 550 mm)

Packed product dimensions (H x W x D)670 x 670 x 680 mm

Net weight37.0 kg

Control panel materialGlass

Door materialGlass, full glass inner door, quadruple glazed with heat reflective glass

Cavity inner surfaceEnamel anthracite

Shelf positions5 shelf positions

Level independent telescopic railsAvailable as an additional accessory, pyrolytic proof

Energy efficiency ratingA+ (acc. EU Nr. 65/2014; also stated as A+ in 2010/30/EC)

Energy consumption (conventional)0.87 kWh per cycle (2010/30/EC)

Energy consumption (fan–forced convection)0.69 kWh per cycle (fan–forced convection mode / forced air convection)

Energy efficiency index81.2 % (2010/30/EC)

Connection rating3.6 kW (3600 W total connected load electric)

Nominal voltage220 – 240 V

Frequency50; 60 Hz

Fuse protection16 A

Plug typeNo plug (electrical connection by electrician)

Length of electrical supply cord120 cm (cable length 120 cm)

Maximum window temperature30°C

EAN code4242005326587

Included accessories2 x combination grid, 1 x universal pan

Optional accessories (selection)HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638070 Full ext rails, level independent, pyro; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L; HEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ531010 Baking tray, non–stick ceramic coated; HEZ532010 Universal pan, non–stick ceramic coated

Downloads

Download product documentation, manuals, and specification sheets.

HBG7741B1B Spec

PDF

Frequently Asked Questions

What is the capacity of the HBG7741B1B oven?

The oven has a cavity volume of 71 litres, described as a 71 litre capacity with a usable volume of 71 l.

Which heating methods are available?

There are 14 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, half width grill, pizza function, bottom heat, low temperature cooking, defrost, plate warming, keep warm, Hotair gentle, Conventional heat gentle and Air fry.

Does this oven have a self–cleaning function?

Yes, it has a pyrolytic self–cleaning function that provides automatic oven cleaning with wipe–away ash, as well as a hydrolyse programme as part of the integrated cleaning system.

What accessories are included with the oven?

The oven is supplied with 2 x combination grid and 1 x universal pan. A wide range of optional accessories is also available, including pans, trays, grids, extension rails, a pizza stone, a glass roasting dish and a wireless food thermometer.

What are the installation requirements?

The oven is built–in, designed for a niche size of 585 mm – 595 mm (height), 560 mm – 568 mm (width) and 550 mm (depth). It has a total connected load of 3.6 kW, operates at 220 – 240 V and 50; 60 Hz, and requires electrical connection by an electrician as it is supplied without a plug.

Is the oven compatible with smart connectivity?

Yes, it is Home Connect ready, allowing control via an App, and it features an Oven Assistant with Voice Control.
