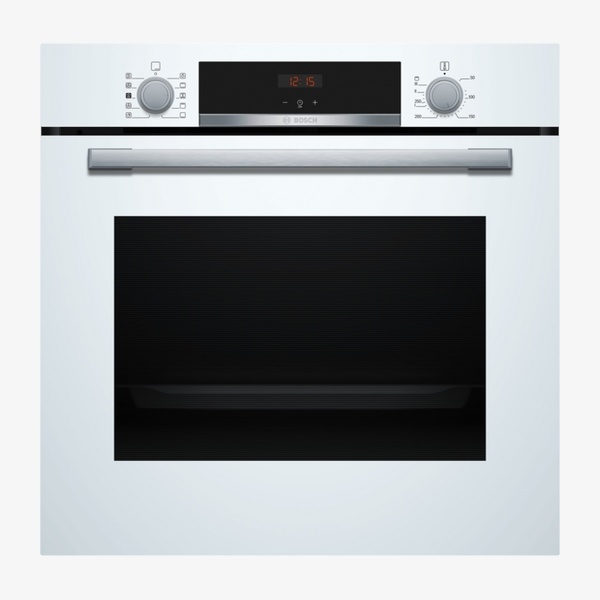

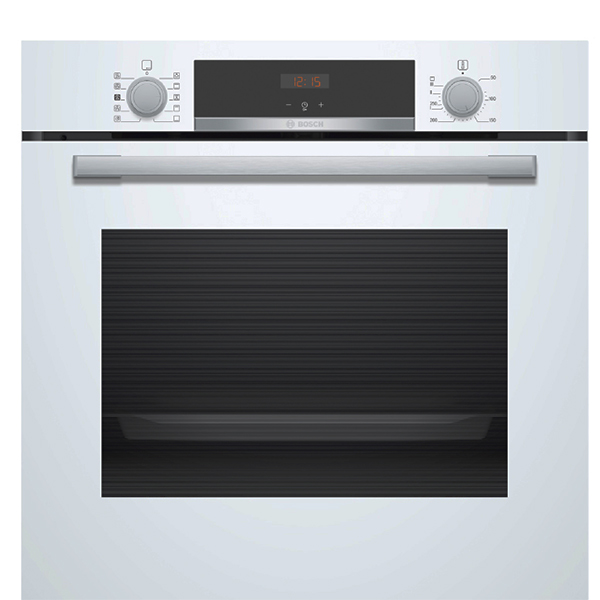

Bosch HQA534BW3B Single Oven

The Series 4 HQA534BW3B is a 60 x 60 cm white built–in oven with added steam function and a 71 litre cavity, designed for installation in a built–in niche. It offers Hotair Steam for delicious baking results, combining heat and humidity so food turns out crispy on the outside and fluffy or juicy inside. With A+ energy efficiency, EcoClean Direct on the back panel and 8 heating methods, it is suitable for users seeking versatile cooking and reduced cleaning effort.

SKU:HQA534BW3B

EAN:4242005465583

Category::Ovens

Quantity:

Key Features

Added steam function – by adding steam, baked food turns out crispy on the outside and fluffy on the inside.

Hotair Steam – heat and humidity are distributed equally within the oven interior so food turns out crispy on the outside and juicy on the inside.

8 heating methods – 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle, hot air and steam combined.

Energy Efficiency Class A+ – improved oven construction helps you save energy while cooking.

Generous 71 litre capacity – extra large cavity volume suitable for larger dishes.

EcoClean Direct – special coating on the back panel automatically absorbs grime for less cleaning effort.

Temperature range 50 °C – 275 °C – supports a wide variety of cooking and baking tasks.

Fast pre–heating function – quickly brings the oven to the desired temperature.

Triple glazed CoolTouch door – maximum window temperature 40 °C and a triple glazed door for safety.

LED–Display Control (Red) – with electronic clock timer, heating–up indicator and automatic start.

Control panel lock – helps prevent unintended operation.

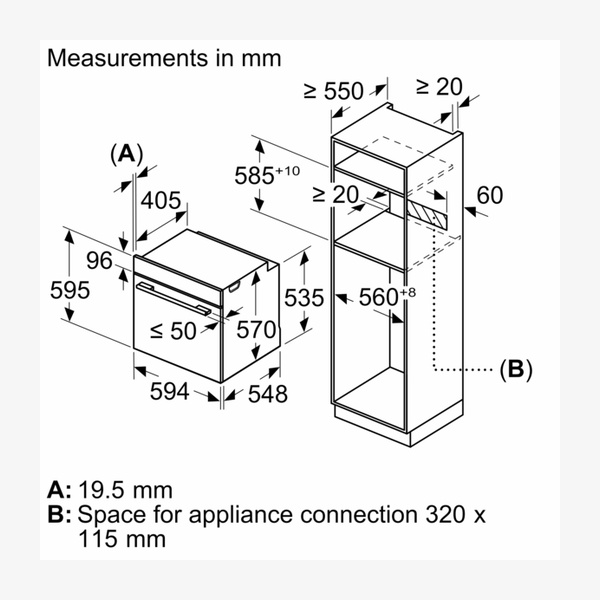

Built–in installation – designed for a niche of 585–595 x 560–568 x 550 mm (HxWxD).

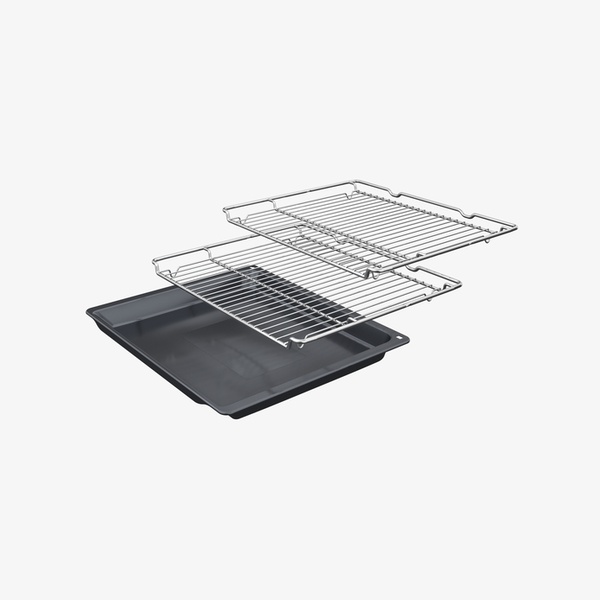

Included accessories – supplied with 2 x combination grid and 1 x universal pan.

Optional level independent telescopic rails – available as an additional accessory to improve tray handling.

Interior halogen light – provides clear visibility of the oven cavity during operation.

Technical Spec

Product name / modelSeries 4, Built–in oven with added steam function, 60 x 60 cm, White, HQA534BW3B

Construction typeBuilt–in

ColourWhite

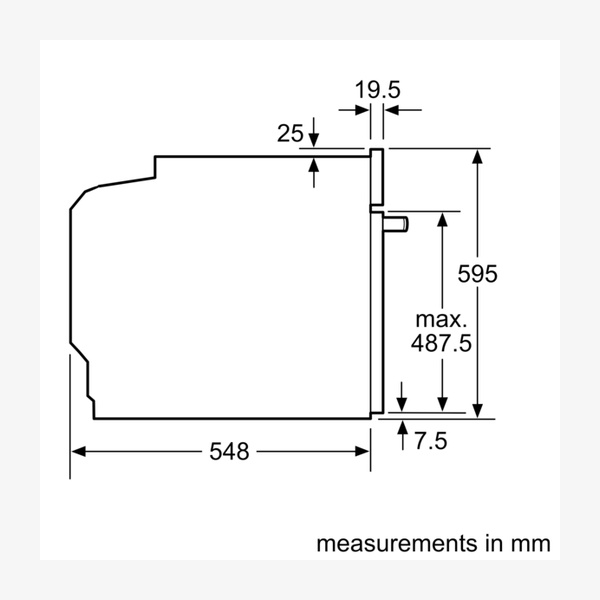

Dimensions (H x W x D)595 x 594 x 548 mm

Required niche size (H x W x D)585–595 x 560–568 x 550 mm

Packed dimensions (H x W x D)675 x 660 x 690 mm

Net weight34.0 kg

Cavity volume71 litre capacity / 71 l usable volume

Energy efficiency ratingA+ (acc. EU Nr. 65/2014; 2010/30/EC)

Energy efficiency index81.2 %

Energy consumption (conventional)0.94 kWh/cycle

Energy consumption (fan–forced)0.69 kWh/cycle

Heat sourceElectrical

Connection rating2800 W / 2.8 KW

Voltage220–240 V nominal

Frequency50; 60 Hz

Fuse protection13 A

Plug typeNo plug (electrical connection by electrician)

Cable length120 cm

Number of cavities1 (Main cavity)

Integrated cleaning systemEcoClean Direct programme, Hydrolytic; EcoClean Direct: back panel

Control typeRotary dial, retractable control dials, round with steel trim; LED–Display Control (Red)

Control panel materialGlass

Door materialGlass

Door glazingTriple glazed CoolTouch door

Maximum window temperature40 °C

Cavity inner surfaceEnamel anthracite

Shelf positions5 shelf positions

Temperature range50 °C – 275 °C

Cooking methodsFull width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat, Hot air grilling; hot air and steam combined

Special programmes / features3D Hotair; Fast pre–heating function; Automatic start; Heating–up indicator; Interior halogen light; Integral cooling fan

Handle typeStraight bar handle

Included accessories2 x combination grid, 1 x universal pan

Optional accessoriesHEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non–stick ceramic coated; HEZ532010 Universal pan, non–stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L

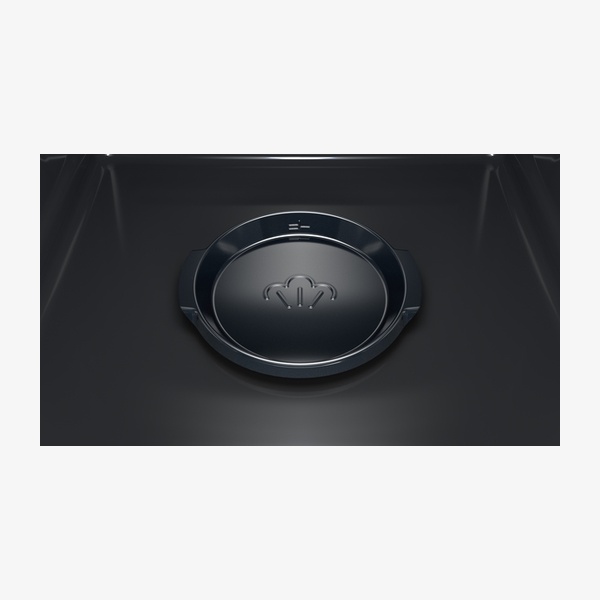

Water bowl volume250 ml

EAN code4242005465583

Downloads

Download product documentation, manuals, and specification sheets.

HQA534BW3B Spec

PDF

Frequently Asked Questions

What is the capacity of the Series 4 HQA534BW3B oven?

The oven has a cavity volume of 71 litres, described as an extra large capacity oven, with a usable volume of 71 l in the main cavity.

Which heating methods does this oven offer?

It provides 8 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle, and hot air and steam combined. It also supports Hotair Steam for combining heat and humidity.

What accessories are included with the oven?

The oven is supplied with 2 x combination grid and 1 x universal pan. A range of additional accessories, such as a pizza stone, baking trays, pans and telescopic rails, is available separately.

How does EcoClean Direct help with cleaning?

EcoClean Direct uses a special coating on the rear wall that automatically absorbs grime, reducing the cleaning effort required. The oven features an EcoClean Direct programme and Hydrolytic cleaning support.

What is the energy efficiency rating and consumption?

The oven has an energy efficiency rating of A+. The energy consumption per cycle in conventional mode is 0.94 kWh, and in fan–forced convection mode it is 0.69 kWh. The energy efficiency index is 81.2 %.

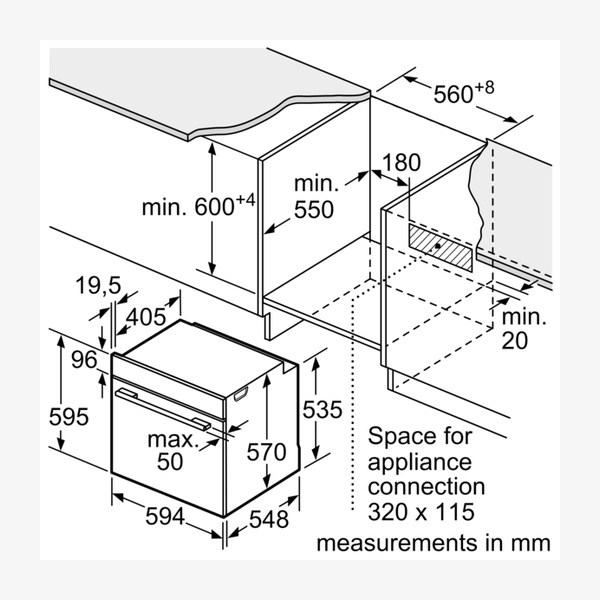

What are the installation requirements for the niche?

The required niche size is 585–595 mm high, 560–568 mm wide and 550 mm deep. The appliance dimensions are 595 x 594 x 548 mm (HxWxD). For installation and ventilation requirements, the installation manual should be consulted prior to fitting.
