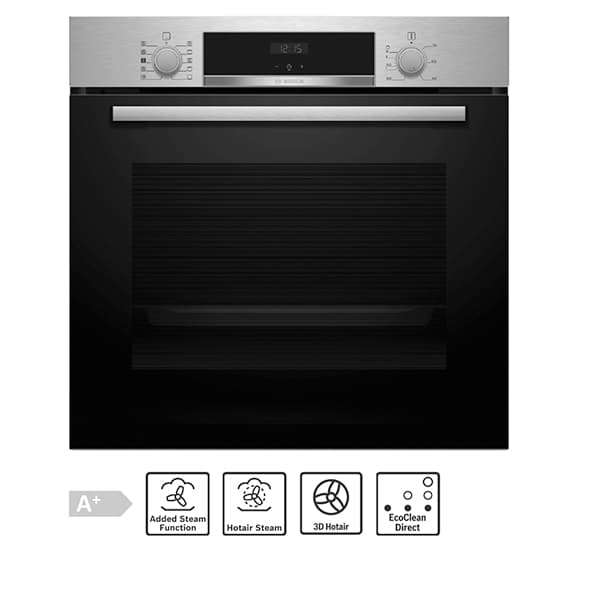

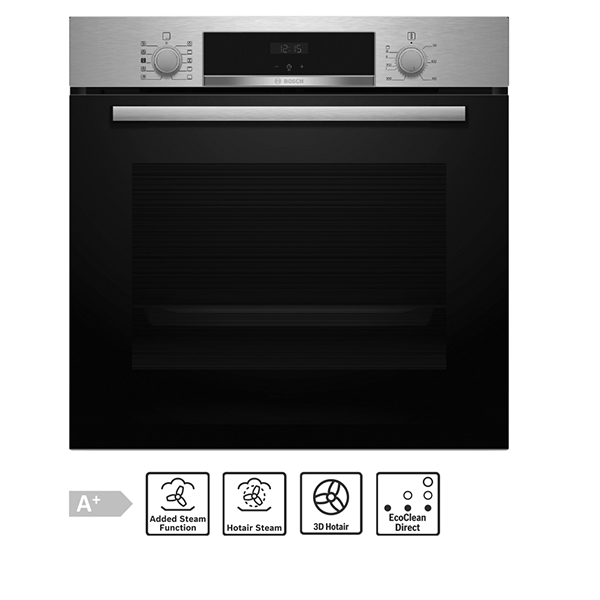

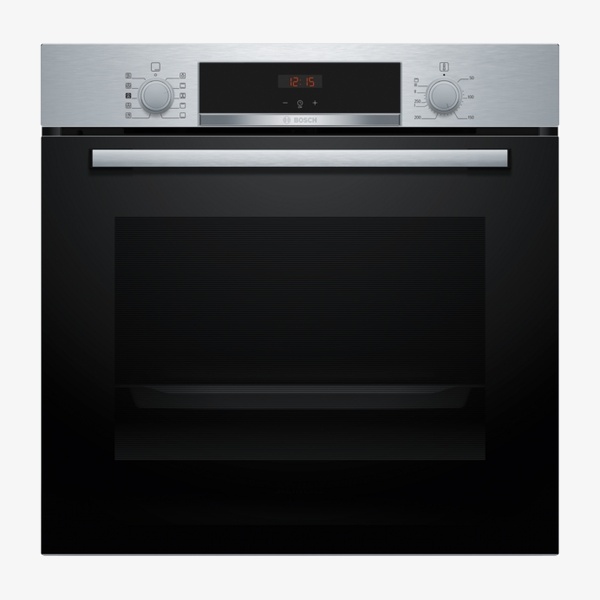

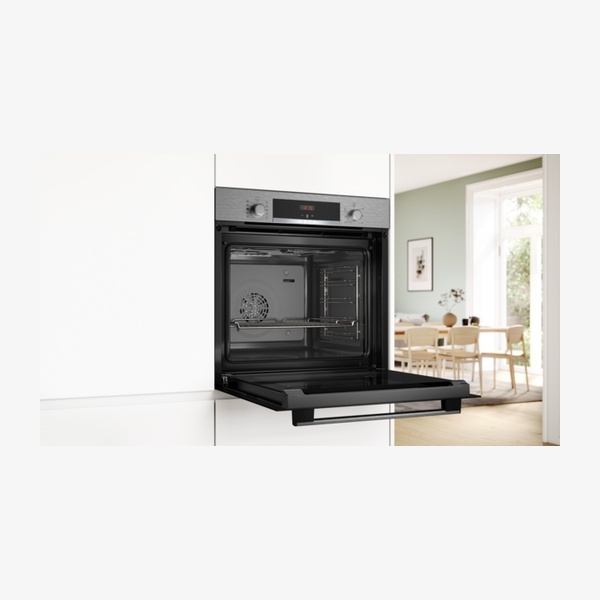

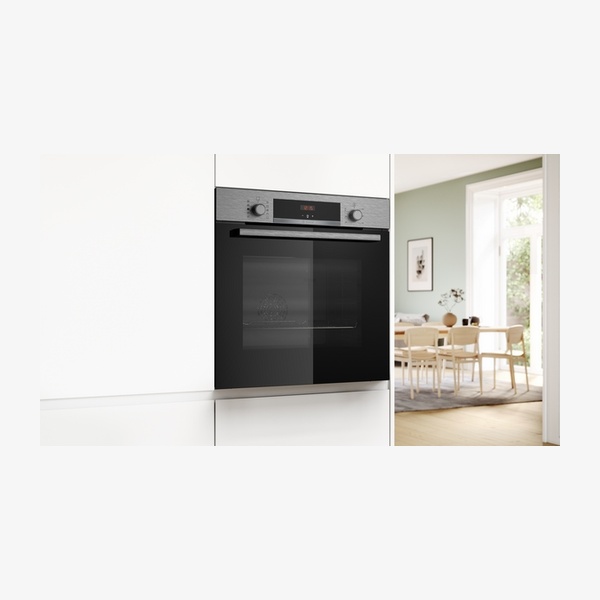

Bosch Series 4 HQA534BS3B Single Oven

The Series 4 HQA534BS3B is a 60 x 60 cm built–in stainless steel oven with added steam function and Hotair Steam for delicious baking results. It offers a 71 litre capacity, 8 heating methods and A+ energy efficiency. With EcoClean Direct on the back panel, a triple glazed CoolTouch door and helpful features such as fast pre–heating, LED display and electronic clock timer, it is designed for convenient everyday cooking and baking.

SKU:HQA534BS3B

EAN:4242005465576

Category::Ovens

Quantity:

Key Features

Added steam function – by adding steam, baked food turns out crispy on the outside and fluffy on the inside.

Hotair Steam – heat and humidity are distributed equally so food turns out crispy on the outside and juicy on the inside.

Energy Efficiency Class A+ – thanks to improvement of the oven construction you can save energy while cooking.

8 heating methods – 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle, hot air and steam combined.

Large 71 l cavity volume – extra large capacity oven with 5 shelf positions for flexible cooking.

3D Hotair – even heat distribution for perfect results on up to three levels.

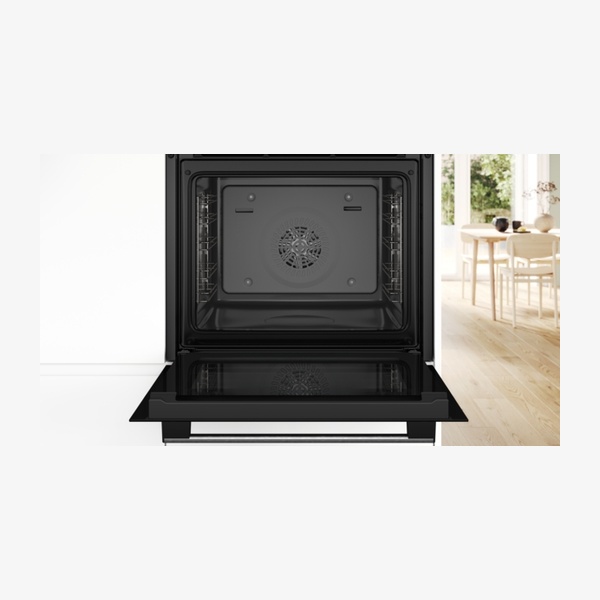

EcoClean Direct – special coating on the rear wall automatically absorbs grime to reduce cleaning effort.

Temperature range 50 °C – 275 °C – suitable for low temperature cooking through to high–heat baking and roasting.

Triple glazed CoolTouch door – maximum window temperature 40 °C and improved safety at the door.

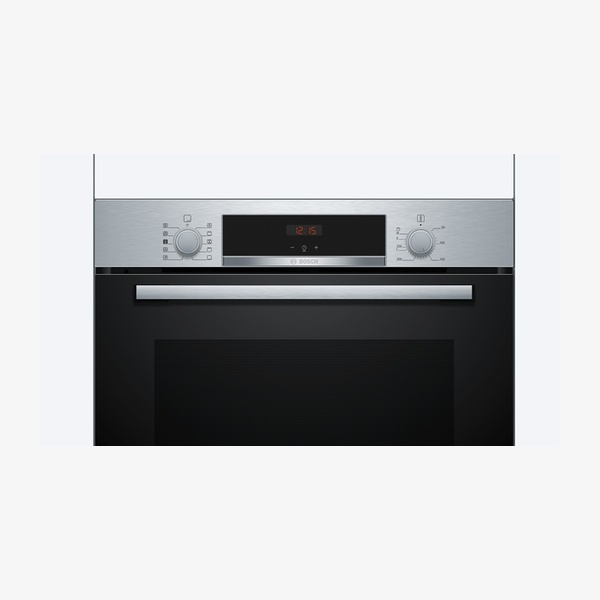

Stainless steel design – rotary dial controls with retractable dials, round with steel trim and a straight bar handle.

LED–Display Control (Red) – with electronic clock timer, heating–up indicator and automatic start.

Fast pre–heating function – helps reach cooking temperature more quickly.

Interior halogen light – illuminates the oven cavity for a clear view of dishes while cooking.

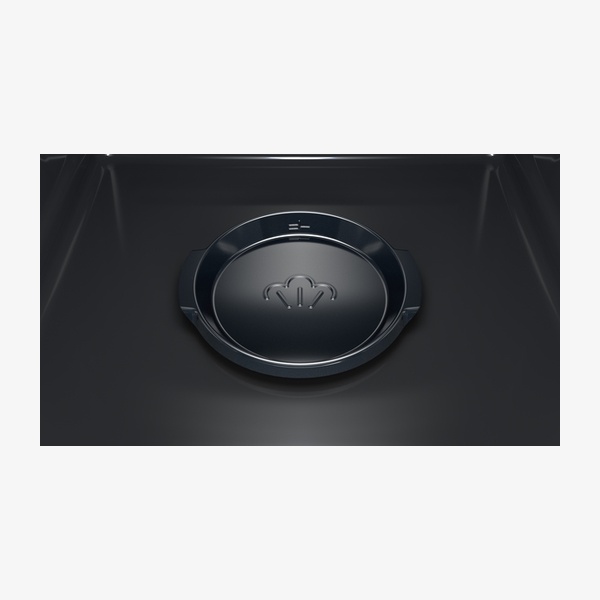

Water bowl 250 ml – for convenient use of the added steam function.

Control panel lock – helps prevent accidental changes to settings.

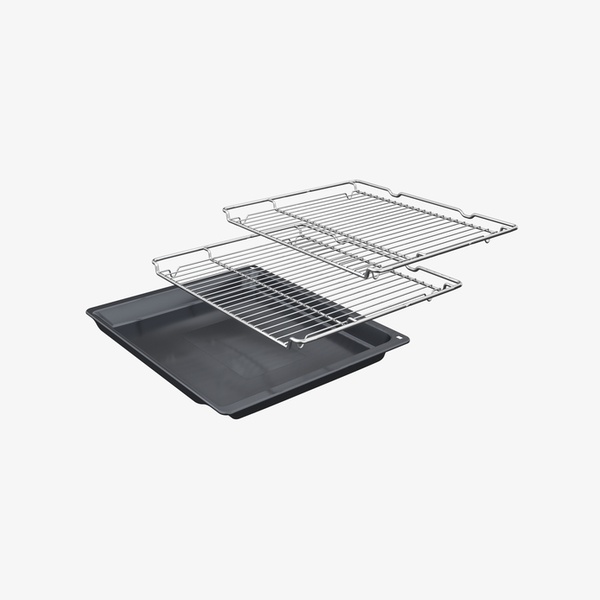

Included accessories – 2 x combination grid and 1 x universal pan.

Wide choice of optional accessories – including professional pans, baking trays, glass pans, pizza stone, wireless food thermometer and telescopic rails (available as additional accessories).

Technical Spec

Product typeSeries 4 built–in oven with added steam function

ModelHQA534BS3B

Installation typeBuilt–in

Front materialStainless steel control panel, glass door

Cavity volume71 l / 71 litre capacity

Number of cavities1 (main cavity)

Energy efficiency ratingA+ (acc. EU Nr. 65/2014)

Energy efficiency index81.2 % (2010/30/EC)

Energy consumption (conventional)0.94 kWh / cycle (2010/30/EC)

Energy consumption (fan–forced)0.69 kWh / cycle (2010/30/EC)

Heat sourceElectrical

Total connected load2.8 KW / 2800 W

Voltage220–240 V

Frequency50; 60 Hz

Fuse protection13 A

Plug typeNo plug (electrical connection by electrician)

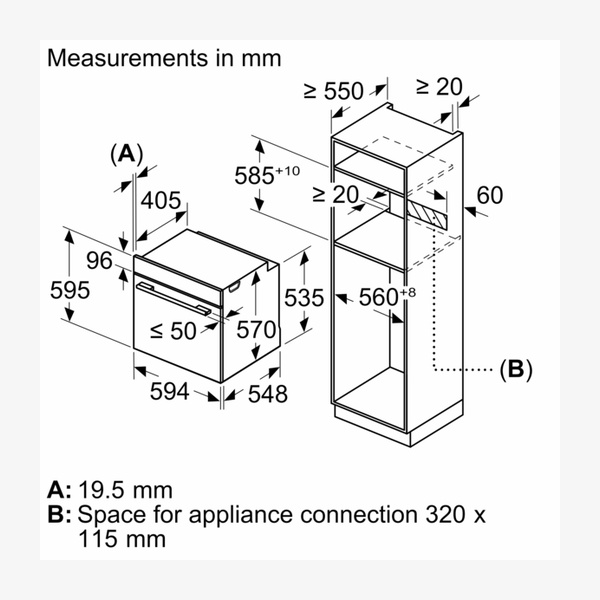

Appliance dimensions (H x W x D)595 mm x 594 mm x 548 mm

Packed dimensions (H x W x D)675 mm x 660 mm x 690 mm

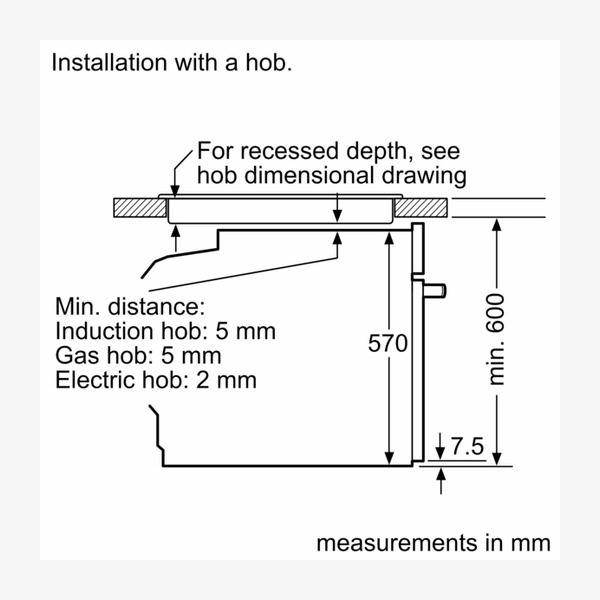

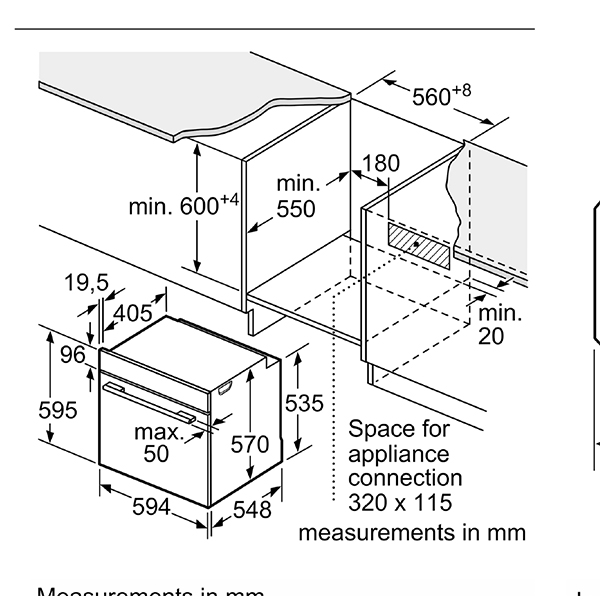

Required niche size (H x W x D)585–595 mm x 560–568 mm x 550 mm

Net weight33.7 kg

Cable length120 cm

Maximum window temperature40 °C

Door glazingTriple glazed CoolTouch door

Cavity inner surfaceEnamel anthracite

Cleaning systemEcoClean Direct programme; Hydrolytic; EcoClean Direct back panel; full glass inner door

Control typeRotary dial; retractable control dials; LED–Display Control (Red)

HandleStraight bar handle

Temperature range50 °C – 275 °C

Programmes / cooking methodsFull width grill; Hotair gentle; Hot Air; conventional heat; pizza setting; bottom heat; Hotair grilling; hot air and steam combined

Shelf positions5 shelf positions

Telescopic railsLevel independent telescopic rails available as an additional accessory

CoolingIntegral cooling fan

Water bowl volume250 ml

Included accessories2 x combination grid; 1 x universal pan

Optional accessoriesHEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5.4 L; HEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non–stick ceramic coated; HEZ532010 Universal pan, non–stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled

EAN code4242005465576

Downloads

Download product documentation, manuals, and specification sheets.

HQA534BS3B Spec

PDF

Frequently Asked Questions

What is the capacity of the HQA534BS3B oven?

The oven has a cavity volume of 71 litres and is described as an extra large capacity oven with 5 shelf positions.

Which heating methods does this oven offer?

It has 8 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle and hot air and steam combined.

How does the added steam function help with cooking?

By adding steam, baked food turns out crispy on the outside and fluffy on the inside. Hotair Steam distributes heat and humidity equally within the oven interior so food is crispy on the outside and juicy on the inside.

What cleaning features are included?

The oven includes EcoClean Direct on the back panel, with a special coating that automatically absorbs grime. It also offers an EcoClean Direct programme, hydrolytic cleaning and a full glass inner door for easier wiping.

What accessories come with the oven as standard?

Included accessories are 2 x combination grid and 1 x universal pan. Level independent telescopic rails and other accessories are available separately.

Does the oven have any safety features?

Yes. It has a triple glazed CoolTouch door with a maximum window temperature of 40 °C and a control panel lock.
