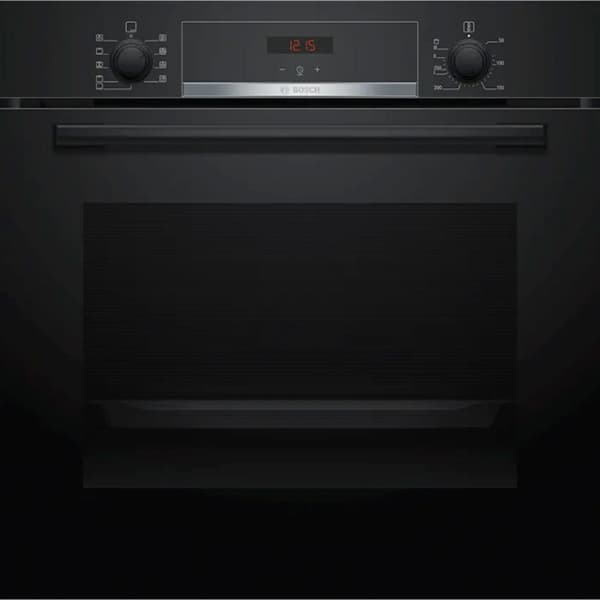

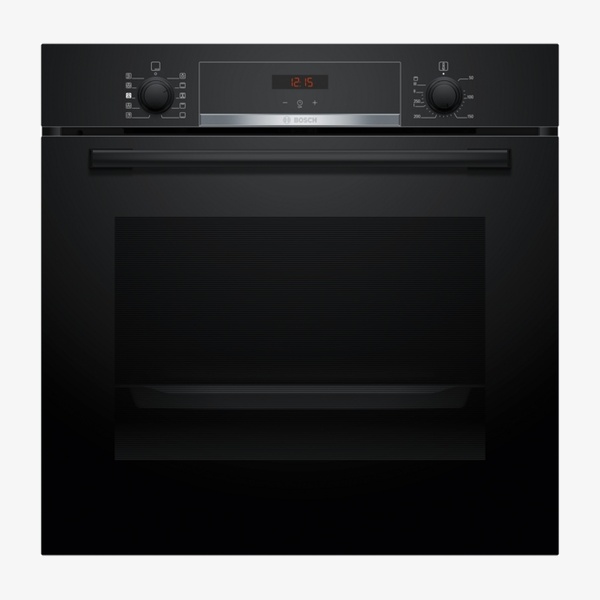

Bosch Series 4 HQA534BB3B Single Oven

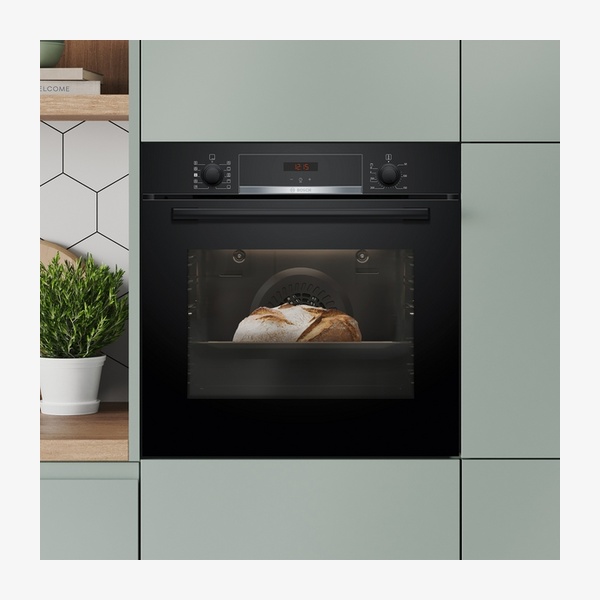

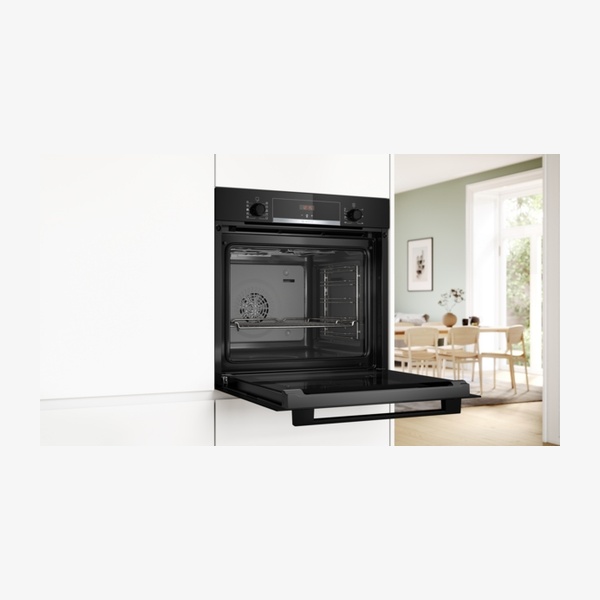

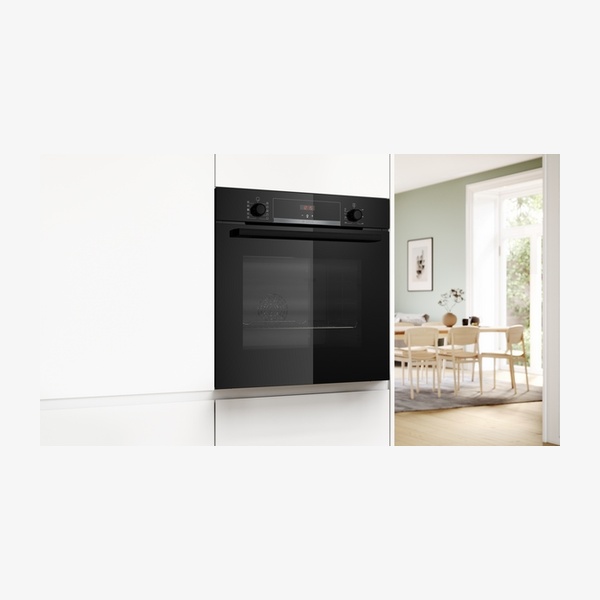

The Series 4 HQA534BB3B is a 60 x 60 cm black built–in oven with added steam function designed for versatile cooking and baking. It offers Hotair Steam for delicious baking results, with even heat and humidity distribution for crispy and juicy food. With 8 heating methods, a 71 litre capacity and A+ energy efficiency, it suits everyday cooking. EcoClean Direct and a full glass inner door help reduce cleaning effort.

SKU:HQA534BB3B

EAN:4242005465552

Category::Ovens

Quantity:

Key Features

Added steam function – baked food turns out crispy on the outside and fluffy on the inside.

Hotair Steam – heat and humidity are distributed equally so food is crispy on the outside and juicy on the inside.

3D Hotair – even heat distribution for results on up to three levels.

Energy Efficiency Class A+ – thanks to improvement of the oven construction you can save energy while cooking.

EcoClean Direct – special coating of the rear wall automatically absorbs grime to reduce cleaning effort.

8 heating methods – 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle, hot air and steam combined.

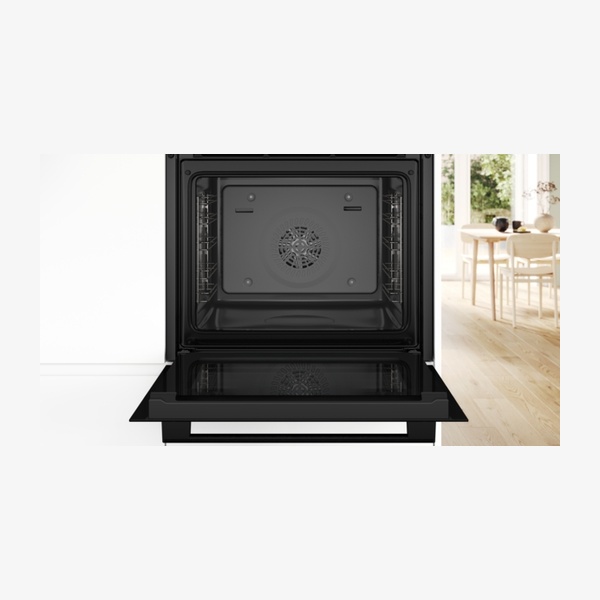

Large 71 litre cavity volume – extra large capacity oven with 5 shelf positions.

Fast pre–heating function – helps reach the required temperature more quickly.

Maximum window temperature 40° C – triple glazed CoolTouch door.

Rotary and retractable control dials – round with steel trim for easy operation.

LED–Display Control (Red) – with electronic clock timer and heating–up indicator.

Control panel lock – helps prevent unauthorised operation.

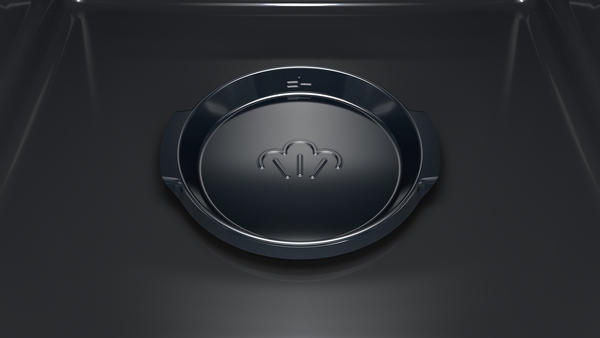

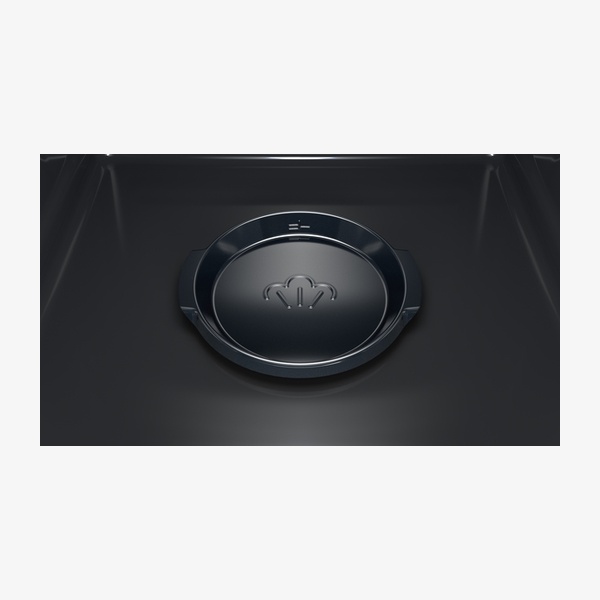

Water bowl with 250 ml volume – supports the added steam function.

Interior halogen light – for clear visibility inside the cavity.

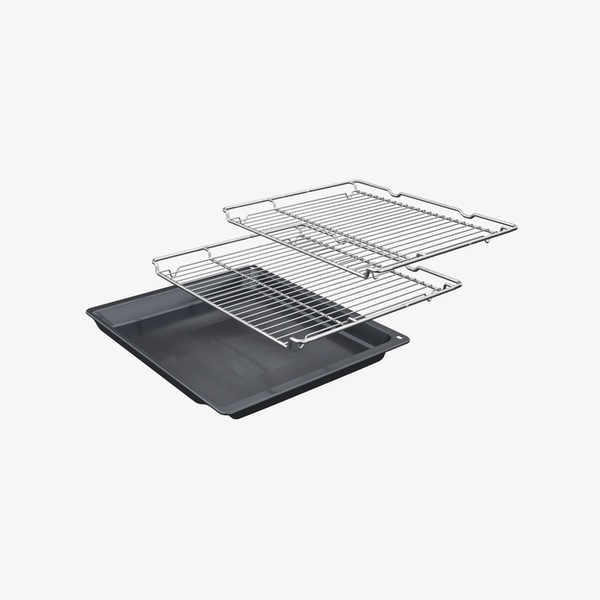

Included accessories – 2 x combination grid and 1 x universal pan.

Optional accessories – wide range including pizza stone, wireless food thermometer, baking trays, pans and rails.

Technical Spec

Product seriesSeries 4

Model nameHQA534BB3B

Product typeBuilt–in oven

ColourBlack

Installation typeBuilt–in

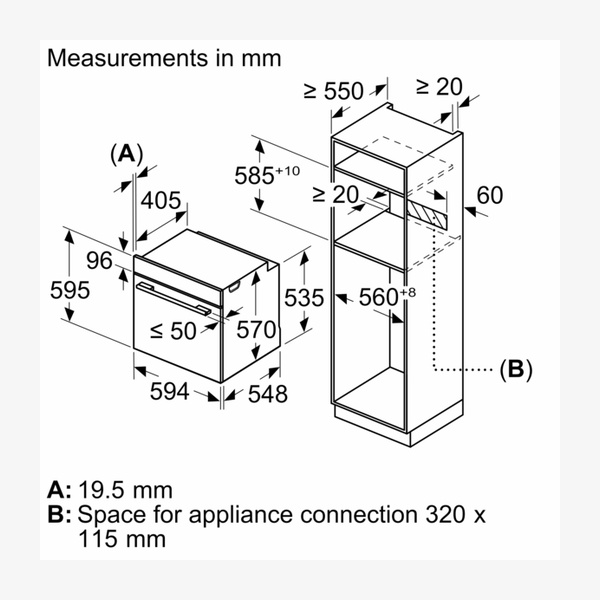

Dimensions (HxWxD)595 x 594 x 548 mm / 595 mm x 594 mm x 548 mm

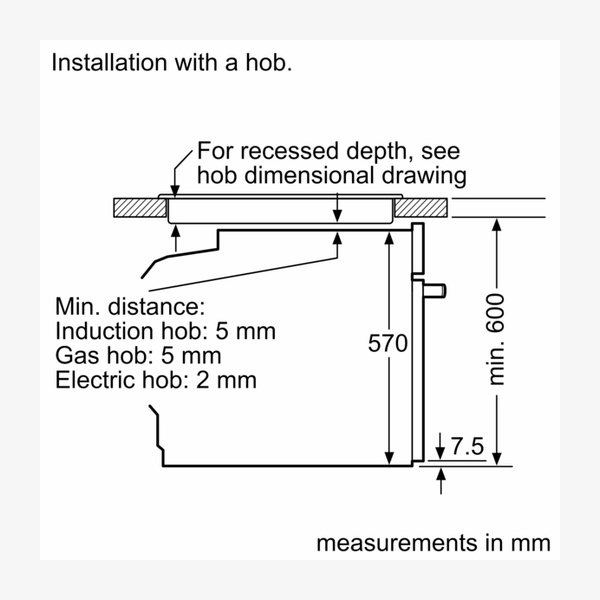

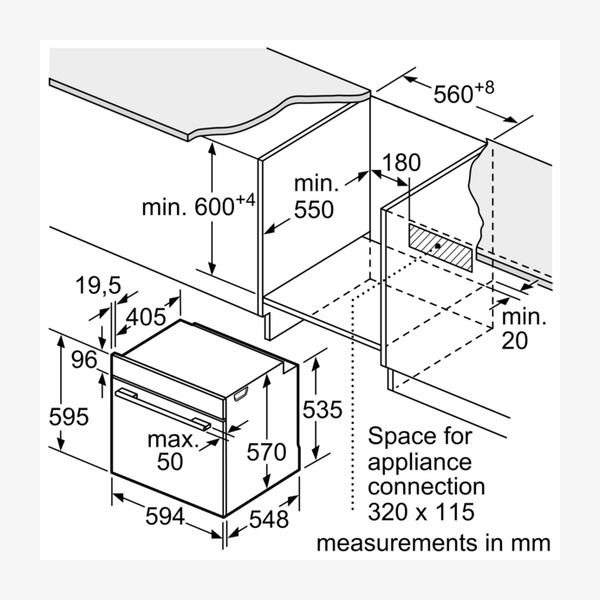

Required niche size (HxWxD)585–595 x 560–568 x 550 mm

Packed product dimensions (HxWxD)675 x 660 x 690 mm

Net weight34.0 kg

Cavity volume71 litre capacity / 71 l usable volume of cavity

Number of cavities1 main cavity (2010/30/EC)

Heat sourceElectrical

Cooking methodsFull width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat, Hot air grilling, hot air and steam combined

Heating methods (count)Oven with 8 heating methods

Temperature range50 °C – 275 °C

Energy efficiency ratingA+ (acc. EU Nr. 65/2014)

Energy consumption (conventional)0.94 kWh / cycle

Energy consumption (fan–forced)0.69 kWh / cycle

Energy efficiency index81.2 % (2010/30/EC)

Connection rating2800 W / 2.8 KW (Total connected load electric)

Voltage220–240 V / 220 – 240 V nominal voltage

Frequency50; 60 Hz

Fuse protection13 A

Plug typeNo plug (electrical connection by electrician)

Cable length120 cm

Control panel materialGlass

Door materialGlass, triple glazed CoolTouch door

Cavity inner surfaceEnamel anthracite

Integrated cleaning systemEcoClean Direct programme, Hydrolytic; EcoClean Direct: back panel

Maximum window temperature40 °C

Shelf positions5 shelf positions

Level independent telescopic railsAvailable as an additional accessory

Display and controlsLED–Display Control (Red), rotary dial, retractable control dials, electronic clock timer

LightingInterior halogen light

Water bowl volume250 ml

Cooling systemIntegral cooling fan

Handle designStraight bar handle

EAN code4242005465552

Included accessories2 x combination grid, 1 x universal pan

Optional accessoriesHEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non–stick ceramic coated; HEZ532010 Universal pan, non–stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ660060 Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L

Downloads

Download product documentation, manuals, and specification sheets.

HQA534BB3B Spec

PDF

Frequently Asked Questions

What is the capacity of the oven cavity?

The oven has a cavity volume of 71 litres, described as an extra large capacity oven with 5 shelf positions.

Which heating methods are available?

The oven offers 8 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle, and hot air and steam combined.

What is the energy efficiency rating?

The appliance has an energy efficiency rating of A+ (acc. EU Nr. 65/2014). Energy consumption per cycle is 0.94 kWh in conventional mode and 0.69 kWh in fan–forced convection mode.

How does EcoClean Direct work?

EcoClean Direct is a special coating on the rear wall that automatically absorbs grime, resulting in less cleaning effort. It is specified as an EcoClean Direct programme, Hydrolytic system for the back panel.

What accessories are included with the oven?

The oven is supplied with 2 x combination grid and 1 x universal pan as included accessories.

Is there a child lock or control lock?

A control panel lock is listed as a feature, helping to secure the settings during operation.
