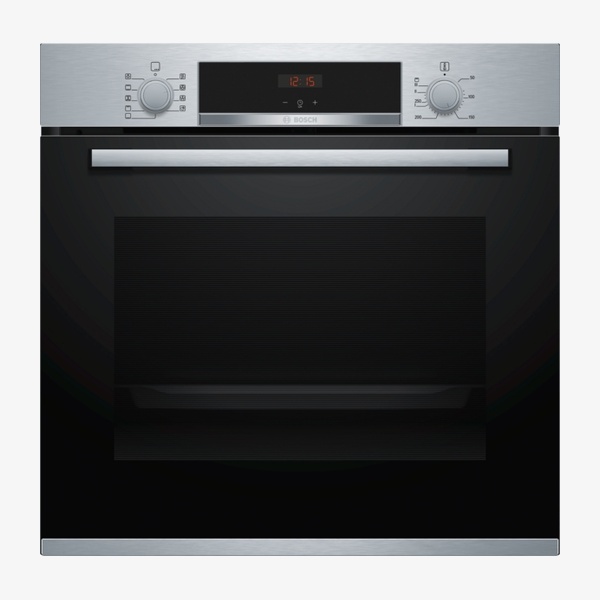

Bosch Serie 4 HBS534BS0B Single Oven

The Series 4 HBS534BS0B is a 60 x 60 cm built-in stainless steel oven designed for versatile baking and roasting. It offers 3D Hotair for perfect results on up to three levels simultaneously, a 71 l main cavity and seven heating methods. With red LED display control, retractable dials, EcoClean Direct back panel and additional cleaning assistance, it combines convenient operation with reduced cleaning effort for everyday cooking.

SKU:HBS534BS0B

EAN:4242005057375

Category::Ovens

Quantity:

Key Features

3D Hotair technology – achieve perfect baking and roasting results on up to three levels simultaneously.

Red LED display control – easy to use thanks to the time functions.

Pop-out / retractable controls – make the front of the oven easy to clean and give it a sleek look.

EcoClean Direct back panel – less cleaning effort thanks to a special coating that automatically absorbs grime.

Cleaning Assistance function – additional cleaning option, especially useful for light cleaning.

Seven heating methods – 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat and Hotair gentle.

Fast pre-heating function – quickly brings the oven up to temperature.

71 l main cavity – spacious oven with 5 shelf positions for flexible cooking.

Energy efficiency rating A – efficient performance in both conventional and fan-forced convection modes.

Stainless steel design – control panel in stainless steel, straight bar handle and glass door.

Control panel lock – helps prevent unwanted adjustments.

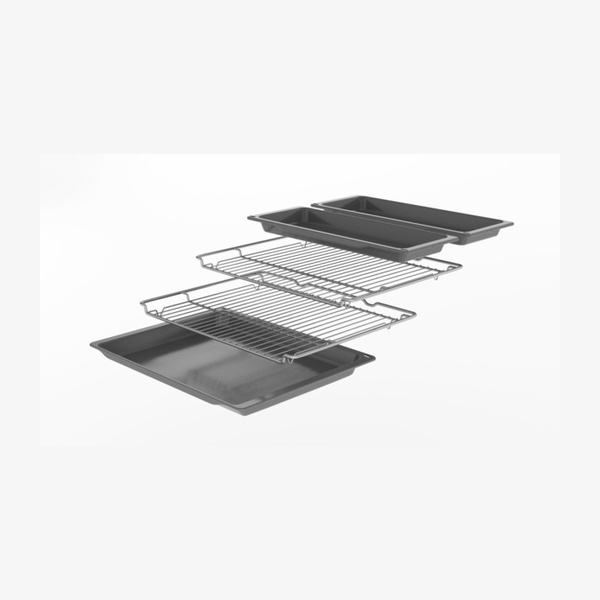

Included accessories – 2 x combination grid, 1 x universal pan and 2 x universal pan, slim size.

Optional accessories available – including pizza stone, wireless food thermometer, telescopic rails, enamelled pans and trays.

Interior halogen light – clear visibility inside the oven while cooking.

Integral cooling fan – helps cool the appliance during operation.

Technical Spec

Product name / codeSeries 4, Built-in oven, 60 x 60 cm, Stainless steel, HBS534BS0B

Installation typeBuilt-in

Control panel materialStainless steel

Door materialGlass

Display and controlsLED-Display Control (Red); rotary dial; retractable control dials, round with steel trim; straight bar handle

Integrated cleaning systemEcoClean Direct programme, Hydrolytic; EcoClean Direct: back panel; Cleaning Assistance

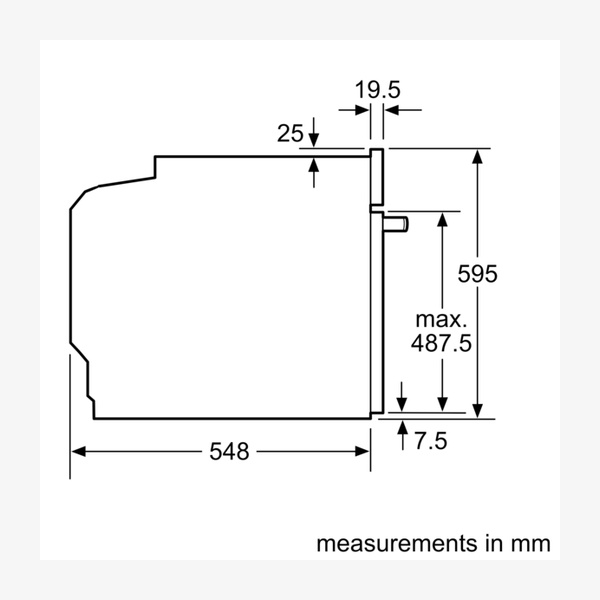

Dimensions (H x W x D)595 x 594 x 548 mm; Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm

Packed dimensions (H x W x D)675 x 660 x 690 mm

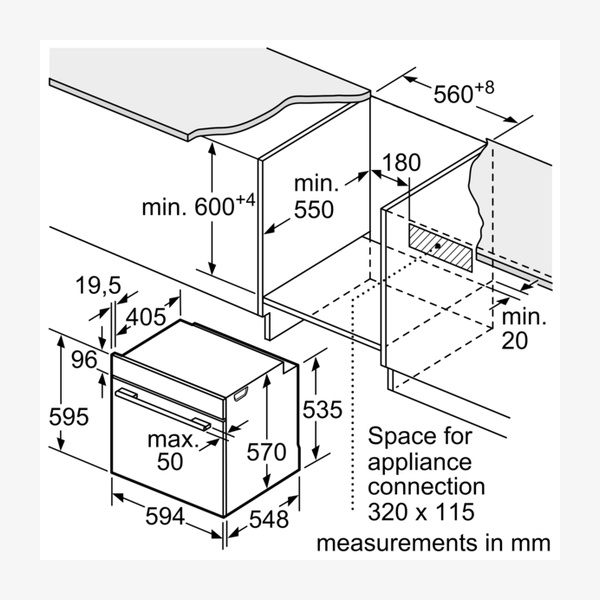

Required niche size (H x W x D)585–595 x 560–568 x 550 mm; Niche dimension (hxwxd): 585 mm–595 mm x 560 mm–568 mm x 550 mm

Net weight34.0 kg

Usable cavity volume71 l; Cavity volume: 71 litre capacity

Number of cavities1; Main cavity; heat source: electrical

Cooking methods / heating functionsFull width grill; Hotair gentle; Hot Air; Conventional heat; Pizza setting; Bottom heat; Hot air grilling; 7 PC heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle

Temperature range50 °C – 275 °C

Energy efficiency ratingA (acc. EU Nr. 65/2014); Energy efficiency rating (2010/30/EC): A; Energy efficiency index (2010/30/EC): 95.3 %

Energy consumption (conventional)0.97 kWh/cycle; Energy consumption per cycle in conventional mode: 0.97 kWh

Energy consumption (forced air)0.81 kWh/cycle; Energy consumption per cycle in fan-forced convection mode: 0.81 kWh

Total connected load2.99 kW; Connection rating: 2990 W

Voltage220–240 V; Nominal voltage: 220–240 V

Frequency60; 50 Hz

Fuse protection13 A

Electrical connectionPlug type: no plug (electrical connection by electrician)

Electrical supply cord length120 cm; 120 cm cable length

Control and safety featuresControl panel lock; electronic clock timer; interior halogen light; integral cooling fan; heating-up indicator; automatic start

Shelf positions5 shelf positions

Included accessories2 x combination grid, 1 x universal pan, 2 x universal pan, slim size

Optional accessoriesHEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non-stick ceramic coated; HEZ532010 Universal pan, non-stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ660050 Cover Strip; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L

EAN code4242005057375

Downloads

Download product documentation, manuals, and specification sheets.

HBS534BS0B Spec

PDF

Frequently Asked Questions

What is the capacity of the HBS534BS0B oven?

The oven has a main cavity volume of 71 litres, with 5 shelf positions for flexible use.

Which heating functions does this oven offer?

It offers 7 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat and Hotair gentle.

How does EcoClean Direct help with cleaning?

EcoClean Direct on the back panel uses a special coating that automatically absorbs grime, so less manual cleaning is required. A Cleaning Assistance option is also available for light cleaning.

What accessories are included with the oven?

The oven comes with 2 x combination grid, 1 x universal pan and 2 x universal pan, slim size.

What are the installation requirements for this model?

It requires a built-in niche of 585–595 x 560–568 x 550 mm and electrical connection by an electrician to a 220–240 V supply with 13 A fuse protection. The appliance does not have a plug and has a 120 cm cable length.
