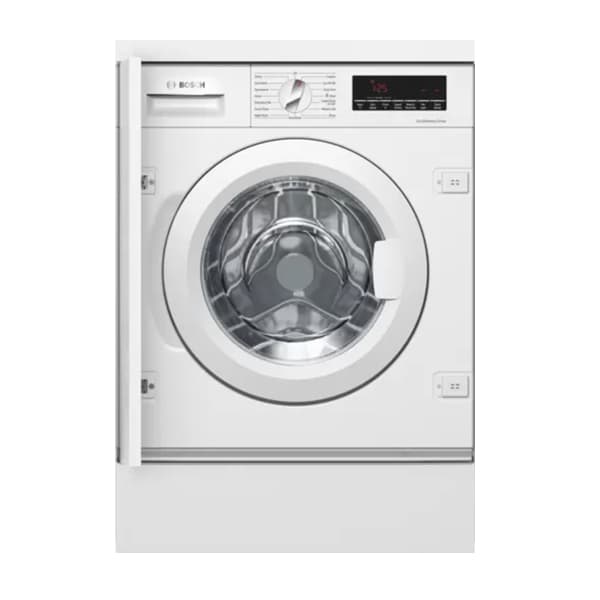

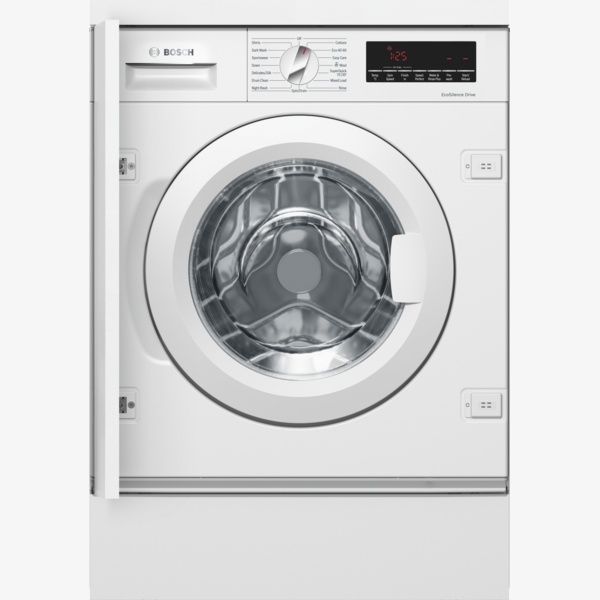

Bosch Serie 8 WIW28502GB Washing Machine

The Series 8 WIW28502GB is a fully integrated 8 kg built–in washing machine designed for especially quiet operation and excellent durability. With EcoSilence Drive, Silence program and AntiVibration sidewalls, it offers stable, low–noise performance. SpeedPerfect and Super Quick 30 provide faster washing options, while ActiveWater Plus uses only the precise amount of water for every wash. A large display, reload function and useful safety features support convenient everyday use.

SKU:WIW28502GB

EAN:4242005347896

Category::Washing Machines

Quantity:

Key Features

EcoSilence Drive™ – quiet and energy–efficient drive with a 10–year warranty.

Silence program – supports especially quiet washing machine operation.

SpeedPerfect – cuts the cycle time by up to 65%* without compromising on results.

Super Quick 30 – faster washing when you need it.

AntiVibration™ Design – specially designed sidewall for more stability and quietness.

ActiveWater / ActiveWater Plus – water management system that uses only the precise amount of water needed for every wash.

Reload function – add or remove laundry items of any size even after the wash cycle has started.

8 kg load capacity – suitable for loads from 1 to 8 kg.

Spin speed 400–1400 rpm – with spin drying efficiency class B.

Energy Efficiency Class C – with weighted energy consumption of 62 kWh per 100 eco 40–60 cycles.

Water consumption 45 l – during the eco 40–60 programme.

Noise level 66 dB(A) re 1 pW – airborne acoustical noise emissions with efficiency class A.

Large white door – 130° opening with 30 cm porthole for easier loading.

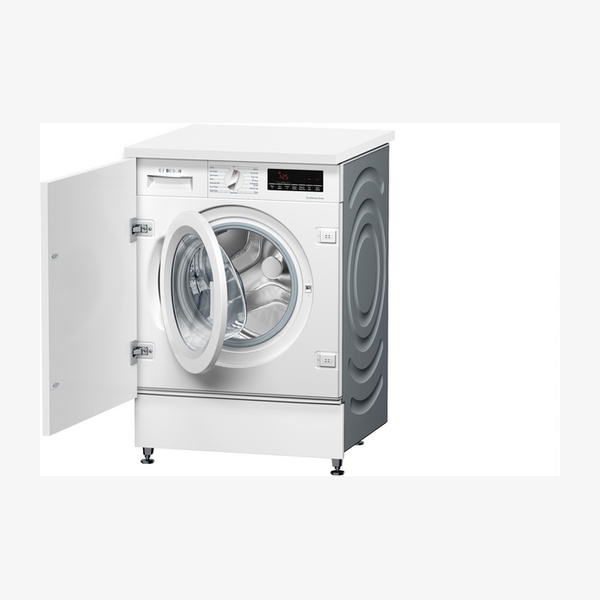

Fully integrated installation – furniture door is reversible, with adjustable base height and depth.

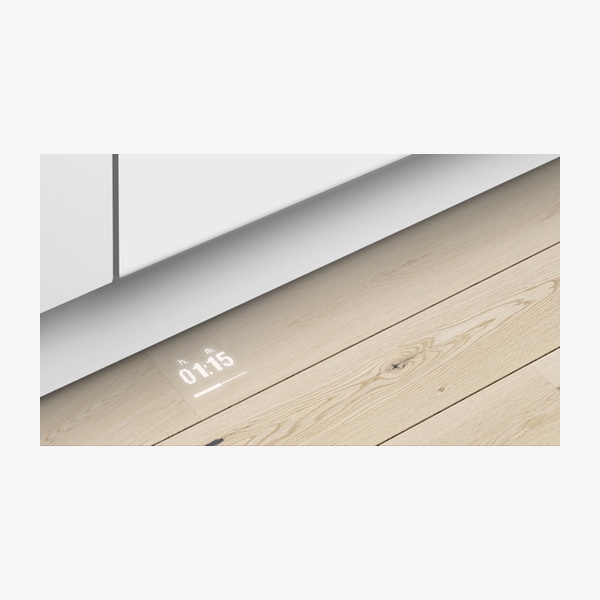

TimeLight – programme status and remaining time clearly displayed on the floor in high resolution.

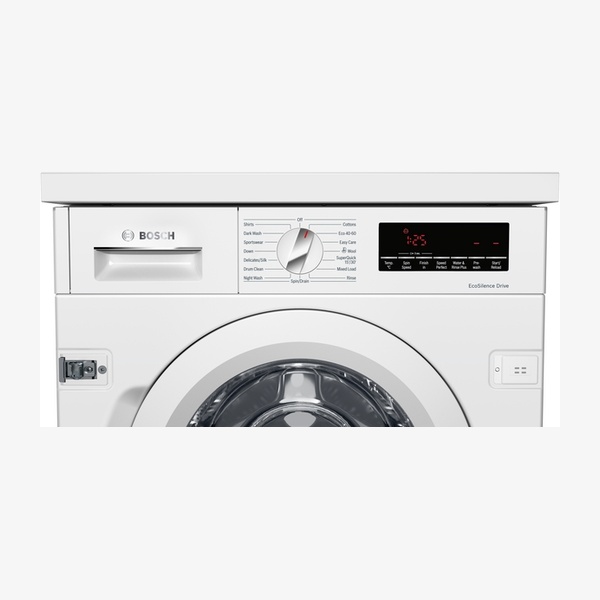

Large display – shows programme progress, temperature, spin speed, remaining time, 24–hour end time delay and load recommendation.

AquaStop – system with lifetime warranty against water damage*.

Foam detection system – helps manage excess foam during washing.

Drum clean with reminder function – supports drum hygiene maintenance.

Continuous automatic load adjustment – adjusts to the size of the laundry load.

Touch control buttons – including Prewash, Ready in, Temperature selection, SpeedPerfect, start/pause with reload, Aqua Plus and spin speed reduction.

Buzzer at end of cycle – indicates when the programme has finished.

Metal door catch – robust door closing component.

Noise insulation with bottom cover – contributes to quiet operation.

Detergent dispensing with easy clean – includes divider for liquid detergent.

Safeguard monitoring system – adjusts load distribution and programme settings to protect clothes.

Optional accessories – WMZ2200 floor securing component, WMZ2381 extension for cold water inlet / Aquastop, WMZ30400 height–adjustable feet, WMZMPF10 Microplastic Filter.

Technical Spec

Product nameSeries 8, built–in washing machine, 8 kg, max. 1400 rpm

ModelWIW28502GB

Energy Efficiency Class¹C (scale from A to G)

Weighted energy consumption62 kWh per 100 washing cycles of eco 40–60 programme

Water consumption (eco 40–60)45 litres per cycle

Load capacity1 – 8 kg; rated capacity 8.0 kg for eco programme at full load (EU 2017/1369)

Programme duration⁴ (eco 40–60)3:26 h:min

Spin speed range**400 – 1400 rpm

Spin drying efficiency classB (eco 40–60 programme)

Airborne acoustical noise emissions66 dB(A) re 1 pW

Airborne acoustical noise emission classA

Installation typeBuilt–in, fully integrated; installation typology: Integrated

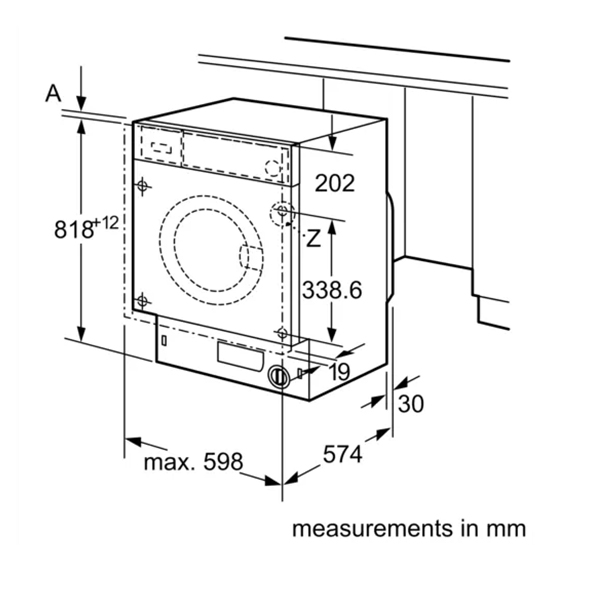

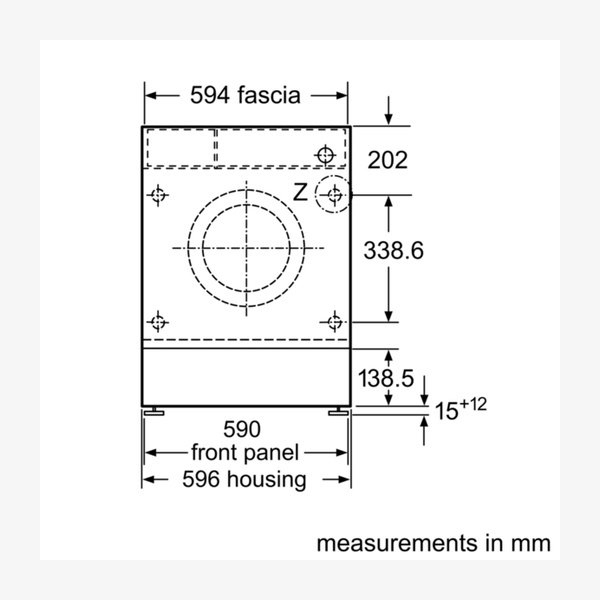

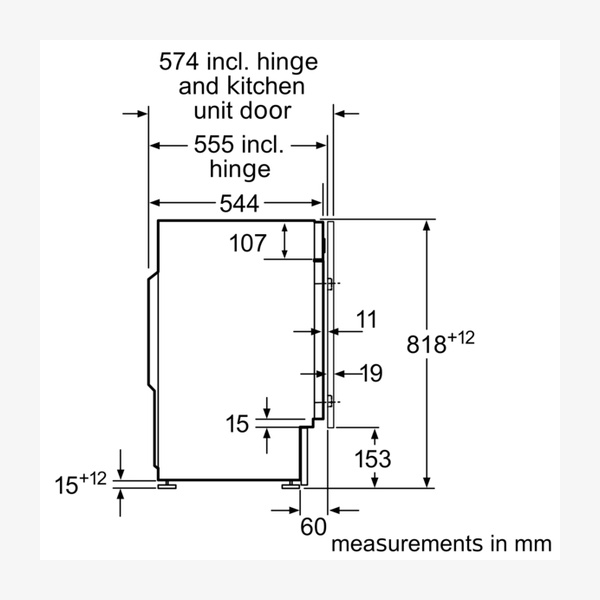

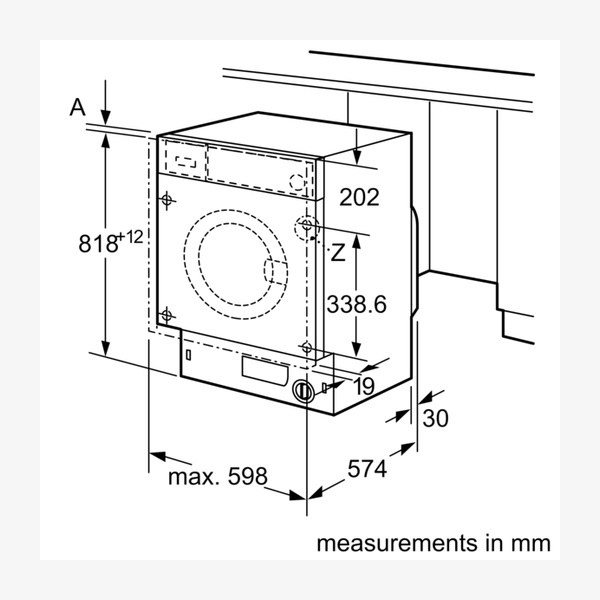

Dimensions (H x W x D)818 x 596 x 544 mm

Net weight76.1 kg

Connection rating2300 W

Fuse protection10 A

Voltage220–240 V

Frequency50 Hz

Length of electrical supply cord210 cm

Door hingeLeft

WheelsNo

Door designLarge white door, 130° opening, 30 cm porthole

Furniture doorFurniture door is reversible

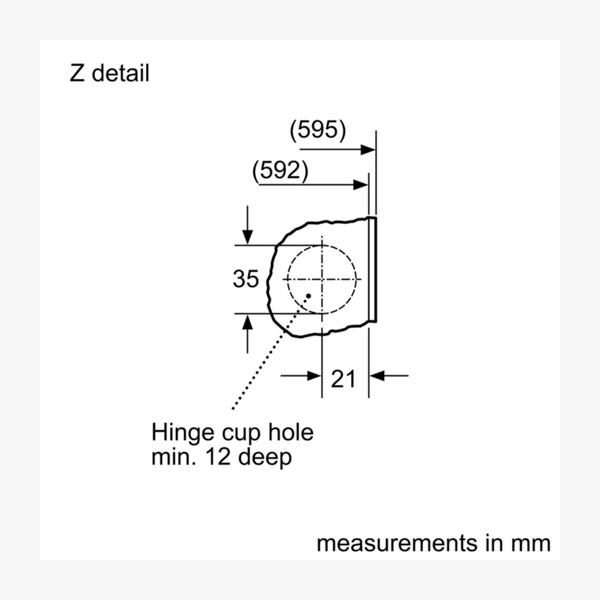

Height adjustmentHeight adjustment with cardanDrive; adjustable base height 15 cm; adjustable base depth 6.5 cm

EAN code4242005347896

Optional accessoriesWMZ2200 Floor securing component; WMZ2381 Extension for cold water inlet /Aquastop; WMZ30400 Height–adjustable feet; WMZMPF10 Microplastic Filter

Energy Efficiency Classes scaleScale of Energy Efficiency Classes from A to G

Downloads

Download product documentation, manuals, and specification sheets.

WIW28502GB Spec

PDF

Frequently Asked Questions

What is the load capacity of the WIW28502GB washing machine?

The washing machine has a load capacity from 1 to 8 kg, with a rated capacity of 8.0 kg for the eco programme at full load.

How quiet is this built–in washing machine during operation?

The machine is described as especially quiet, with EcoSilence Drive, Silence program, AntiVibration sidewalls, noise insulation with bottom cover, and airborne acoustical noise emissions of 66 dB(A) re 1 pW with noise efficiency class A.

Can I add laundry after the wash cycle has started?

Yes. The reload function allows you to add or remove laundry items of any size even after the wash cycle has started, using the start/pause with reload function button.

What energy and water consumption can I expect on the eco 40–60 programme?

The weighted energy consumption is 62 kWh per 100 washing cycles of the eco 40–60 programme. The water consumption of this programme is 45 litres per cycle, with a duration of 3:26 h at rated capacity.

What is the maximum spin speed of this washing machine?

The spin speed ranges from 400 to 1400 rpm, with a spin drying efficiency class of B for the eco 40–60 programme.

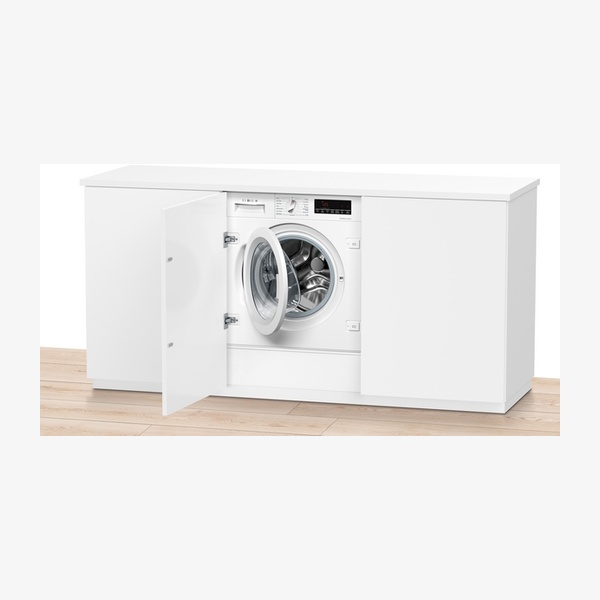

Is this washing machine suitable for full integration behind a furniture door?

Yes. The WIW28502GB is a fully integrated built–in washing machine. The furniture door is reversible, and the appliance offers adjustable base height of 15 cm and adjustable base depth of 6.5 cm for integration.
