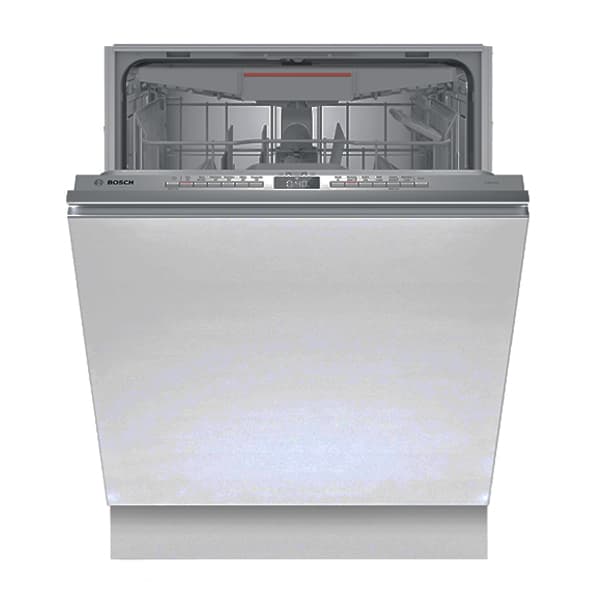

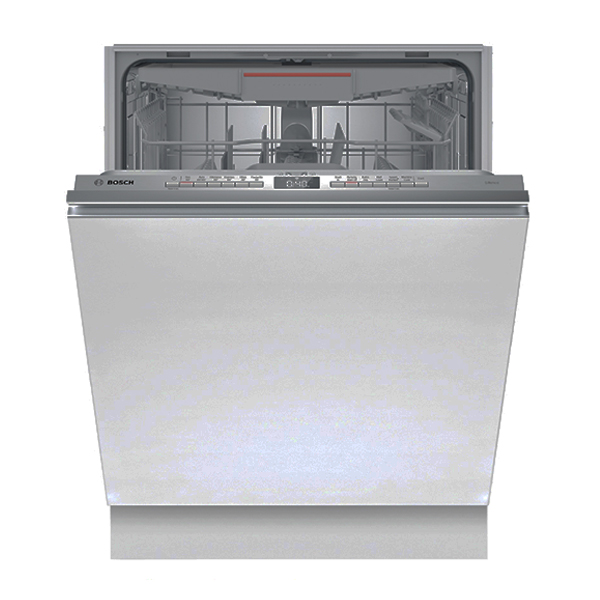

Bosch Series 4 SMV4HVX00G Dishwasher

The Bosch Series 4 SMV4HVX00G is a 60 cm fully-integrated dishwasher offering capacity for 14 place settings and flexible loading with Vario Flex baskets and VarioDrawer. It provides six programmes, including Eco 50 °C and Auto 45–65 °C, plus special options such as Extra Dry and SpeedPerfect+. With Home Connect via WLAN, Silence on demand, and a quiet 46 dB(A) operation, it is designed for convenient, efficient everyday dishwashing.

SKU:SMV4HVX00G

EAN:4242005470358

Category::Dishwashers

Quantity:

Key Features

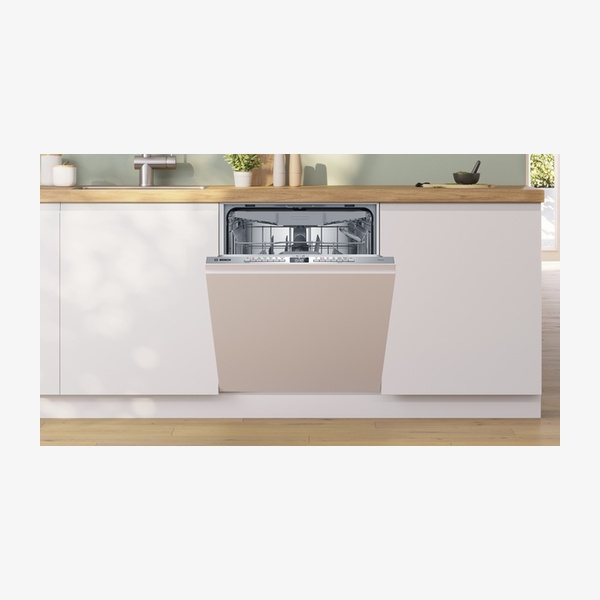

Fully-integrated 60 cm dishwasher with built-in installation typology for a seamless kitchen look.

Capacity for 14 place settings to handle larger loads in a single wash.

Energy Efficiency Class D with 85 kWh energy consumption per 100 Eco 50 °C cycles and 9.0 litres water per Eco cycle.

Six wash programmes : Eco 50 °C, Auto 45–65 °C, Intensive 70 °C, Express 65 °, Glass 40 °C and Favourite.

Four special options : Remote Start, Extra Dry, Half Load and SpeedPerfect+.

Home Connect ready on WLAN for flexible control, Remote Start and add-on functions Hygiene+ and Silence on Demand.

Silence on demand via the Home Connect app for up to 30 minutes of noise reduction.

Quiet performance with a noise level of 46 dB(A) re 1 pW and Noise Efficiency Class C.

Flexible loading system including Vario Flex baskets, VarioDrawer and 3-stage Rackmatic height-adjustable top basket.

Foldable plate racks with 2 in the top basket and 4 in the bottom basket, plus an upper rack cup shelf.

Heat exchanger for hygienic and efficient drying performance.

EcoSilence BLDC drive and Automatic detergent detection for efficient operation.

AquaSensor III and AquaMix glass protection system for load and water management.

DosageAssist detergent dispenser for optimised detergent release.

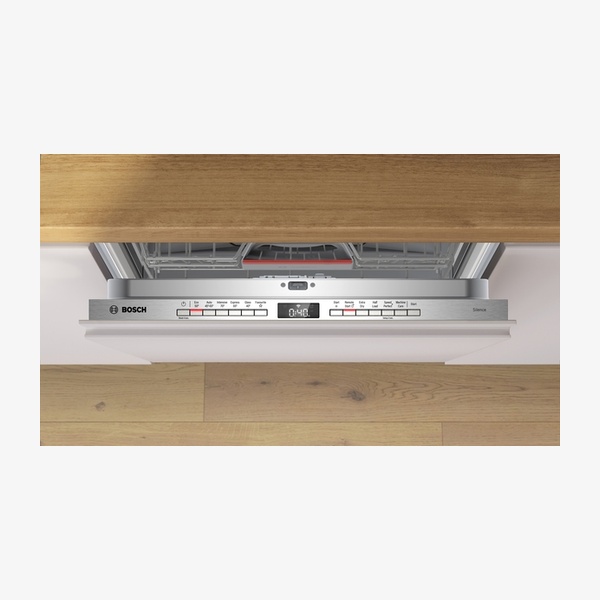

Push button top edge controls with InfoLight (Red) light projection on the floor.

Time delay function of 3, 6 or 24 hours plus an acoustic end of cycle indicator.

AquaStop water safety with a warranty in case of water damage for the lifetime of the appliance (warranty terms not stated in source).

Self-cleaning filter system with a 3 piece corrugated filter for easy maintenance.

Stainless steel/Polinox interior including steam protection for the worktop.

Optional accessories available such as decorative strips, door lock, hose extension, connection rail, rack inserts and cutlery basket.

Technical Spec

ModelSMV4HVX00G

Product seriesSeries 4

TypeFully-integrated dishwasher, built-in, installation typology: Integrated

Width60 cm (59.8 cm)

Dimensions (HxWxD)81.5 x 59.8 x 55 cm

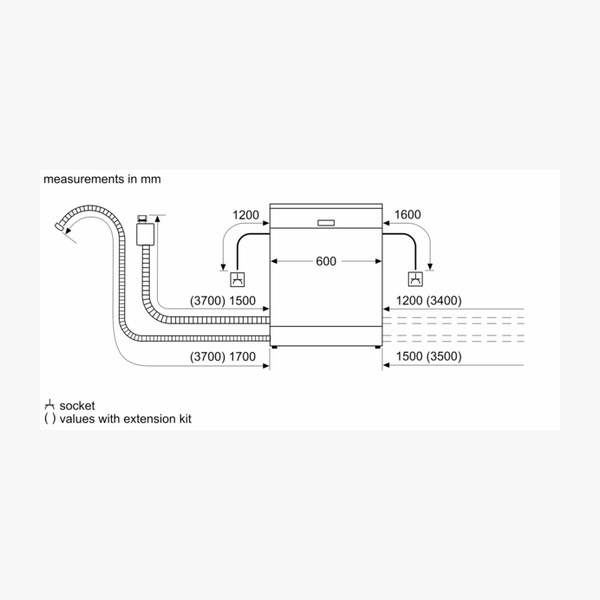

Required niche size (HxWxD)815–875 x 600 x 550 mm

Depth with open door 90°1150 mm

Height of removable worktop0 mm

Adjustable feetYes – all from front; maximum adjustability 60 mm

Adjustable plinthBoth horizontal and vertical

Energy Efficiency ClassD (scale A to G)

Energy consumption Eco 50 °C85 kWh per 100 cycles

Water consumption Eco 50 °C9.0 litres per cycle

Programme duration Eco 50 °C4:30 h (h:min)

Maximum number of place settings14

Airborne acoustical noise46 dB(A) re 1 pW

Noise Efficiency ClassC

Net weight34.3 kg

Gross weight36.0 kg

Connection rating2400 W

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Length of electrical supply cord175 cm

Plug typeGB plug

Length of inlet hose165 cm

Length of outlet hose190 cm

EAN code4242005470341

Downloads

Download product documentation, manuals, and specification sheets.

SMV4HVX00G Spec

PDF

Frequently Asked Questions

What is the capacity of the Bosch SMV4HVX00G dishwasher?

The dishwasher has a capacity of 14 place settings, allowing you to wash larger loads in one cycle.

Which wash programmes are available?

It offers six programmes: Eco 50 °C, Auto 45–65 °C, Intensive 70 °C, Express 65°, Glass 40 °C and Favourite, with the default Favourite programme set to Pre-Rinse.

Does this dishwasher support remote control?

Yes. The appliance is Home Connect ready on WLAN and includes Remote Start as a special option, as well as add-on functions such as Hygiene+ and Silence on Demand via the Home Connect app.

How noisy is the SMV4HVX00G during operation?

The airborne acoustical noise level is 46 dB(A) re 1 pW, and it has a Noise Efficiency Class of C. Silence on demand can provide up to 30 minutes of noise reduction via the Home Connect app.

What are the main energy and water consumption figures?

In the Eco 50 °C programme, energy consumption is 85 kWh per 100 cycles and water consumption is 9.0 litres per cycle. The Energy Efficiency Class is D on a scale from A to G.

What safety and protection features are included?

The dishwasher features AquaStop with a warranty in case of water damage for the lifetime of the appliance (warranty terms not stated in source), AquaSensor III, AquaMix glass protection system and a self-cleaning filter system with a 3 piece corrugated filter.
