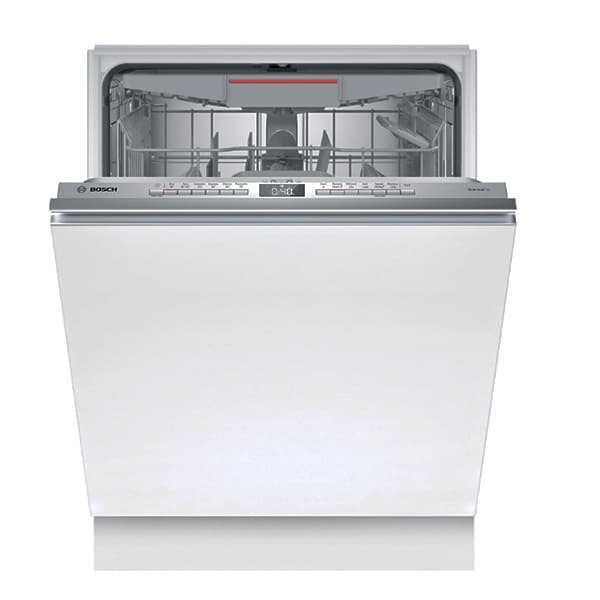

Bosch Series 4 SMV4ECX23G Dishwasher

The Bosch Series 4 SMV4ECX23G is a fully–integrated 60 cm dishwasher offering 14 place settings and quiet performance from 40 dB(A). It is designed for built–in installation and supports smart remote control via Home Connect. Key advantages include EfficientDry automatic door opening for improved drying, SpeedPerfect+ for reduced washing time, and flexible loading with VarioDrawer, Vario Flex baskets and Rackmatic height adjustment.

SKU:SMV4ECX23G

EAN:4242005470617

Category::Dishwashers

Quantity:

Key Features

EfficientDry automatic door opening for improved drying performance.

SpeedPerfect+ option for reduced washing time with perfectly cleaned dishes.

Silence Pro with an extremely quiet 40 dB(A) operation; 39 dB(A) in the silence programme.

Home Connect ready on WLAN enabling smart remote control, Remote Start and add–on functions via the app.

14 place settings capacity in a 60 cm fully–integrated design.

Energy Efficiency Class C with 75 kWh per 100 cycles in Eco 50 °C.

VarioDrawer third loading level for cutlery and smaller kitchen utensils.

3 stage Rackmatic height–adjustable top basket for greater flexibility.

Vario Flex baskets with foldable plate racks and low friction wheels for easy loading.

Six wash programmes including Eco 50 °C, Auto 45–65 °C and Intensive 70 °C.

Four special options – Remote Start, Efficient Dry, Half Load and SpeedPerfect+.

DosageAssist detergent dispenser for optimal use of detergent.

EcoSilence BLDC drive for quiet and efficient operation.

AquaSensor III and AquaMix glass protection for load and water management and glass care.

InfoLight red light projection on the floor indicating operation status.

Time delay function of 3, 6 or 24 hours plus an acoustic end of cycle indicator.

AquaStop system with Bosch warranty in case of water damage for the lifetime of the appliance (warranty terms as stated by manufacturer).

Stainless steel interior and self–cleaning filter system with 3 piece corrugated filter.

Steam protection for worktop included for built–in installation.

Supplied optional accessories list including bottle holder, rack inserts, cutlery basket and decorative kits (available separately).

Technical Spec

Product name / codeSeries 4, Fully–integrated dishwasher, 60 cm – SMV4ECX23G

Installation typologyIntegrated

Built–in / Free–standingBuilt–in

Energy Efficiency ClassC (scale from A to G)

Energy consumption (Eco 50 °C)75 kWh per 100 cycles

Water consumption (Eco 50 °C)9.0 litres per cycle

Programme duration (Eco 50 °C)3:20 h

Capacity14 place settings

Airborne acoustical noise40 dB(A) re 1 pW

Noise emission classB

Noise level (silence programme)39 dB(A) re 1 pW

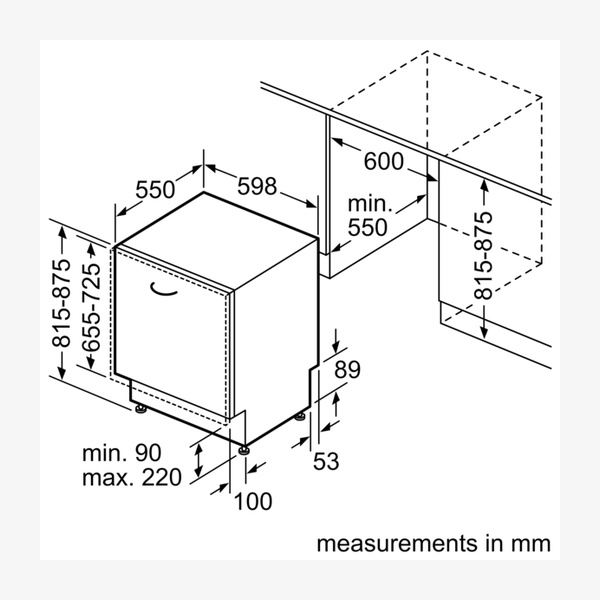

Required niche size (H x W x D)815–875 x 600 x 550 mm

Depth with open door 90°1150 mm

Product dimensions (H x W x D)81.5 x 59.8 x 55 cm

Adjustable feetYes – all from front; maximum adjustability 60 mm

Adjustable plinthBoth horizontal and vertical

Height of removable worktop0 mm

Net / Gross weight41.3 kg / 43.5 kg

Connection rating2400 W

Fuse protection10 A

Voltage / Frequency220–240 V; 50; 60 Hz

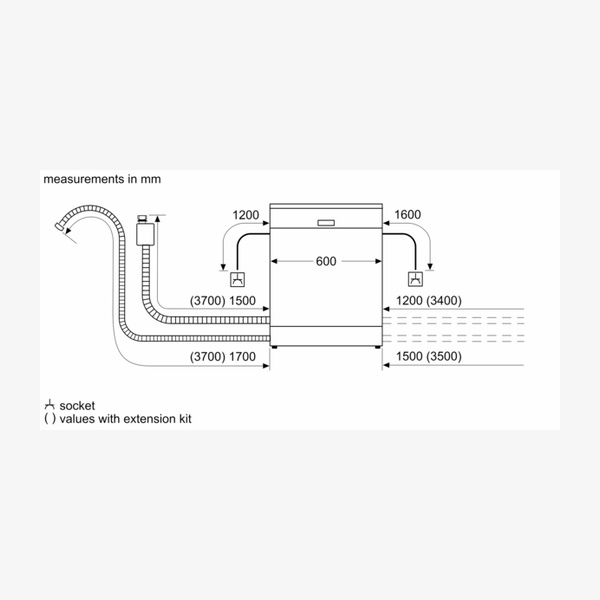

Electrical supply cord length175 cm – GB plug

Inlet hose length165 cm

Outlet hose length190 cm

EAN code4242005470617

Downloads

Download product documentation, manuals, and specification sheets.

SMV4ECX23G Spec

PDF

Frequently Asked Questions

What is the capacity of the Bosch SMV4ECX23G dishwasher?

The capacity is 14 place settings.

How energy efficient is this dishwasher?

It has an Energy Efficiency Class of C on a scale from A to G, with energy consumption of 75 kWh per 100 cycles in the Eco 50 °C programme.

How quiet is the SMV4ECX23G in operation?

The airborne acoustical noise emissions are 40 dB(A) re 1 pW, with a Noise Efficiency Class of B. In the silence programme, the noise level is 39 dB(A) re 1 pW.

Which wash programmes are available?

The dishwasher provides Eco 50 °C, Auto 45–65 °C, Intensive 70 °C, Express 65 °C, Silence 50 °C and a Favourite programme, with Pre–Rinse as the default Favourite.

Can this dishwasher be controlled remotely?

Yes. It is Home Connect ready on WLAN and offers Remote Start, plus additional functions such as Hygiene+ and Silence on Demand via the Home Connect app.

What niche size is required for installation?

The required niche size for installation is 815–875 x 600 x 550 mm (H x W x D).
