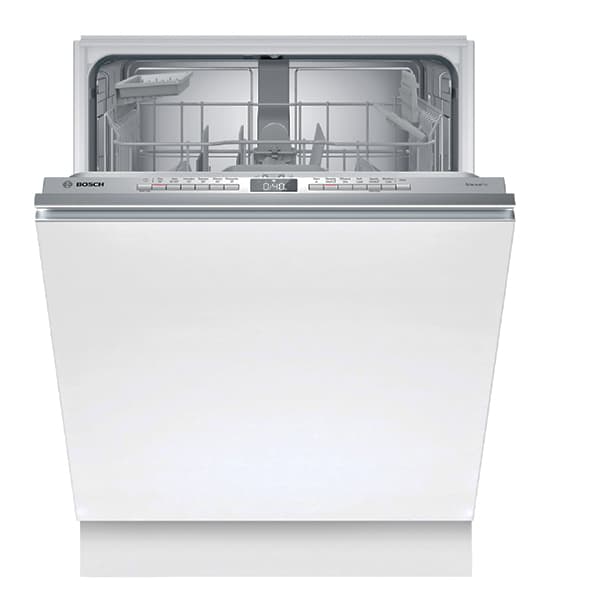

Bosch Series 4 SMV4EAX23G Dishwasher

The SMV4EAX23G is a Series 4 fully–integrated 60 cm dishwasher designed for built–in installation with a capacity of 13 place settings. It offers C class energy efficiency, improved drying performance with EfficientDry and a very quiet 40 dB operation. With Home Connect readiness for smart remote control, flexible Vario Flex baskets and Rackmatic height adjustment, it provides convenient loading, versatile programmes and efficient cleaning for everyday dishwashing needs.

SKU:SMV4EAX23G
EAN:4242005470600
Category::Dishwashers
2 Year Warranty

Key Features

SpeedPerfect+: Reduced washing time with perfectly cleaned dishes.
EfficientDry: Improved drying performance with automatic door opening.
Silence Pro: Extremely quiet operation at 40 dB(A) re 1 pW.
Vario Flex baskets: Easily adjustable baskets to create more space for dishes.
3 stage Rackmatic: Height–adjustable top basket for additional flexibility.
Home Connect ready on WLAN: Connected dishwasher for smart remote control and add–on functions via app.
Energy efficiency class C: 74 kWh energy consumption per 100 Eco 50 °C cycles.
Water efficient Eco cycle: 9.0 litres water consumption per Eco 50 °C cycle.
Quiet washing: Noise efficiency class B and 39 dB(A) re 1 pW in the silence programme.
Flexible loading: Foldable plate racks, knife rack, moveable cutlery basket and upper rack cup shelf.
DosageAssist: Detergent dispenser for optimised use of detergent.
EcoSilence BLDC drive: Innovative drive technology for the dishwasher.
Glass protection: AquaMix glass protection system and AquaSensor III.
Push button top edge controls: Controls positioned on the top edge of the door.
InfoLight (Red): Light projection on the floor to indicate operation.
Time delay: Start delay options of 3, 6 or 24 hours.
Stainless steel interior: Durable interior with self–cleaning filter system.
Built–in design: Fully integrated installation with adjustable feet and plinth.
Optional accessories: Range of accessories including decorative strips, bottle holder, glass racks and door attachments.

Technical Spec

Product name / modelSeries 4, Fully–integrated dishwasher, 60 cm, SMV4EAX23G
Installation typeBuilt–in, integrated
Energy efficiency class¹C (scale A to G)
Energy consumption²74 kWh per 100 cycles (Eco 50 °C)
Water consumption³9.0 litres per cycle (Eco 50 °C)
Capacity13 place settings
Programme duration⁴ (Eco)3:20 h (Eco 50 °C)
Noise level40 dB(A) re 1 pW
Noise efficiency classB
Noise level (silence programme)39 dB(A) re 1 pW
ProgrammesEco 50 °C; Auto 45–65 °C; Intensive 70 °C; Express 65 °C; Silence 50 °C; Favourite
Default favourite programmePre–Rinse
Special optionsRemote Start; Efficient Dry; Half Load; SpeedPerfect+
Add–on functions (app)Hygiene+; Silence on Demand
Flexible basket systemVario Flex baskets; 3 stage Rackmatic top basket; low friction wheels on bottom basket; Rack Stopper
Racks and inserts2 foldable plate racks in top basket; 4 foldable plate racks in bottom basket; knife rack in top basket; moveable cutlery basket; upper rack cup shelf
ConnectivityHome Connect ready on WLAN; Remote Start; add–on functions via Home Connect app
Innovations and technologyEfficient Dry; Heat Exchanger; DosageAssist; EcoSilence BLDC drive; Automatic detergent detection; AquaSensor III; AquaMix glass protection system
Control designPush button top edge controls; acoustic end of cycle indicator
Visual indicatorsInfoLight (Red) – light projection on the floor
Time delay3, 6 or 24 hours
Safety featuresAquaStop; self–cleaning filter system with 3 piece corrugated filter; steam protection for worktop
Interior materialStainless steel interior

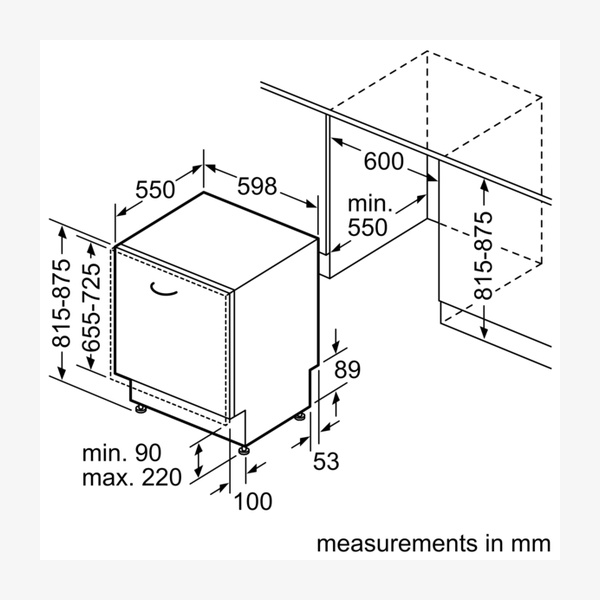

Product dimensions (HxWxD)81.5 x 59.8 x 55 cm
Required niche size (HxWxD)815–875 x 600 x 550 mm
Depth with door open 90°1150 mm
Height of removable worktop0 mm
Adjustable feetYes – all from front; maximum adjustability 60 mm
Adjustable plinthBoth horizontal and vertical
Net weight40.8 kg
Gross weight43.0 kg
Connection rating2400 W
Fuse protection10 A
Voltage220–240 V
Frequency50; 60 Hz
Length of electrical supply cord175 cm
Plug typeGB plug

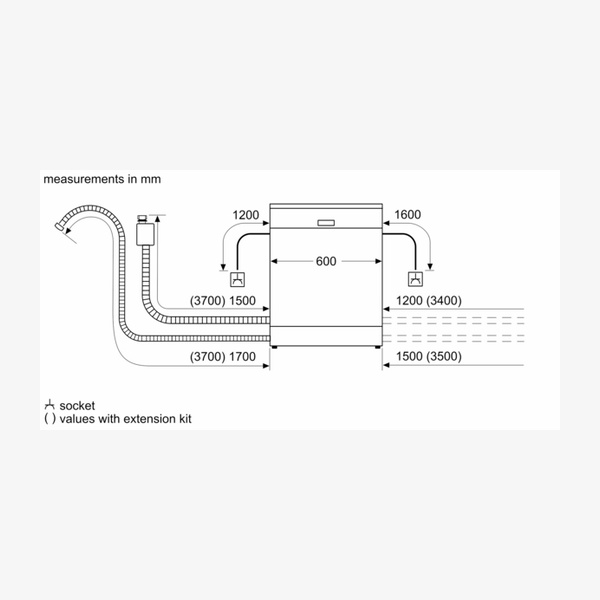

Length of inlet hose165 cm
Length of outlet hose190 cm
EAN code4242005470600
Machine CareMachine Care programme available

Downloads

Download product documentation, manuals, and specification sheets.

SMV4EAX23G Spec

PDF

Frequently Asked Questions

What is the capacity of the SMV4EAX23G dishwasher?

The dishwasher has a capacity of 13 place settings.

How energy and water efficient is this dishwasher?

It has an energy efficiency class C, with an energy consumption of 74 kWh per 100 cycles and a water consumption of 9.0 litres per cycle in the Eco 50 °C programme.

How quiet is the SMV4EAX23G in operation?

The noise level is 40 dB(A) re 1 pW, with a noise efficiency class B. In the silence programme, the noise level is 39 dB(A) re 1 pW.

Which washing programmes are available?

The dishwasher includes Eco 50 °C, Auto 45–65 °C, Intensive 70 °C, Express 65 °C, Silence 50 °C and a Favourite programme. The default Favourite is Pre–Rinse.

Can this dishwasher be controlled remotely?

Yes. It is Home Connect ready on WLAN, supports Remote Start and offers add–on functions such as Hygiene+ and Silence on Demand via the Home Connect app.

What space is required for installation?

The required niche size for installation is 815–875 x 600 x 550 mm (HxWxD). The product dimensions are 81.5 x 59.8 x 55 cm, and the depth with the door open at 90° is 1150 mm.
