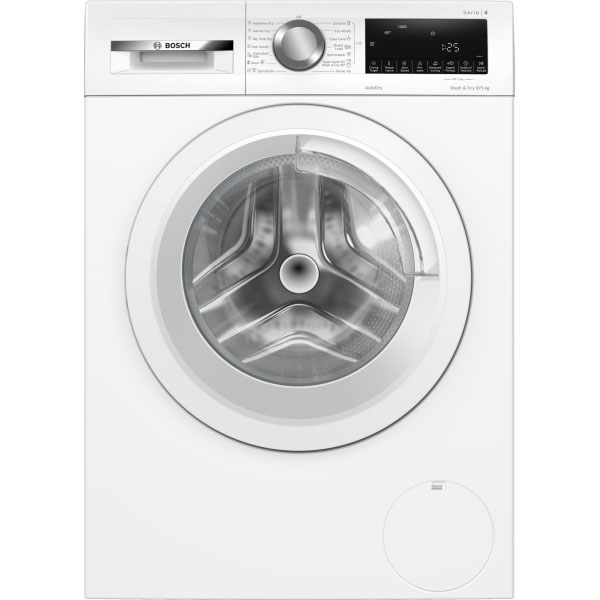

Bosch Series 4 WNA144V9GB Washer Dryer

The Series 4 WNA144V9GB is a freestanding washer dryer with 9 kg washing and 5 kg drying capacity, designed to wash and dry in one go. It features Iron Assist steam treatment to help reduce creases, AutoDry to automatically sense when laundry is dried, and SpeedPerfect for shorter cycles. With standard and special programmes for both washing and drying, ActiveWater Plus for efficient water use, and a quiet EcoSilence drive, it aims to combine convenience and performance.

SKU:WNA144V9GB

EAN:4242005342396

Category::Washer Dryers

Quantity:

Key Features

9/5 kg capacity – washes up to 9.0 kg and washes & dries up to 5.0 kg in one go.

Iron Assist steam treatment – helps reduce wrinkles and your ironing pile.

Wash & Dry 60 – wash and dry small loads efficiently in just 60 min.

SpeedPerfect option – cuts cycle time by up to 65%*** without compromising on results.

AutoDry function – automatically senses when your load is dried.

ActiveWater Plus – uses only the precise amount of water needed for every wash with automatic load detection.

EcoSilence drive – designed for quiet operation and includes a 10 year warranty.

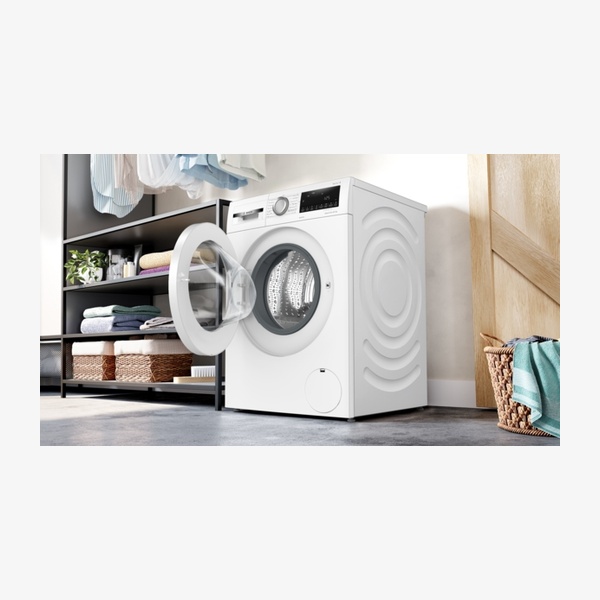

AntiVibration Design – for more stability, quietness and additional sound insulation.

Multiple wash programmes – Cottons, Easy-Care, Delicate/Silk and Wool/Handwash, plus special options like Super Quick 15 and Sportswear.

Drying programmes – standard Cottons and Easy-Care, plus Refresh, Intensive dry, Low heat and Wash & Dry 60'.

Reload function – flexibility to add or remove laundry items even after the wash cycle has started.

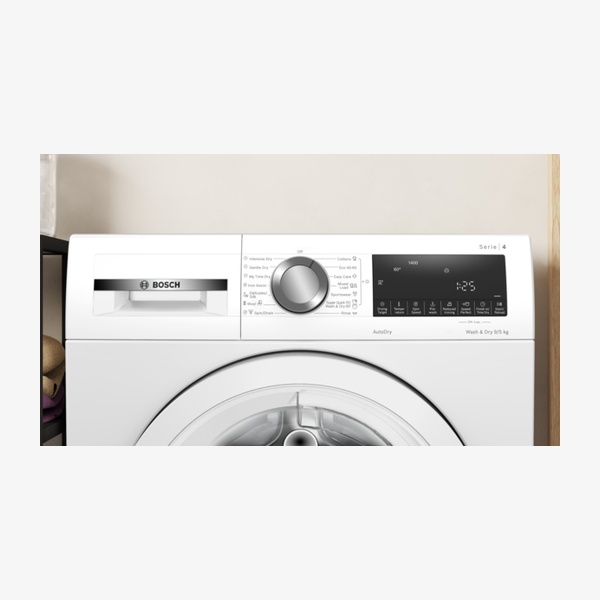

Large LED display – shows programme status, maximum spin speed, remaining time, 24 h end time delay and load recommendation.

VarioDrum – gentle and efficient washing in a 60 litre drum.

Child lock and safety features – includes child lock, foam detection and safeguard monitoring system for load distribution.

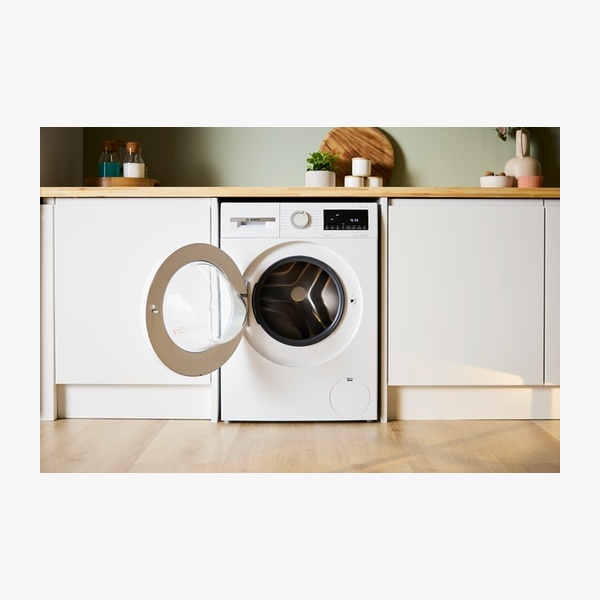

Freestanding design – with large white door, 165° opening and slide-under installation capability.

Optional accessories – compatible with WMZ2200 floor securing component, WMZ2381 extension for cold water inlet/Aquastop, WMZMPF10 Microplastic Filter and WMZPW20W platform with pull-out.

Technical Spec

Product name / modelSeries 4 Washer Dryer WNA144V9GB

TypeFreestanding

Wash capacity1 – 9 kg

Wash & dry capacity1 – 5 kg

Maximum spin speed400 – 1400 rpm**

Energy efficiency class (Wash & Dry)E

Energy efficiency class (Washing Eco 40–60)B

Weighted energy – Wash & Dry322 kWh/100 cycles

Weighted energy – Washing (Eco 40–60)57 kWh/100 cycles

Water consumption – full Wash & Dry cycle74 l per cycle

Water consumption – Eco 40–60 washing46 l per cycle

Programme duration – Wash & Dry (rated)7:30 h:min

Programme duration – Eco 40–60 (wash only)3:44 h:min

Spin–drying efficiency classB (EU19_spin efficiency class)

Airborne acoustical noise emissions70 dB(A) re 1 pW

Noise emission classA

Drum volume60 l

Door hinge / openingLeft hinge, large white door with 165° opening

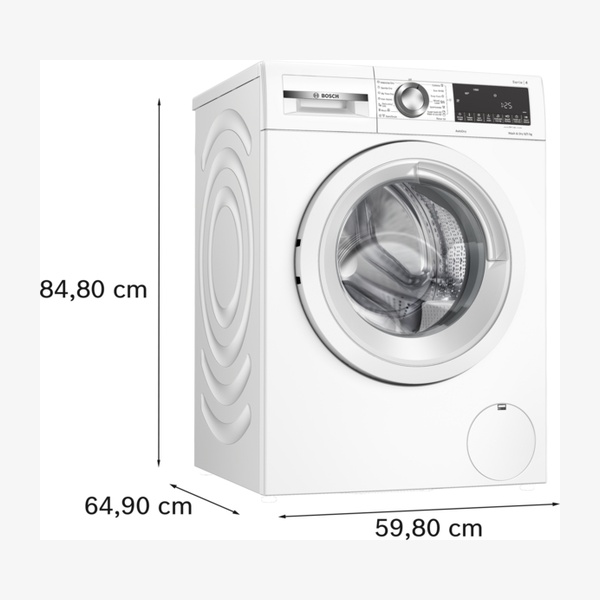

Dimensions (H x W x D product)848 x 598 x 590 mm

Dimensions (H x W)84.8 cm x 59.8 cm

Appliance depth59.0 cm

Appliance depth including door64.9 cm

Appliance depth with open door106.3 cm

Net weight71.8 kg

Length of electrical supply cord210 cm

Removable topNo

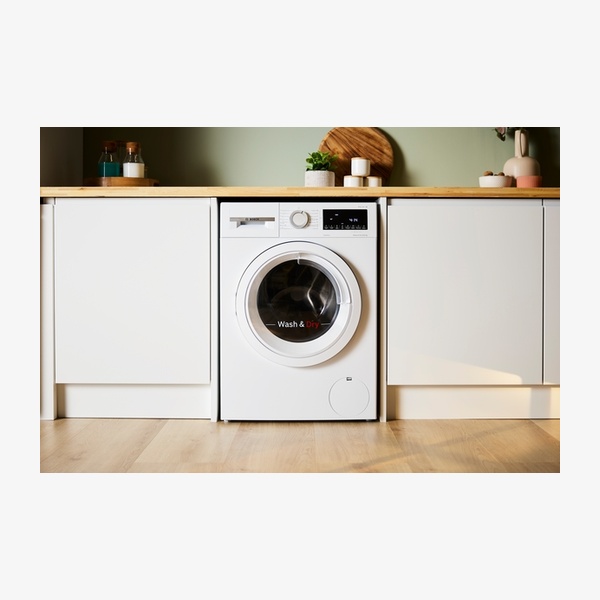

InstallationSlide-under installation

EAN code4242005342396

Downloads

Download product documentation, manuals, and specification sheets.

WNA144V9GB Spec

PDF

Frequently Asked Questions

What is the maximum load for washing and drying?

The appliance can wash between 1 and 9 kg of laundry in a wash cycle and wash & dry between 1 and 5 kg in a combined cycle. The maximum capacity in a Wash/Dry cycle is 5.0 kg and the maximum capacity in a wash cycle is 9.0 kg.

How long does a full wash and dry cycle take?

At rated capacity, the duration of the full wash and dry cycle is 7:30 h:min. The Eco 40–60 washing programme at rated capacity lasts 3:44 h:min.

Can I shorten the washing time?

Yes. The SpeedPerfect option allows you to cut the cycle time by up to 65%*** without compromising on results. There is also a Super Quick 15 special washing programme for very short cycles.

What programmes can I use for drying only?

Most common washing programmes can be used as solo-drying programmes or as washing and drying in one go. Drying programmes include standard Cottons and Easy-Care, plus Refresh, Intensive dry, Low heat and Wash & Dry 60'.

How does ActiveWater Plus work?

ActiveWater Plus ensures highly efficient use of water even with smaller loads thanks to automatic load detection, using only the precise amount of water needed for every wash.

Is the washer dryer suitable for noise–sensitive environments?

The washer dryer features an EcoSilence drive, AntiVibration Design, additional noise reduction material and has an airborne acoustical noise emission of 70 dB(A) re 1 pW with a noise efficiency class of A.
