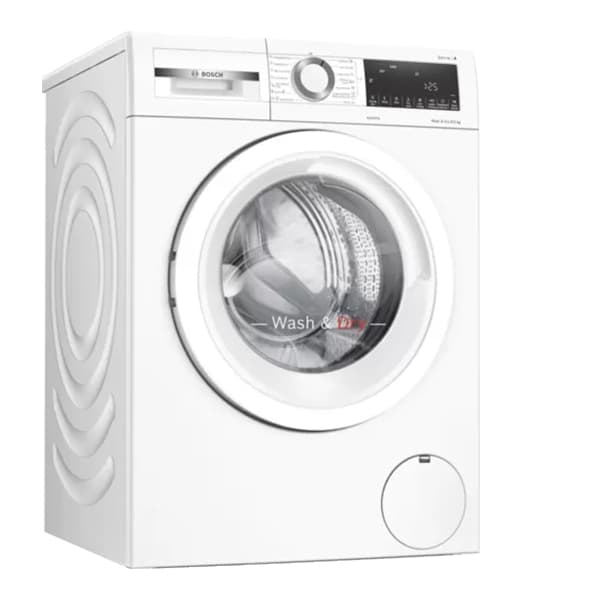

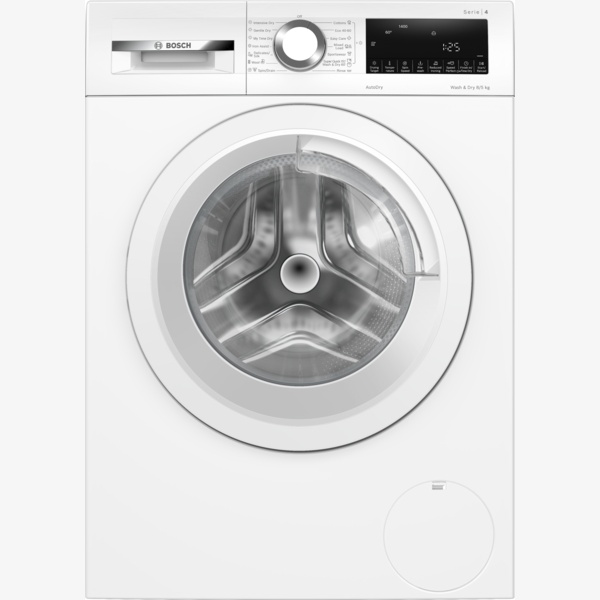

Bosch Series 4 WNA134U8GB Washer Dryer

1 2 Scale of Energy Efficiency Classes from A to G.

3 Energy consumption in kWh per 100 complete cycles (in Eco 40–60 programme).

4 Water consumption in litres per complete cycle (in Eco 40–60 programme).

5 Energy consumption in kWh per 100 washing cycles (in Eco 40–60 programme).

6 Weighted water consumption in litres per washing cycle (in Eco 40–60 programme).

7 Duration of Eco 40–60 programme, Wash and Dry cycle / Wash only cycle.

** The maximum spin speed is automatically reduced in the case of laundry imbalances.

*** Comparison between the programme duration of Easy–care 40°C and the programme duration of Easy–care 40°C + activated Speed option.

SKU:WNA134U8GB

EAN:4242005250172

Category::Washer Dryers

Quantity:

Key Features

8 kg wash / 5 kg dry capacity for combined wash and dry loads up to 5 kg in one go.

Iron Assist steam treatment reduces wrinkles and helps cut down your ironing pile.

Wash & Dry 60 programme to wash and dry small loads efficiently in just 60 minutes.

SpeedPerfect option delivers perfectly clean results in up to 65% less time.***

AutoDry function automatically senses when the load is dried for convenient drying.

EcoSilence Drive™ provides quiet, efficient and durable performance with a 10 year warranty.

VarioDrum design enables gentle and efficient washing of laundry.

ActiveWater Plus adjusts water use efficiently, even for smaller loads, via automatic load detection.

Reload function lets you add or remove items even after the wash cycle has started.

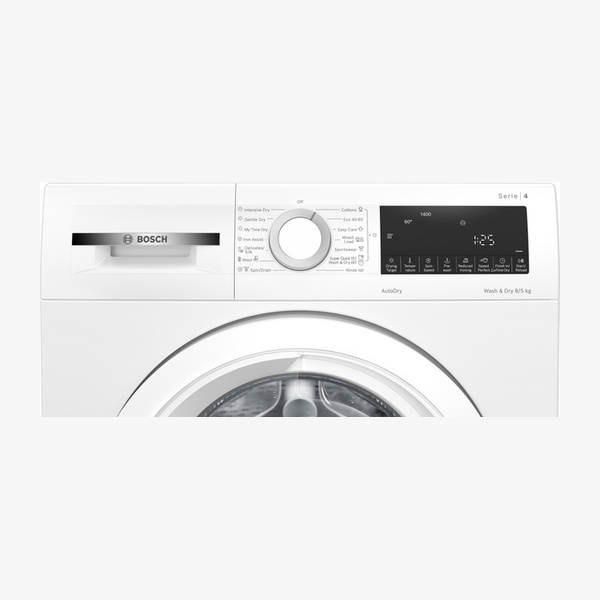

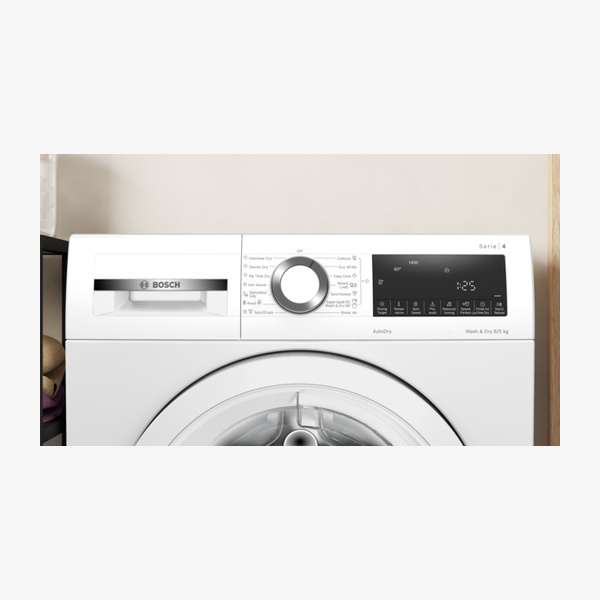

Large LED display shows programme status, maximum spin speed, remaining time, 24 h end time delay and load recommendation.

Spin speed up to 1400 rpm with automatic reduction in case of laundry imbalances.**

Noise level 70 dB(A) with A-class noise efficiency and AntiVibration Design for more stability and quietness.

Drying options for most wash programmes including timed drying programmes and Drying aim selection.

Multiple safety features including child lock, foam detection system and safeguard monitoring system for load distribution.

Maintenance free condenser with automatic fluff removal for convenient drying.

Optional accessories include WMZMPF10 Microplastic Filter and WMZPW20W platform with pull–out for washer, cubic.

Technical Spec

ModelWNA134U8GB

SeriesSeries 4

TypeFreestanding washer dryer

Built-in / Free-standingFreestanding

Removable topNo

Door hingeLeft

Energy efficiency class – Wash/Dry cycleE

Energy efficiency class – Eco 40–60 (washing)C

Weighted energy consumption – Wash/Dry313 kWh/100 cycles

Weighted energy consumption – Eco 40–60 washing63 kWh/100 cycles

Water consumption – full wash and dry cycle70 l per cycle

Water consumption – Eco 40–60 programme41 l per cycle

Load capacity – Wash/Dry1 – 5 kg

Load capacity – Washing1 – 8 kg

Programme duration – Wash/Dry7:30 h:min at rated capacity

Programme duration – Eco 40–60 washing3:32 h:min at rated capacity

Spin–drying efficiency classB (EU19_spin efficiency class)

Spin speed range400 – 1400 rpm**

Airborne acoustical noise emissions70 dB(A) re 1pW

Noise emission classA

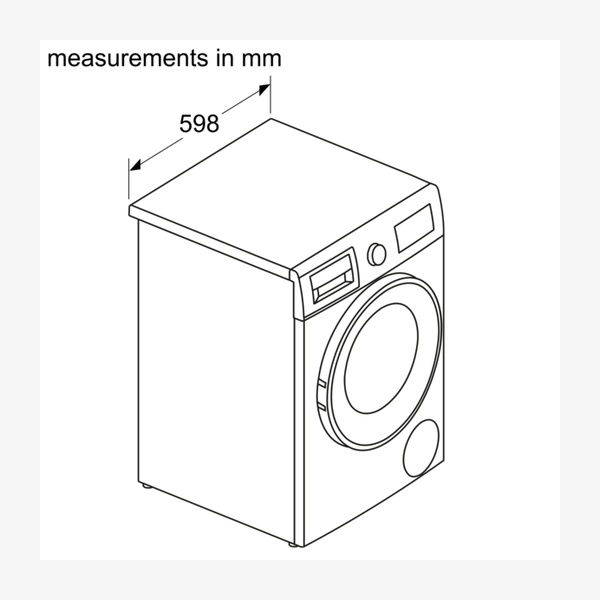

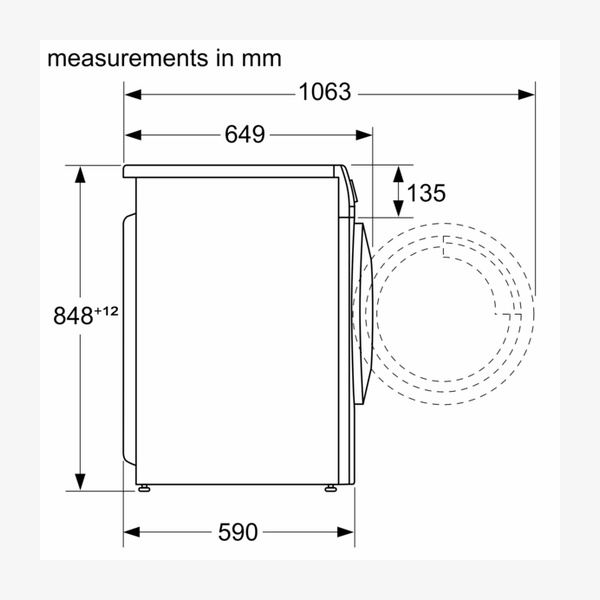

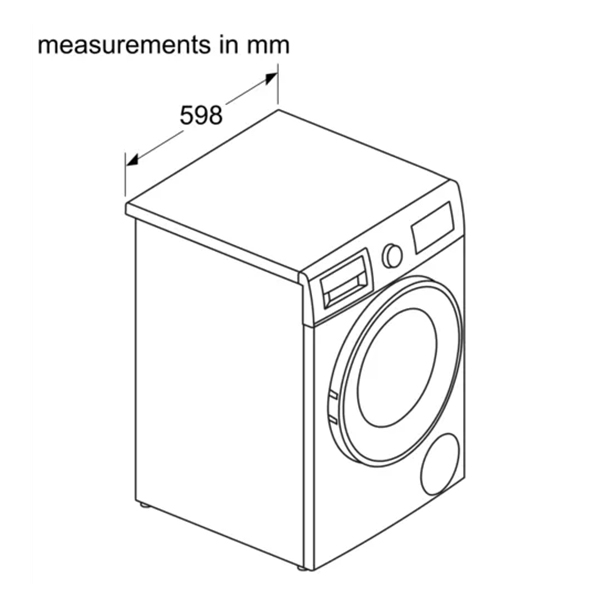

Dimensions of the product (H x W x D)848 x 598 x 590 mm

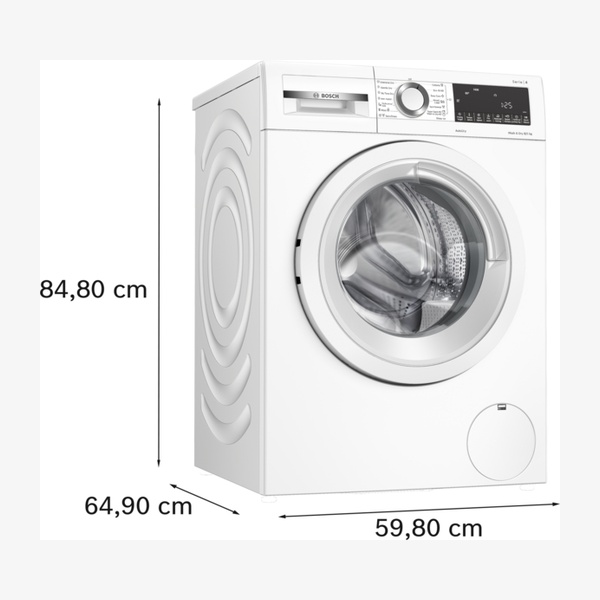

Dimensions (H x W)84.8 cm x 59.8 cm

Appliance depth59.0 cm

Appliance depth including door64.9 cm

Appliance depth with open door106.3 cm

Drum volume60 l

Net weight71.8 kg

Length of electrical supply cord210 cm

InstallationSlide-under installation

Door opening angleLarge white door with 165° opening

Acoustic signalsBuzzer

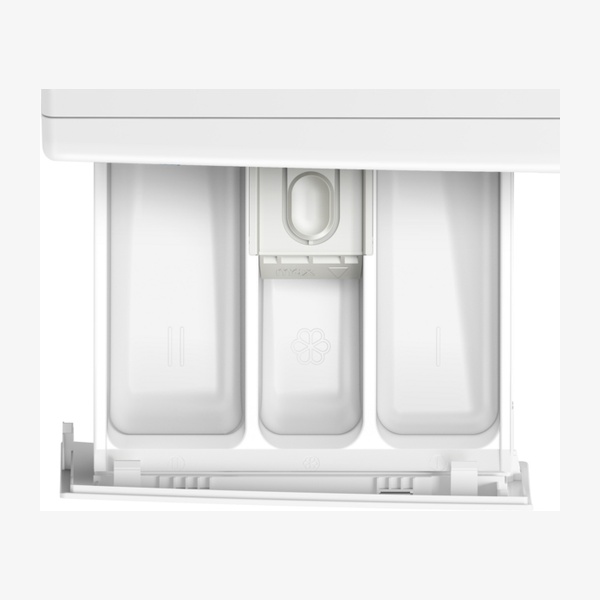

Detergent dispensingEasy clean with divider for liquid detergent

Hose typeEltek hose

EAN code4242005250172

Downloads

Download product documentation, manuals, and specification sheets.

WNA134U8GB Spec

PDF

Frequently Asked Questions

What is the maximum load for washing and drying?

The appliance can wash loads from 1 to 8 kg and wash and dry loads from 1 to 5 kg. Up to 5 kg can be washed and dried in one go.

How long does a full wash and dry cycle take?

At rated capacity, the duration of the full wash and dry cycle is 7:30 h. The Eco 40–60 wash programme alone takes 3:32 h at rated capacity.

What does SpeedPerfect do?

SpeedPerfect is an option that shortens programme duration. It provides perfectly clean results in up to 65% less time compared with the Easy–care 40°C programme without the Speed option.***

How does Iron Assist help with creases?

Iron Assist is a steam treatment that reduces wrinkles and helps reduce your ironing pile.

Can I add laundry after the programme has started?

Yes. The Reload function allows you to add or remove laundry items of any size even after the wash cycle has started.

Is any maintenance needed for the condenser?

The condenser is described as maintenance free with automatic fluff removal.
