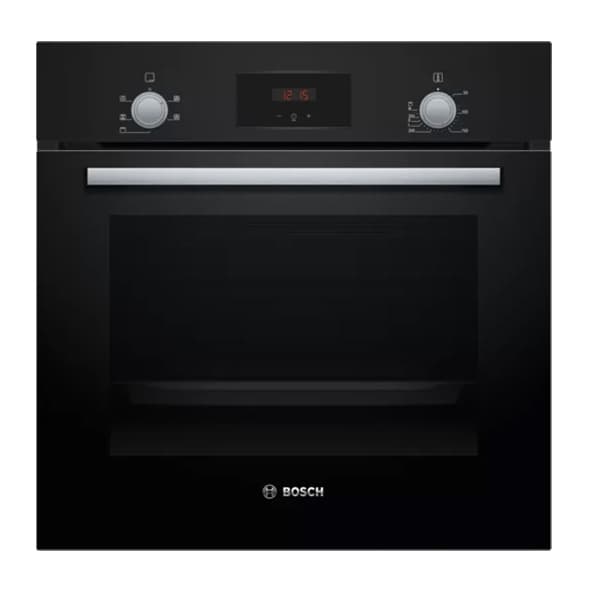

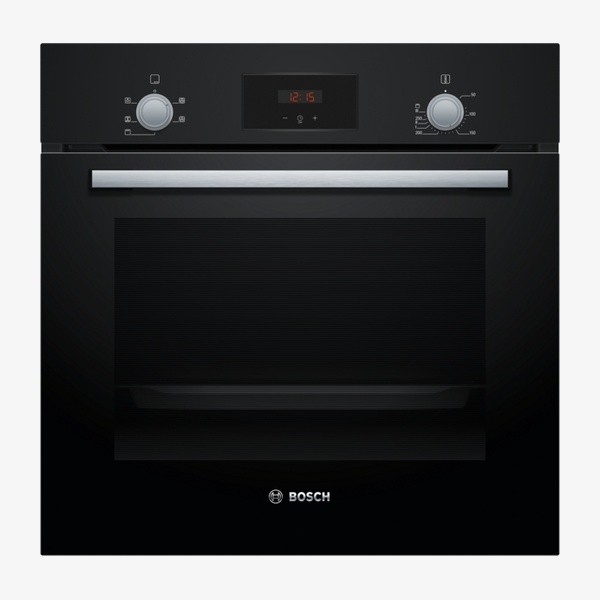

Bosch Serie 2 HHF113BA0B Single Oven

The Series 2 HHF113BA0B is a 60 x 60 cm black built–in oven designed for convenient everyday cooking and baking. It features 3D Hotair to achieve baking and roasting results on up to three levels simultaneously, with four heating methods including Hotair grilling and a full width variable grill. With a 66 litre cavity, red LED display control, rotary dial with steel trim and interior halogen light, it offers practical performance in a modern design.

SKU:HHF113BA0B

EAN:4242005048328

Category::Ovens

Quantity:

Key Features

The built–in oven with 3D Hotair – achieve baking and roasting results on up to three levels simultaneously.

Four cooking functions – 3D Hotair, Hotair grilling, Hotair gentle and full width variable grill.

Red LED display control – easy to use thanks to time functions and electronic clock timer.

Generous 66 litre cavity volume – extra large capacity oven with grey enamel and five shelf positions.

Modern design – black 60 x 60 cm built–in appliance with rotary dial with steel trim, straight bar handle and interior halogen light.

Safety and convenience features – control panel lock, automatic start and integral cooling fan.

Full glass inner door – designed to support easy cleaning of the oven door.

Efficient performance – energy efficiency rating A and energy consumption of 0.79 kWh per cycle (forced air convection).

Wide temperature range – adjustable from 50 °C to 275 °C.

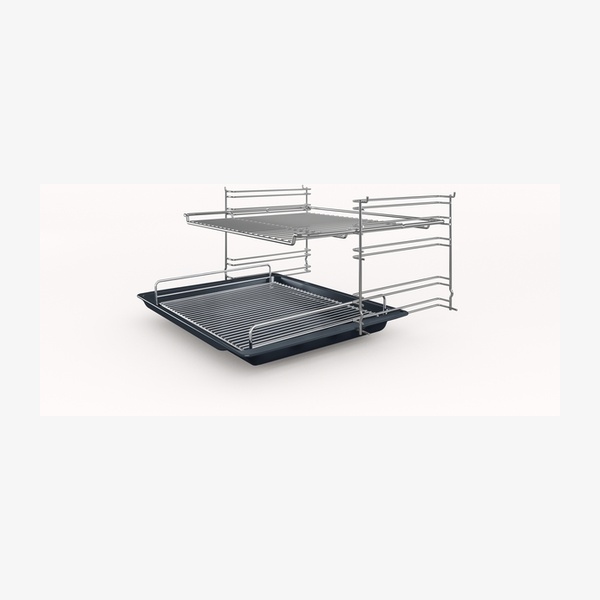

Practical accessories included – 1 x insert grid, 1 x combination grid and 1 x universal pan.

Optional accessories available – pizza pan, pizza stone, glass roasting dish and more (all listed below).

Technical Spec

Product typeSeries 2 built–in oven, 60 x 60 cm, Black

ModelHHF113BA0B

Built–in / Free–standingBuilt–in

Integrated cleaning systemNo

Usable volume of cavity66 l

Cavity volume66 litre

Number of cavities (2010/30/EC)1

Cooking methodsHotair gentle, Hot Air, Hot air grilling, Full width variable grill; heating methods: 3D Hotair, Hotair grilling, Hotair gentle, full width variable grill

Temperature range50 °C – 275 °C

Energy efficiency ratingA

Energy consumption per cycle (forced air convection, 2010/30/EC)0.79 kWh/cycle

Energy efficiency index (2010/30/EC)95.2 %

Connection rating2400 W / 2.4 KW (total connected load electric)

Voltage220–240 V (Nominal voltage: 220–240 V)

Frequency60; 50 Hz

Fuse protection13 A

Plug typeGB plug

Control panel materialMetal lacquered

Door materialGlass; full glass inner door

HandleStraight bar handle

Display and controlsLED–Display Control (Red); rotary dial, round with steel trim

Interior lightingInterior halogen light

Integral cooling fanYes (integral cooling fan)

Control panel lockYes (control panel lock)

Automatic startYes (automatic start)

Electronic clock timerYes (electronic clock timer)

Shelf positions5 shelf positions

Cable length110 cm (length electrical supply cord / cable length)

Net weight32.1 kg

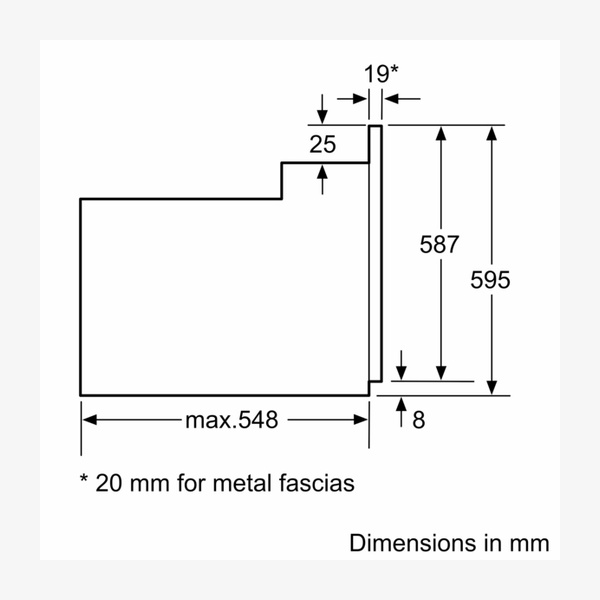

Appliance dimensions (HxWxD)595 x 594 x 548 mm

Dimensions595 x 594 x 548 mm

Packed product dimensions (HxWxD)680 x 655 x 680 mm

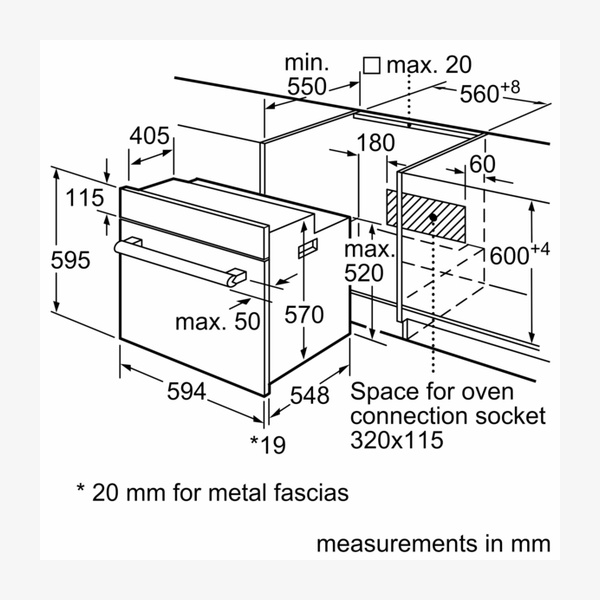

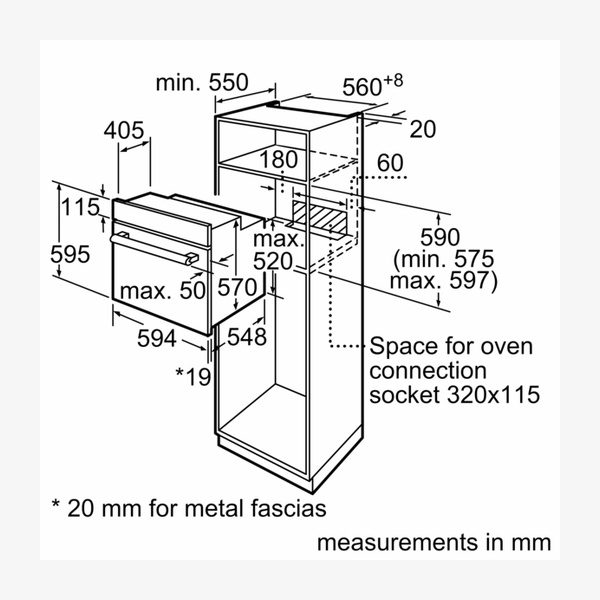

Required niche size (HxWxD)575–597 x 560–568 x 550 mm; Niche dimension (hxwxd): 575 mm – 597 mm x 560 mm – 568 mm x 550 mm

Extra large capacity oven with grey enamelYes (extra large capacity oven with grey enamel)

EAN code4242005048328

Level independent telescopic railsAvailable as an additional accessory

Downloads

Download product documentation, manuals, and specification sheets.

HHF113BA0B Spec

PDF

Frequently Asked Questions

What is the capacity of the Series 2 HHF113BA0B oven?

The oven has a cavity volume of 66 litre (66 l), described as an extra large capacity oven with grey enamel.

Which cooking functions does this oven offer?

It provides four cooking functions: 3D Hotair, Hotair grilling, Hotair gentle and full width variable grill. Cooking methods listed also include Hot Air and Hot air grilling.

Can I bake and roast on multiple levels at the same time?

Yes. The oven is described as a built–in oven with 3D Hotair that can achieve baking and roasting results on up to three levels simultaneously.

What is the energy rating and consumption of this oven?

The energy efficiency rating is A. The energy consumption per cycle for forced air convection (2010/30/EC) is 0.79 kWh per cycle, with an energy efficiency index of 95.2 %.

What are the installation dimensions for this built–in oven?

The appliance dimensions are 595 mm x 594 mm x 548 mm (hxwxd). The required niche size for installation is 575–597 mm x 560–568 mm x 550 mm (hxwxd).

Which accessories are supplied with the oven?

The oven comes with 1 x insert grid, 1 x combination grid and 1 x universal pan as included accessories.
