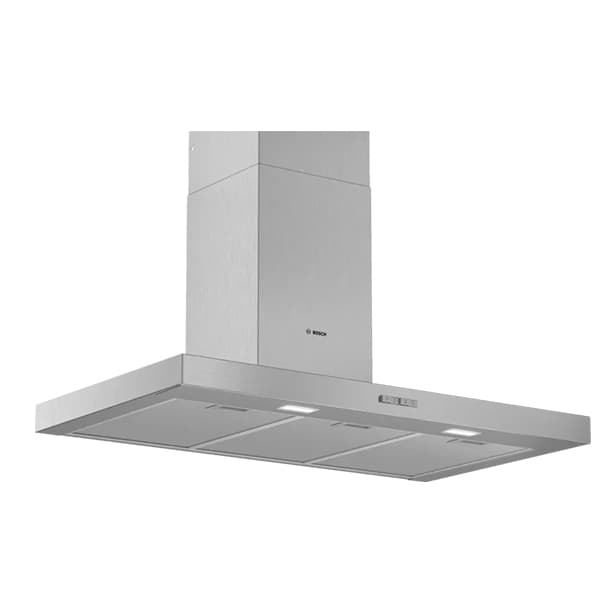

Bosch Serie 2 DWB94BC50B Chimney Hood

The Series 2 DWB94BC50B is a 90 cm stainless steel wall-mounted box design cooker hood, suitable for ducted or recirculating operation. It offers quiet, powerful extraction with a maximum exhaust air rate of 365 m³/h and three power levels, supported by energy-saving LED illumination for a bright hob area. With dishwasher safe aluminium grease filters and mechanical push button controls, it provides practical everyday performance for modern kitchens.

SKU:DWB94BC50B

EAN:4242005051106

Category::Cooker Hoods

Quantity:

Key Features

Wall-mounted box design hood in 90 cm stainless steel for performance and matching kitchen design.

Quiet extraction with powerful performance and a maximum extraction rate of 365 m³/h exhaust air.

Energy Efficiency Class D at a range of energy efficiency classes from A+++ to D, with average energy consumption of 53.1 kWh/year*.

LED Illumination with 2 × 1.5 W LED lights, 3500 K colour temperature and 91 lux light intensity providing bright, clear hob lighting.

Three power levels operated via mechanical push button control for extractor speeds and light.

Suitable for ducted or recirculating operation , with recirculating kit or CleanAir recirculating kit required for recirculated extraction.

High extraction rate for continuously clean air in the kitchen, with maximum air flow 365 m³/h.

Noise level 64 dB(A) re 1 pW at maximum normal use exhaust air according to EN 60704-3 and EN 60704-2-13.

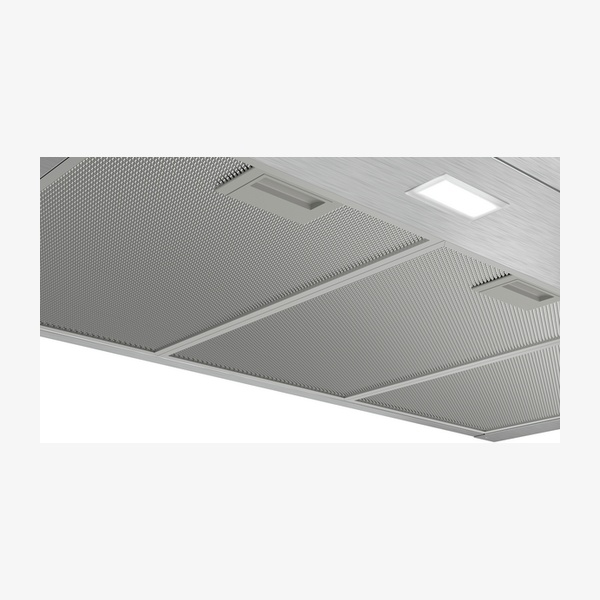

Dishwasher safe metal grease filters with 3 removable washable aluminium grease filter cassettes.

Chimney extractor design with stainless steel colour chimney and wall installation.

Blower Efficiency Class E* , Lighting Efficiency Class A* and Grease Filtering Efficiency Class D*.

Optional Clean Air Plus recirculation kit can achieve up to 240 m³/h extraction rate and 65 dB(A) noise level in recirculation mode.

Dishwasher safe aluminium mesh filters for easy maintenance.

Technical Spec

Product seriesSeries 2

Product typeWall-mounted cooker hood

ModelDWB94BC50B

Width90 cm

Colour chimneyStainless steel

Typology / InstallationWall-mounted, chimney extractor hood

Energy Efficiency ClassD (at a range of energy efficiency classes from A+++ to D)

Average energy consumption*53.1 kWh/year*

Max. air extraction (exhaust)365 m³/h (according to EN 61591)

Maximum air flow365 m³/h

Max. air recirculation240 m³/h (with Clean Air Plus recirculation kit, max. normal use)

Noise level exhaust air64 dB(A) re 1 pW at max. normal use exhaust air

Noise level recirculation65 dB(A) re 1 pW at max. normal use (with Clean Air Plus recirculation kit)

Type of controlMechanical push button control

Number of speed settings3 power levels

Lighting2 x 1.5 W LED light, 3500 K colour temperature, 91 lux light intensity

Number of lights2

Grease filter materialWashable aluminium, 3 removable metal grease filter cassettes

Blower Efficiency Class*E*

Lighting Efficiency Class*A*

Grease Filtering Efficiency Class*D*

Colour temperature3500 K

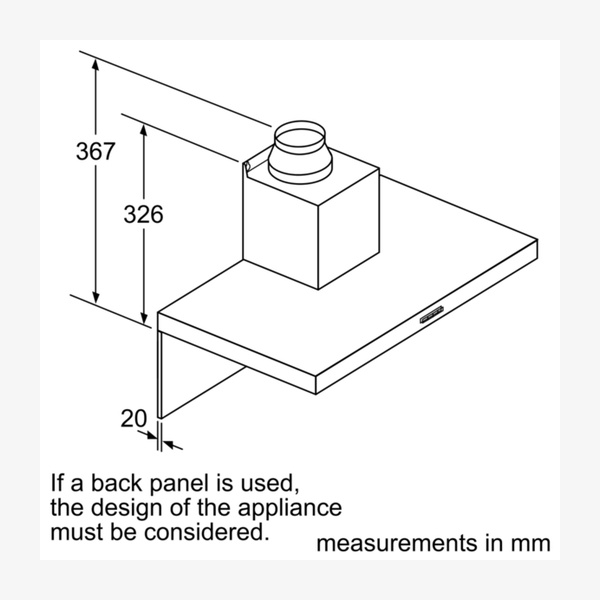

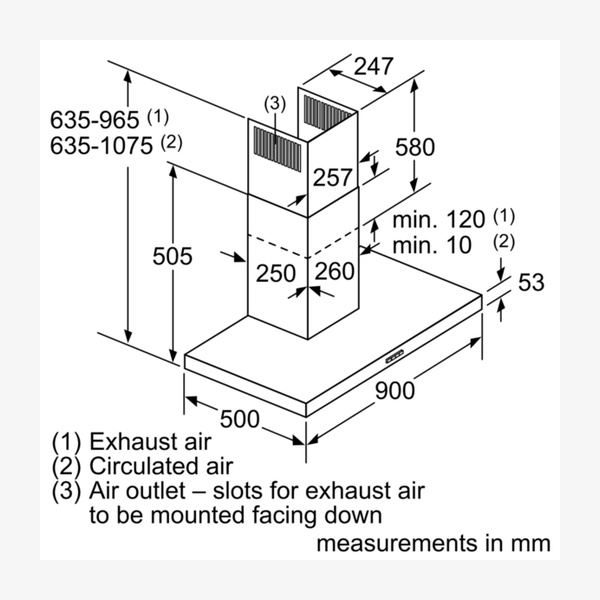

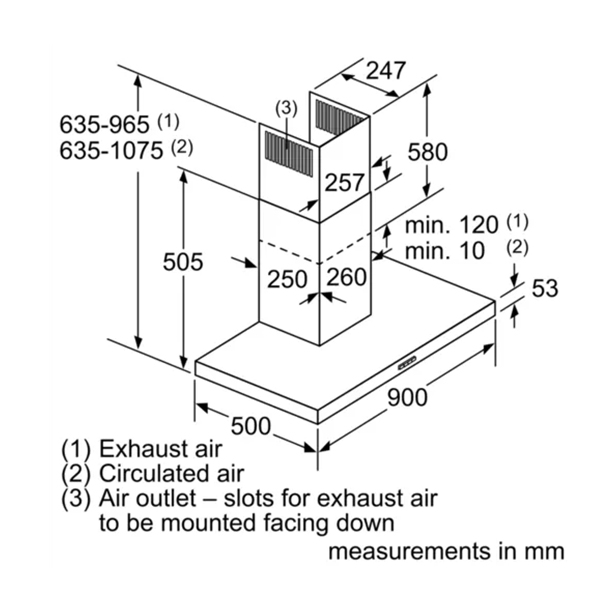

Dimensions exhaust air (H x W x D)635–965 x 900 x 500 mm

Dimensions recirculating (H x W x D)635–1075 x 900 x 500 mm

Dimensions recirculating with CleanAir module (H x W x D)703 x 900 x 500 mm – mounting with outer chimney; 833–1163 x 900 x 500 mm – mounting with telescopic chimney

Height of the chimney583–912 / 583–1022 mm

Height of the appliance53 mm

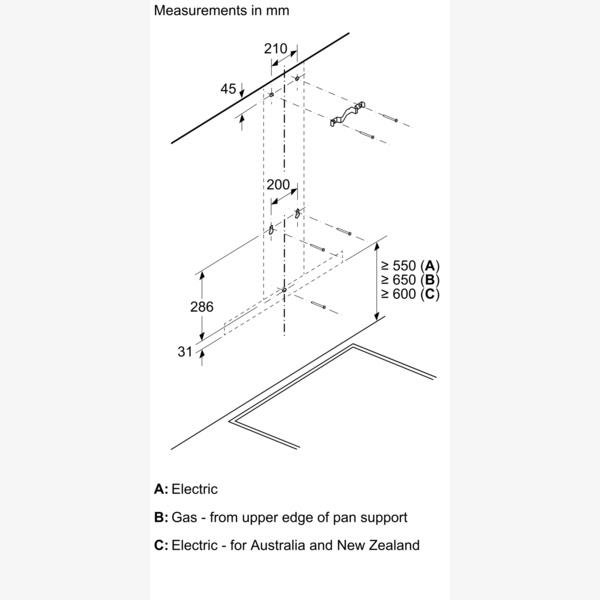

Minimum distance above an electric hob550 mm

Minimum distance above a gas hob650 mm

Diameter of air outlet150 mm (120 mm enclosed), diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Length electrical supply cord130 cm (1.3 m electrical cable length)

Net weight12.0 kg

Connection rating / Power rating100 W

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005051106

Downloads

Download product documentation, manuals, and specification sheets.

DWB94BC50B Spec

PDF

Frequently Asked Questions

What is the maximum extraction rate of this cooker hood?

The maximum extraction rate for exhaust air is 365 m³/h according to EN 61591, with a maximum air flow of 365 m³/h.

Can this hood be used in recirculation mode?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit is needed. With the Clean Air Plus recirculation kit, the maximum extraction rate in recirculation mode is 240 m³/h at max. normal use.

How noisy is the hood during normal use?

The noise level at maximum normal use exhaust air is 64 dB(A) re 1 pW according to EN 60704-3 and EN 60704-2-13. With the Clean Air Plus recirculation kit in recirculation mode, the noise level at max. normal use is 65 dB(A) re 1 pW.

Are the grease filters washable?

Yes. The hood includes 3 removable metal grease filter cassettes made from washable aluminium. The metal grease filters and aluminium mesh filters are dishwasher safe.

What lighting does the cooker hood provide?

The hood features LED Illumination with 2 x 1.5 W LED lights. The colour temperature is 3500 K and the light intensity is 91 lux, providing bright and clear lighting for the hob area.

What minimum distance is required above the hob?

The minimum distance above an electric hob is 550 mm, and the minimum distance above a gas hob is 650 mm.
