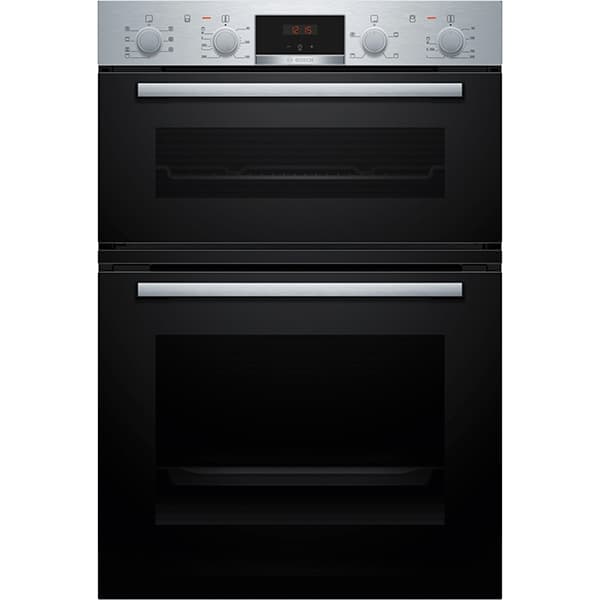

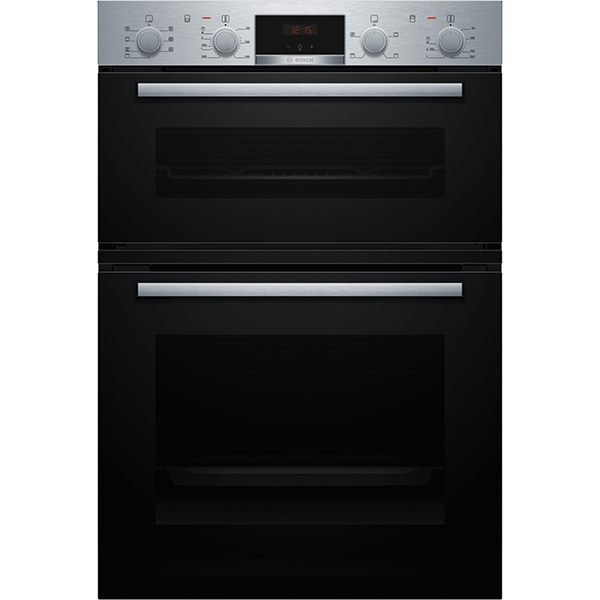

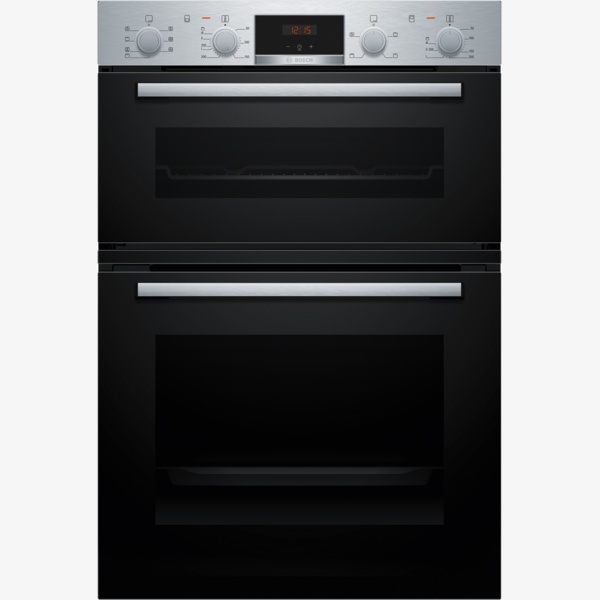

Bosch Series 4 MBA533BS3B Double Oven

The Bosch Series 4 MBA533BS3B is a built-in double oven designed for flexible everyday cooking and baking. It offers a spacious 71 l main oven and 34 l top oven, both with electric heat sources and a wide 50 °C to 275 °C temperature range. With 3D Hotair for even heat distribution, EcoClean Direct on the main oven back panel and easy-to-use red LED display with pop-out controls, it combines practical features with a sleek stainless-steel and glass design.

SKU:MBA533BS3B

EAN:4242005465828

Category::Ovens

Quantity:

Key Features

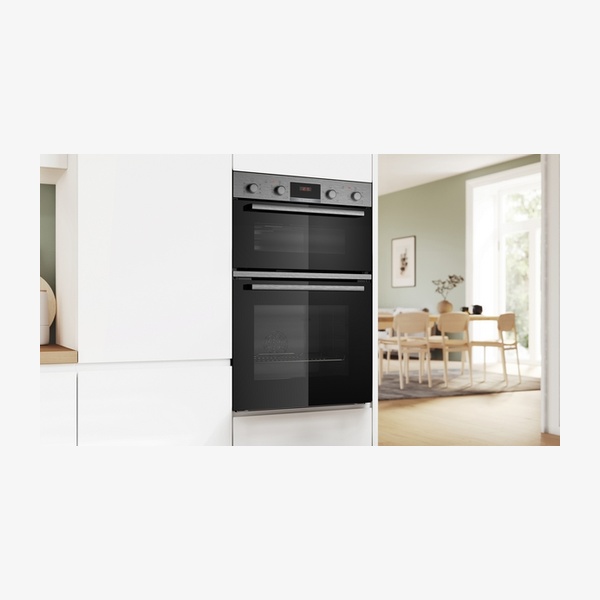

Built-in double oven design – integrated appliance with main and top cavities for flexible cooking.

3D Hotair technology – even heat distribution for perfect baking and roasting results on up to three levels.

Spacious main oven capacity – 71 litre main cavity with 5 shelf positions and extra large capacity oven design.

Practical top oven – 34 litre cavity with additional heating methods including conventional heat and grill functions.

Wide temperature range – 50 °C to 275 °C in both main and top ovens for a variety of dishes.

EcoClean Direct back panel – special coating on the main oven rear wall to reduce cleaning effort.

Red LED display control – easy-to-use time functions with electronic clock timer and automatic start.

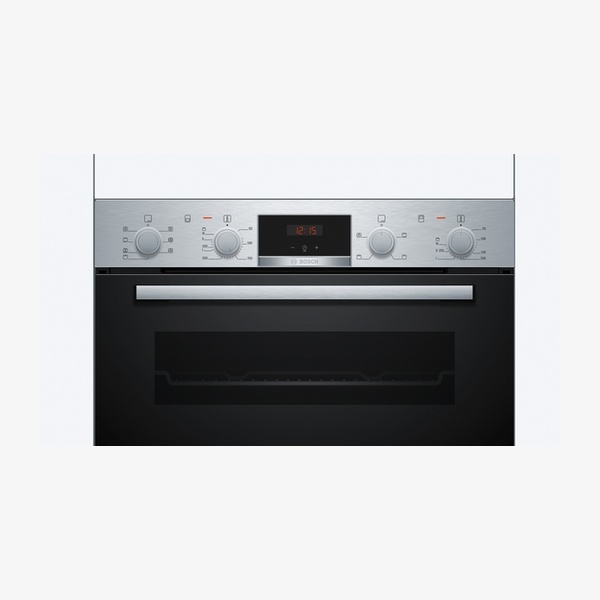

Pop-out / retractable control dials – make the front easy to clean and give a sleek look with round dials and steel trim.

Multiple cooking methods – includes full width grill, Hotair gentle, Hot Air, conventional heat and hot air grilling.

Fast pre-heating function – main oven function to reach cooking temperature more quickly.

Full glass inner doors – in both cavities for a clean, modern appearance.

Interior halogen light – improves visibility inside the oven while cooking.

Control panel lock – helps prevent unintended changes to the settings.

Stainless steel control panel – combined with glass doors and enamelled cavities in grey and anthracite.

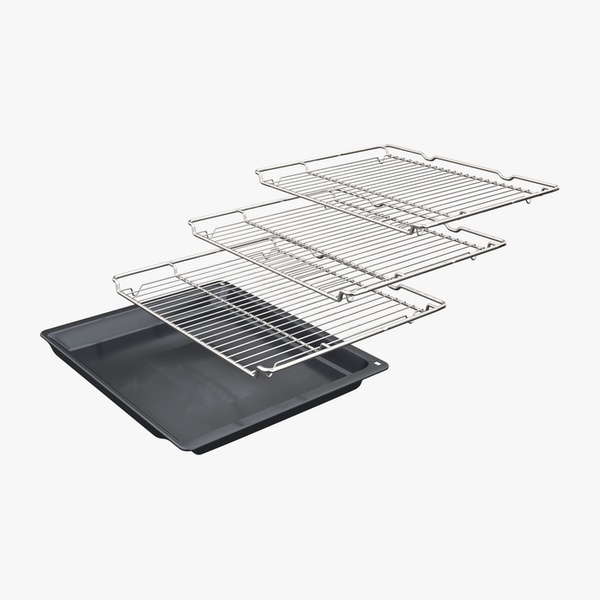

Included accessories – supplied with 3 x combination grid and 1 x universal pan.

Optional accessories available – wide range including pizza stone, trays, pans, telescopic rails and wireless food thermometer.

Energy efficiency class – A rating overall and B rating for each individual cavity according to cited regulations.

Electric heat source – both main and top ovens use electrical heating.

Drop down oven doors – for both small (top) and big (main) cavities.

Integral cooling fan – supports safe operation of the main oven.

Technical Spec

SeriesSeries 4

ModelMBA533BS3B

Installation typeBuilt-in

Integrated cleaning systemNo

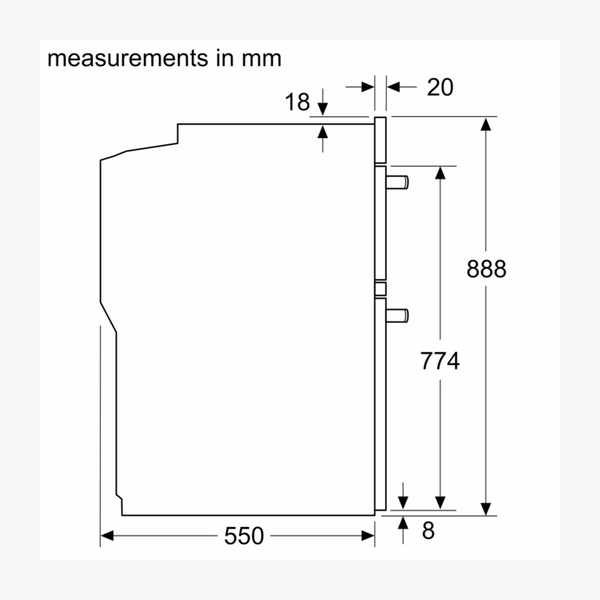

Appliance dimensions (H × W × D)888 x 594 x 550 mm

Packed product dimensions (H × W × D)960 x 660 x 690 mm

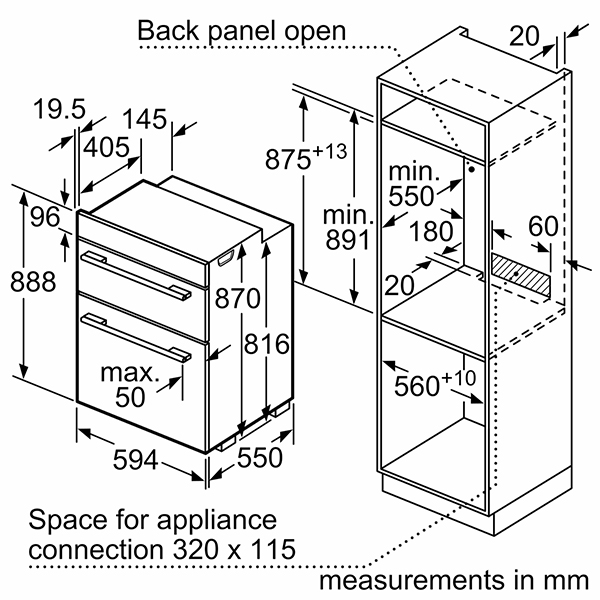

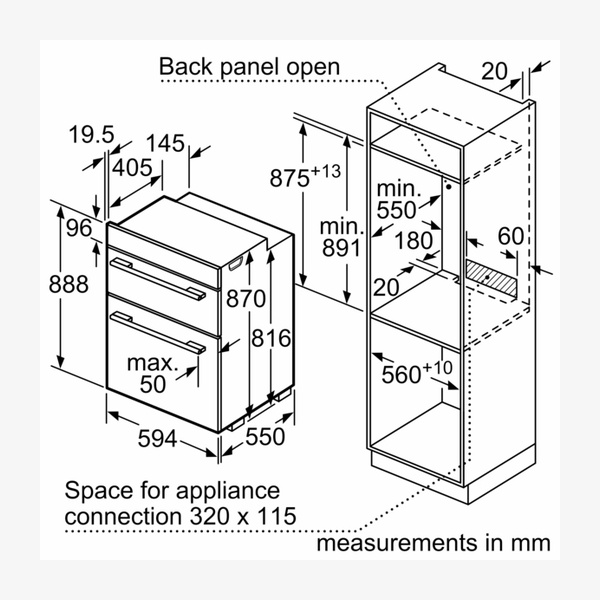

Niche dimensions (H × W × D)875 mm – 888 mm x 560 mm – 568 mm x 550 mm

Control panel materialStainless steel

Door materialGlass

Cavity inner surface (top)Enamel grey

Cavity inner surface (bottom)Enamel anthracite

Net weight49.4 kg

Main oven usable volume71 l

Top oven cavity volume34 litre capacity

Main oven cavity volume71 litre capacity

Number of cavitiesTop Cavity; Main Cavity

Main oven shelf positions5 shelf positions

Cooking methods (overview)Full width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling

Top oven heating methodsConventional top/bottom heat, Large-area grill, Small area grill

Main oven heating methods3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, Hotair gentle

Temperature range (top oven)50 °C – 275 °C

Temperature range (main oven)50 °C – 275 °C

Energy efficiency rating (overall)A

Energy efficiency rating (top oven)B (acc. EU Nr. 65/2014; range A+++ to D)

Energy efficiency rating (main oven)B (acc. EU Nr. 65/2014; range A+++ to D)

Energy consumption conventional (overall)1.02 kWh/cycle (2010/30/EC)

Energy consumption forced air convection (overall)0.81 kWh/cycle (2010/30/EC)

Energy consumption conventional – cavity 20.83 kWh/cycle (2010/30/EC)

Energy efficiency class – cavity 2B (2010/30/EC)

Energy consumption conventional (top oven)0.83 kWh per cycle

Energy consumption conventional (main oven)0.83 kWh per cycle

Energy consumption fan-forced (main oven)0.81 kWh per cycle

Energy efficiency index (overall)95.3 % (2010/30/EC)

Energy efficiency index – cavity 2120.3 % (2010/30/EC)

Connection rating5900 W / 5.9 kW (total connected load electric)

Nominal voltage220 – 240 V

Frequency50 Hz

Fuse protection32 A

Plug type / electrical connectionNo plug, fixed connection (electrical connection by electrician)

Heat source (top oven)Electrical

Heat source (main oven)Electrical

Door hinge (top oven)Drop down oven door (small cavity)

Door hinge (main oven)Drop down door (big cavity)

Display and controlsLED-Display Control (Red), rotary dial, retractable control dials, straight bar handle

LightingInterior halogen light

Cleaning featuresEcoClean Direct back panel (main oven); full glass inner door (top and main oven)

CoolingIntegral cooling fan (main oven)

Control panel lockYes

Included accessories3 x combination grid, 1 x universal pan

Optional accessoriesHEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non-stick ceramic coated; HEZ532010 Universal pan, non-stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ633001 Lid for professional pan, enamelled; HEZ633070 Professional pan with grid, enamelled; HEZ633073 Professional pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L

EAN code4242005465828

Downloads

Download product documentation, manuals, and specification sheets.

MBA533BS3B Spec

PDF

Frequently Asked Questions

What are the capacities of the main and top ovens?

The main oven has a cavity volume of 71 litre capacity, while the top oven has a cavity volume of 34 litre capacity.

What is 3D Hotair and how does it help cooking?

3D Hotair provides even heat distribution, enabling perfect baking and roasting results on up to three levels simultaneously.

What cleaning support does the oven offer?

The main oven features EcoClean Direct on the back panel, a special coating that reduces cleaning effort. Both ovens also include full glass inner doors and pop-out controls that make the front easier to clean.

What accessories are included with the oven?

The appliance comes with 3 x combination grid and 1 x universal pan supplied as included accessories.

Are there optional accessories available?

Yes. Optional accessories listed include a pizza stone, wireless food thermometer, various baking trays and pans (including enamelled and non-stick ceramic coated), telescopic rails (level independent), baking and roasting grids, glass pans and glass roasting dish of 5,4 L.

What electrical connection is required?

The oven has a total connected load of 5.9 kW, operates at 220 – 240 V and 50 Hz, is protected by a 32 A fuse, and requires a fixed electrical connection by an electrician with no plug supplied.
