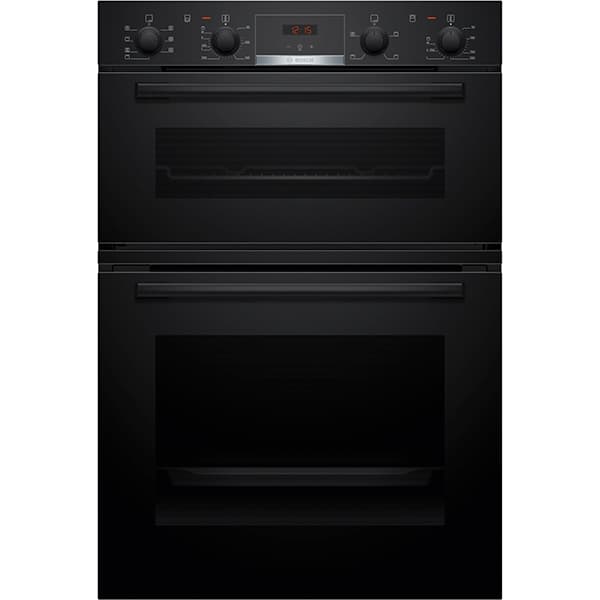

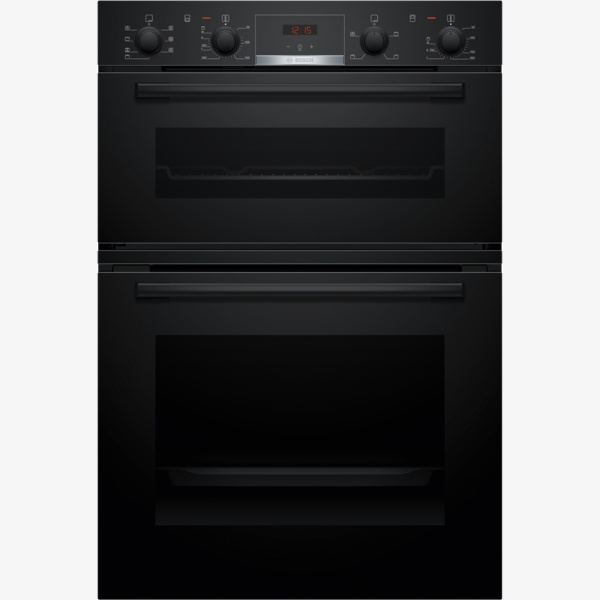

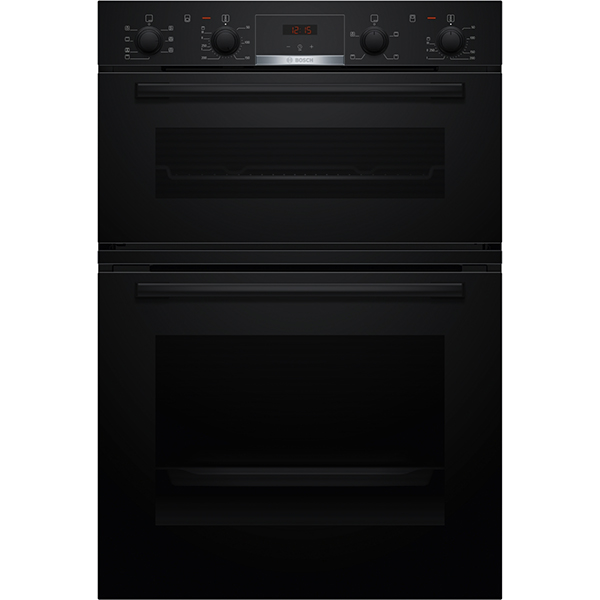

Bosch Series 4 MBA533BB3B Double Oven

The Series 4 MBA533BB3B is a built–in double oven designed for flexible everyday cooking. The main oven offers 3D Hotair, multiple heating methods and a generous 71 litre capacity, while the top oven adds extra grilling and conventional options. With an EcoClean Direct back panel in the main oven, red LED display control, retractable dials and full glass inner doors, it combines convenient cleaning, easy control and a sleek, integrated look.

SKU:MBA533BB3B

EAN:4242005465811

Category::Ovens

Quantity:

Key Features

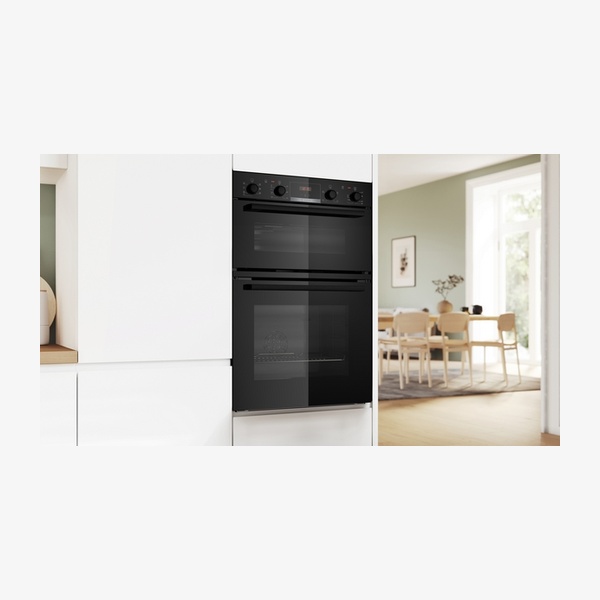

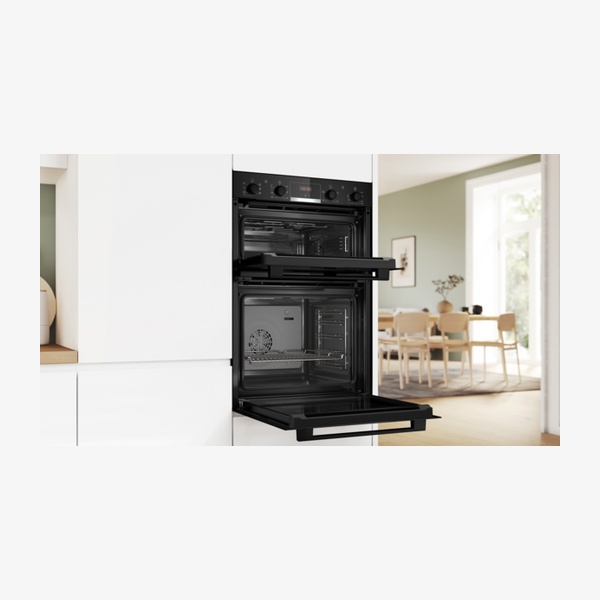

Built–in double oven design for integrated installation in a tall kitchen unit.

3D Hotair in the main oven for even heat distribution and baking or roasting on up to three levels.

EcoClean Direct back panel in the main oven to reduce cleaning effort on the rear wall.

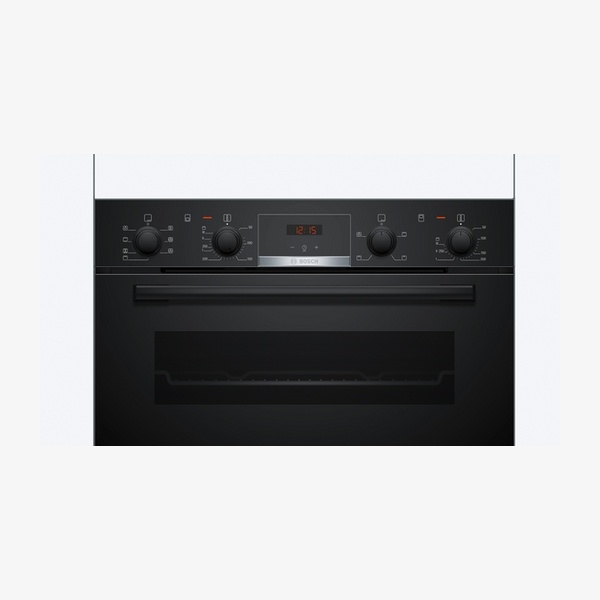

Red LED display control with time functions, electronic clock timer and automatic start.

Retractable rotary control dials with steel trim for easy cleaning and a sleek front.

Main oven with 5 heating methods : 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, Hotair gentle.

Top oven with 3 heating methods : conventional top/bottom heat, large–area grill, small area grill.

Fast pre–heating function in the main oven to reach the desired temperature more quickly.

Extra large capacity main cavity with 71 litre usable volume and 5 shelf positions.

Top cavity volume 34 litres for additional cooking and grilling space.

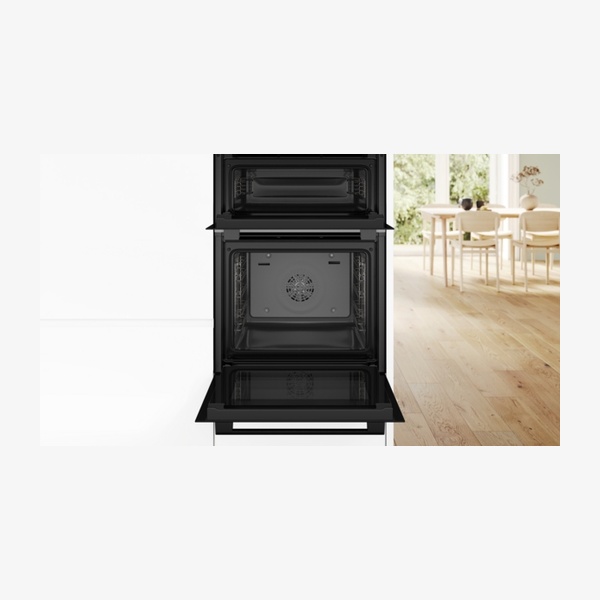

Full glass inner doors on both ovens for a smooth interior surface.

Interior halogen light in the main oven for clear visibility.

Integral cooling fan in the main oven.

Control panel lock for added control security.

Level independent telescopic rails available as an additional accessory.

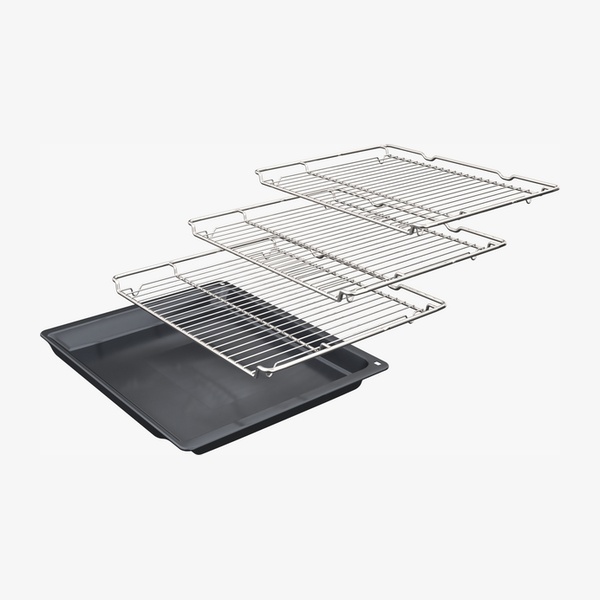

Included accessories : 3 x combination grid and 1 x universal pan.

Optional accessories include pizza stone, wireless food thermometer, various trays, pans, grids and telescopic rails.

Energy efficiency rating A overall in technical data, with cavity ratings B according to EU Nr. 65/2014.

Electric operation with nominal voltage 220–240 V and total connected load 5.9 kW.

Glass control panel and doors with enamelled inner surfaces (enamel grey top cavity, enamel anthracite bottom cavity).

Technical Spec

Product typeBuilt–in double oven

ModelMBA533BB3B, Series 4

InstallationBuilt–in

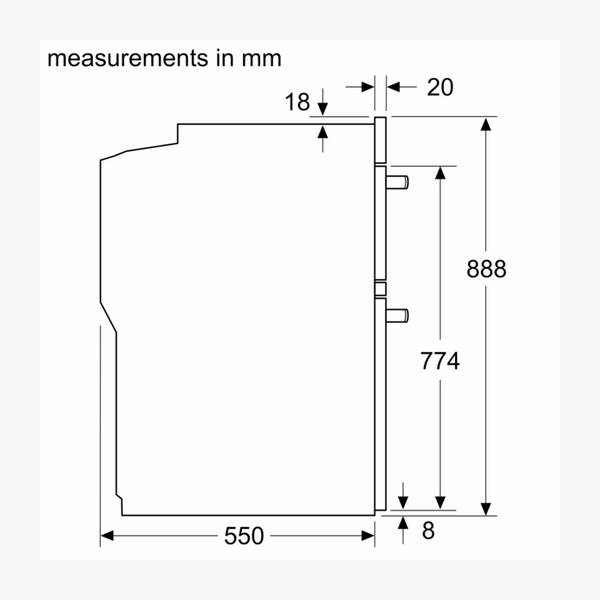

Appliance dimensions (H x W x D)888 x 594 x 550 mm

Packed dimensions (H x W x D)960 x 660 x 690 mm

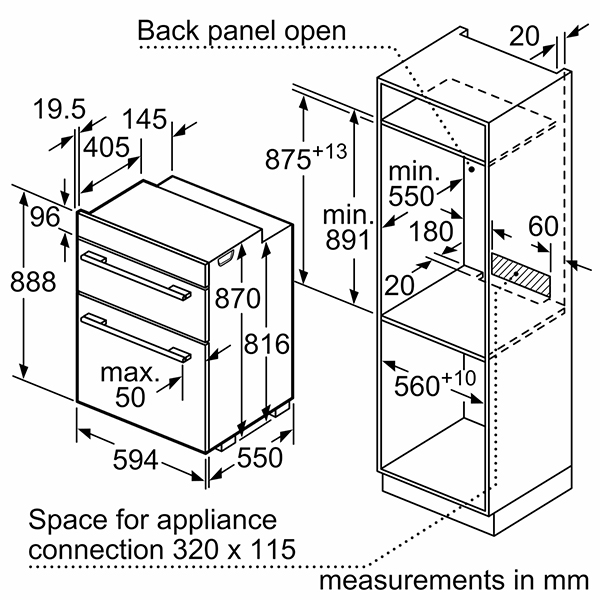

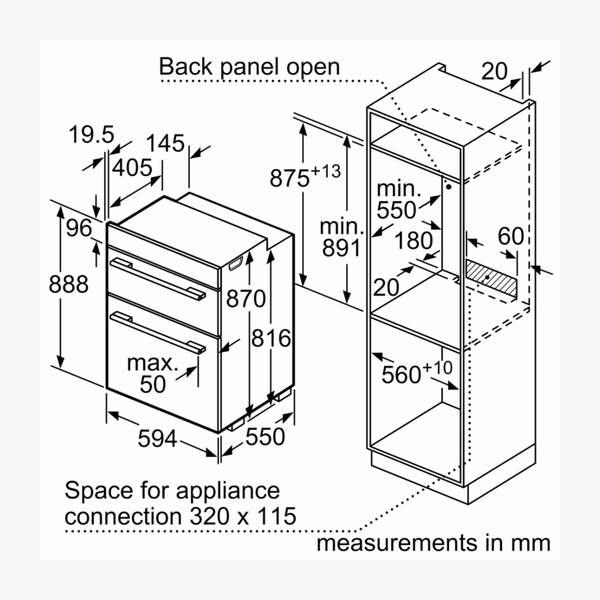

Niche dimensions (H x W x D)875 mm – 888 mm x 560 mm – 568 mm x 550 mm

Control panel materialGlass

Door materialGlass

Inner surface – top cavityEnamel grey

Inner surface – main cavityEnamel anthracite

Net weight49.4 kg

Usable volume (main cavity)71 l

Cavity volume – top oven34 litre capacity

Shelf positions (main oven)5 shelf positions

Temperature range (both ovens)50 °C – 275 °C

Main oven heating methods3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, Hotair gentle

Top oven heating methodsConventional top/bottom heat, large–area grill, small area grill

Additional cooking methods (technical data)Full width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling

Integrated cleaning systemNo (EcoClean Direct back panel in main oven)

Energy efficiency rating (overall technical data)A

Energy efficiency class – top oven (EU Nr. 65/2014)B (range A+++ to D)

Energy efficiency class – main oven (EU Nr. 65/2014)B (range A+++ to D)

Energy consumption conventional (overall, 2010/30/EC)1.02 kWh/cycle

Energy consumption forced air (overall, 2010/30/EC)0.81 kWh/cycle

Energy consumption conventional – top oven0.83 kWh per cycle

Energy consumption conventional – main oven0.83 kWh per cycle

Energy consumption fan–forced – main oven0.81 kWh per cycle

Energy efficiency index (2010/30/EC)95.3 %

Energy efficiency index cavity 2 (2010/30/EC)120.3 %

Connection rating / total connected load5900 W / 5.9 kW

Voltage220–240 V (nominal 220–240 V)

Frequency50 Hz

Fuse protection32 A

Plug typeNo plug, fixed connection (electrical connection by electrician)

Number of cavitiesTop cavity and main cavity

Heat sourceElectrical (both cavities)

DisplayLED–Display Control (Red)

Handle typeStraight bar handle

Door hingesTop oven: drop down oven door; Main oven: drop down door

EAN code4242005465811

Integrated cleaning system (label)No (EcoClean Direct back panel main oven)

Included accessories3 x combination grid, 1 x universal pan

Downloads

Download product documentation, manuals, and specification sheets.

MBA533BB3B Spec

PDF

Frequently Asked Questions

What is the capacity of the main and top ovens?

The main oven has a cavity volume of 71 litres with 5 shelf positions. The top oven has a cavity volume of 34 litres.

Which heating methods does the main oven provide?

The main oven offers 5 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill and Hotair gentle.

Does this double oven have any self–cleaning features?

The integrated cleaning system is noted as “No”, but the main oven includes EcoClean Direct on the back panel to reduce cleaning effort on the rear wall.

What accessories are included with the oven?

The oven is supplied with 3 x combination grid and 1 x universal pan.

What is the temperature range of the ovens?

Both the top oven and main oven have a temperature range from 50 °C to 275 °C.

How is the oven installed and powered?

The MBA533BB3B is a built–in appliance with no plug, designed for fixed electrical connection by an electrician. It operates on 220–240 V, 50 Hz, with a total connected load of 5.9 kW and requires 32 A fuse protection.
