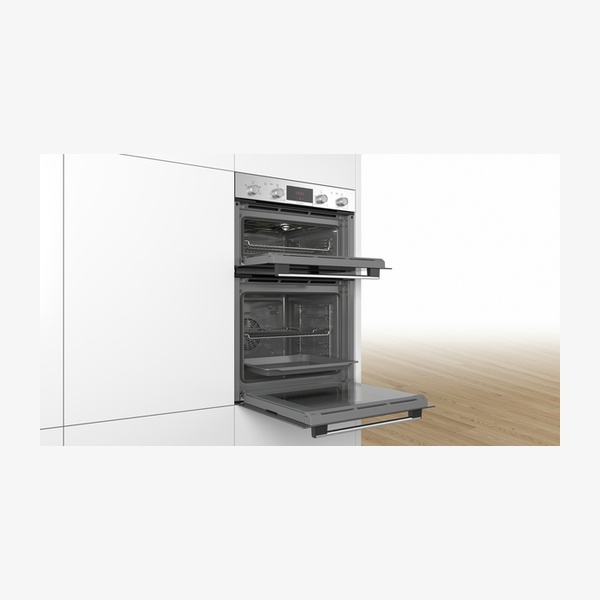

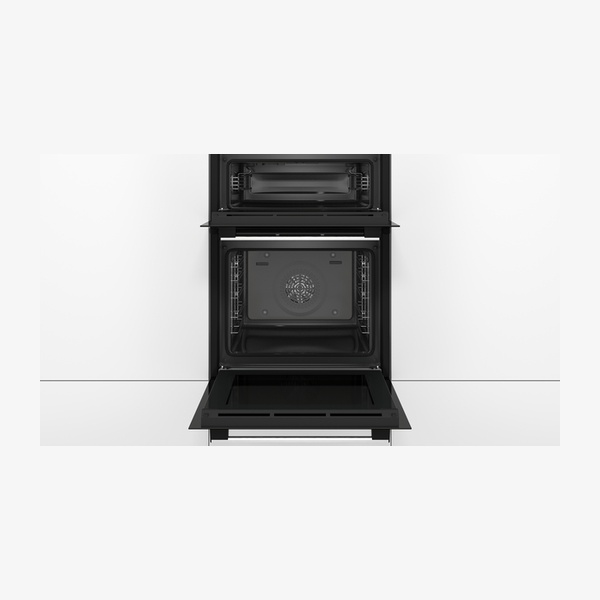

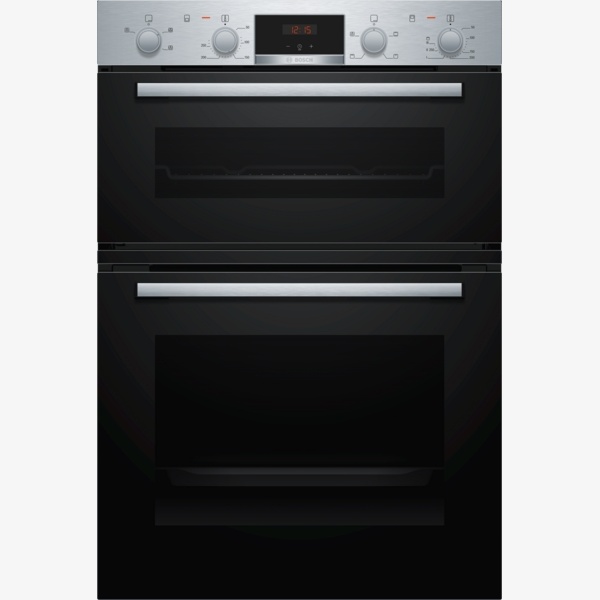

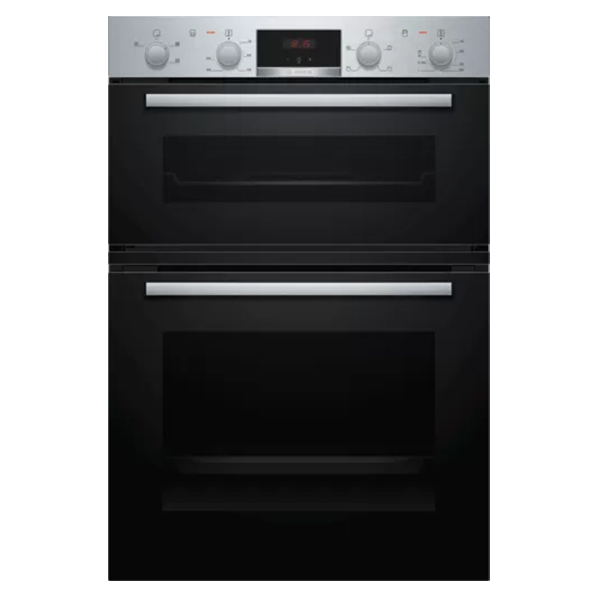

Bosch Serie 2 MHA133BR0B Double Oven

The Series 2 MHA133BR0B is a built–in double oven designed for flexible everyday cooking. It offers a spacious 76 l main oven with 3D Hotair and Hotair gentle, plus a 34 litre top oven with conventional heat and grill options. Easy–to–use red LED display controls, rotary dials with steel trim and an electronic clock timer support straightforward operation, while EcoClean Direct on the back panel of the main cavity helps reduce cleaning effort.

SKU:MHA133BR0B

EAN:4242005212606

Category::Ovens

Quantity:

Key Features

Built–in double oven design for integrated installation in a kitchen column.

3D Hotair technology to achieve baking and roasting results on multiple levels simultaneously.

76 l main oven capacity with 3D Hotair and Hotair gentle for versatile cooking.

34 litre top oven with conventional top/bottom heat, large–area grill and small area grill.

Red LED display control with time functions, automatic start and heating–up indicator.

EcoClean Direct back panel in the lower oven to reduce cleaning effort.

Full glass inner doors on both cavities for a clear view and smooth inner surfaces.

Control panel lock on the main oven for added security during operation.

Five shelf positions in the main cavity for flexible tray and shelf arrangement.

Interior halogen light for clear illumination of the oven interior.

Straight bar handle and stainless steel control panel for a modern finish.

Drop down doors on both the main and top ovens.

Electrical heat source for both cavities with a total connected load of 4.8 kW.

Energy efficiency rating A/B including A rating and B ratings according to EU references in the technical data.

Included accessories : 3 x combination grid and 1 x universal pan.

Wide temperature range from 50 °C to 275 °C.

Optional accessories available including trays, pans, pizza stone, rails and a wireless food thermometer.

Technical Spec

Product seriesSeries 2

Product typeBuilt–in double oven

Model numberMHA133BR0B

Built–in / Free–standingBuilt–in

Heat sourceElectrical (top cavity and main cavity)

Main oven usable volume76 l

Top oven cavity volume34 litre capacity

Cooking methods – main oven3D Hotair, Hotair gentle

Cooking methods – top ovenConventional top/bottom heat, Large–area grill, Small area grill

Temperature range50 °C – 275 °C

Energy efficiency rating (general)Energy efficiency rating: A (technical data)

Energy efficiency rating (EU Nr. 65/2014)B (at a range of energy efficiency classes from A+++ to D)

Energy consumption (conventional mode)0.83 kWh per cycle (top cavity and main cavity)

Energy consumption (fan–forced convection)0.83 kWh per cycle (main cavity)

Energy efficiency index95.4 %

Energy efficiency index cavity 2120.3 %

Energy efficiency class cavity 2 (2010/30/EC)B

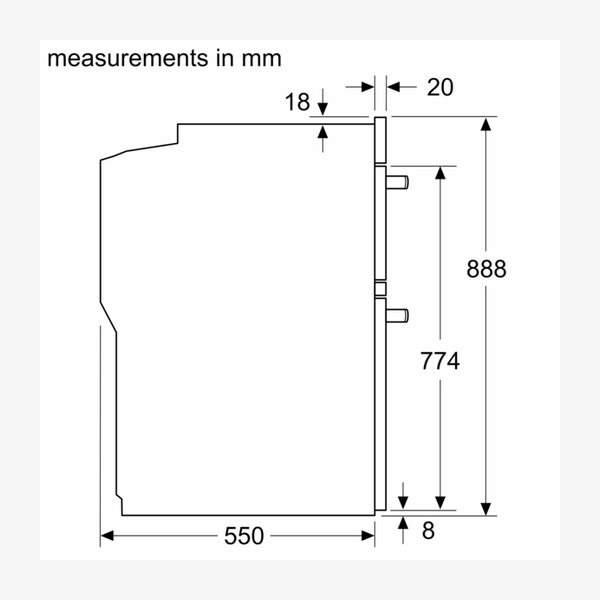

Appliance dimensions (H x W x D)888 mm x 594 mm x 550 mm

Dimensions (H x W x D)888x594x550 mm

Packed product dimensions (H x W x D)960x660x690 mm

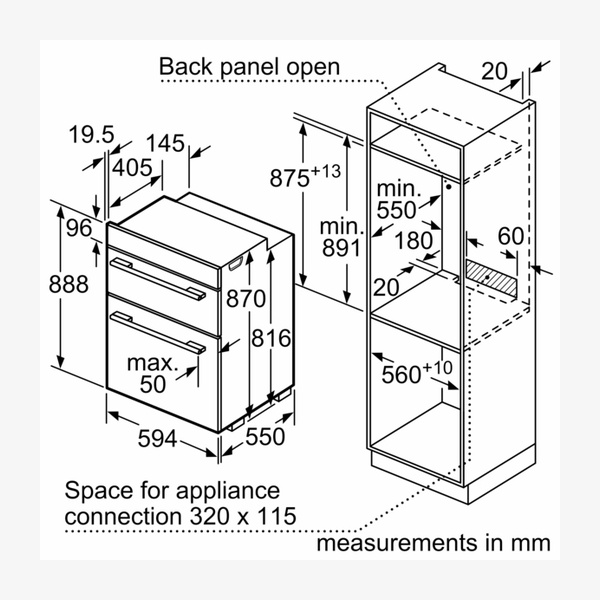

Niche dimensions (H x W x D)875 mm – 888 mm x 560 mm – 568 mm x 550 mm

Control panel materialStainless steel

Door materialGlass

Net weight48.4 kg

Total connected load (electric)4.8 kW (4800 W)

Nominal voltage220 – 240 V

Voltage220–240 V

Frequency50 Hz

Fuse protection25 A

Plug typeNo plug (electrical connection by electrician), fixed connection (electrical connection by electrician)

Integrated cleaning systemNo (technical data entry), EcoClean Direct back panel in main oven

Number of cavities – topTop Cavity

Number of cavities – mainMain Cavity

Cavity inner surface – topEnamel grey

Interior lightInterior halogen light

Door hinge (small cavity)Drop down oven door

Door hinge (big cavity)Drop down door

Handle typeStraight bar handle

Control typeLED–Display Control (Red), rotary dial, round with steel trim

Timer functionsElectronic clock timer, automatic start, time functions

Heating–up indicatorYes (heating–up indicator)

Control panel lockYes (main oven)

Shelf positions (main oven)5 shelf positions

Cleaning aidEcoClean Direct: back panel (main oven)

Included accessories3 x combination grid, 1 x universal pan

EAN code4242005212606

Downloads

Download product documentation, manuals, and specification sheets.

MHA133BR0B Spec

PDF

Frequently Asked Questions

What is the capacity of the main and top ovens?

The main oven has a usable cavity volume of 76 l, while the top oven offers a 34 litre capacity.

Which heating methods does the MHA133BR0B provide?

The main oven offers 3D Hotair and Hotair gentle. The top oven provides conventional top/bottom heat, large–area grill and small area grill.

Does this double oven have any cleaning aids?

The lower oven features EcoClean Direct on the back panel, designed to reduce cleaning effort. The technical data states no integrated cleaning system, but EcoClean Direct is specified for the back panel.

What accessories are included with the oven?

Included accessories are 3 x combination grid and 1 x universal pan.

Is this appliance supplied with a plug?

No. The plug type is specified as no plug, with a fixed electrical connection required by an electrician.

What are the installation niche dimensions?

The niche dimension is 875 mm – 888 mm in height, 560 mm – 568 mm in width and 550 mm in depth.
