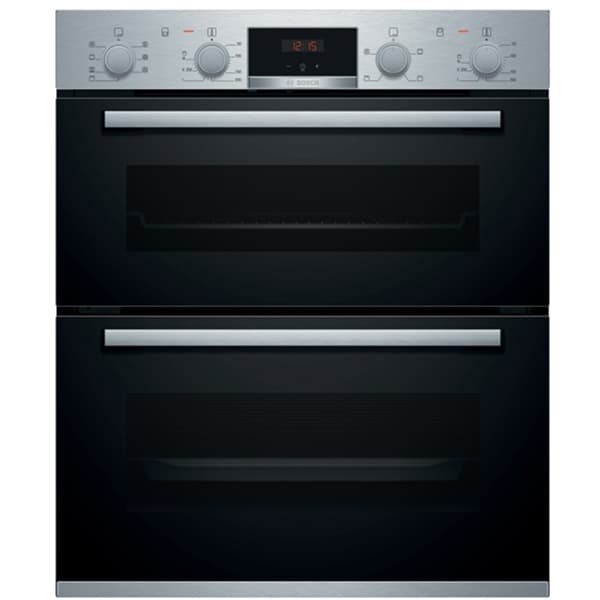

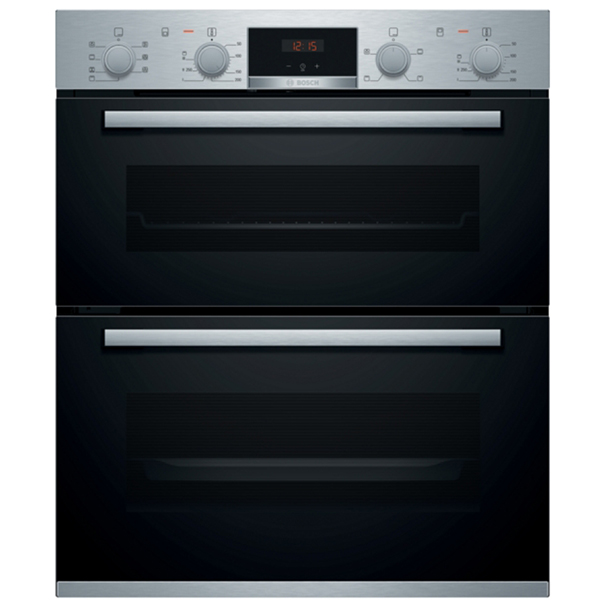

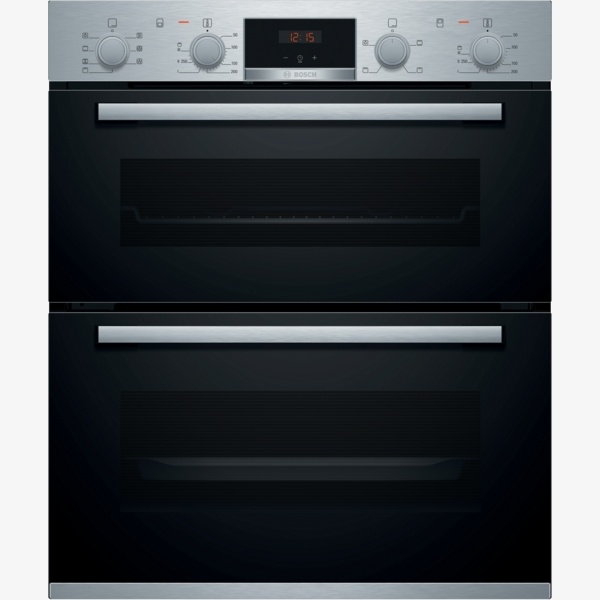

Bosch Serie 4 NBS533BS0B Double Oven

The Bosch Series 4 NBS533BS0B is a built-under double compact oven designed for flexible baking and roasting. With 3D Hotair, multiple heating methods and fast pre-heating in the main oven, it supports cooking on different levels simultaneously. Pop-out controls, a red LED display and interior halogen light make operation straightforward, while EcoClean Direct on the back panel of the main oven helps reduce cleaning effort. Supplied combination grids and universal pans offer added cooking versatility.

SKU:NBS533BS0B

EAN:4242005034628

Category::Ovens

Quantity:

Key Features

Built-under double compact oven – designed to be installed beneath the worktop with separate top and main cavities.

3D Hotair technology – enables baking and roasting results on multiple levels simultaneously in the main oven.

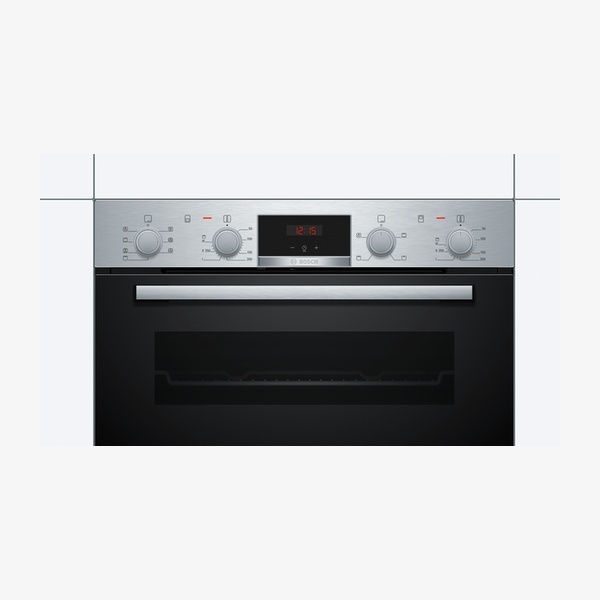

Red LED display control – easy-to-use time functions with clear, modern display.

Pop-out / retractable control dials – make the front easy to clean and give a sleek look.

EcoClean Direct back panel – special coating on the rear wall of the main oven for reduced cleaning effort.

Versatile heating methods – top oven with conventional heat and grill options; main oven with 3D Hotair, conventional, grilling and Hotair gentle.

Fast pre-heating function – quickly brings the main oven up to temperature.

2 universal pans, slim size – optimised for smaller amounts of different dishes.

Control panel lock – helps prevent unintended operation.

Electronic clock timer & automatic start – convenient time and start function control.

Interior halogen light – improves visibility inside the oven.

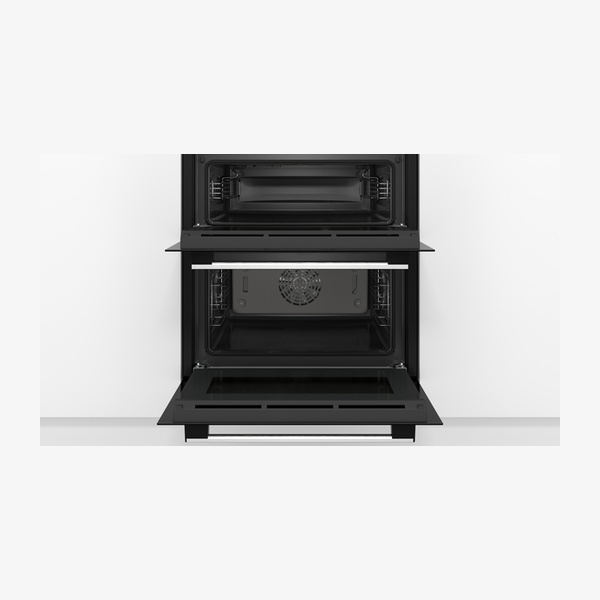

Full glass inner doors – for both top and main cavities, with drop down doors.

Energy-efficient performance – electrical ovens with energy efficiency classes A and B stated for the cavities.

Stainless steel control panel and glass doors – robust materials with a modern appearance.

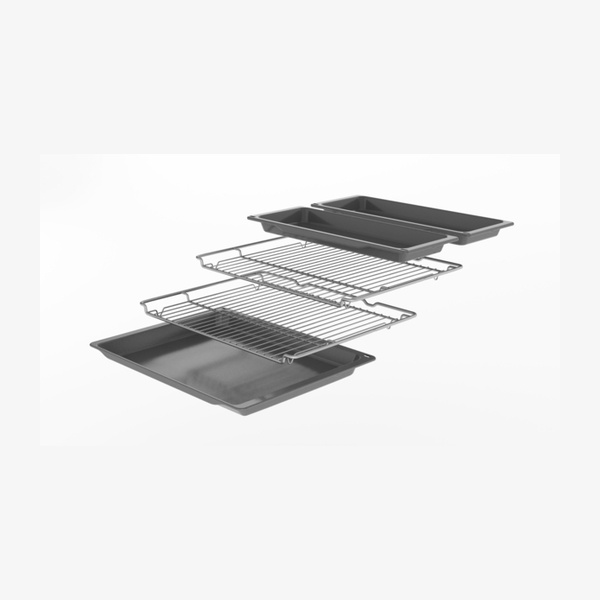

Supplied accessories included – 2 x combination grids, 1 x universal pan and 2 x slim-size universal pans.

Technical Spec

Product nameSeries 4, Built-under double oven NBS533BS0B

Installation typeBuilt-in / Built-under

Control panel materialStainless steel

Door materialGlass

Display & controlsLED-Display Control (Red), rotary dial, retractable control dials, round with steel trim

Interior lightingInterior halogen light

Top oven cavity volume34 litre capacity

Main oven cavity volume47 litre capacity

Usable volume (stated)47 l

Top oven interior surfaceEnamel grey cavity

Door hinge – top cavityDrop down oven door

Door hinge – main cavityDrop down door

Inner doorsFull glass inner door (top and main)

Shelf positions – top oven3 shelf positions

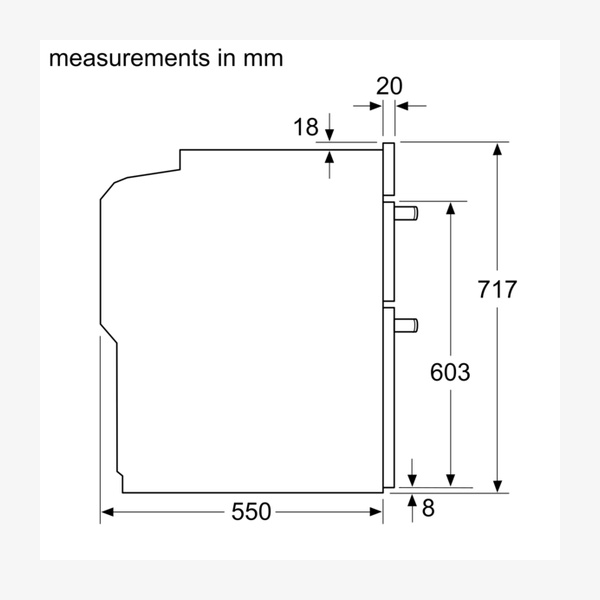

Overall appliance dimensions (H x W x D)717 x 594 x 550 mm

Packed product dimensions (H x W x D)790 x 660 x 695 mm

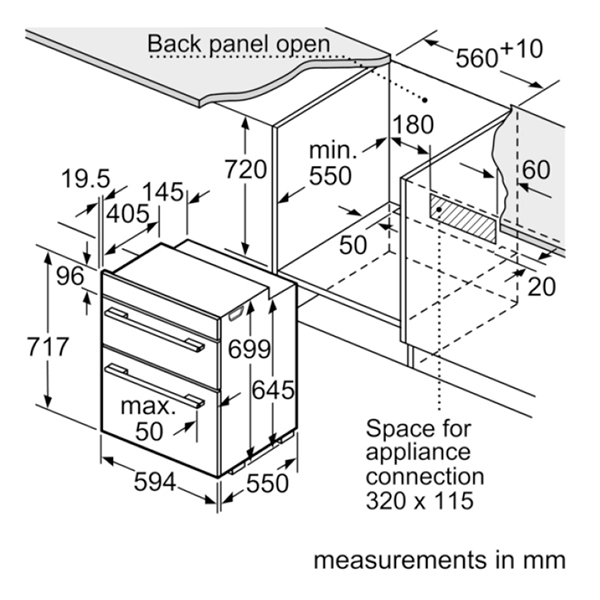

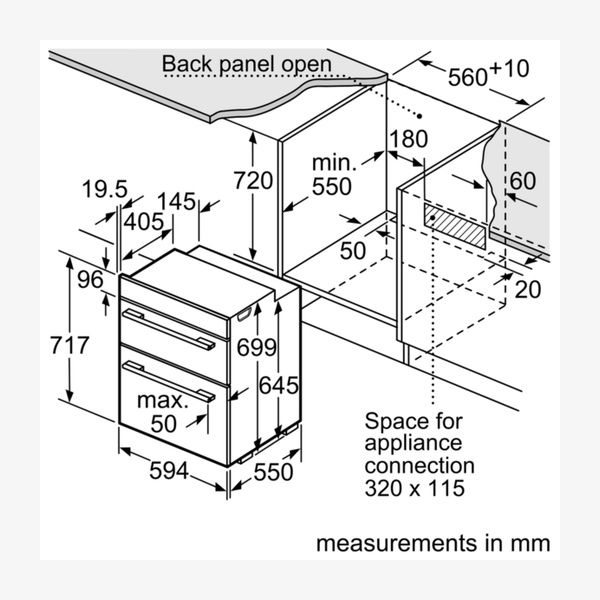

Niche dimensions (H x W x D)720 mm – 720 mm x 560 mm – 568 mm x 550 mm

Net weight47.6 kg

Cooking methods – overallFull width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling

Top oven heating methodsConventional top/bottom heat, Large-area grill, Small area grill

Main oven heating methods3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, Hotair gentle

Temperature range (both ovens)50 °C – 275 °C

Energy efficiency rating (overall)A; B (acc. EU Nr. 65/2014 and 2010/30/EC as stated)

Energy consumption conventional (cavity 1)0.84 kWh/cycle; 0.83 kWh per cycle (figures stated)

Energy consumption forced air (cavity 1)0.71 kWh/cycle

Energy efficiency index (cavity 1)94.7 %

Energy efficiency class cavity 2B

Energy efficiency index cavity 2120.3 %

Number of cavitiesTop Cavity; Main Cavity

Heat sourceElectrical (top and main cavities)

Total connected load5.3 kW / 5300 W

Voltage220 – 240 V

Frequency50 Hz

Fuse protection25 A

Plug type / connectionNo plug, fixed connection (electrical connection by electrician)

EAN code4242005034628

Integrated cleaning systemNo; EcoClean Direct back panel on main oven

Included accessories2 x combination grid, 1 x universal pan, 2 x universal pan, slim size

Optional accessoriesHEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L; HEZ532010 Universal pan, non-stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non-stick ceramic coated

Downloads

Download product documentation, manuals, and specification sheets.

NBS533BS0B Spec

PDF

Frequently Asked Questions

What is the capacity of the top and main ovens?

The top oven has a cavity volume of 34 litres, and the main oven has a cavity volume of 47 litres.

Which heating methods are available in the main oven?

The main oven offers 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill and Hotair gentle.

Does this oven include any self-cleaning features?

There is no integrated cleaning system, but the main oven has EcoClean Direct on the back panel, which is a special coating designed to reduce cleaning effort.

What accessories are supplied with the oven?

The oven comes with 2 x combination grids, 1 x universal pan and 2 x universal pans in a slim size.

What is the temperature range for cooking?

Both the top and main ovens have a temperature range from 50 °C to 275 °C.

Does the oven need to be connected by an electrician?

Yes. The appliance has no plug and is specified as a fixed connection, with electrical connection by an electrician.
