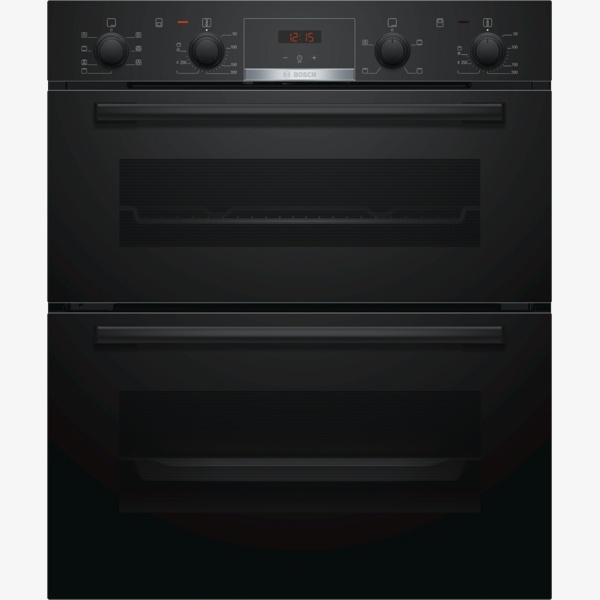

Bosch Serie 4 NBS533BB0B Double Oven

The Series 4 NBS533BB0B is a built-under, built-in double compact oven designed for flexible cooking and baking. It offers 3D Hotair for perfect baking and roasting on multiple levels, along with a wide temperature range from 50 °C to 275 °C. With separate top and main cavities, EcoClean Direct on the main oven back panel and slim-size universal pans optimised for smaller amounts, it suits households needing efficient, versatile electric cooking.

SKU:NBS533BB0B

EAN:4242005034611

Category::Ovens

Quantity:

Key Features

3D Hotair technology – achieve baking and roasting results on multiple levels simultaneously.

Built-under double compact design – two electric cavities (top and main) in a built-in format.

Red LED display control – easy-to-use time functions with LED-Display Control (Red).

Pop-out / retractable control dials – round rotary dials with steel trim for a sleek, easy-to-clean front.

EcoClean Direct back panel – special coating on the main oven back wall for reduced cleaning effort.

Wide heating choice – main oven – 5 methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, Hotair gentle.

Flexible top oven heating – 3 methods: conventional top/bottom heat, large-area grill, small area grill.

Fast pre-heating function – quickly brings the main oven up to temperature.

Temperature range 50 °C – 275 °C in both top and main ovens for gentle warming through to high-heat roasting and grilling.

Control panel lock – helps prevent accidental changes to settings.

Electronic clock timer & automatic start – convenient time management with heating-up indicator.

Interior halogen light – clear view of dishes while cooking.

Generous capacities – 34 litre top oven and 47 litre main oven.

Enamel grey interior (top cavity) – for the top oven cavity surface.

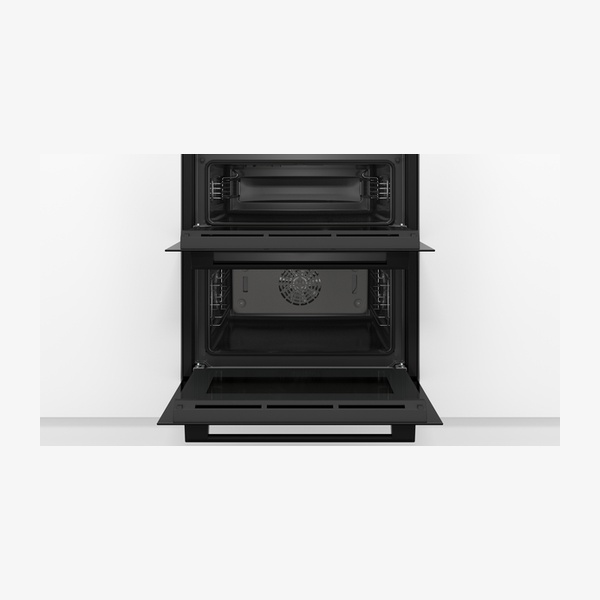

Full glass inner doors – both cavities feature full glass inner doors with drop down hinges.

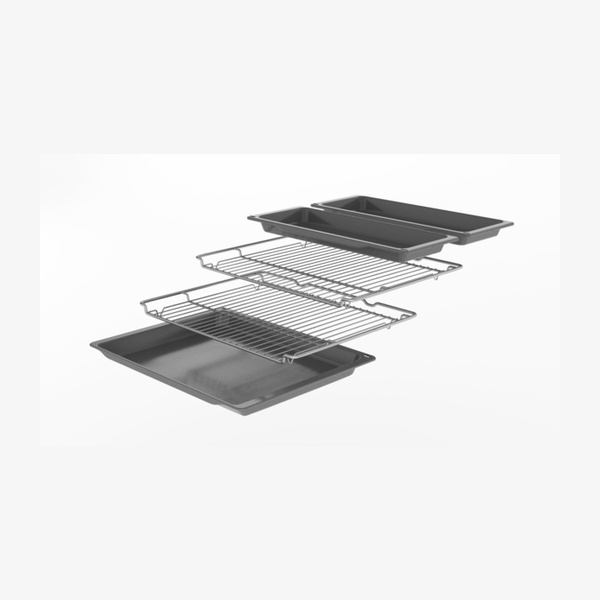

Included accessories – 2 x combination grid, 1 x universal pan, 2 x universal pan, slim size.

Slim-size universal pans – optimised for smaller amounts of different dishes.

Optional accessories available – including pizza stone, wireless food thermometer, Air Fry & Grill tray, baking trays, pans, grids, glass pans and telescopic rails.

Energy-efficient performance – energy efficiency rating A and B (cavity 2), with low kWh consumption per cycle.

Built-in electric heat source – total connected load 5.3 kW, 220–240 V, 50 Hz.

Technical Spec

Product nameSeries 4, Built-under double oven NBS533BB0B

TypeBuilt-in, built-under double compact oven

Built-in / Free-standingBuilt-in

Integrated cleaning systemNo (EcoClean Direct back panel on main oven)

Main oven cavity volume47 litre capacity

Top oven cavity volume34 litre capacity

Usable volume of cavity (main)47 l

Number of cavitiesTop Cavity and Main Cavity

Heat sourceElectrical (both cavities)

Cooking methods (overall)Full width grill, Hotair gentle, Hot Air, Conventional heat, Hot air grilling

Top oven heating methodsConventional top/bottom heat, Large-area grill, Small area grill

Main oven heating methods3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, Hotair gentle

Temperature range (top oven)50 °C – 275 °C

Temperature range (main oven)50 °C – 275 °C

Fast pre-heatingYes, main oven

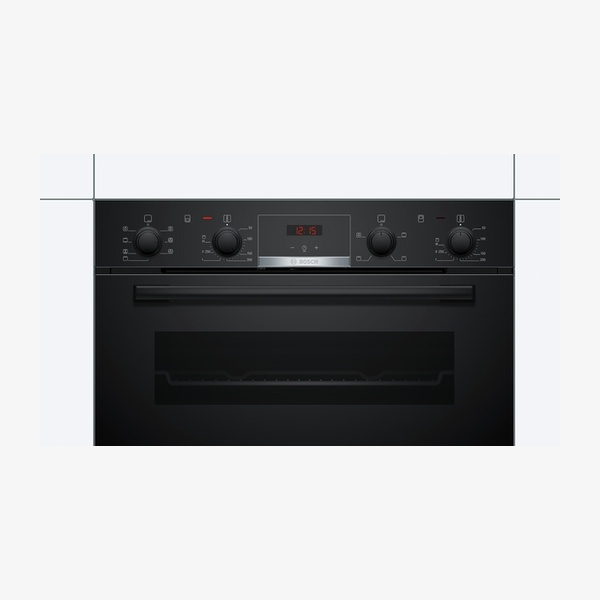

Control panelLED-Display Control (Red), rotary dial, retractable control dials, round with steel trim

Control panel materialGlass

Door materialGlass

Door hinge (top cavity)Drop down oven door

Door hinge (main cavity)Drop down door

Inner doorFull glass inner door (both cavities)

Top cavity inner surfaceEnamel grey

Shelf positions (top oven)3 shelf positions

HandleStraight bar handle

Energy efficiency rating (overall)A

Energy efficiency rating (EU 65/2014)B (at a range of energy efficiency classes from A+++ to D)

Energy efficiency class cavity 2 (2010/30/EC)B

Energy consumption conventional (main)0.83 kWh / cycle (2010/30/EC), 0.83 kwh per cycle in conventional mode (EU 65/2014)

Energy consumption fan-forced convection (main)0.71 kWh / cycle

Energy consumption conventional (cavity 2)0.83 kWh / cycle

Energy efficiency index (main)94.7 %

Energy efficiency index cavity 2120.3 %

Connection rating5300 W (Total connected load electric: 5.3 kW)

Voltage220 – 240 V

Frequency50 Hz

Fuse protection25 A

Plug typeNo plug (electrical connection by electrician), fixed connection (electrical connection by electrician)

Appliance dimensions (HxWxD)717 x 594 x 550 mm

Dimensions717x594x550 mm

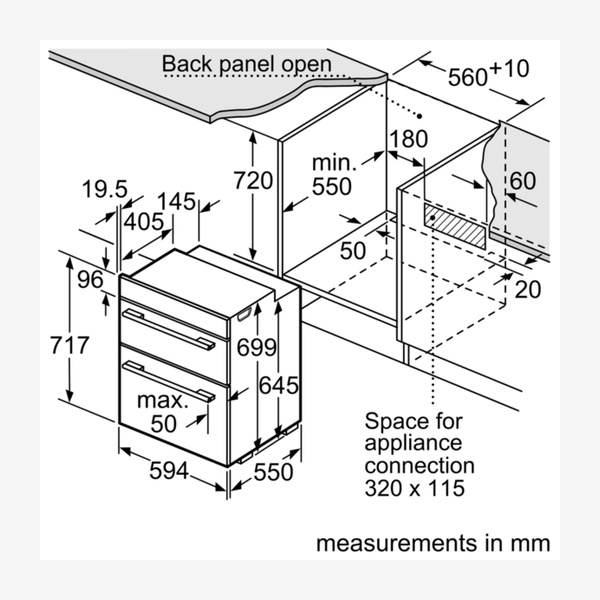

Niche dimensions (HxWxD)720 mm – 720 mm x 560 mm – 568 mm x 550 mm

Packed product dimensions (HxWxD)790x660x690 mm

Net weight47.7 kg

EAN code4242005034611

Included accessories2 x combination grid, 1 x universal pan, 2 x universal pan, slim size

Optional accessoriesHEZ327000 Pizza stone; HEZ32WA00 Wireless food thermometer; HEZ530000 Half tray; HEZ531010 Baking tray, non-stick ceramic coated; HEZ532010 Universal pan, non-stick ceramic coated; HEZ538000 1fold telescopic rail, level independent; HEZ617000 Pizza pan, enamelled; HEZ629070 Air Fry & Grill tray; HEZ631070 Baking tray, enamelled; HEZ632070 Multipurpose pan, enamelled; HEZ634000 Baking and roasting grid; HEZ636000 Glass pan; HEZ638000 Full ext rails, level independent; HEZ664000 Baking and roasting grid, steam; HEZ915003 Glass roasting dish, 5,4 L

Downloads

Download product documentation, manuals, and specification sheets.

NBS533BB0B Spec

PDF

Frequently Asked Questions

What is the capacity of each oven cavity?

The top oven has a cavity volume of 34 litres with 3 shelf positions. The main oven has a cavity volume of 47 litres and a usable volume of 47 l.

Which heating methods does the main oven offer?

The main oven provides 5 heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill and Hotair gentle, all within a 50 °C to 275 °C temperature range.

Does this double oven have a self-cleaning system?

There is no integrated cleaning system. However, the main oven features EcoClean Direct on the back panel, a special coating that reduces cleaning effort on the rear wall.

What accessories are included with the oven?

The oven comes with 2 x combination grid, 1 x universal pan and 2 x universal pan, slim size. The slim-size pans are optimised for smaller amounts of different dishes.

Is this appliance plug-in or hard-wired?

The appliance has no plug and is intended for a fixed electrical connection by an electrician, with a total connected load of 5.3 kW at 220 – 240 V, 50 Hz and 25 A fuse protection.

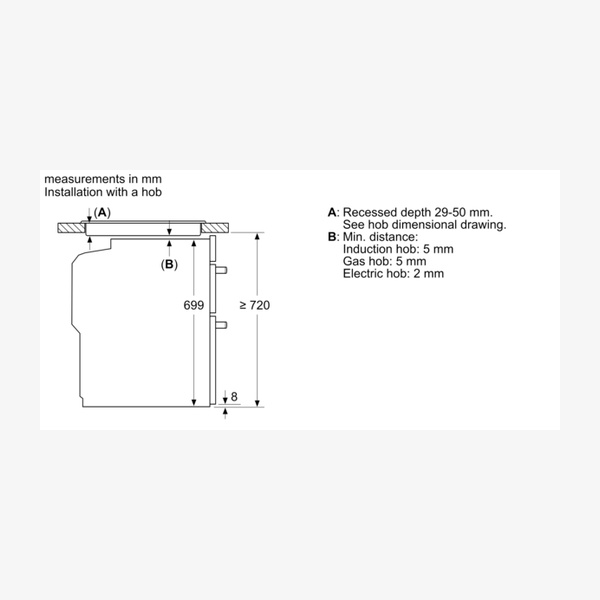

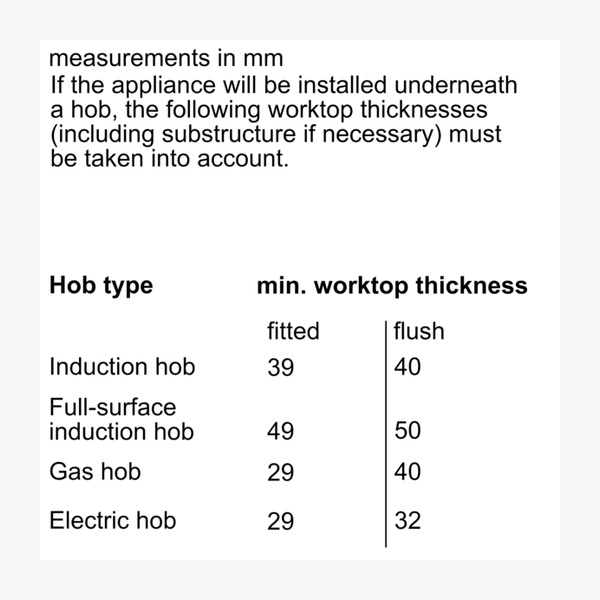

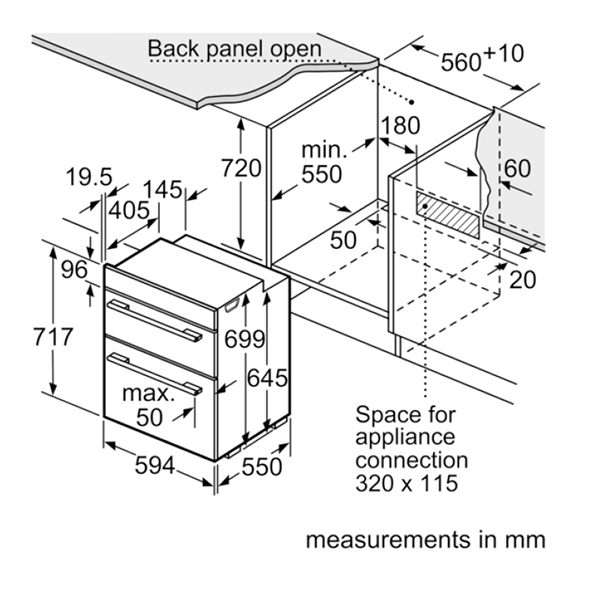

What are the installation dimensions for fitting under a worktop?

The required niche dimensions are 720 mm – 720 mm in height, 560 mm – 568 mm in width and 550 mm in depth. The appliance dimensions are 717 mm x 594 mm x 550 mm.
