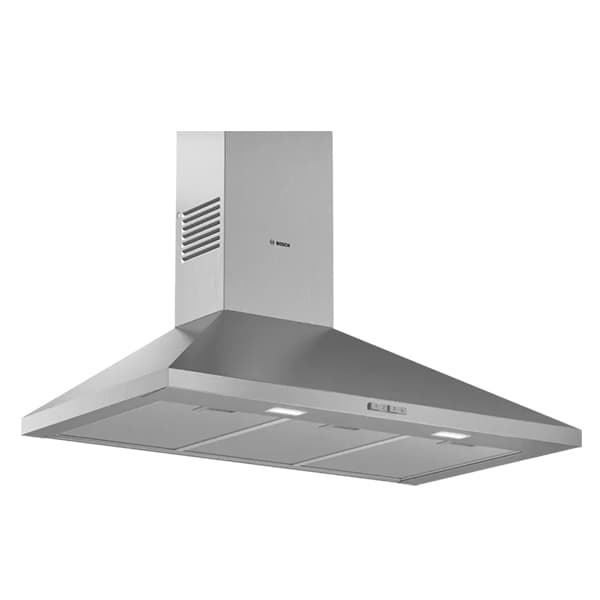

Bosch Serie 2 DWP94BC50B Chimney Hood

The Series 2 DWP94BC50B is a 90 cm stainless steel, wall–mounted pyramid cooker hood designed for effective extraction or recirculation. With a maximum extraction rate of 365 m³/h, quiet operation and energy–saving LED illumination, it helps keep kitchen air clear while brightly lighting the hob area. Mechanical push button controls and 3 power levels allow straightforward adjustment to suit everyday cooking needs. Washable metal grease filter cassettes support easy ongoing maintenance.

SKU:DWP94BC50B

EAN:4242005032020

Category::Cooker Hoods

Quantity:

Key Features

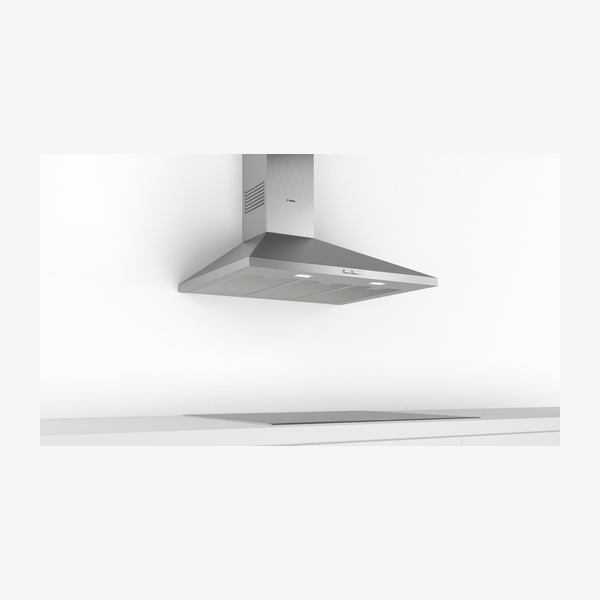

Wall–mounted pyramid hood design in stainless steel for chimney extractor installation.

Quiet extraction with powerful performance and a high extraction rate for continuously clean air in the kitchen.

Max. extraction rate 365 m³/h in exhaust air mode according to EN 61591.

Suitable for ducted or recirculating operation , with a recirculating kit required for recirculated extraction.

Energy Efficiency Class D (at a range of energy efficiency classes from A+++ to D) with average energy consumption of 53.1 kWh/year*.

LED Illumination : two 1.5 W LED lights provide bright and clear lighting for the hob area.

Lighting Efficiency Class A* with light intensity of 94 lux and 3500 K colour temperature.

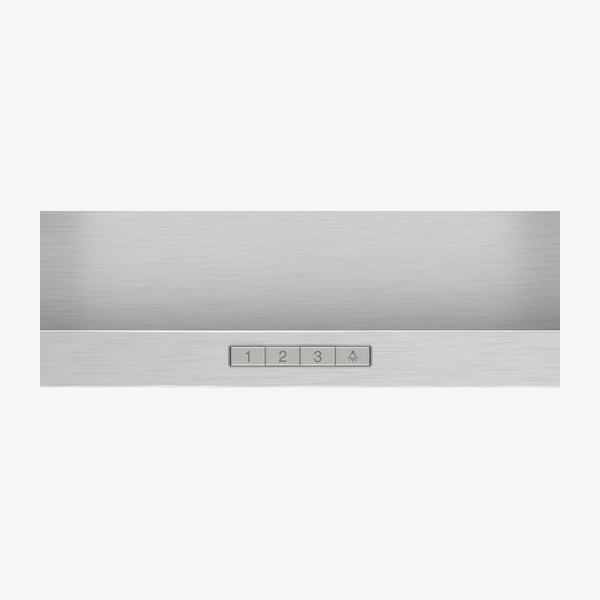

3 power levels with mechanical push button control to adjust extraction intensity according to cooking needs.

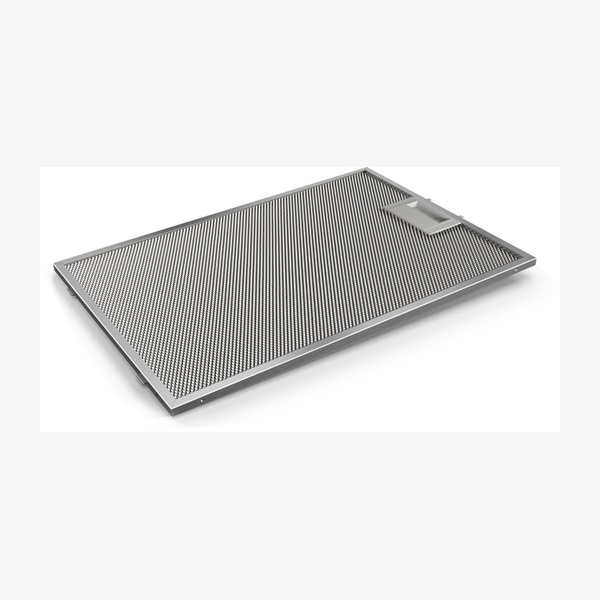

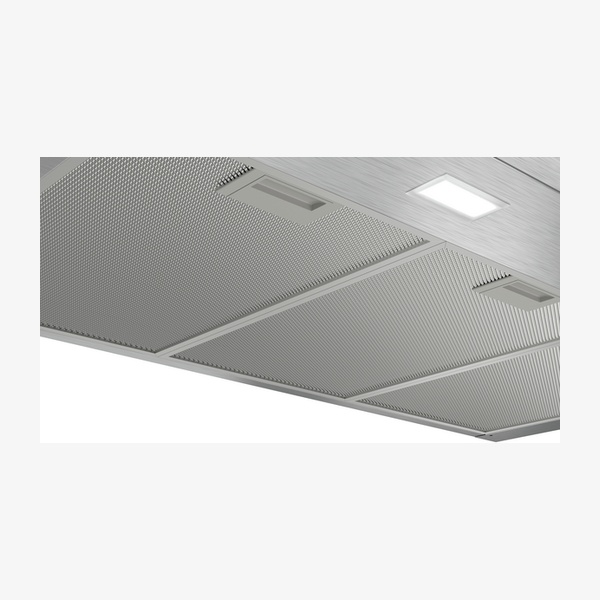

Dishwasher safe metal grease filter with 3 removable washable aluminium grease filter cassettes.

Noise level 65 dB(A) re 1 pW at maximum normal use in exhaust air mode according to EN 60704–3 and EN 60704–2–13.

Recirculation mode performance : max. normal use extraction rate 213 m³/h with max. noise level 67 dB(A) re 1 pW.

Blower Efficiency Class E* and Grease Filtering Efficiency Class D*.

Standard 150 mm ducting diameter with 120 mm option enclosed.

Optional accessories include chimney extensions, recirculation kit, odour filter and brushed steel back panels.

Technical Spec

Product seriesSeries 2

Model nameDWP94BC50B

TypologyWall–mounted chimney extractor hood, mechanical

Colour chimneyStainless steel

Installation typologyWall–mounted, suitable for ducted or recirculating operation

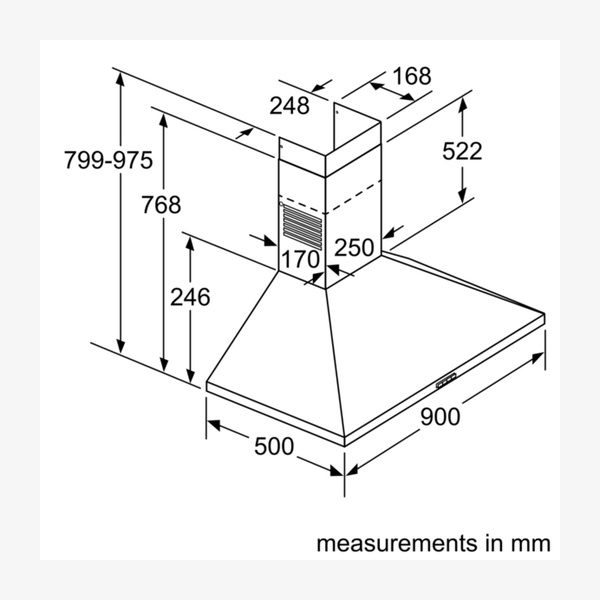

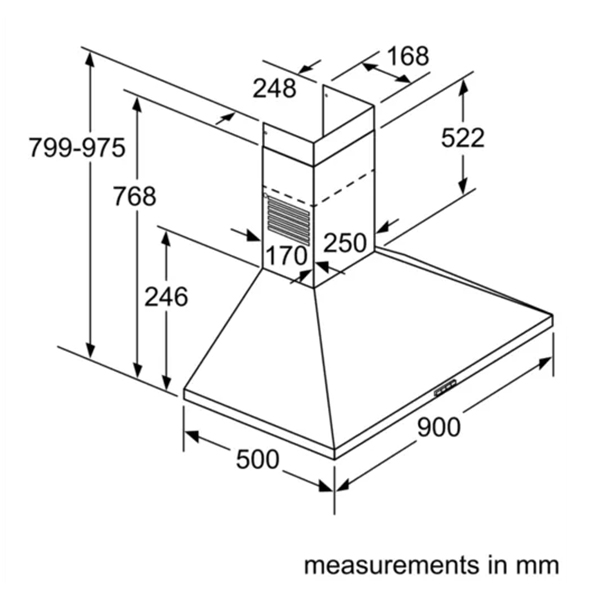

Width90 cm (Dimensions HxWxD: 799–975 x 900 x 500 mm for exhaust air and recirculating)

Height of chimney553–730 / 573–730 mm

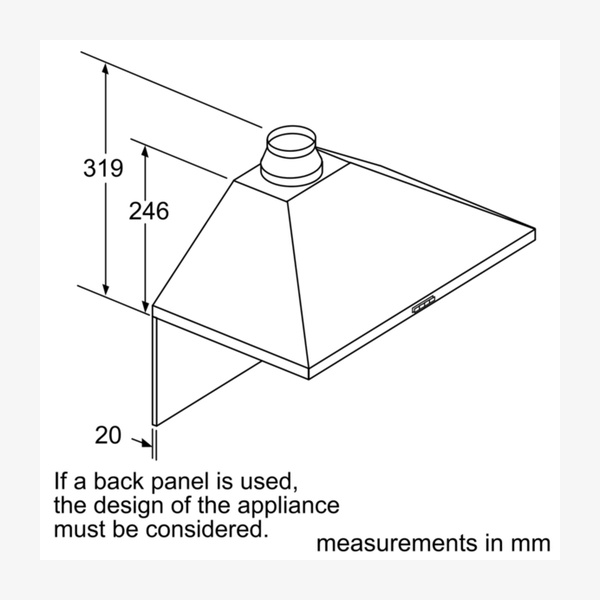

Height of appliance246 mm

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Net weight10.9 kg

Energy Efficiency ClassD (at a range of energy efficiency classes from A+++ to D)

Average energy consumption53.1 kWh/year*

Blower Efficiency ClassE*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassD*

Max. air extraction (exhaust air)365 m³/h (Maximum Air flow 365 m³/h, according to EN 61591)

Max. air recirculation213 m³/h (max. normal use in recirculation mode)

Noise level exhaust air65 dB(A) re 1 pW at max. normal use according to EN 60704–3 and EN 60704–2–13

Noise level recirculationMax. normal use: 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)

Type of controlMechanical push button control

Number of speed settings3 power levels

Lighting2 x 1.5 W LED lights, 3500 K colour temperature, light intensity 94 lux

Number of lights2

Grease filter materialWashable aluminium, 3 removable metal grease filter cassettes

Diameter of air outletØ 150 mm (Ø 120 mm enclosed)

Length of electrical supply cord130 cm / 1.3 m electrical cable length

Connection rating100 W power rating

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005032020

Downloads

Download product documentation, manuals, and specification sheets.

DWP94BC50B Spec

PDF

Frequently Asked Questions

Is this cooker hood suitable for both ducted and recirculating use?

Yes. The hood is suitable for ducted exhaust air or recirculating operation. For recirculated extraction, a recirculating kit (accessory) is needed.

What is the maximum extraction rate?

The maximum extraction rate in exhaust air mode is 365 m³/h according to EN 61591. In recirculation mode, the maximum normal use extraction rate is 213 m³/h.

How loud is the hood during normal use?

The noise level at maximum normal use in exhaust air mode is 65 dB(A) re 1 pW. In recirculation mode, the maximum normal use noise level is 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure).

What type of filters does it use and how are they cleaned?

The hood uses 3 removable metal grease filter cassettes made from washable aluminium. The metal grease filter is dishwasher safe for convenient cleaning. A standard odor filter (replacement) is available as an optional accessory for recirculation setups.

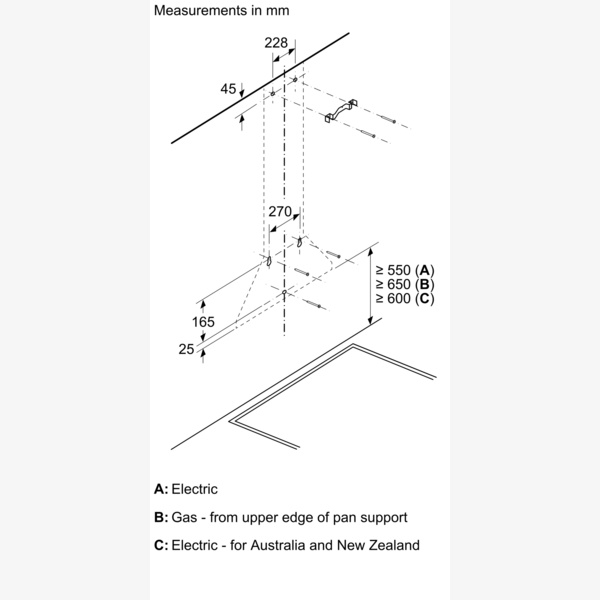

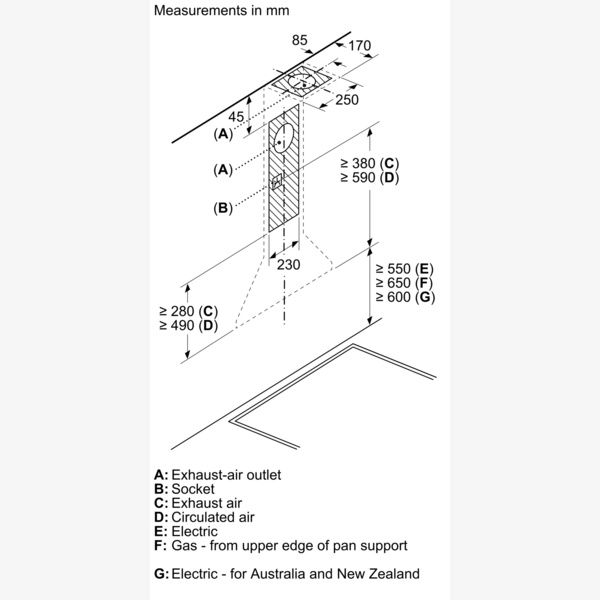

What are the required clearances above the hob?

The minimum distance above an electric hob is 550 mm and the minimum distance above a gas hob is 650 mm.

What lighting does the cooker hood provide?

It features 2 x 1.5 W LED lights with a colour temperature of 3500 K and a light intensity of 94 lux, offering LED Illumination that provides bright and clear lighting for the hob area.
