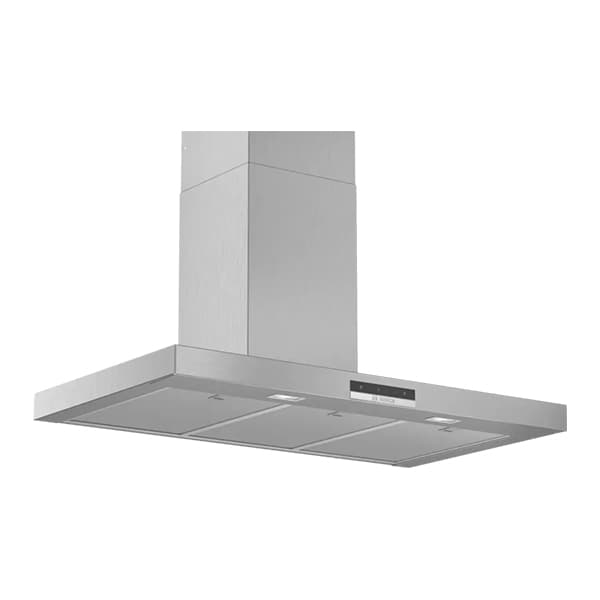

Bosch Serie 4 DWB96DM50B Chimney Hood

The Series 4 DWB96DM50B is a 90 cm wall–mounted stainless steel chimney extractor hood with a box design that combines performance and matching kitchen design in one appliance. It is suitable for ducted or recirculating operation and offers high extraction rates for continuously clean air. With TouchControl operation, LED illumination, multiple power levels including an intensive setting, and dishwasher–safe metal grease filters, it is designed for effective and convenient everyday use.

SKU:DWB96DM50B

EAN:4242005051120

Category::Cooker Hoods

Quantity:

Key Features

Box design chimney extractor hood for performance and matching kitchen design complete in one hood.

Especially silent with a noise level of 60 dB(A) re 1 pW in maximum normal use exhaust air.

High extraction rate with maximum extraction rate exhaust air of 372 m³/h and intensive extraction up to 604 m³/h according to EN 61591.

Suitable for ducted or recirculating operation , with optional recirculating or CleanAir recirculating kits required for recirculation.

TouchControl with electronic display and TouchSelect control for quickly selecting hood settings via touch.

3 power levels & intensive setting (3–stages plus intensive) for flexible extraction performance.

LED Illumination with 2 × 1.5 W LED lights providing bright and clear lighting for the hob area at 214 lux.

Energy Efficiency Class B on a scale from A+++ to D, with average energy consumption of 48.5 kWh/year*.

Automatic intensive revert function that switches back after 6 minutes.

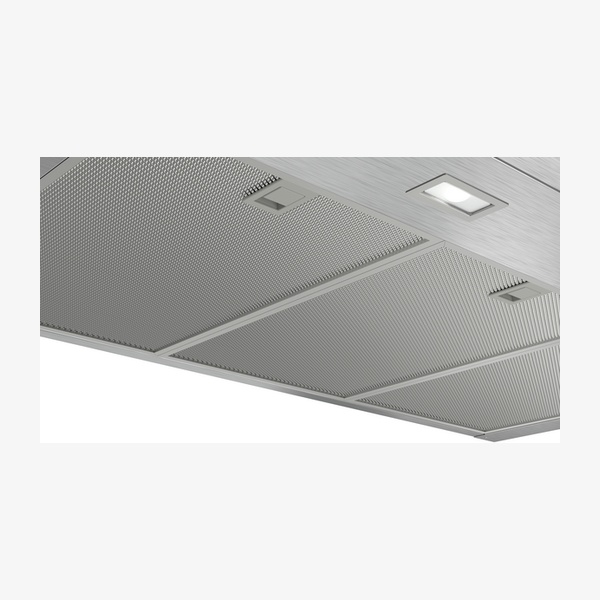

Dishwasher safe metal grease filter with 3 removable washable aluminium grease filter cassettes.

Clean Air Plus recirculation option available as an optional accessory, providing defined extraction rates and noise levels in recirculation mode.

Lighting Efficiency Class A* and Blower Efficiency Class A*, with Grease Filtering Efficiency Class C*.

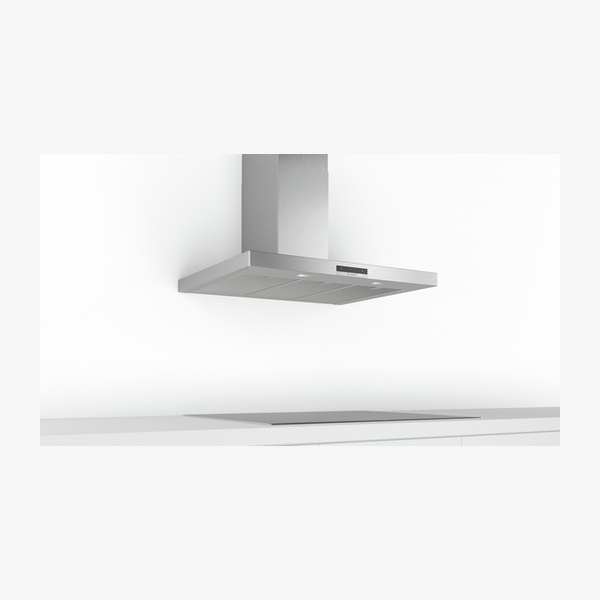

Wall–mounted installation typology with a stainless steel chimney for a modern appearance.

Technical Spec

ModelDWB96DM50B

SeriesSeries 4

Product typeWall–mounted chimney extractor hood (box design)

Width90 cm

Colour / finishStainless steel (colour chimney: stainless steel)

Installation typologyWall–mounted, chimney extractor hood, installation: wall

TypologyWall–mounted

Energy Efficiency Class*B (at a range of energy efficiency classes from A+++ to D)

Blower Efficiency Class*A*

Lighting Efficiency Class*A*

Grease Filtering Efficiency Class*C*

Average energy consumption*48.5 kWh/year*

Maximum extraction rate (exhaust air)372 m³/h according to EN 61591 (max. normal use 372 m³/h)

Boost position air extraction (intensive)604 m³/h (extraction rate according to EN 61591 intensive 604 m³/h)

Maximum air extraction372 m³/h

Maximum Air flow372 m³/h

Max. air recirculation (with Clean Air Plus kit)337 m³/h (max. normal use in recirculation mode)

Boost position output recirculating (with Clean Air Plus kit)441 m³/h (intensive in recirculation mode)

Noise level exhaust air – max. normal use60 dB(A) re 1 pW (Noise max. normal level: 60 dB dB*)

Noise level exhaust air – intensive70 dB(A) re 1 pW

Noise level recirculation – max. normal use (with Clean Air Plus kit)70 dB(A) re 1 pW

Noise level recirculation – intensive (with Clean Air Plus kit)74 dB(A) re 1 pW

Type of controlElectronic, TouchControl with electronic display

Number of speed settings3–stages + intensive setting (3 power levels & intensive)

Automatic intensive revertAutomatic intensive revert (6 mins)

Lighting2 × 1.5 W LED light, LED illumination

Number of lights2

Colour temperature3500 K

Light intensity214 lux

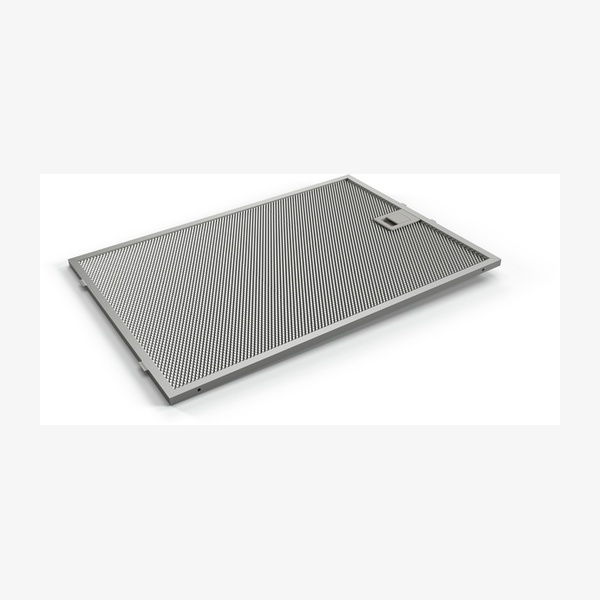

Grease filter materialWashable aluminium, 3 removable metal grease filter cassettes

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

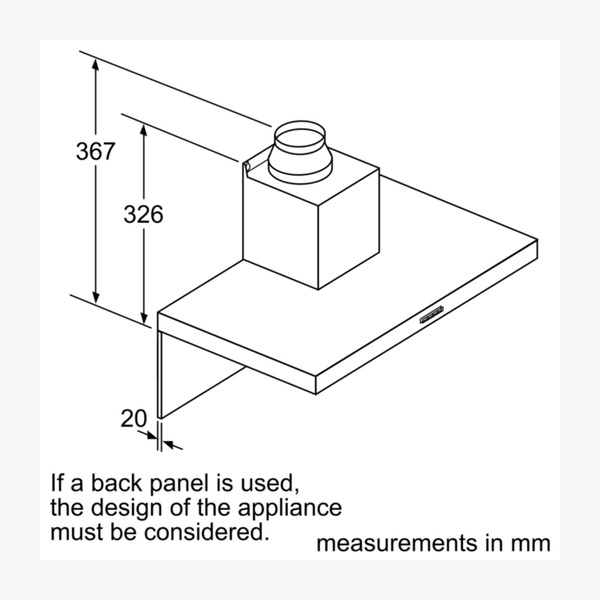

Height of appliance53 mm

Height of chimney583–912 / 583–1022 mm

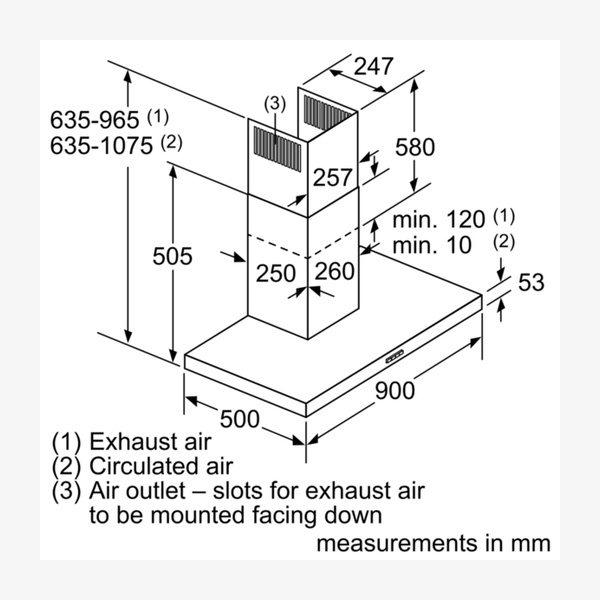

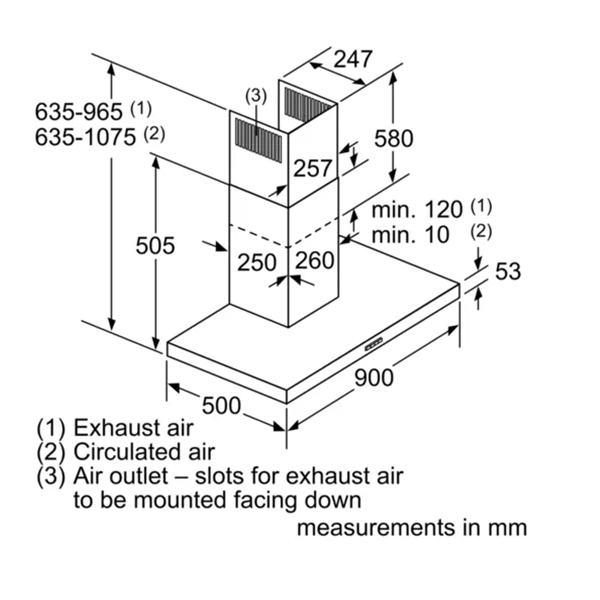

Dimensions (exhaust air) H×W×D635–965 × 900 × 500 mm

Dimensions (recirculating) H×W×D635–1075 × 900 × 500 mm

Dimensions recirculating with CleanAir module (outer chimney)703 × 900 × 500 mm

Dimensions recirculating with CleanAir module (telescopic chimney)833–1163 × 900 × 500 mm

Diameter of air outlet / pipe120 / 150 mm (Diameter pipe Ø 150 mm (Ø 120 mm enclosed))

Length of electrical supply cord130 cm (electrical cable length 1.3 m)

Net weight12.8 kg

Connection rating (power rating)220 W

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005051120

SuitabilitySuitable for ducted or recirculating operation

Regulation referenceIn accordance with the EU–Regulation No 65/2014*

Downloads

Download product documentation, manuals, and specification sheets.

DWB96DM50B Spec

PDF

Frequently Asked Questions

Is the DWB96DM50B suitable for both ducted and recirculating installation?

Yes. The appliance is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit is needed as an accessory, such as the Clean Air Standard or Clean Air Plus recirculation kits listed as optional accessories.

What are the maximum extraction rates in normal and intensive modes?

According to EN 61591 and EN 60704 standards, the maximum extraction rate exhaust air in normal use is 372 m³/h. In intensive mode, the extraction rate is 604 m³/h. With the Clean Air Plus recirculation kit, the maximum normal recirculation rate is 337 m³/h and 441 m³/h in intensive mode.

How loud is the cooker hood during operation?

In exhaust air mode, the noise level in maximum normal use is 60 dB(A) re 1 pW, and 70 dB(A) re 1 pW in intensive mode. In recirculation mode with the Clean Air Plus recirculation kit, the noise level is 70 dB(A) re 1 pW in maximum normal use and 74 dB(A) re 1 pW in intensive mode.

What type of lighting and controls does this hood have?

The hood features TouchControl with an electronic display and offers 3 power levels plus an intensive setting with automatic intensive revert after 6 minutes. Lighting is provided by 2 × 1.5 W LED lights with a colour temperature of 3500 K and a light intensity of 214 lux.

Are the grease filters washable?

Yes. The appliance includes 3 removable metal grease filter cassettes made of washable aluminium. The grease filters are described as dishwasher safe metal grease filters.

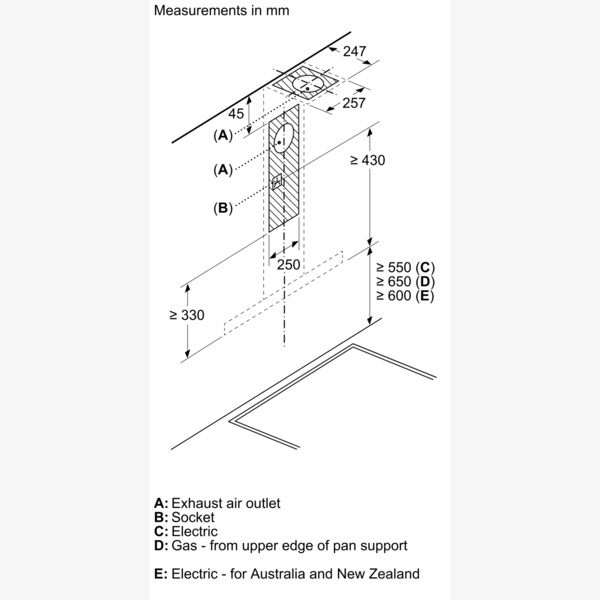

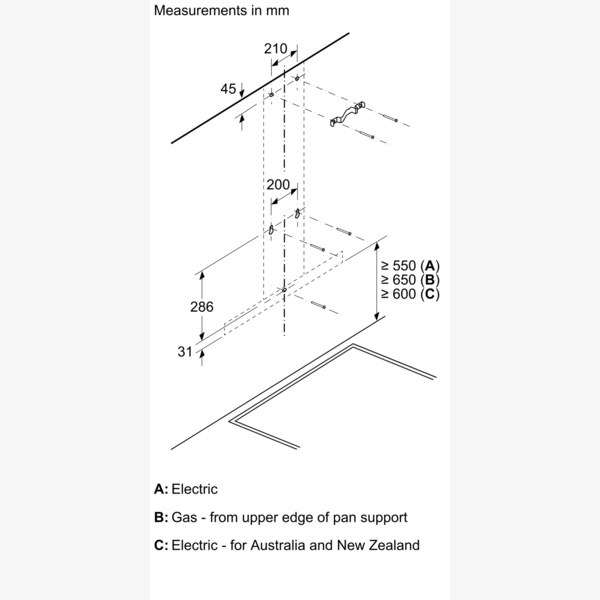

What are the minimum installation heights above hobs?

The minimum distance above an electric hob is 550 mm, and the minimum distance above a gas hob is 650 mm. These distances should be observed when installing the hood.
