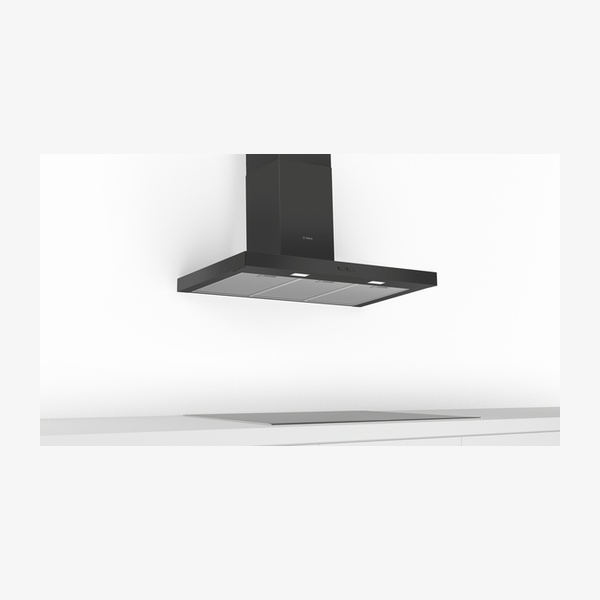

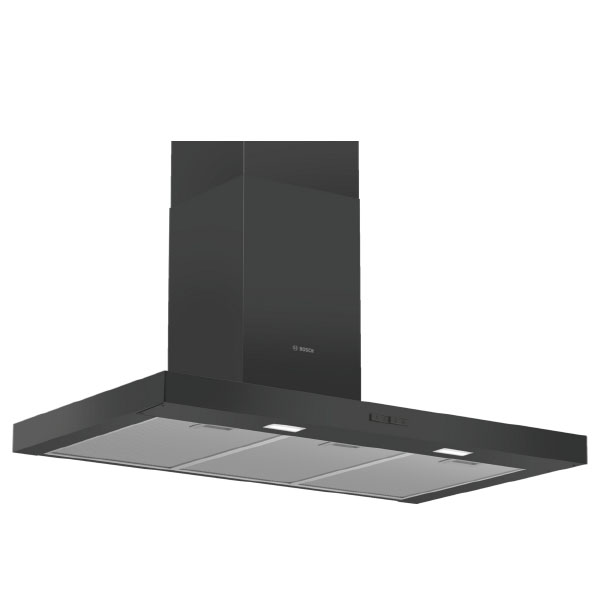

Bosch Series 2 DWB96BC60B Chimney Hood

The Bosch Series 2 DWB96BC60B is a 90 cm black wall-mounted chimney extractor hood designed to add style and sophistication to the kitchen. Suitable for ducted or recirculating operation, it offers a high extraction rate with three power levels and a twin channel high performance fan motor. Energy-saving LED illumination provides bright, clear lighting for the hob area, while washable aluminium grease filters help keep the kitchen cleaner and free from excessive grease and unwanted odours.

SKU:DWB96BC60B

EAN:

Category::Cooker Hoods

Quantity:

Key Features

Wall-mounted chimney design – box design chimney extractor hood, 90 cm wide, in black, adding style and sophistication to the kitchen.

High extraction rate – maximum extraction rate exhaust air 619 m³/h for continuously clean air in the kitchen.

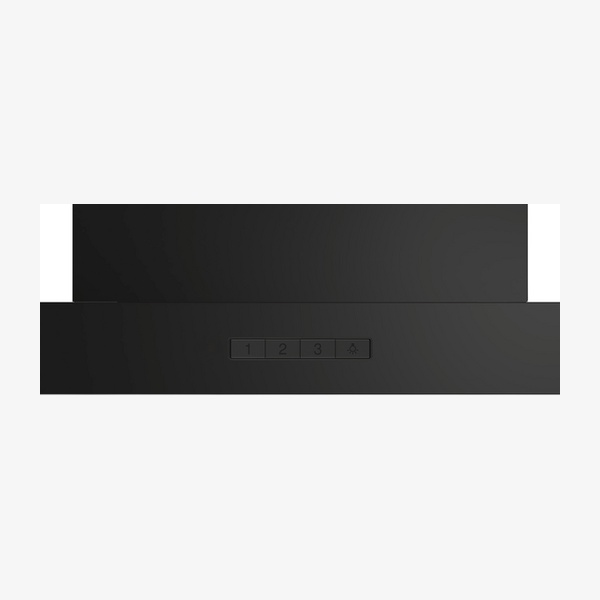

3 power levels – three speed settings via mechanical push button control so you can adjust extraction intensity to your cooking needs.

LED illumination – 2 x 1.5 W LED lights with 3500 K colour temperature providing bright and clear illumination of the hob area.

Ducted or recirculating operation – suitable for exhaust air or recirculation; recirculating kit or CleanAir recirculating kit is needed for recirculated extraction.

Energy efficiency class B – energy efficiency class B with an average energy consumption of 47.4 kWh/year*.

Twin channel high performance fan motor – designed for effective extraction performance.

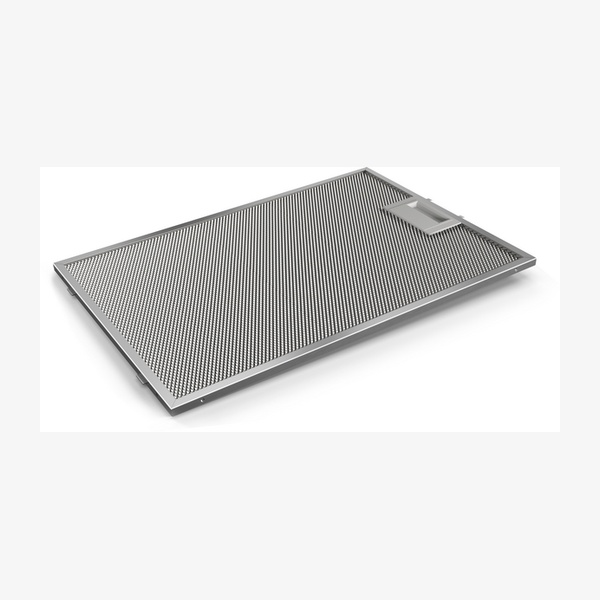

Washable aluminium grease filters – three removable metal grease filter cassettes made of washable aluminium help reduce excessive grease.

Clean Air Plus recirculation compatibility – with the Clean Air Plus recirculation kit (optional accessory), maximum recirculation rate reaches 422 m³/h.

Noise level – noise level in exhaust air mode at maximum normal use 70 dB(A) re 1 pW, and in recirculation mode up to 74 dB(A) re 1 pW with Clean Air Plus kit.

Flexible ducting connection – diameter of air outlet 150 mm (120 mm enclosed).

UK-ready power connection – GB plug, 220–240 V, 50/60 Hz, 10 A fuse protection and 220 W connection rating.

Wall planning freedom – wall-mounted chimney hoods provide complete freedom in kitchen planning.

Optional accessory range – compatible with a range of standard, Long Life and Clean Air Plus recirculation and odour filter kits.

Technical Spec

Product name / codeSeries 2, Wall-mounted cooker hood, 90 cm, Black – DWB96BC60B

TypologyWall-mounted chimney extractor hood, box design

Width90 cm

Colour chimneyBlack

Installation typologyWall-mounted, suitable for ducted or recirculating operation

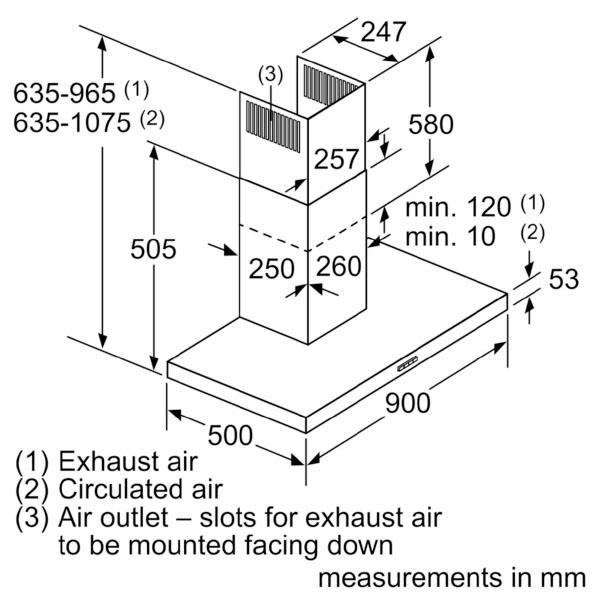

Dimensions exhaust air (H x W x D)635–965 x 900 x 500 mm

Dimensions recirculating (H x W x D)635–1075 x 900 x 500 mm

Height of the chimney583–912 / 583–1022 mm

Height of the appliance53 mm

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Net weight13.4 kg

Type of controlMechanical, push button control

Number of speed settings3 power levels

Max. air extraction (exhaust)619 m³/h (according to EN 61591)

Max. air recirculation422 m³/h (with Clean Air Plus recirculation kit)

Maximum air flow619 m³/h

Noise level exhaust air (max normal use)70 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)

Noise level recirculation (max normal use)74 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Blower efficiency classA*

Lighting efficiency classA*

Grease filtering efficiency classB*

Energy efficiency classB (range A+++ to D)

Average energy consumption47.4 kWh/year*

Number of lights2 x 1.5 W LED

Colour temperature3500 K

Grease filter materialWashable aluminium, 3 removable metal grease filter cassettes

Diameter of air outlet150 mm (120 mm enclosed)

Length of electrical supply cord130 cm / electrical cable length 1.3 m

Connection rating / power rating220 W

Voltage220–240 V

Frequency50; 60 Hz

Fuse protection10 A

Plug typeGB plug

EAN code4242005453047

Downloads

Download product documentation, manuals, and specification sheets.

DWB96BC60B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in both ducted and recirculating modes?

Yes. The DWB96BC60B is suitable for ducted exhaust air or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit (available as an accessory) is needed.

What is the maximum extraction rate of this hood?

The maximum extraction rate in exhaust air mode is 619 m³/h according to EN 61591. With the Clean Air Plus recirculation kit, the maximum extraction rate in recirculation mode is 422 m³/h.

How noisy is the hood during operation?

In exhaust air mode at maximum normal use, the noise level is 70 dB(A) re 1 pW. In recirculation mode with the Clean Air Plus recirculation kit, the maximum normal use noise level is 74 dB(A) re 1 pW.

What type of lighting does the cooker hood have?

It has 2 x 1.5 W LED lights with a colour temperature of 3500 K. The lighting is energy-saving and provides bright and clear lighting for the hob area, with a lighting efficiency class of A*.

Are the grease filters washable?

Yes. The hood is equipped with three removable metal grease filter cassettes made of washable aluminium, helping to maintain performance and support a cleaner kitchen.

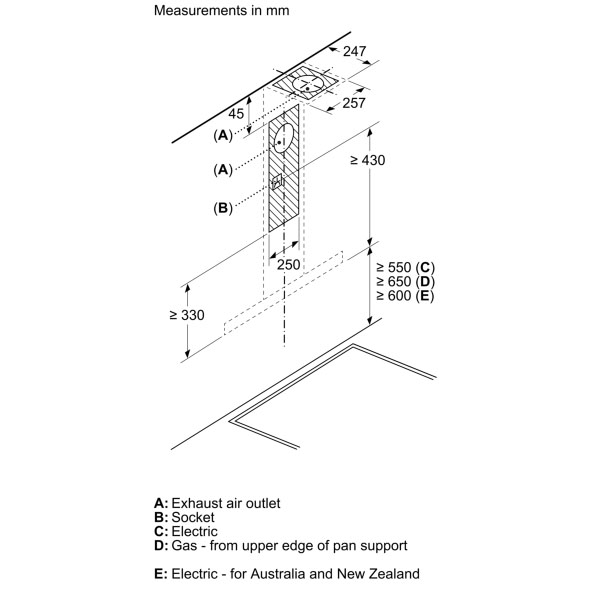

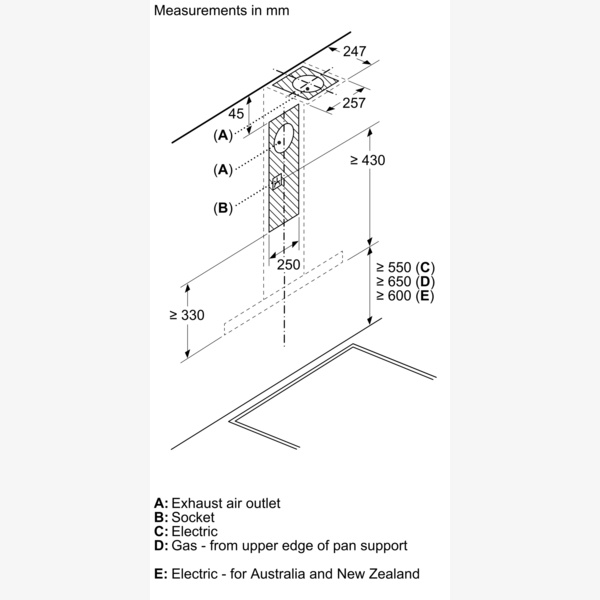

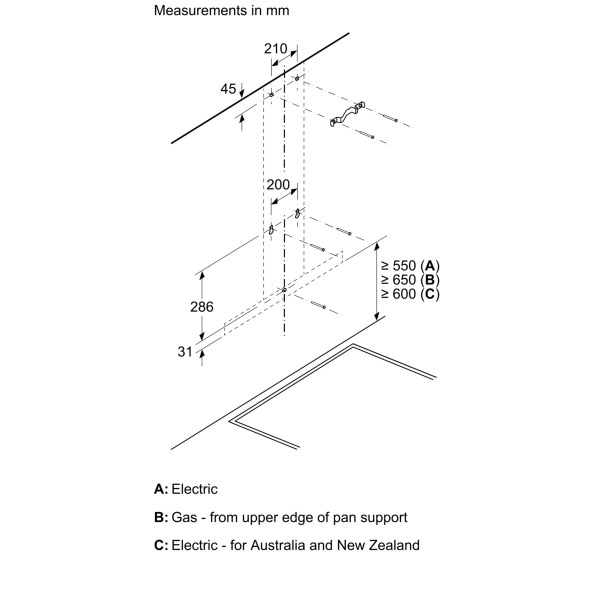

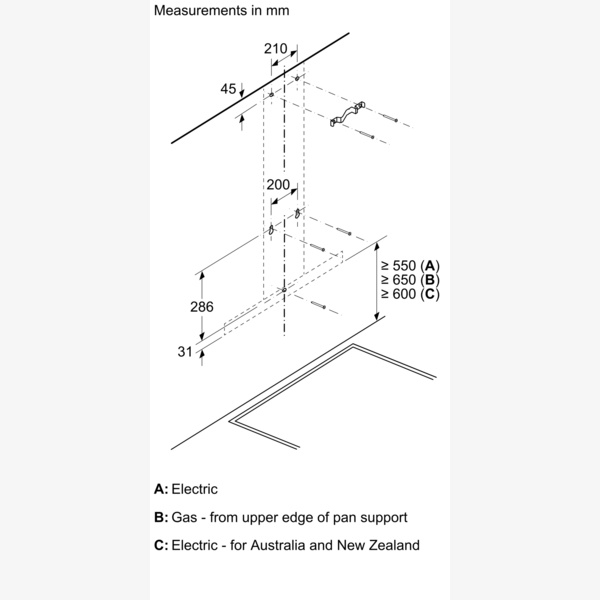

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 550 mm and the minimum distance above a gas hob is 650 mm.
