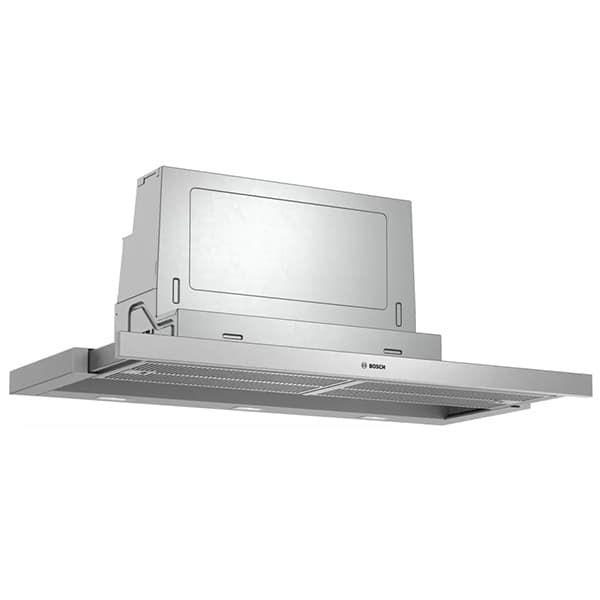

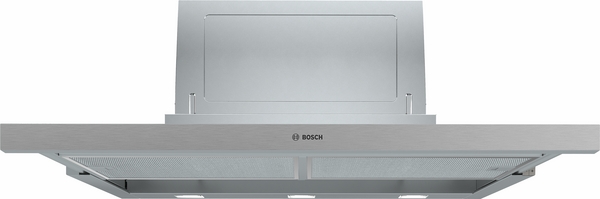

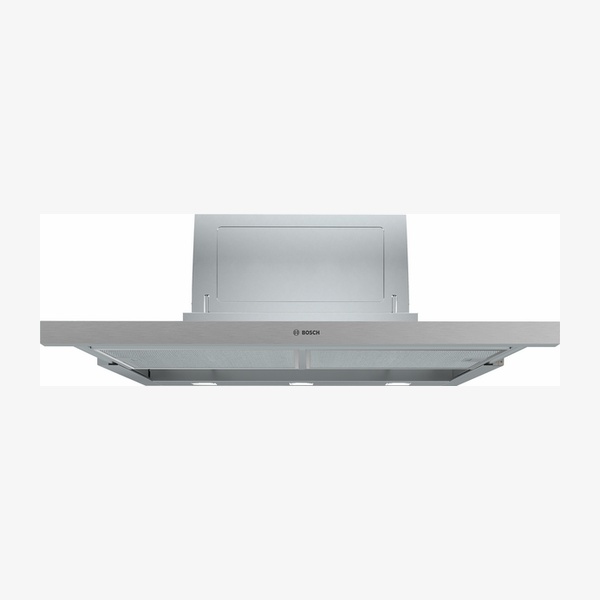

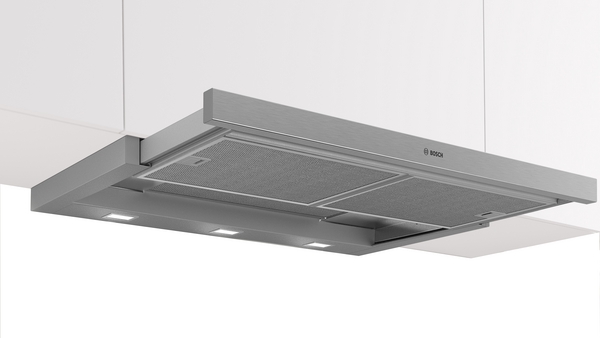

Bosch Serie 4 DFS097A51B Telescopic Hood

The Series 4 DFS097A51B is a 90 cm telescopic cooker hood in silver metallic lacquer, designed for built-in installation in a 90 cm wide wall unit. It extends during cooking and slides away when not in use, providing powerful extraction with EcoSilence Drive™, 3 power levels plus intensive setting and LED illumination. Suitable for ducted or recirculating operation, it offers high extraction rates and washable stainless steel grease filters for a cleaner kitchen environment.

SKU:DFS097A51B

EAN:4242005232109

Category::Cooker Hoods

Quantity:

Key Features

Telescopic pull-out design – extends when in use and slides neatly away when not in operation.

EcoSilence Drive™ – powerful, energy-saving drive for the hood.

High extraction rate – maximum air flow 397 m³/h in normal use and up to 729 m³/h intensive extraction according to EN 61591.

Intensive setting – powerful boost to tackle intense steam during cooking, with automatic intensive revert after 6 minutes.

Electronic Soft touch controls – convenient electronic control via Soft touch button control.

LED illumination – 3 × 1.5 W LEDs provide bright, clear hob lighting at 355 lux and 3500 K.

Energy Efficiency Class A – rated A on a scale from A+++ to D, with average energy consumption of 38.1 kWh/year*.

Suitable for ducted or recirculating operation – recirculated extraction requires a recirculating kit or CleanAir recirculating kit accessory.

Efficient BLDC technology – supports performance and energy efficiency.

Automatic after running – automatic after running function (10 minutes) for continued air cleaning.

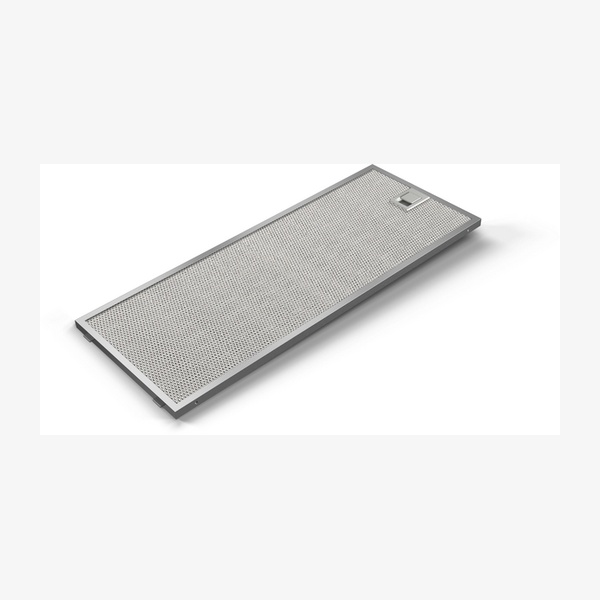

Washable stainless steel grease filters – 3 removable metal grease filter cassettes made from washable stainless steel.

Quiet operation – noise level in exhaust air mode at max normal use is 53 dB(A) re 1 pW.

90 cm width – designed for installation in a 90 cm wide wall-hanging cupboard.

Silver metallic design – silver metallic lacquer finish with stainless steel handle strip featuring logo and steel filter cover.

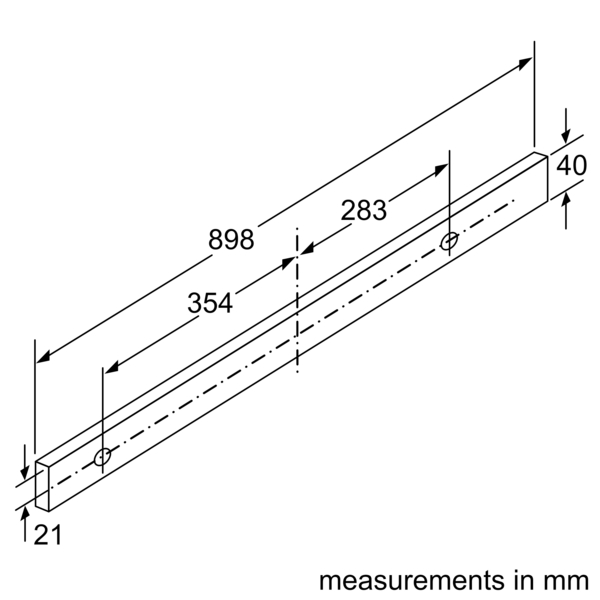

Optional accessories available – a range of recirculation kits, filters, installation kits, lowering frame and handle strips in white or black.

GB plug fitted – supplied with GB plug and 1.75 m electrical cable.

Technical Spec

Product nameSeries 4, Telescopic cooker hood, 90 cm, Silver metallic

ModelDFS097A51B

TypologyPull-out

Installation typologyBuilt-in; telescopic comfort installation system

Width90 cm (appliance dimensions 426 x 898 x 290 mm HxWxD)

Housing colour / finishSilver metallic lacquer; handle strip stainless steel with logo; steel filter cover

Control typeElectronic control via Soft touch button control

Speed settings3 power levels & intensive setting

Maximum air extraction (normal use)397 m³/h (exhaust air, EN 61591)

Boost position air extraction729 m³/h (exhaust air, EN 61591)

Maximum air recirculation358 m³/h with Clean Air Plus recirculation kit (max normal use)

Boost position output recirculating628 m³/h with Clean Air Plus recirculation kit (intensive)

Maximum air flow397 m³/h

Noise level (exhaust air, normal)53 dB(A) re 1 pW at max normal use (EN 60704-3; EN 60704-2-13)

Noise level (exhaust air, intensive)69 dB(A) re 1 pW intensive (EN 60704-3; EN 60704-2-13)

Noise level (recirculation, normal)60 dB(A) re 1 pW with Clean Air Plus recirculation kit (max normal use)

Noise level (recirculation, intensive)71 dB(A) re 1 pW with Clean Air Plus recirculation kit (intensive)

Energy Efficiency ClassA (range A+++ to D)

Average energy consumption38.1 kWh/year*

Blower Efficiency ClassB*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassB*

Grease filter materialWashable stainless steel; 3 removable metal grease filter cassettes

Lighting3 x 1.5 W LED; colour temperature 3500 K; light intensity 355 lux

Number of lights3

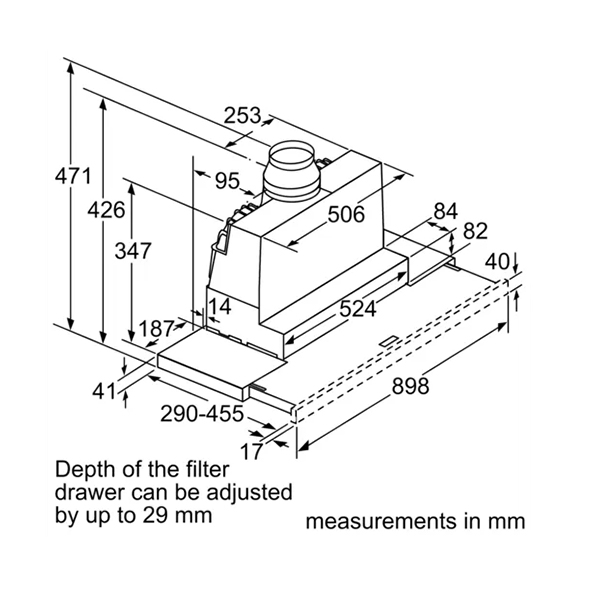

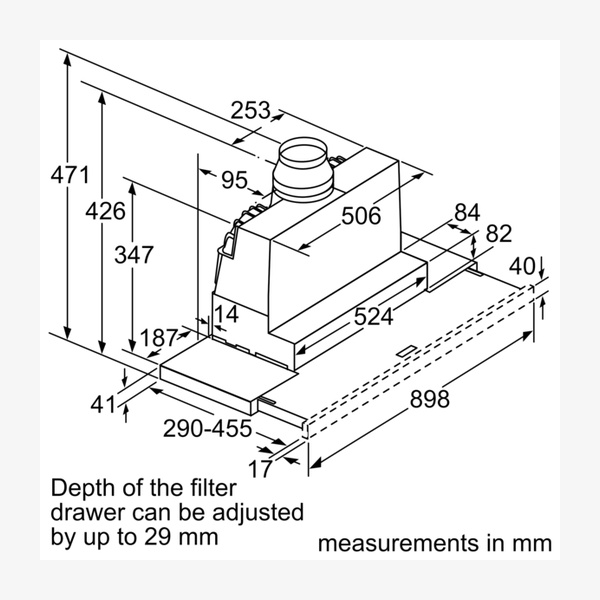

Dimensions (HxWxD)426 x 898 x 290 mm

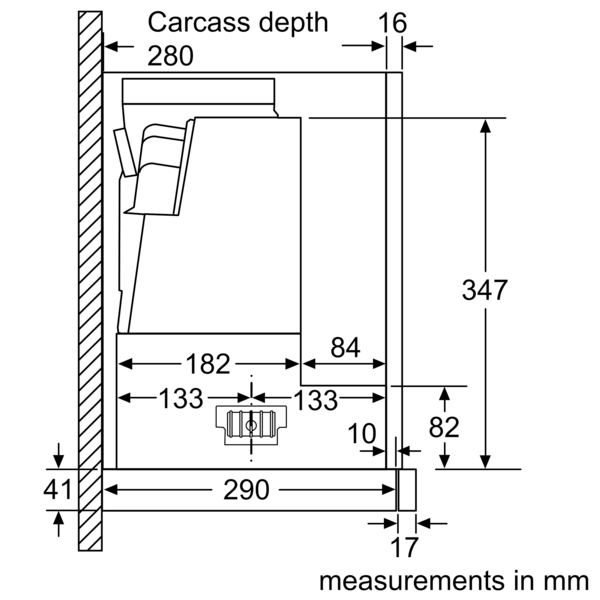

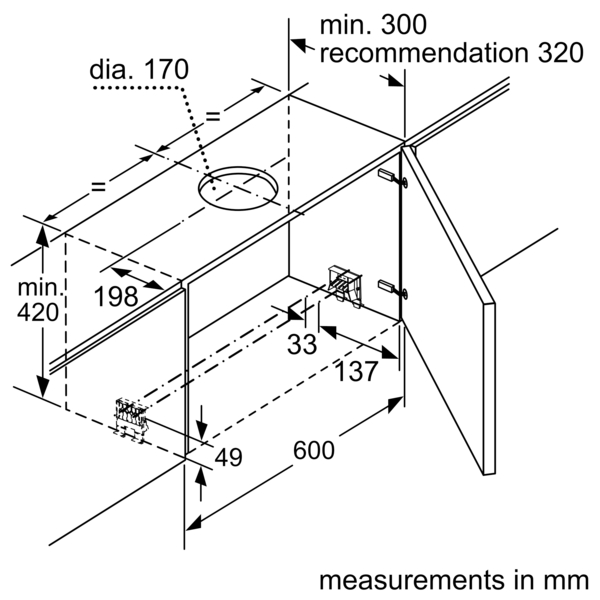

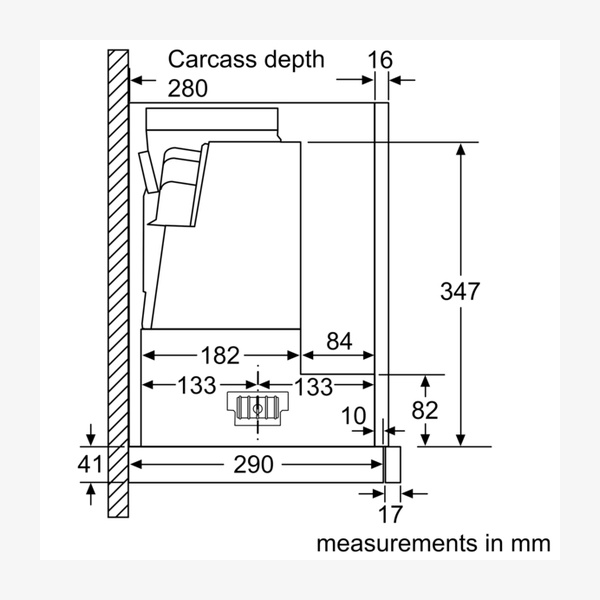

Built-in dimensions (HxWxD)385 x 524 x 290 mm

Required niche size (HxWxD)385 mm x 524.0 mm x 290 mm

Height of the appliance426 mm

Minimum distance above electric hob430 mm

Minimum distance above gas hob650 mm

Net weight12.4 kg

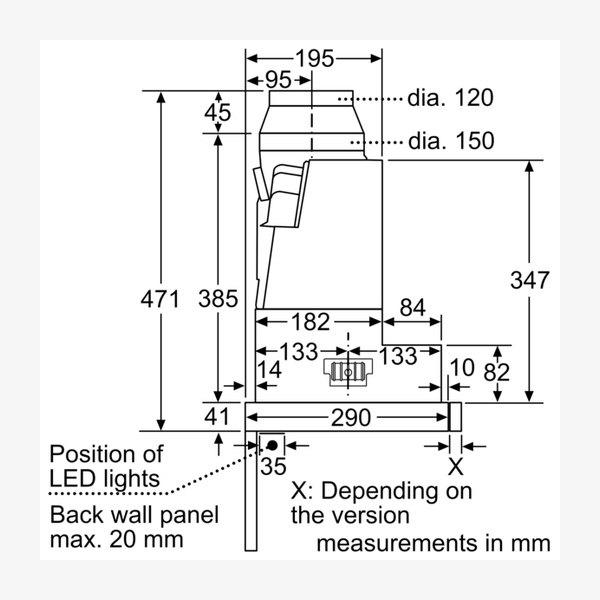

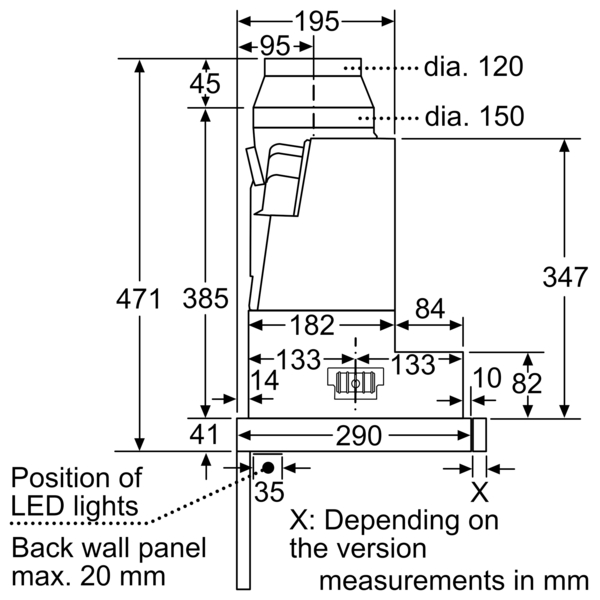

Diameter of air outlet120 / 150 mm (diameter pipe Ø 150 mm; Ø 120 mm enclosed)

Length electrical supply cord175 cm (1.75 m)

Connection rating146 W (power rating 146 W)

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005232109

Downloads

Download product documentation, manuals, and specification sheets.

DFS097A51B Spec

PDF

Frequently Asked Questions

Is the DFS097A51B suitable for both ducted and recirculating operation?

Yes, the hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit or CleanAir recirculating kit is needed as an accessory.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 430 mm and above a gas hob is 650 mm.

How many speed settings does this cooker hood have?

It has 3 power levels and an intensive setting, controlled electronically via Soft touch buttons.

What type of filters are included and are they washable?

The hood includes 3 removable metal grease filter cassettes made from washable stainless steel, helping to keep the kitchen free from excessive grease.

What is the maximum extraction rate of the hood?

The maximum air extraction in normal use is 397 m³/h, with an intensive extraction rate of up to 729 m³/h according to EN 61591.

What is the energy efficiency rating?

The cooker hood has an Energy Efficiency Class A, within a range from A+++ to D, with an average energy consumption of 38.1 kWh/year*.
