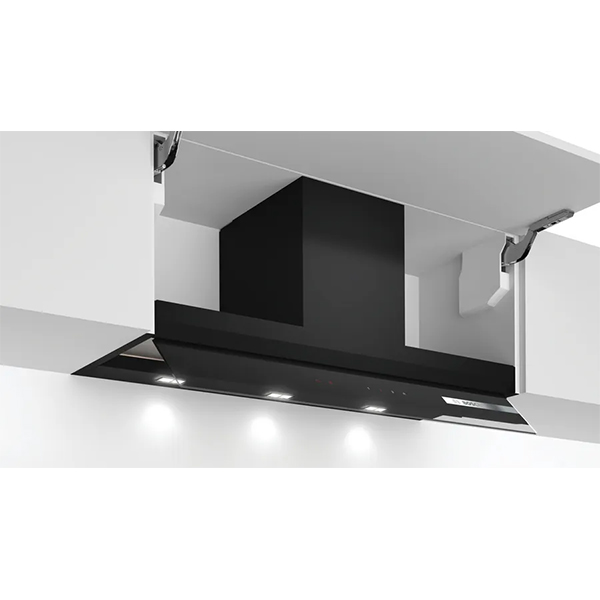

Bosch Serie 6 DBB97AM60B Canopy Hood

The Series 6 DBB97AM60B is a 90 cm integrated design hood for flush installation in wall cupboards, offering seamless, space efficient extraction. Suitable for ducted or recirculating operation, it delivers high extraction rates with quiet performance and an intensive setting to tackle strong steam. A glass panel with touch control, automatic extraction and lighting, and up to 10 kg storage weight per side make it a practical solution for modern kitchens.

SKU:DBB97AM60B

EAN:4242005297955

Category::Cooker Hoods

Quantity:

Key Features

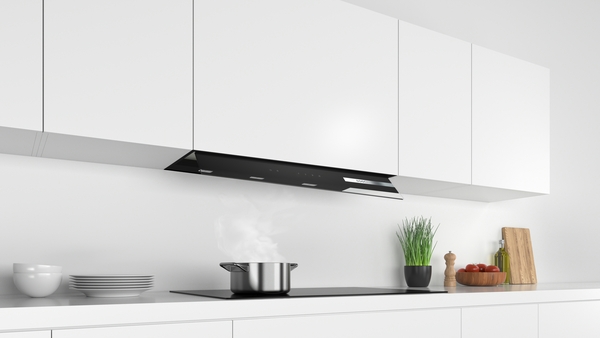

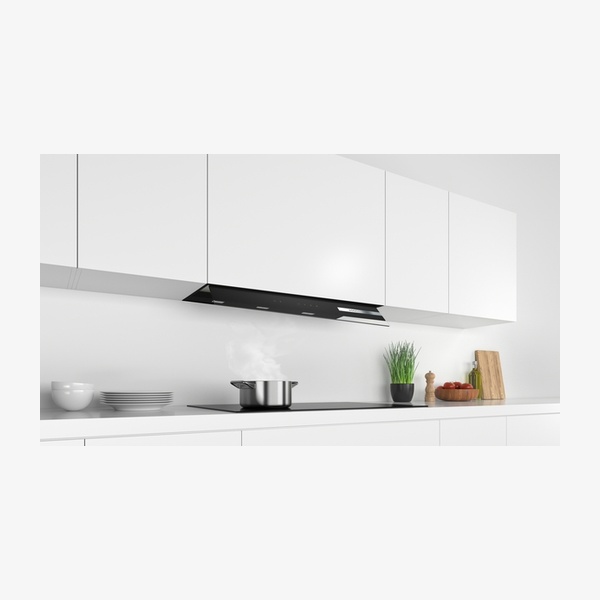

Flush-fitted seamless integration – design hood is almost invisible in an upper cabinet for a clean look.

High extraction rate – max. normal use 460 m³/h and intensive 749 m³/h for continuously clean air in the kitchen.

Quiet extraction with powerful performance – noise level in exhaust air max. normal use 63 dB(A) re 1 pW.

Intensive setting – powerful way to beat intense steam during cooking, with automatic intensive revert after 6 minutes.

Expanded storage space – compact design allows extra storage on the hood, up to max. 10 kg storage weight per side.

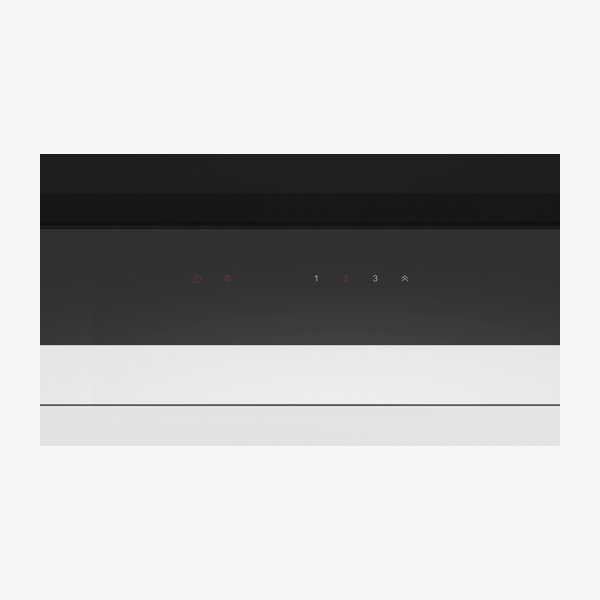

Glass panel with TouchControl – easy operation with electronic touch control and enhanced vapour capture.

Automatic extraction and lighting – extraction and lighting turn on and off by opening and closing the glass panel.

LED lighting with Softlight dimmer – 3 × 2 W LED lights, 3500 K colour temperature and 517 lux light intensity.

Flexible ducted or recirculating operation – suitable for both, with various optional recirculation kits available.

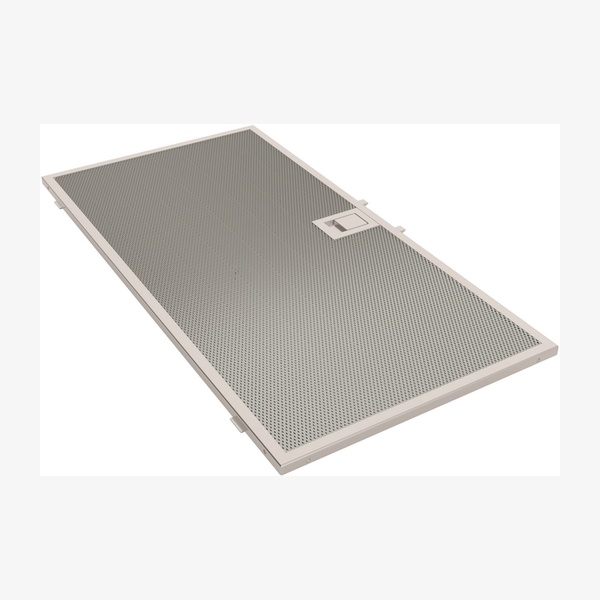

Effective grease filtration – 2 removable metal grease filter cassettes with washable stainless steel material and steel filter cover.

Energy Efficiency Class B – average energy consumption 64.7 kWh/year (in accordance with EU-Regulation No 65/2014).

Clean Air Plus capability – with optional Clean Air Plus recirculation kit, recirculation extraction up to 451 m³/h (normal) and 652 m³/h (intensive).

Storage protection mats included – mats protect against scratches and help prevent items moving on the hood storage areas.

Suitable for bottomless wall cupboards – with enclosed spacers for cupboards up to 360 mm depth.

Optional chimney extensions – available for higher wall cupboards and compatible with recirculation kits.

GB plug connection – voltage 220–240 V, frequency 50 Hz, connection rating 259 W.

Multiple speed settings – 3 power levels plus intensive setting for flexible ventilation control.

Technical Spec

ModelDBB97AM60B

SeriesSeries 6

Product type / TypologyBuilt-in / Built-under; Installation typology: Built-in

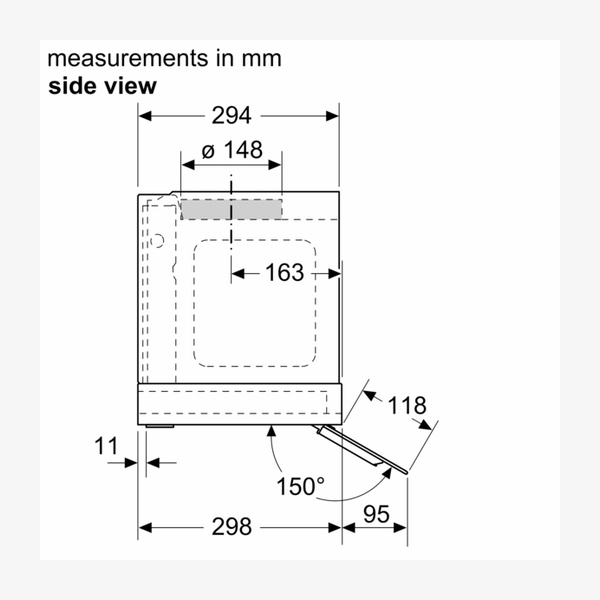

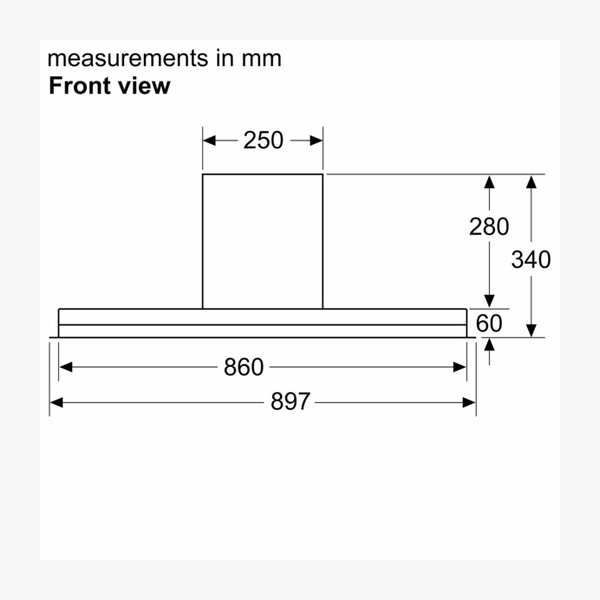

Width90 cm; Dimensions (HxWxD): 340 x 897 x 298 mm

Colour / FinishClear glass black printed, Black

Installation widthVariant: 90 cm wide; Installation: Cupboard 90 cm

Built-in dimensions (HxWxD)340 x 860 x 300 mm

Required niche size (HxWxD)340 mm x 860.0 mm x 300 mm

Height of the appliance60 mm

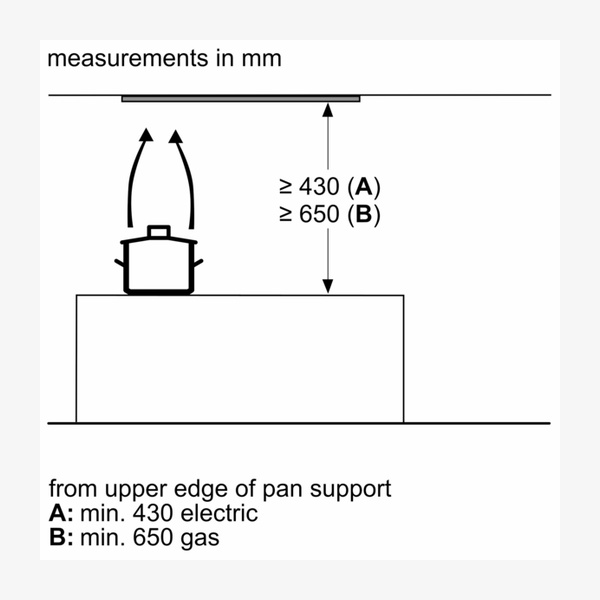

Minimum distance above electric hob430 mm

Minimum distance above gas hob650 mm

Net weight10.6 kg

Control typeElectronic control via TouchControl; glass panel with touch control

Speed settings3 power levels & intensive setting (3-stages + intensive setting)

Max. air extraction (normal use)460 m³/h (according to EN 61591 ø 15 cm)

Boost position air extraction (intensive)749 m³/h (intensive)

Maximum air flow460 m³/h

Max. air recirculation451 m³/h (with Clean Air Plus recirculation kit, normal use)

Boost position output recirculating652 m³/h (with Clean Air Plus recirculation kit, intensive)

Noise level exhaust air (max. normal use)63 dB(A) re 1 pW (according to EN 60704-3 and EN 60704-2-13)

Noise level exhaust air (intensive)73 dB(A) re 1 pW

Noise level recirculation (max. normal use)67 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Noise level recirculation (intensive)74 dB(A) re 1 pW (with Clean Air Plus recirculation kit)

Number of lights3 x 2 W LED lights

Light colour temperature3500 K

Light intensity517 lux

Grease filter materialWashable stainless steel; 2 removable metal grease filter cassettes; steel filter cover

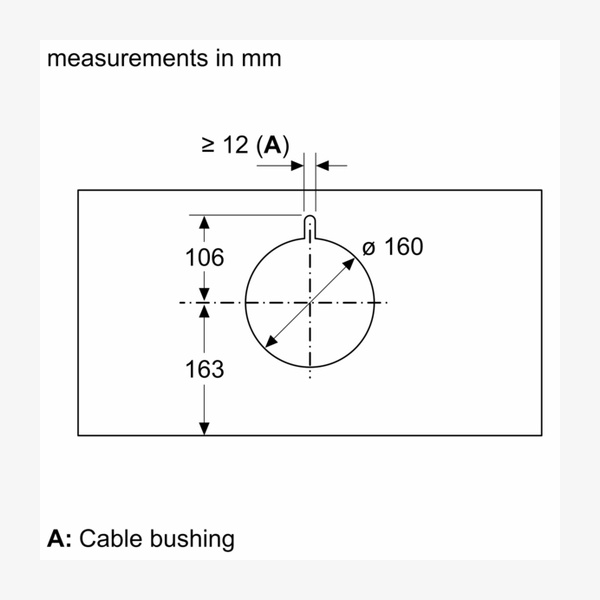

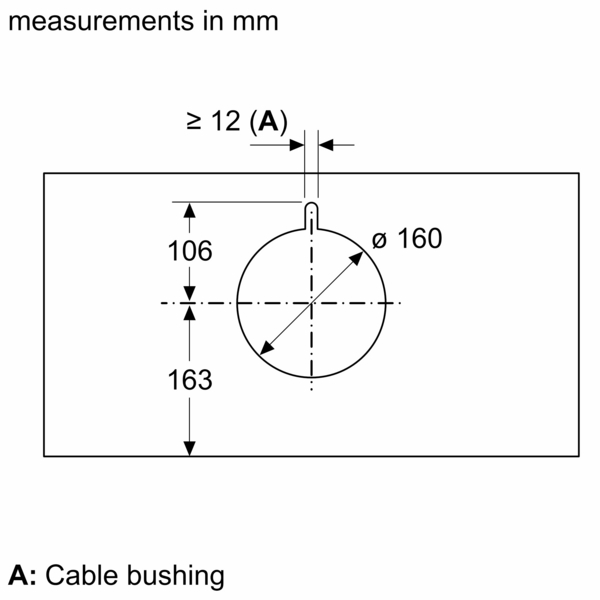

Diameter of air outlet / pipe120 / 150 mm; Diameter pipe ø 150 mm (ø 120 mm enclosed)

Back-pressure flapYes

Energy Efficiency ClassB (range A+++ to D)

Average energy consumption64.7 kWh/year*

Blower Efficiency ClassB*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassB*

Power rating / Connection rating259 W

Voltage220–240 V

Frequency50 Hz

Plug typeGB plug

Length of electrical supply cord130 cm (electrical cable length 1.3 m)

Installation systemIDH comfort installation

Suitable cupboard typeSuitable for installation in bottomless wall cupboards; enclosed spacers for wall cupboards with maximum depth up to 360 mm

EAN code4242005297955

Operation modesSuitable for ducted or recirculating operation

Regulation reference* In accordance with the EU-Regulation No 65/2014

Installation, Features and Usage

Installation and planning

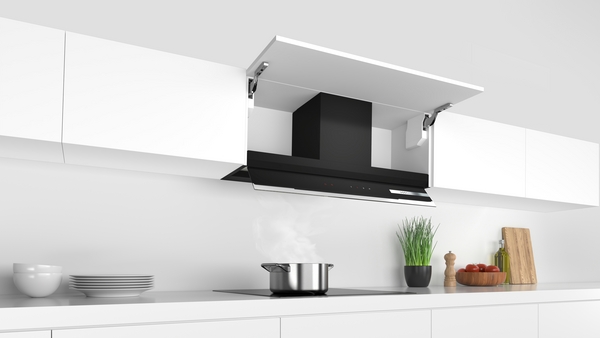

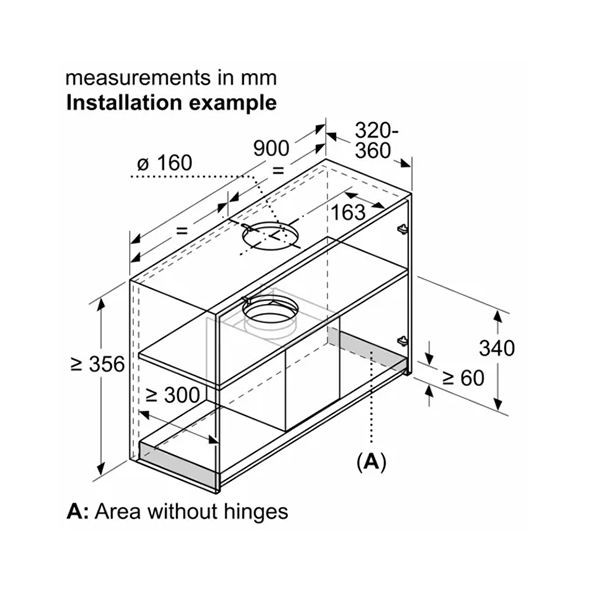

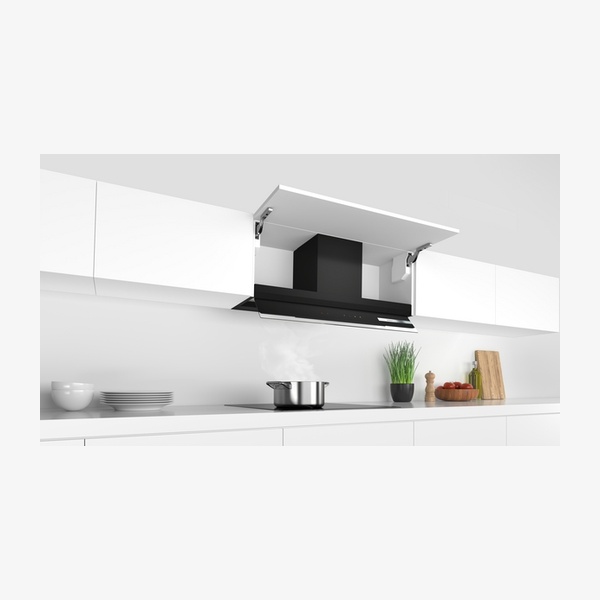

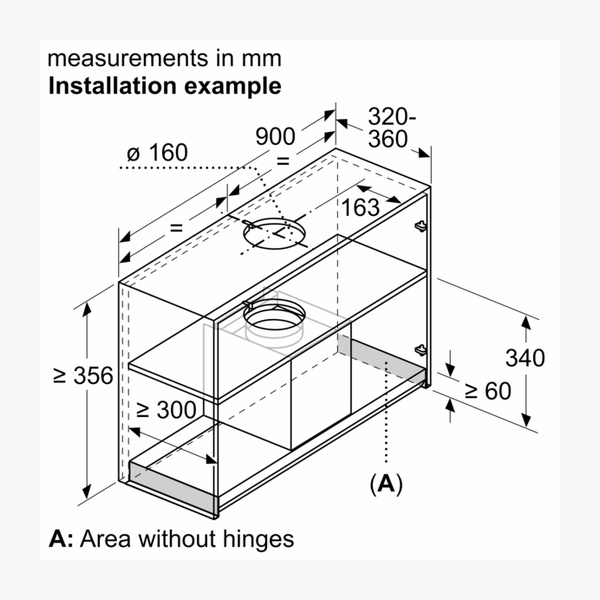

The hood is designed for flush-fitted installation in wall cupboards and is suitable for installation in bottomless wall cupboards. It includes an IDH comfort installation system and enclosed spacers for installation in wall cupboards with a maximum depth of up to 360 mm. For installation in higher wall cupboards, chimney extensions are available as optional accessories, and these chimney extensions are compatible with the available recirculation kits.

It is suitable for ducted or recirculating operation. For recirculated extraction, various recirculation kits are available as optional accessories. The diameter pipe is ø 150 mm (ø 120 mm enclosed), and a back-pressure flap is included.

Controls and operation

Electronic control is via TouchControl on the glass panel. There are 3 power levels and an intensive setting. Extraction and lighting are automatically turned on and off by opening and closing the glass panel. Lighting can also be turned on and off when the glass panel is closed by a quick hand touch on the control panel. The hood features an automatic intensive revert function (6 minutes).

Lighting

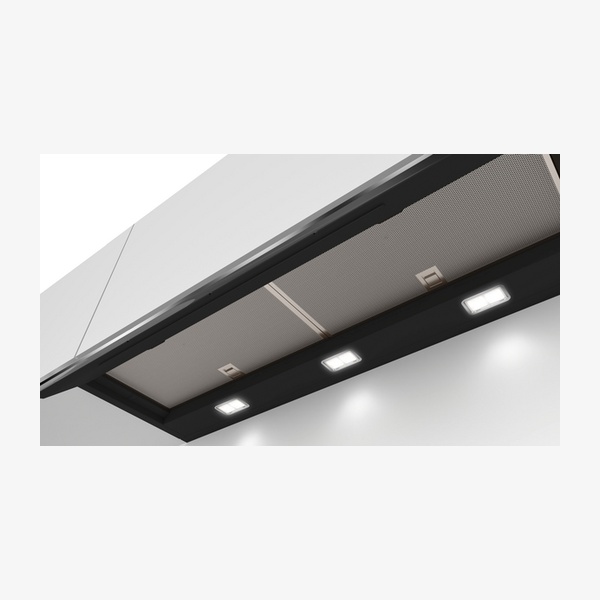

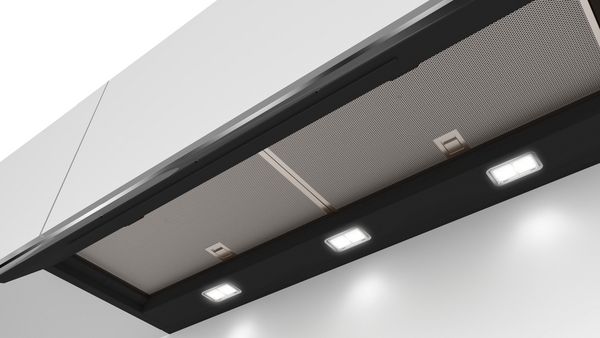

The hood provides 3 × 2 W LED lights with a colour temperature of 3500 K and a light intensity of 517 lux. A Softlight dimmer function allows adjustment of lighting levels.

Filtration and cleaning

The design includes 2 removable metal grease filter cassettes with washable stainless steel grease filter material and a steel filter cover. The hood uses easy to clean smooth surfaces and materials. Optional Clean Air Standard and Clean Air Plus odour filters and recirculation kits are available for recirculating mode.

Storage and protection

The space efficient compact design provides extra storage possibilities on the hood, up to a maximum of 10 kg storage weight per side. Mats for the hood storage areas are included to protect against scratches and to help prevent items moving in this space.

Optional accessories

DWZ0IT0P0 Long Life odour filter (replacement)
DWZ1IB6K1 Chimney extension 450–854 mm
DWZ1IB6N1 Chimney extension 187–360 mm
DWZ1IT1D1 Long Life recirculation kit external
DWZ1IX1B6 Clean Air Plus odour filter (replacement)
DWZ1IX1C6 Clean Air Plus recirculation kit external
DWZ6IB1B4 Clean Air Standard odour filter (replacement)
DWZ6IB1I4 Clean Air Standard recirculation kit

Downloads

Download product documentation, manuals, and specification sheets.

DBB97AM60B Spec

PDF

Frequently Asked Questions

Is the DBB97AM60B suitable for both ducted and recirculating operation?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, various recirculation kits are available as optional accessories, including Clean Air Standard and Clean Air Plus options.

What are the maximum extraction rates in normal and intensive modes?

According to EN 61591 (ø 15 cm), the extraction rate in exhaust air is up to 460 m³/h in max. normal use and 749 m³/h in intensive mode. With the Clean Air Plus recirculation kit, recirculation extraction reaches up to 451 m³/h (normal) and 652 m³/h (intensive).

How loud is the hood during operation?

The noise level in exhaust air is 63 dB(A) re 1 pW in max. normal use and 73 dB(A) re 1 pW in intensive mode. With the Clean Air Plus recirculation kit, noise in recirculation mode is 67 dB(A) re 1 pW (normal) and 74 dB(A) re 1 pW (intensive).

What kind of lighting does the hood use?

The hood uses 3 × 2 W LED lights with a colour temperature of 3500 K and a light intensity of 517 lux. It also features a Softlight dimmer function and lighting can be controlled by opening or closing the glass panel or via a quick hand touch on the control panel.

How much storage weight can the hood support?

The space efficient compact design allows extra storage possibilities on the hood, with a maximum of 10 kg storage weight per side. Mats are included to protect against scratches and help prevent stored items from moving.

What are the minimum installation distances above hobs?

The minimum distance above an electric hob is 430 mm and the minimum distance above a gas hob is 650 mm.
