Bosch Series 6 PPM9A6I40 Gas Hob

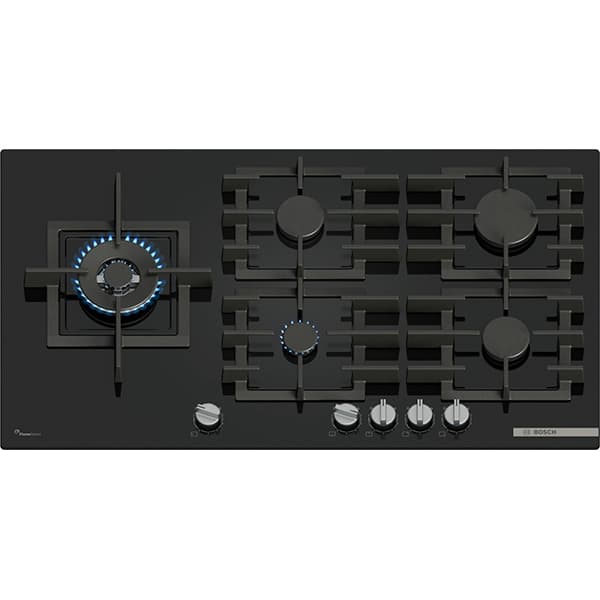

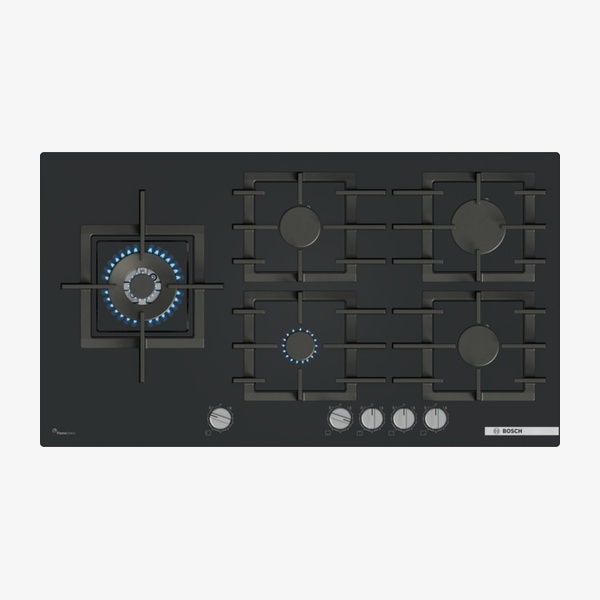

The Series 6 PPM9A6I40 is a 90 cm built–in gas hob with integrated front controls, designed with a black tempered glass surface and cast iron pan supports. It offers FlameSelect technology for precise flame control across nine defined levels and features removable metallic control dials. Dishwasher–suitable cast iron pan supports and detachable dials support easy, scrub–free cleaning, while five gas burners provide cooking flexibility for everyday and intensive use.

SKU:PPM9A6I40

EAN:4242005496242

Category::Hobs

Quantity:

Key Features

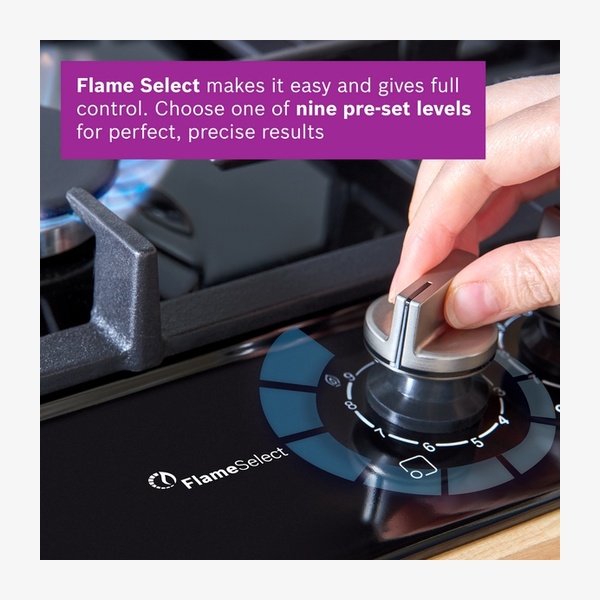

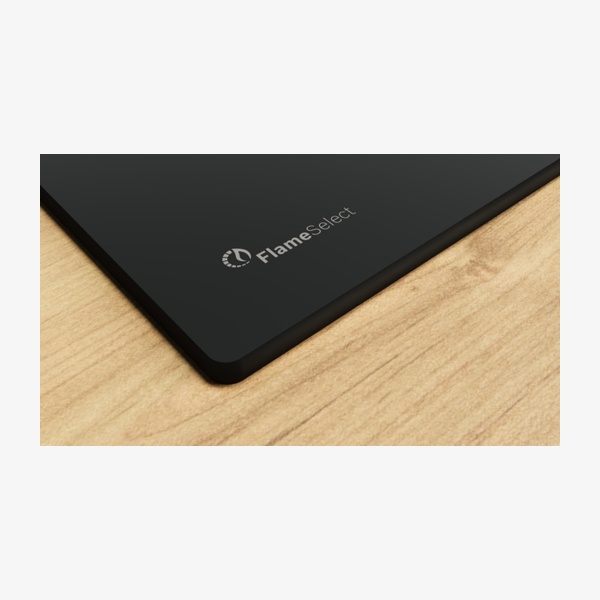

FlameSelect precise control – control and adjust the flame in nine defined levels.

Tempered glass surface – black glass for strength and aesthetic.

90 cm built–in gas hob – gas hob with integrated controls designed for built–in installation.

Five gas burners – including a wok burner up to 4 kW, high–speed burner and economy burner (depending on gas type).

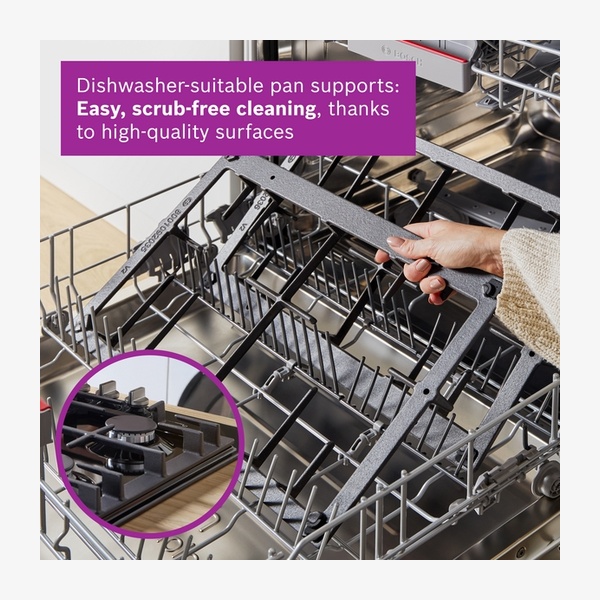

Dishwasher–suitable cast iron pan supports – easy, scrub–free cleaning.

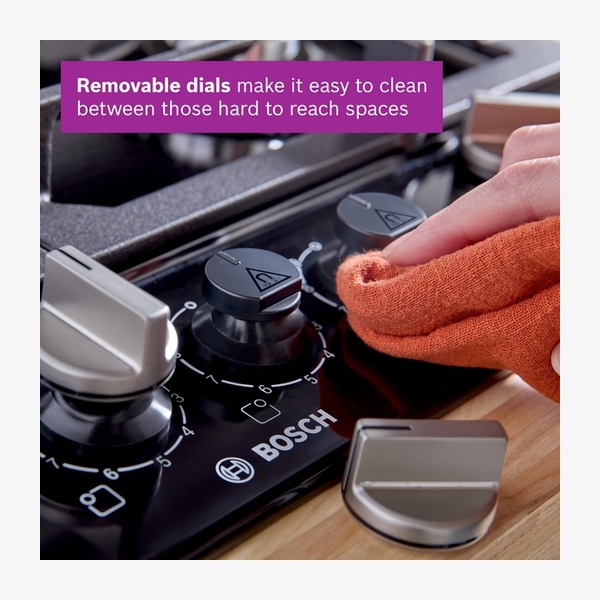

Removable metallic control dials – detachable dials for effortless cleaning between knobs.

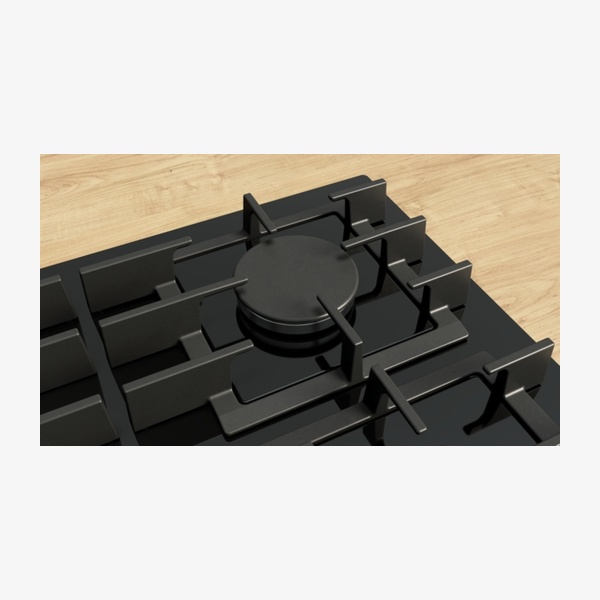

Cast iron pan supports with rubber feet – little weight and compact form with high stability due to continuous surface.

Flame failure safety device – helps prevent unwanted gas flow when the flame goes out.

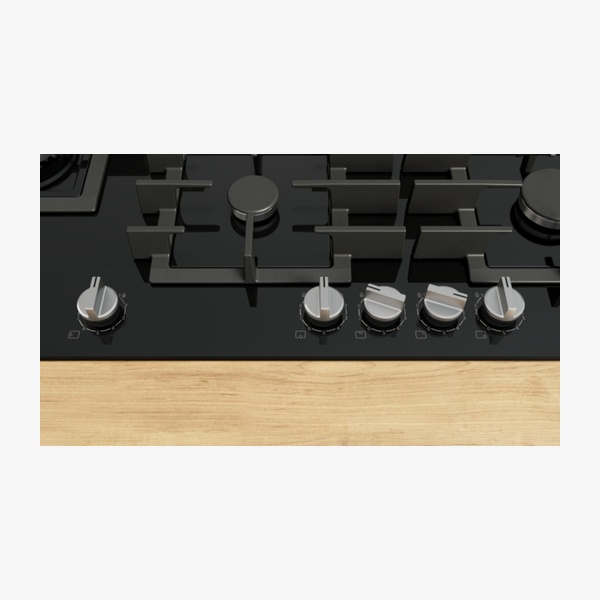

Front–mounted control dials – design co–ordinated dials at the front with strong grip for effortless turning.

Ignition via control dials – just push and turn the dials to ignite the flame.

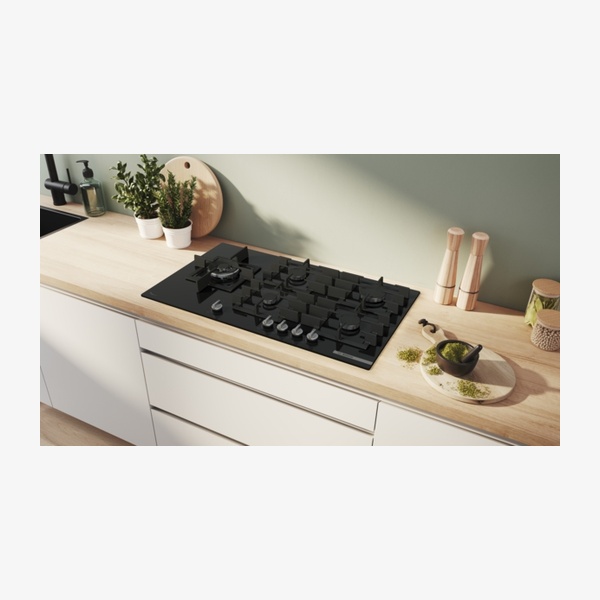

Frameless design – install the hob either flush or slightly raised on the worktop.

Pre–set for natural gas – supplied ready for natural gas, with nozzle set for LPG jets included.

Optional accessories available – simmer plate, wok ring, small pot support, wireless food thermometer and cookware sets.

Technical Spec

Product nameSeries 6, Gas hob, 90 cm, Tempered glass, Black

Model codePPM9A6I40

Appliance typegas hob w integrated controls

InstallationBuilt-in

Heating typeGas

Number of cooking zones5

Burner configurationLeft: wok burner up to 4 kW (depending on gas type); Centre front: economy burner up to 1 kW (depending on gas type); Centre rear: standard burner up to 1.75 kW (depending on gas type); Right rear: high–speed burner up to 3 kW (depending on gas type); Right front: standard burner up to 1.75 kW (depending on gas type)

Basic surface materialTempered glass

Colour of surfaceBlack

Colour of frameBlack

DesignTempered glass surface, Black; frameless design: install the hob either flush or slightly raised on the worktop

Pan supportsCast iron pan supports with rubber feet; dishwasher suitable

Control panel locationFront

Control dialsDesign co-ordinated control dials, front; removable; ignition via control dials

Residual heat indicatorWithout

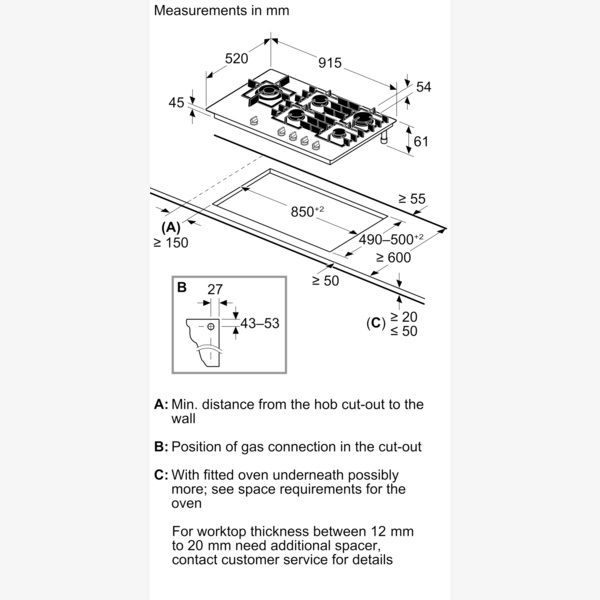

Dimensions (H x W x D)45 x 915 x 520 mm / Dimensions of the product (HxWxD mm): 54 x 915 x 520

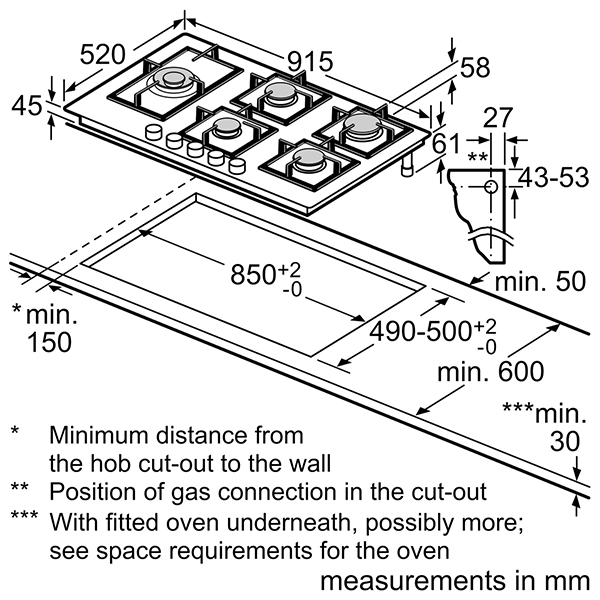

Required niche size (H x W x D)45 x 850–850 x 490–500 mm / Required niche size for installation (HxWxD mm): 45 x 850 x (490–500)

Width of the appliance915 mm

Packed product dimensions (H x W x D)170 x 1120 x 660 mm

Net weight22.9 kg

Gross weight26.3 kg

Length of electrical supply cord100 cm / Power cord: 1 m

Gas connection rating11500 W

Connected load11.5 kW

Fuse protection3 A

Voltage220–240 V

Frequency50; 60 Hz

EAN code4242005496242

Minimum worktop thickness20 mm; if installed flush, minimum worktop thickness is 30 mm

Gas types (usable for)Nat gas L/LL G25/20 mbar (DE); NG H/E 20 mbar, E+ 20/25 mbar; Natural gas H 25 mbar (HU); Natural gas L 25 mbar (NL); Liquid gas G30,31 28–30/37 mbar; Liquid gas G30 37 mbar (PL); Liquid gas 50 mbar

Gas presetPre-set for natural gas

Nozzle setNozzle set for LPG jets included; connection to 28–30/37 mbar bottled gas; nozzles for all other gas types can be ordered via the customer service

Safety deviceFlame failure safety device

Optional accessoriesHEZ298105 Simmer plate; HEZ298107 Wok ring; HEZ298114 Small pot support; HEZ32WA00 Wireless food thermometer; HEZ9SE040 4 pieces Set; HEZ9SE060 6 pieces Set

Downloads

Download product documentation, manuals, and specification sheets.

PPM9A6I40 Spec

PDF

Frequently Asked Questions

How many burners does the Series 6 PPM9A6I40 gas hob have?

The hob has 5 gas burners: a left wok burner up to 4 kW, a centre front economy burner up to 1 kW, a centre rear standard burner up to 1.75 kW, a right rear high–speed burner up to 3 kW and a right front standard burner up to 1.75 kW, depending on gas type.

Can the pan supports be cleaned in a dishwasher?

Yes, the cast iron pan supports are dishwasher suitable, which allows easy, scrub–free cleaning.

Is the hob suitable for LPG as well as natural gas?

The hob is pre–set for natural gas and usable with several natural gas types and liquid gas types including G30,31 28–30/37 mbar, G30 37 mbar and liquid gas 50 mbar. A nozzle set for LPG jets is included for connection to 28–30/37 mbar bottled gas. Nozzles for other gas types can be ordered via customer service.

What safety features does this gas hob include?

The hob is equipped with a flame failure safety device that prevents unwanted gas flow when the flame goes out.

What is the required niche size for installation?

The required niche size for installation is 45 x 850 x (490–500) mm. The minimum worktop thickness is 20 mm, or 30 mm if the hob is installed flush.

Are there any optional accessories available?

Optional accessories include HEZ298105 Simmer plate, HEZ298107 Wok ring, HEZ298114 Small pot support, HEZ32WA00 Wireless food thermometer, and HEZ9SE040 and HEZ9SE060 cookware sets.
