Bosch Series 6 PCR9A5I90 Gas Hob

The Series 6 PCR9A5I90 is a 90 cm stainless steel gas hob with integrated front controls and five gas burners, including a dual control wok burner. FlameSelect lets you precisely control and adjust the flame in nine defined levels, while cast iron pan supports and removable full metal dials support effortless use and cleaning. Dishwasher suitable pan supports and detachable dials help keep the hob easy to maintain.

SKU:PCR9A5I90

EAN:4242005496082

Category::Hobs

Quantity:

Key Features

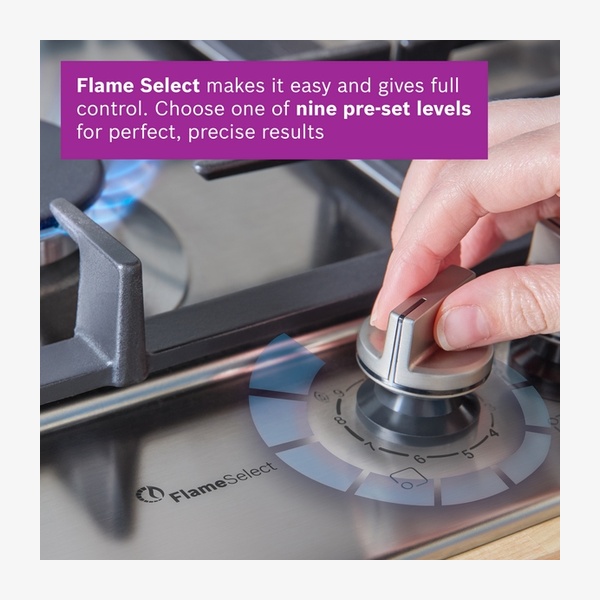

FlameSelect precise control – adjust the flame in nine defined levels for accurate heat management.

Dual control wok burner – extra wide power range with two separately controlled flame rings for versatile cooking.

Five gas burners – economy, standard, high-speed and wok burner options for different cooking needs.

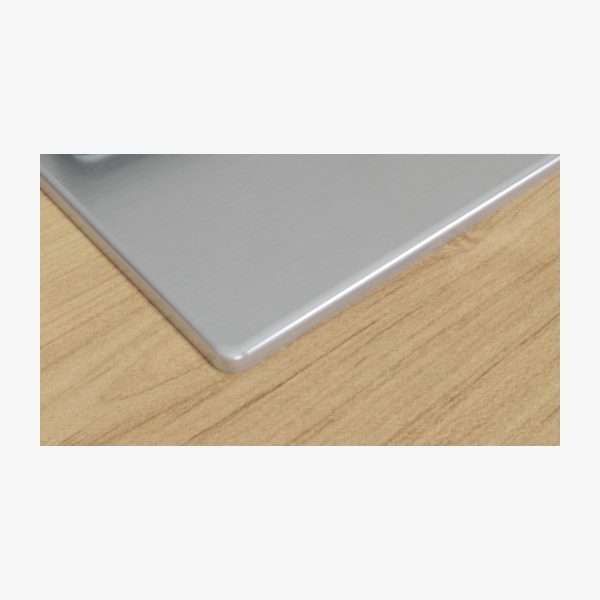

Stainless steel surface – durable basic surface material with a stainless steel finish.

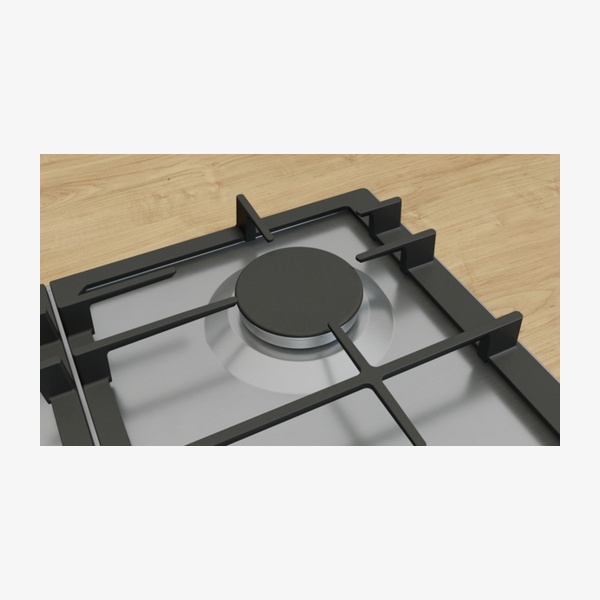

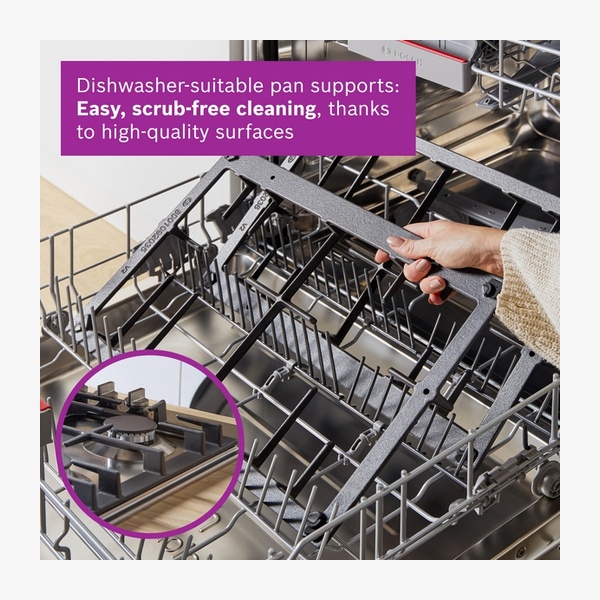

Cast iron pan supports – robust supports that are dishwasher suitable for easy, scrub-free cleaning.

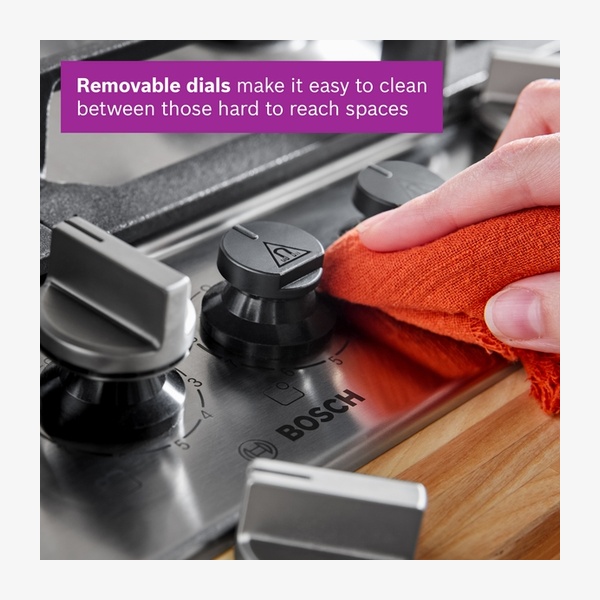

Removable full metal control dials – design co-ordinated front dials are detachable for effortless cleaning.

Ignition via control dials – simply push and turn the dials to ignite the flame.

Flame failure safety device – helps prevent unwanted gas flow if the flame goes out.

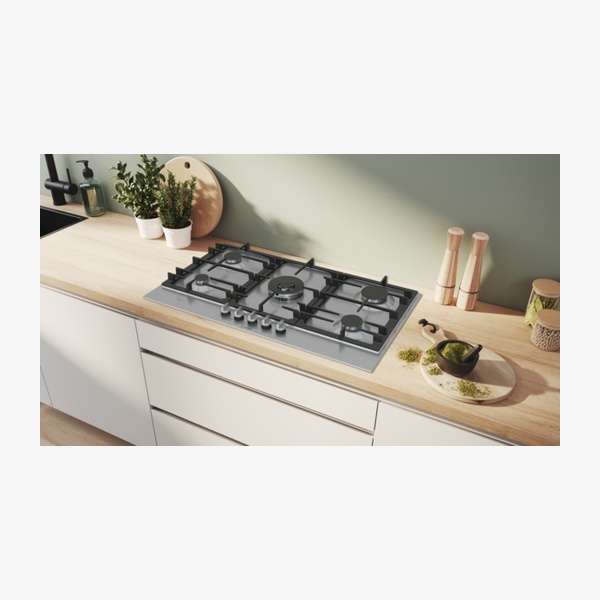

Built-in gas hob with integrated controls – designed for installation into a worktop with front-mounted controls.

Optional accessories available – including simmer plate, wok ring, small pot support, wireless food thermometer and cookware sets.

Technical Spec

SeriesSeries 6

Product typeGas hob w integrated controls

ModelPCR9A5I90

Installation typeBuilt-in

Heating typeGas

Number of cooking zones5

Width of appliance915 mm

Appliance dimensions (HxWxD)45x915x520 mm

Dimensions of product (Design section)51.5 x 915 x 520 mm

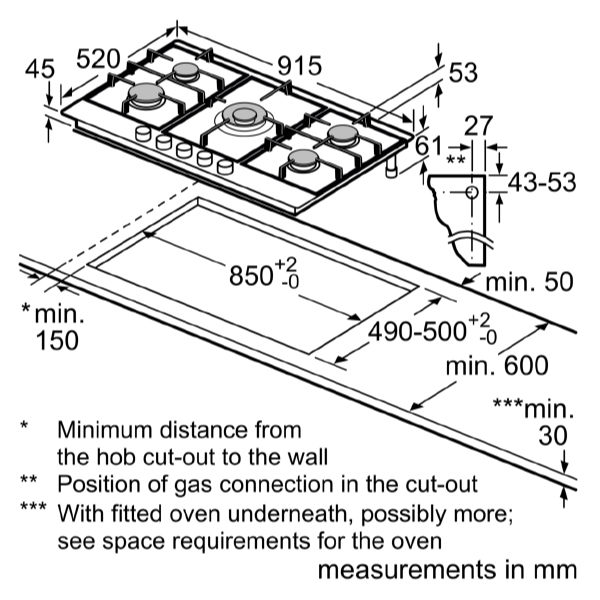

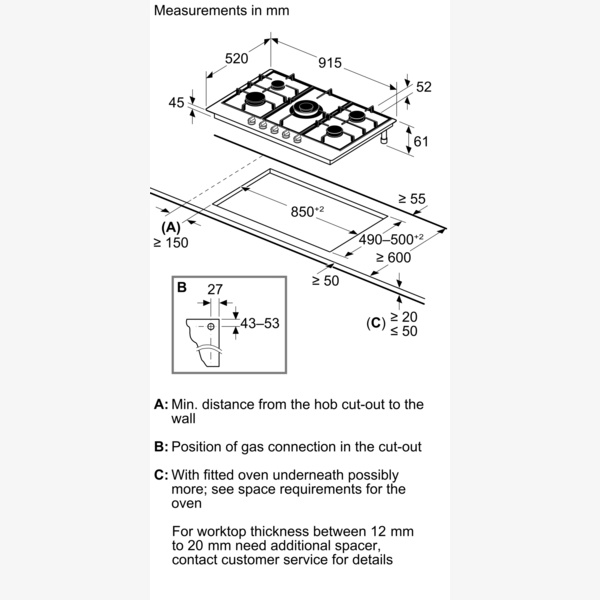

Required niche size (HxWxD)45 x 850-850 x 490-500 mm / 45 x 850 x (490-500) mm

Dimensions of packed product (HxWxD)175x1110x660 mm

Net weight16.3 kg

Gross weight18.8 kg

Residual heat indicatorWithout

Location of control panelFront

Basic surface materialStainless steel

Colour of surfaceStainless steel

Length of electrical supply cord100 cm / 1 m

EAN code4242005496082

Gas connection rating12500 W

Connected load12.5 KW

Fuse protection3 A

Voltage220-240 V

Frequency50; 60 Hz

Min. worktop thickness20 mm

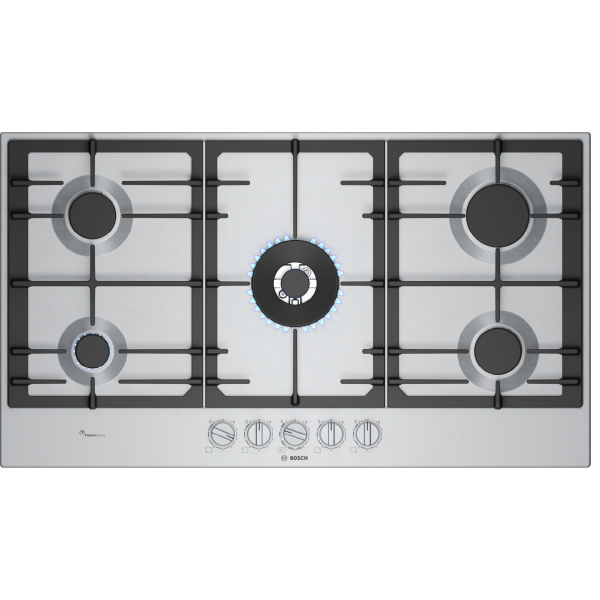

Burner configuration5 gas burners including 1 dual control wok burner Left front: economy burner up to 1 kW (depending on gas type) Left rear: standard burner up to 1.75 KW (depending on gas type) Centre front: wok burner up to 5 KW (depending on gas type) Right rear: high-speed burner up to 3 KW (depending on gas type) Right front: standard burner up to 1.75 KW (depending on gas type)

Pan supportsCast iron pan supports, dishwasher suitable

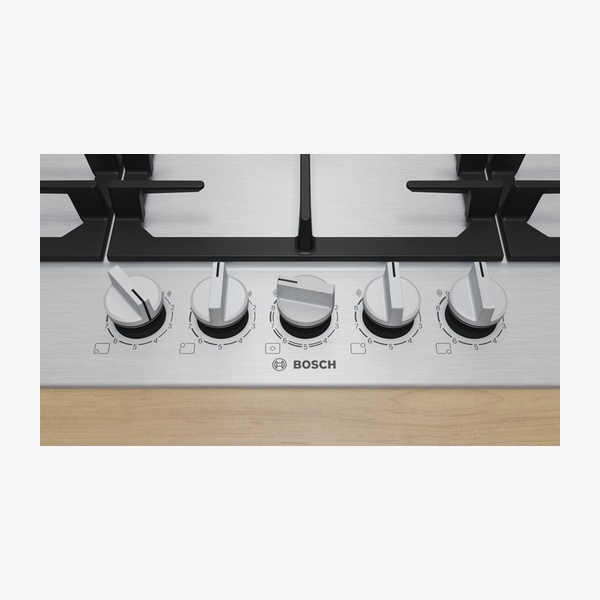

Control dialsDesign co-ordinated, full metal, removable, front

IgnitionIgnition via control dials (push and turn)

SafetyFlame failure safety device

Gas types usableNat gas L/LL G25/20mbar (DE) NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar

Gas presettingPre-set for natural gas

LPG nozzlesNozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service.

Downloads

Download product documentation, manuals, and specification sheets.

PCR9A5I90 Spec

PDF

Frequently Asked Questions

How many burners does the PCR9A5I90 gas hob have?

The hob has 5 gas burners, including an economy burner, standard burners, a high-speed burner and a dual control wok burner.

What is FlameSelect on this gas hob?

FlameSelect lets you precisely control and adjust the flame in nine defined levels, helping you select the level of heat required for your cooking.

Are the pan supports suitable for the dishwasher?

Yes. The cast iron pan supports are described as dishwasher suitable to support easy, scrub-free cleaning.

Does the hob include any safety features?

The hob includes a flame failure safety device which helps prevent unwanted gas flow when the flame goes out.

Which gas types can this hob be used with?

It can be used with several natural gas and liquid gas types, including Nat gas L/LL G25/20mbar (DE), NG H/E 20mbar, E+ 20/25mbar, Natural gas H 25 mbar (HU), Natural gas L 25 mbar (NL), Liquid gas G30,31 28-30/37mbar, Liquid gas G30 37 mbar (PL) and Liquid gas 50 mbar.

Are LPG nozzles included with the hob?

A nozzle set for LPG jets is included for connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service, and nozzle changes are directed to customer service.
