Bosch Series 6 DWK87FN60B Chimney Hood

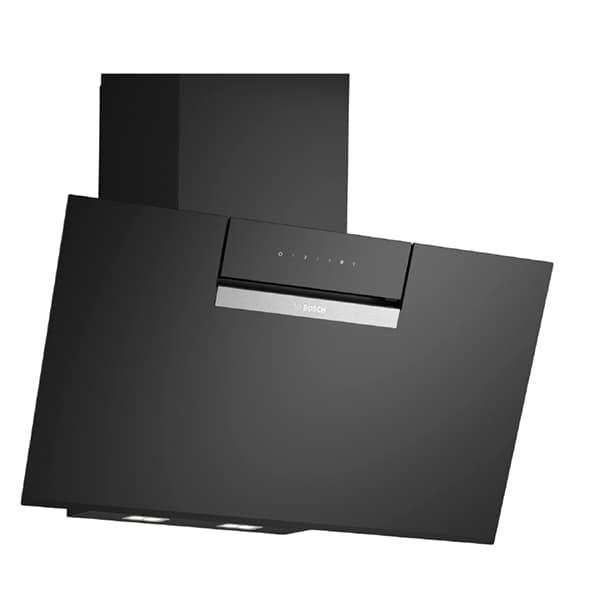

The Bosch Series 4 DWK87FN60B is an 80 cm wall-mounted inclined cooker hood in black glass, suitable for ducted or recirculating operation. It is designed for a kitchen that benefits from automatic odour and noise control, with Smart Hood Automatic and a powerful EcoSilence Drive™ motor. With three power levels plus an intensive setting, adjustable LED lighting and dishwasher-safe metal grease filters, it offers efficient extraction and easy cleaning.

SKU:DWK87FN60B

EAN:4242005403462

Category::Cooker Hoods

Quantity:

Key Features

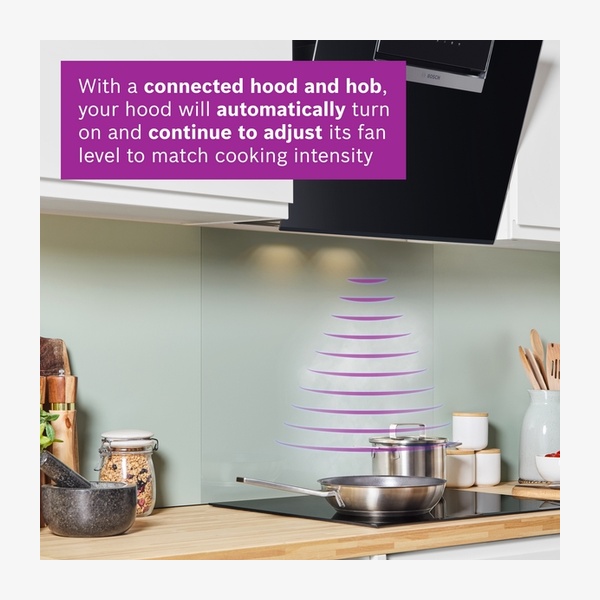

Smart Hood Automatic – hood automatically adapts fan speed based on hob cooking data with a matching hob and connected Home Connect account.

EcoSilence Drive™ motor – powerful, energy-saving drive for efficient hood performance.

High extraction rate – maximum air extraction of 431 m³/h, with boost position air extraction up to 768 m³/h.

Intensive setting – powerful mode to tackle intense steam during cooking, with automatic reset to normal setting after 6 minutes.

TouchSelect control – quickly select hood settings via electronic touch control.

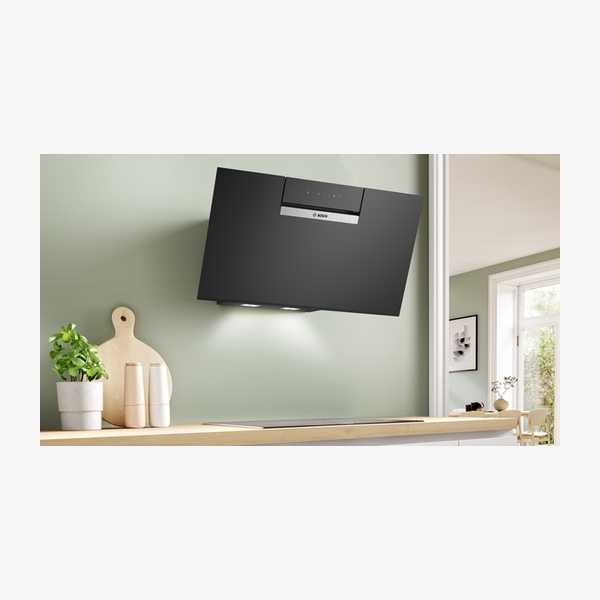

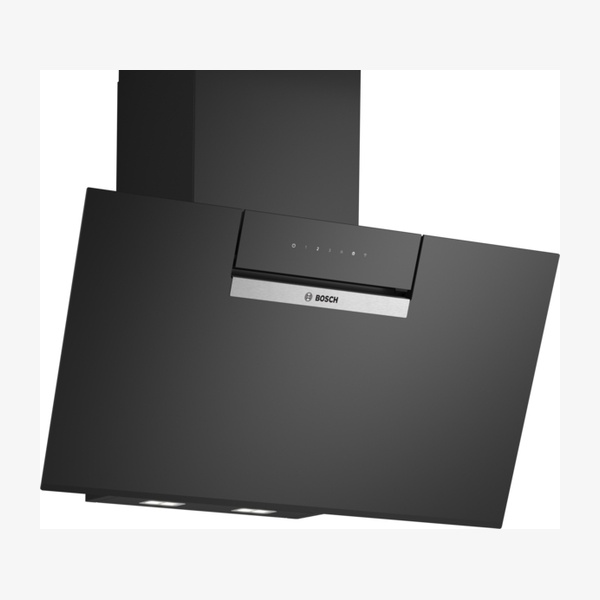

Angled glass design – wall-mounted black glass hood with capture areas at the front and bottom.

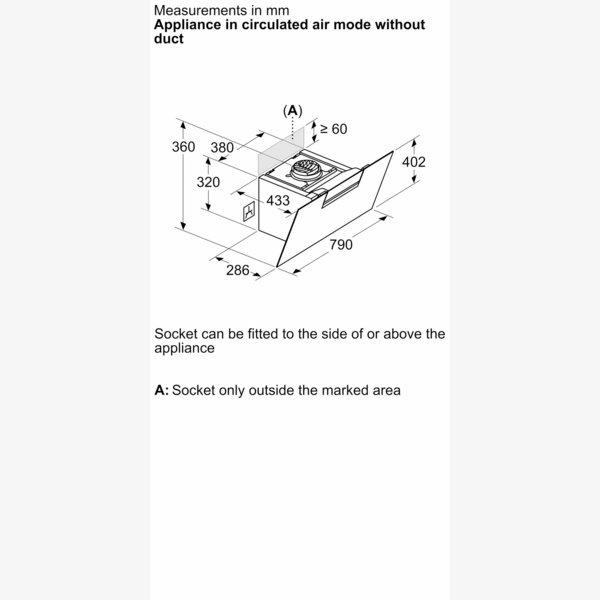

Ducted or recirculating operation – suitable for both installation types; Clean Air Plus recirculation kit needed for recirculation, with chimless use possible.

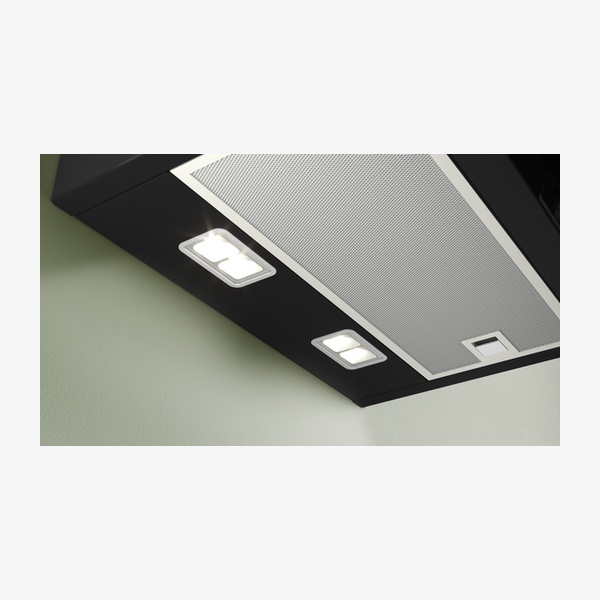

Adjustable LED lighting – 2 LEDs (3 W each) with 3500 K colour temperature, 502 lux intensity, dimmer and Softlight dimmer functions.

Home Connect enabled – operate, monitor and set preferences via smartphone or tablet in countries where the service is available.

Hob based hood control – automatically activates the hood when cooking via WiFi connection with a suitable hob.

Performance Profiles – choose standard, performance or silence profiles via the Home Connect App to increase extraction or reduce fan noise.

Voice control enabled – usable with popular voice assistants where this service is available.

Dishwasher-safe metal grease filters – removable, washable aluminium filters for convenient cleaning.

Energy Efficiency Class A+ – average energy consumption 31.7 kWh/year (from A+++ to D scale stated).

Quiet operation – noise level 39 dB(A) re 1pW on speed 1 in exhaust mode, 56 dB(A) re 1pW on speed 3.

Made in Germany – produced at a CO² neutral production site with environmentally friendly packaging.

Optional accessories available – including chimney extensions and Clean Air Plus recirculation and filter kits.

Technical Spec

Product name / codeSeries 4, wall-mounted cooker hood, DWK87FN60B

Design / colourAngled glass design, clear glass black printed, black glass

Installation typeWall-mounted; suitable for ducted or recirculating operation; chimless recirculation possible

Width80 cm (790 mm body width stated in planning dimensions)

Colour chimneyBlack

Height of chimney420–663 mm / 457–750 mm

Height of appliance (body)320 mm

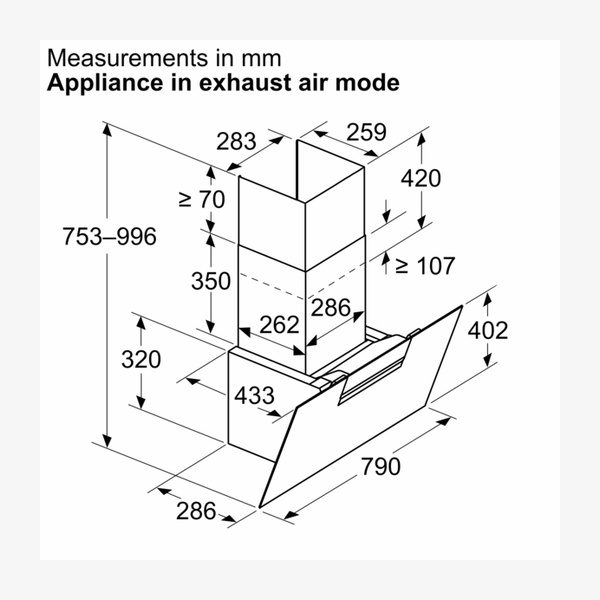

Dimensions exhaust air (H×W×D)753–996 × 790 × 433 mm

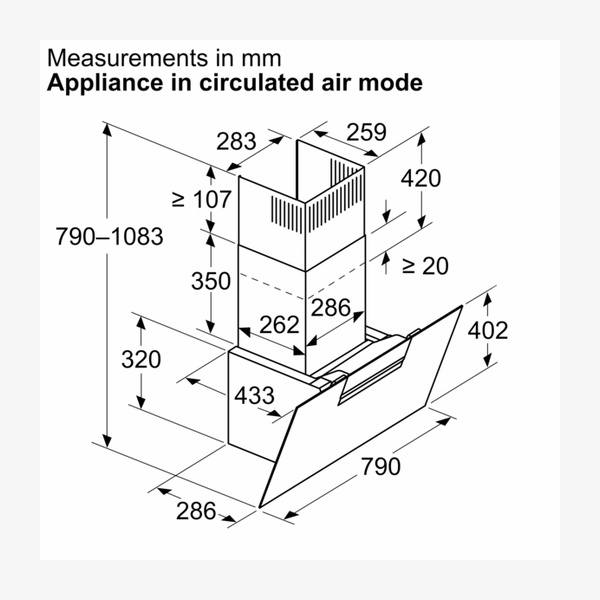

Dimensions recirculating (H×W×D)790–1083 × 790 × 433 mm

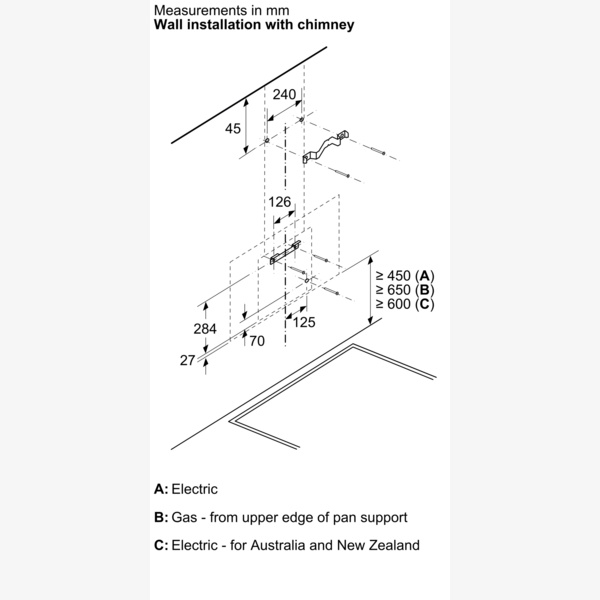

Minimum distance above electric hob450 mm

Minimum distance above gas hob650 mm

Net weight12.7 kg

Control typeElectronic TouchSelect control

Speed settings3 power levels + intensive setting; automatic reset from intensive after 6 min

Max. air extraction (normal)431 m³/h (maximum air flow 431 m³/h)

Boost air extraction768 m³/h (boost position air extraction)

Max. air recirculation427 m³/h (boost position output recirculating 687 m³/h)

Exhaust mode performanceSpeed 1: 223 m³/h, 39 dB(A) re 1pW; Speed 2: 319 m³/h, 48 dB(A) re 1pW; Speed 3: 431 m³/h, 56 dB(A) re 1pW; Intensive 1: 768 m³/h, 68 dB(A) re 1pW

Recirculation performance (with Clean Air Plus kit, chimney)Speed 1: 208 m³/h, 47 dB(A) re 1pW; Speed 2: 309 m³/h, 54 dB(A) re 1pW; Speed 3: 429 m³/h, 62 dB(A) re 1pW; Intensive 1: 724 m³/h, 74 dB(A) re 1pW

Noise level (max. normal mode)56 dB(A) re 1pW (speed 3, exhaust mode)

Number of lights2 LEDs, 3 W each, colour temperature 3500 K, 502 lux

Lighting featuresColour temperature adjustable; Softlight dimmer function; dimmer function for brightness; LED light temperature adjustable via Home Connect App

Grease filter2 metal grease filters, washable aluminium, removable and dishwasher-safe

Grease Filtering Efficiency ClassC*

Blower Efficiency ClassA*

Lighting Efficiency ClassA*

Energy Efficiency ClassA+ (range A+++ to D stated)

Average energy consumption31.7 kWh/year*

Motor technologyEfficient BLDC technology, EcoSilence Drive™

Diameter of air outlet150 mm (Ø 150 mm pipe enclosed)

Electrical cable length1.3 m (130 cm)

Connection rating140 W

Fuse protection10 A

Voltage220–240 V (nominal voltage 220–240 V)

Frequency50; 60 Hz

Plug typeGB plug

EAN code4242005403462

Sustainability notesProduced at a CO² neutral production site; environmentally friendly packaging; most efficient blower technology available on the market (as stated)

Downloads

Download product documentation, manuals, and specification sheets.

DWK87FN60B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in recirculation mode?

Yes. The hood is suitable for ducted or recirculating operation. For recirculation, a Clean Air Plus recirculation kit is needed as an accessory. In recirculation operation, chimless use is also possible using the appropriate kit.

What is the maximum extraction rate of the DWK87FN60B?

The maximum air extraction in normal operation is 431 m³/h. In boost position air extraction, the hood can reach up to 768 m³/h. In recirculation mode with the Clean Air Plus kit and chimney installation, intensive speed can achieve 724 m³/h.

How noisy is the hood during use?

In exhaust mode, the noise level is 39 dB(A) re 1pW at speed 1, 48 dB(A) re 1pW at speed 2, and 56 dB(A) re 1pW at speed 3. In intensive exhaust mode, the noise level is 68 dB(A) re 1pW.

Is the Bosch DWK87FN60B compatible with Home Connect?

Yes. The hood includes Home Connect digital features, allowing you to operate, monitor and set preferences via smartphone or tablet in countries where Home Connect service is available. It also supports hob based hood control, Smart Hood Automatic, Performance Profiles, lighting adjustment, filter indicators and software updates via a connected account.

How do I clean the filters and surfaces?

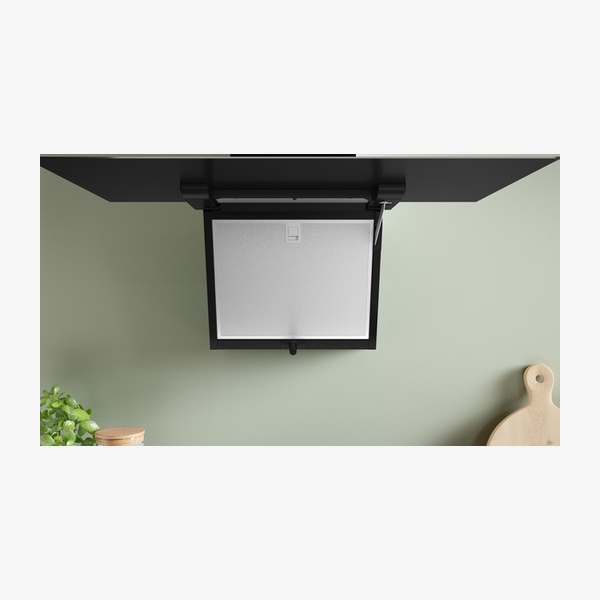

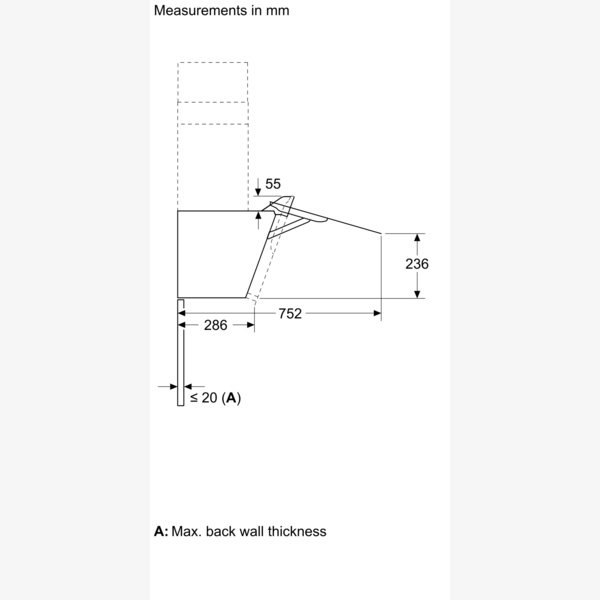

The hood has a large opening angle glass plate with a locking function for easy filter access. The two metal grease filters are removable and dishwasher-safe. Smooth surfaces and materials are designed to be easy to clean. Filter saturation indications and reset functions are available via the Home Connect App.

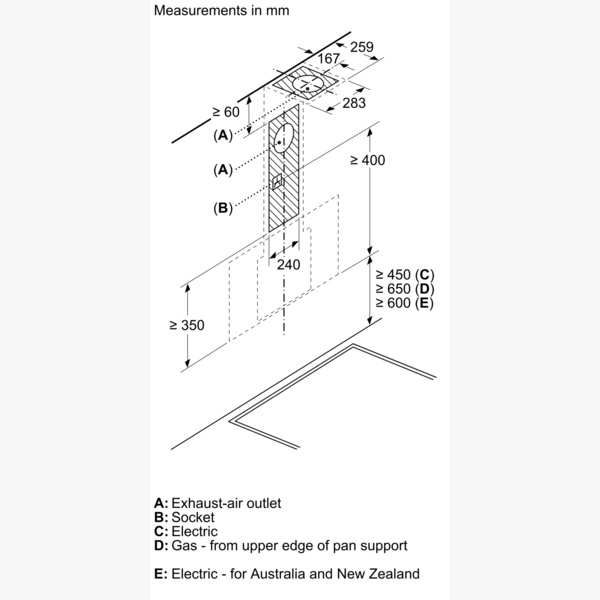

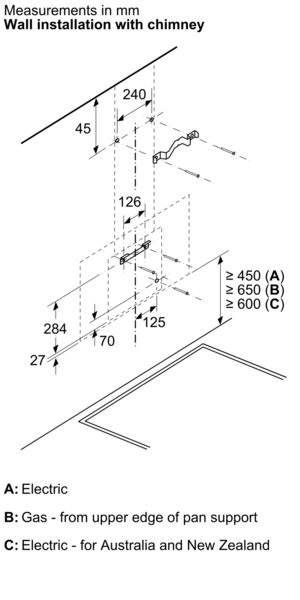

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 450 mm, and above a gas hob is 650 mm. Dimensions for exhaust and recirculation installations are provided for planning, including overall height ranges and a 150 mm air outlet diameter.
