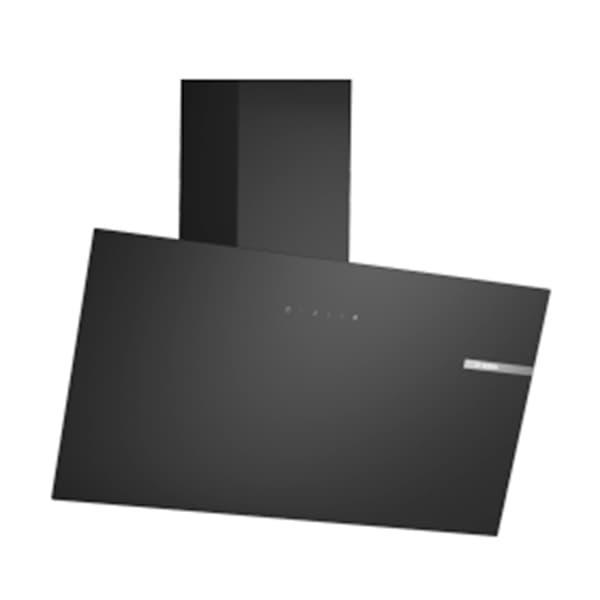

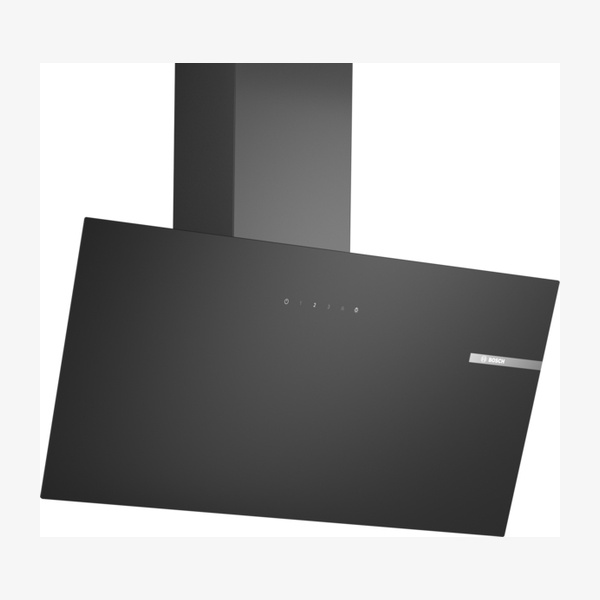

Bosch Series 2 DWK85DK60B Chimney Hood

The DWK85DK60B is an 80 cm Series 2 wall-mounted inclined glass cooker hood in black, designed for ducted or recirculating operation. It features an especially silent low noise motor, Touch Select Basic Control and three power levels plus an intensive setting to tackle intense steam. With high extraction rates in both exhaust and recirculation modes, LED lighting and easy–to–clean surfaces and filters, it helps keep kitchen air clean and odour free.

SKU:DWK85DK60B

EAN:4242005396290

Category::Cooker Hoods

Quantity:

Key Features

Especially silent motor – delivers maximum hood performance with minimum noise for an odour and noise free kitchen.

High extraction rate – achieves up to 430 m³/h in exhaust mode and 445 m³/h in recirculation mode for continuously clean air.

Intensive setting – powerful mode with up to 550 m³/h extraction to beat intense steam during cooking.

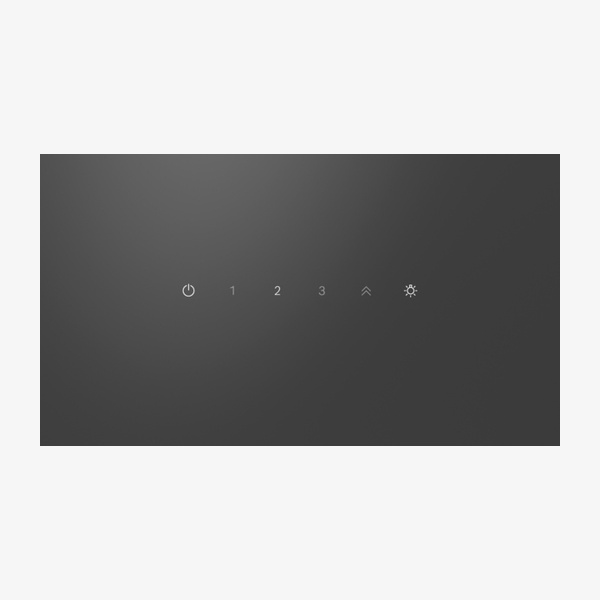

Touch Select Basic / TouchControl – sleek, electronic backlit touch interface with 3 power levels and intensive setting.

Automatic reset from intensive – intensive setting automatically returns to normal after 5 minutes.

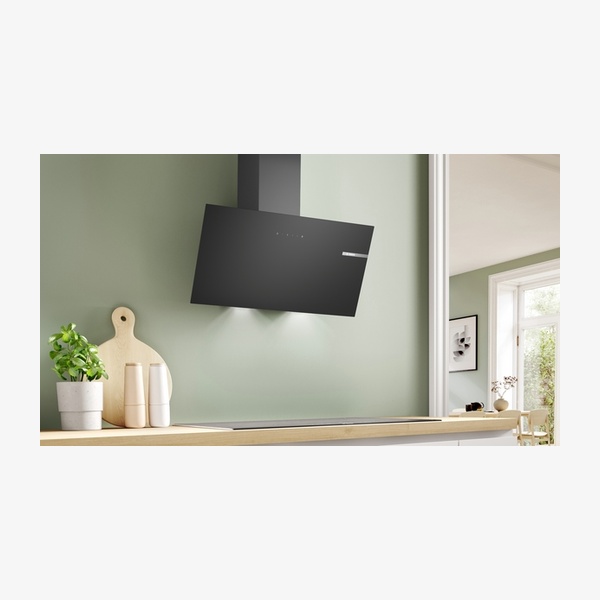

Inclined black glass design – wall-mounted inclined glass common design in black glass, 80 cm wide.

Ducted or recirculating operation – suitable for exhaust air or recirculation; standard recirculation kit available as optional accessory.

LED lighting – 2 x LED lights with 4000 K colour temperature and 127 lux intensity for clear hob illumination.

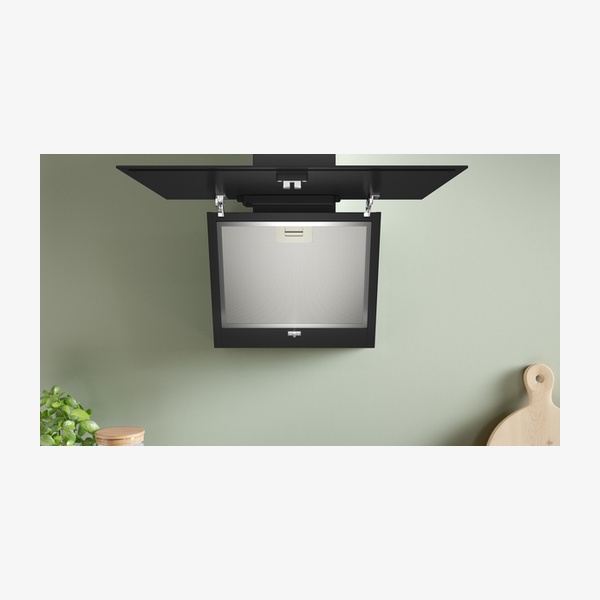

Easy–to–clean interior – large opening angle glass plate with locking function and smooth surfaces for easy filter access and cleaning.

Dishwasher–safe metal grease filters – removable washable aluminium/metal grease filters simplify maintenance.

Saturation indicators – saturation indicator for both metal and charcoal filters.

Energy Efficiency Class A – average energy consumption 43.8 kWh/year, with A class blower and lighting efficiency.

Safety clearances – minimum distance of 450 mm above electric hobs and 650 mm above gas hobs.

Optional accessories – DWZ1GK1A2 standard odour filter (replacement) and DWZ1GK1U2 standard recirculation kit.

Technical Spec

Product seriesSeries 2

ModelDWK85DK60B

Typology / InstallationWall-mounted cooker hood; inclined glass common design

Colour chimneyBlack

Front materialBlack glass, clear glass black printed

Operation typeSuitable for ducted or recirculating operation

Optional accessoriesDWZ1GK1A2 standard odour filter (replacement); DWZ1GK1U2 standard recirculation kit

Type of motorCapacitor motor

Control typeElectronic control via TouchControl, backlighted; Touch Select Basic Control

Speed settings3 stages + intensive setting

Automatic intensive resetAutomatic reset from intensive to normal setting after 5 min

Max. air extraction (exhaust)430 m³/h

Boost position air extraction550 m³/h

Max. air recirculation445 m³/h

Boost position output recirculating550.0 m³/h

Maximum air flow430 m³/h

Noise level (max)60 dB(A) re 1pW

Performance exhaust – Speed 1220 m³/h; 46 dB(A) re 1pW

Performance exhaust – Speed 2315 m³/h; 53 dB(A) re 1pW

Performance exhaust – Speed 3430 m³/h; 60 dB(A) re 1pW

Performance exhaust – Intensive 1550 m³/h; 65 dB(A) re 1pW

Performance recirculation – Speed 1215 m³/h; 51 dB(A) re 1pW (with standard recirculation kit)

Performance recirculation – Speed 2300 m³/h; 61 dB(A) re 1pW (with standard recirculation kit)

Performance recirculation – Speed 3445 m³/h; 69 dB(A) re 1pW (with standard recirculation kit)

Performance recirculation – Intensive550 m³/h; 72 dB(A) re 1pW (with standard recirculation kit)

Number of lights2 x LED

Light colour temperature4000 K

Light intensity127 lux

Grease filter material / numberWashable aluminium; 1 metal grease filter

Grease filter cleaningRemovable metal grease filters dishwasher-safe

Filter saturation indicatorsSaturation indicator for metal and charcoal filter

Energy Efficiency ClassA (range A+++ to D)

Average energy consumption43.8 kWh/year*

Blower efficiency classA*

Lighting efficiency classA*

Grease filtering efficiency classE*

Connection rating / Power rating223 W

Voltage220–240 V; nominal voltage 220–240 V

Frequency50 Hz

Fuse protection4 A

Plug typeGB plug

Length electrical supply cord / electrical cable150 cm; electrical cable length 1.5 m

Height of the appliance325 mm

Net weight11.3 kg

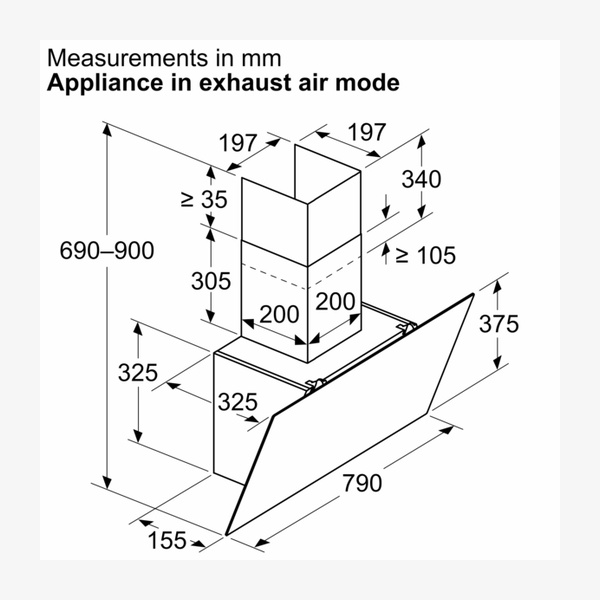

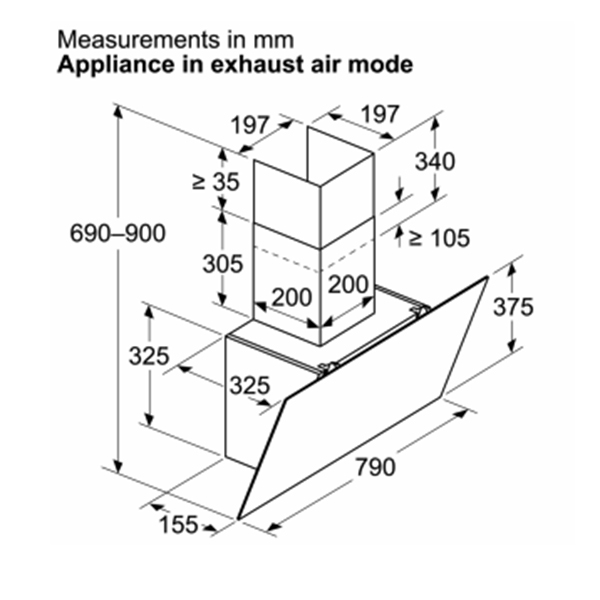

Dimensions exhaust air (H x W x D)690–900 x 790 x 325 mm

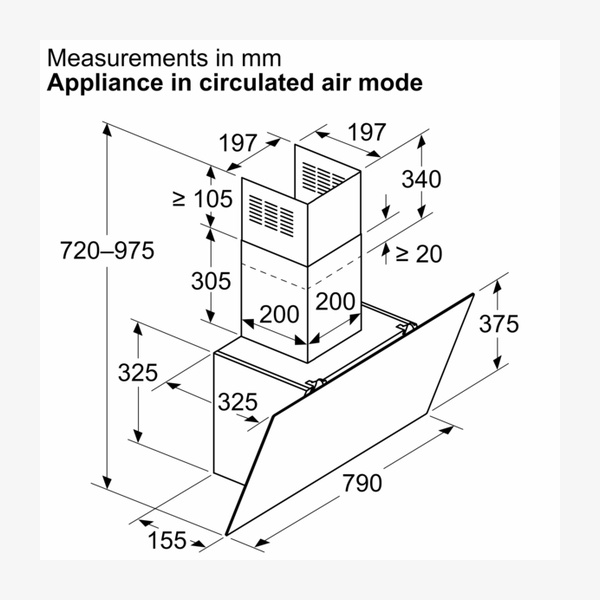

Dimensions recirculating (H x W x D)720–975 x 790 x 325 mm

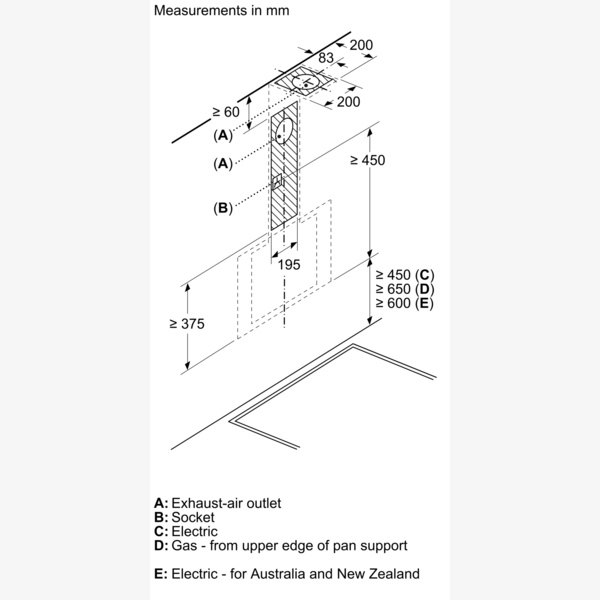

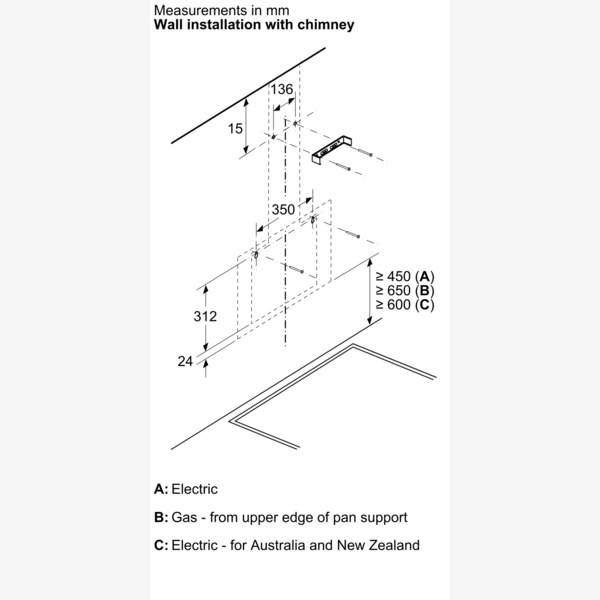

Minimum distance above electric hob450 mm

Minimum distance above gas hob650 mm

Diameter of air outlet / pipe150 mm; diameter pipe Ø 150 mm (Ø 150 mm enclosed)

Back-pressure flapYes

EAN code4242005396290

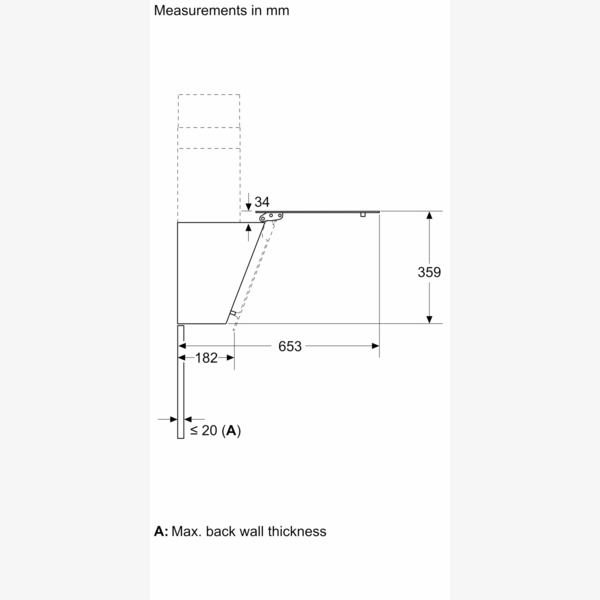

Other dimensions / planningMeasurements in mm for appliance in exhaust air mode and circulated air mode are provided in planning diagrams.

Downloads

Download product documentation, manuals, and specification sheets.

DWK85DK60B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in recirculation mode?

Yes. The hood is suitable for ducted or recirculating operation. For recirculated extraction, a recirculating kit is needed as an accessory. A standard recirculation kit (DWZ1GK1U2) is available as an optional accessory.

What optional accessories are available?

Optional accessories include the DWZ1GK1A2 standard odour filter (replacement) and the DWZ1GK1U2 standard recirculation kit for use in recirculation mode.

How many speed settings does the hood have?

The hood offers 3 power levels plus an intensive setting. The intensive setting automatically resets to a normal setting after 5 minutes.

Are the grease filters washable?

Yes. The hood is equipped with removable metal grease filters that are dishwasher-safe. The grease filter is made of washable aluminium, and the appliance includes a saturation indicator for the metal filter.

What is the energy efficiency rating?

The cooker hood has an Energy Efficiency Class A on a scale from A+++ to D. The blower efficiency class and lighting efficiency class are both A*, with an average energy consumption of 43.8 kWh/year*.

What is the maximum extraction rate and noise level?

In exhaust mode, the maximum standard extraction rate is 430 m³/h with a noise level of 60 dB(A) re 1pW, and up to 550 m³/h on Intensive 1 with a noise level of 65 dB(A) re 1pW. In recirculation mode with the standard kit, the maximum extraction rate is 445 m³/h at Speed 3 and 550 m³/h on Intensive.
