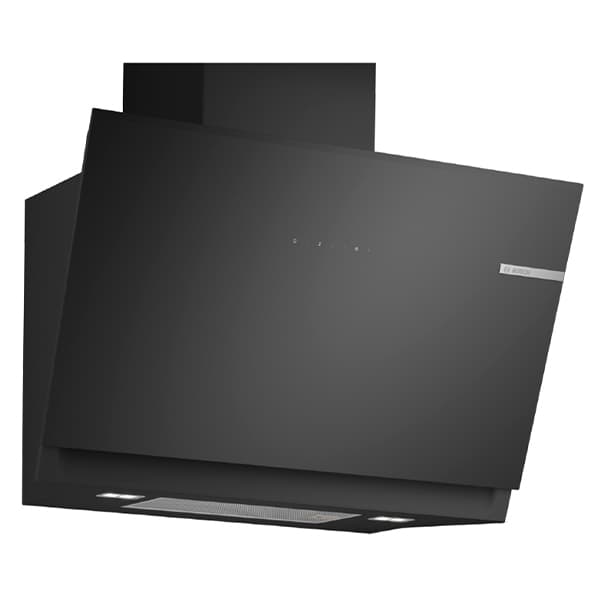

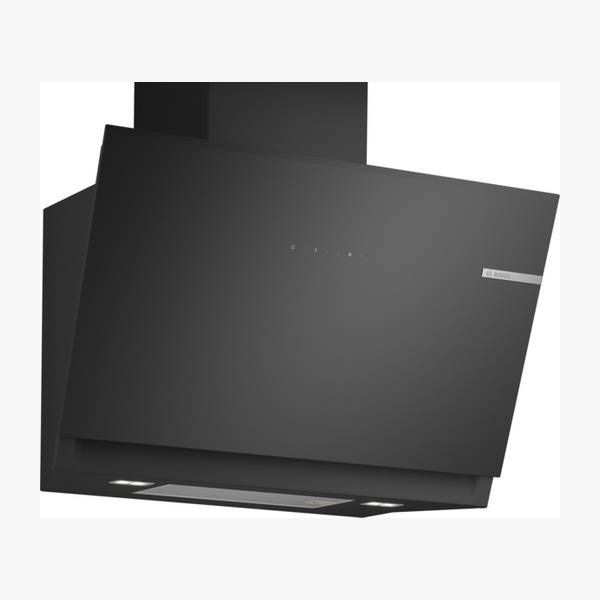

Bosch Series 6 DWK81AN60B Chimney Hood

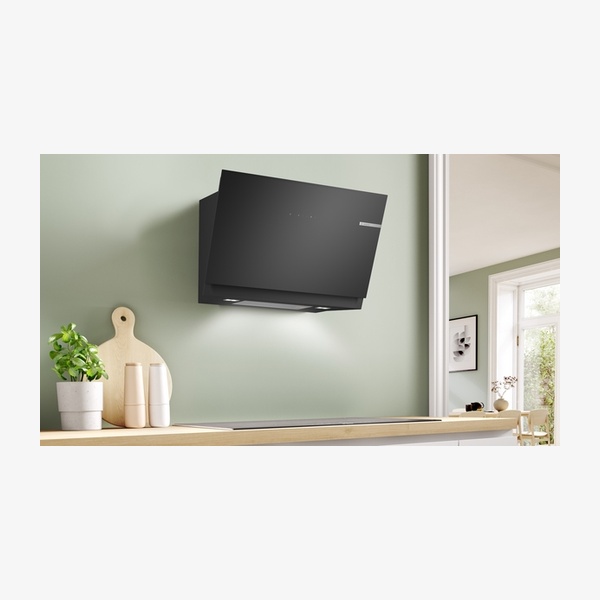

The Bosch Series 6 DWK81AN60B is an 80 cm wall-mounted cooker hood with an angled black glass design and clear glass black printed finish. It is suitable for ducted or recirculating operation, with chimless use possible in recirculation mode. Featuring EcoSilence Drive™, efficient BLDC technology and powerful extraction rates, it offers adjustable LED lighting, electronic TouchSelect control and smart Home Connect functions for comfortable, fully automatic operation.

SKU:DWK81AN60B

EAN:4242005391264

Category::Cooker Hoods

Quantity:

Key Features

EcoSilence Drive™ : powerful, energy-saving drive technology for the hood.

Wall-mounted angled glass design : black glass front with clear glass black printed, 80 cm wide.

Suitable for ducted or recirculating operation , with chimless recirculation possible using appropriate kits.

Home Connect smart control : operate, monitor and set preferences via smartphone or tablet where available.

Smart Hood Automatic : hood automatically adapts fan speed based on hob cooking data with a connected account.

TouchSelect electronic control : quickly select hood settings via touch.

3 power levels & intensive setting with automatic reset from intensive to normal after 6 minutes.

High extraction performance : boost position air extraction up to 915 m³/h; max air extraction 432 m³/h.

Powerboost position : hood can be opened to a defined boost position to increase catch rate of strong smells and steam.

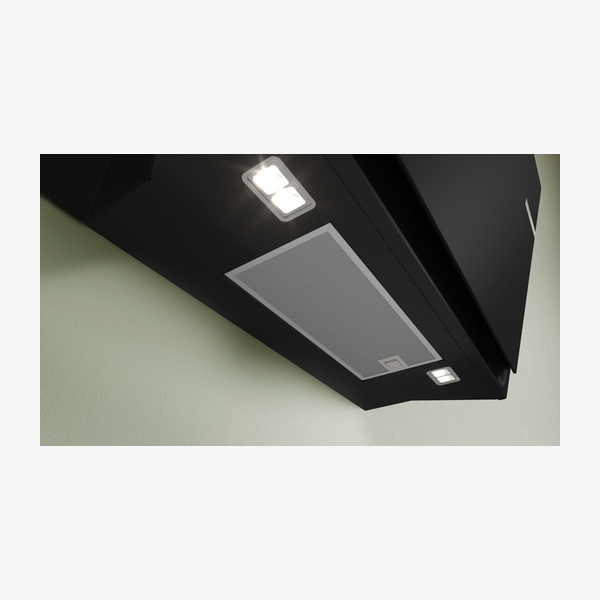

Temperature Light & dimmer : LED lighting with adjustable light temperature and Softlight dimmer function.

LED lighting : 2 x 3 W LEDs, approx. 3500 K colour temperature and 422 lux light intensity.

Dual capture areas : front side and bottom side for improved vapour capture.

Three metal grease filters made from washable stainless steel and removable, dishwasher-safe filters.

Automatic after running : 10 minute automatic after run, with additional after run function via app.

Hob based hood control : automatically activates the hood when cooking with a suitable WiFi-connected hob.

Voice Control enabled via popular voice assistants where this service is available.

Performance profiles : choose between standard, performance or silence profiles via the Home Connect app.

Filter saturation indicators : set and reset functions for grease and odour filters via the app.

Energy Efficiency Class A+* with average energy consumption of 35.5 kWh/year*.

Blower & lighting efficiency class A* and grease filtering efficiency class C*.

Low noise operation : noise level from 35 dB(A) re 1pW at speed 1 to 68 dB(A) re 1pW on intensive exhaust.

Made in Germany at a CO² neutral production site with environmentally friendly packaging.

Optional accessories include chimney extensions, Clean Air Plus kits and Long Life recirculation kits.

Technical Spec

Product nameSeries 6, Wall-mounted cooker hood DWK81AN60B

Design / typologyWall-mounted, angled glass design, black glass, clear glass black printed

Colour chimneyBlack

Installation typeWall-mounted, suitable for ducted or recirculating operation; chimless use possible in recirculation mode

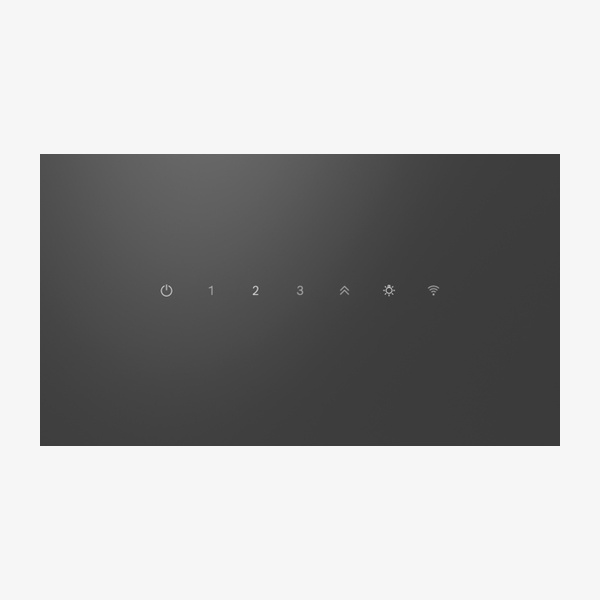

Control typeElectronic TouchSelect control

Number of speed settings3-stages + intensive setting

Maximum air extraction432 m³/h (exhaust)

Boost air extraction915 m³/h (boost position air extraction)

Maximum air recirculation438 m³/h

Boost position output recirculating886 m³/h

Noise level (exhaust mode)Speed 1: 223 m³/h; 35 dB(A) re 1pW Speed 2: 320 m³/h; 43 dB(A) re 1pW Speed 3: 432 m³/h; 51 dB(A) re 1pW Intensive 1: 915 m³/h; 68 dB(A) re 1pW

Noise level (recirculation with Clean Air Plus kit, chimney)Speed 1: 212 m³/h; 42 dB(A) re 1pW Speed 2: 315 m³/h; 51 dB(A) re 1pW Speed 3: 433 m³/h; 59 dB(A) re 1pW Intensive 1: 896 m³/h; 76 dB(A) re 1pW

Energy Efficiency Class*A+ (at a range of energy efficiency classes from A+++ to D)

Average energy consumption*35.5 kWh/year*

Blower efficiency class*A*

Lighting efficiency class*A*

Grease filtering efficiency class*C*

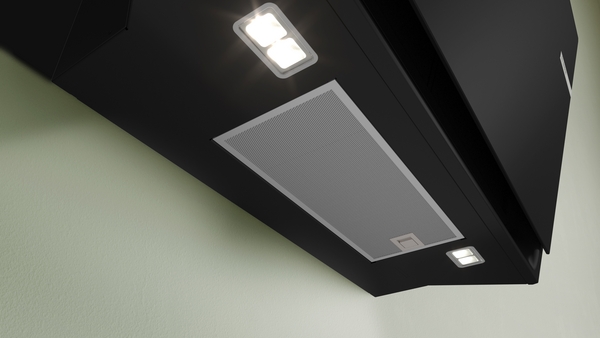

Lighting2 PC LED, 3 W each; colour temperature approx. 3500 K; light intensity 422 lux; Softlight dimmer and dimmer function

Temperature Light featureAdjust LED light temperature from warm to cold white; adjustable via Home Connect app

Grease filter materialWashable stainless steel; 3 metal grease filters

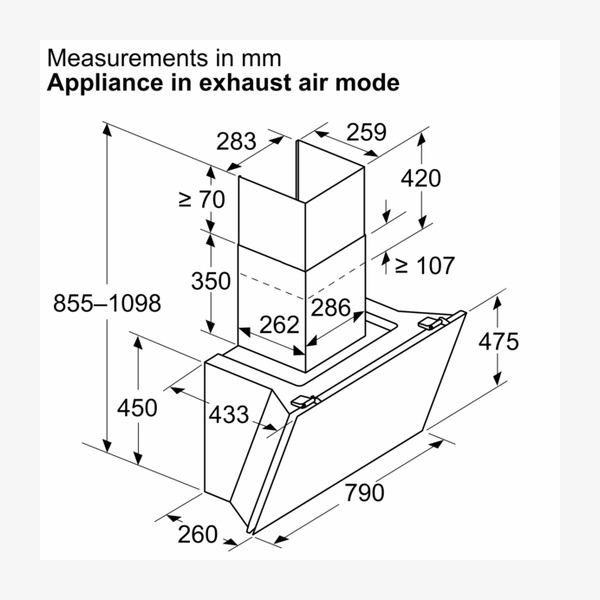

Dimensions exhaust air (H×W×D)855–1098 mm × 790 mm × 433 mm

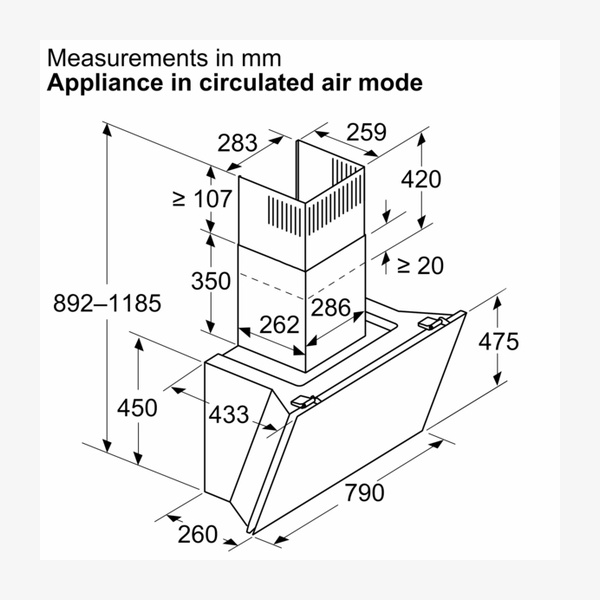

Dimensions recirculating (H×W×D)892–1185 mm × 790 mm × 433 mm

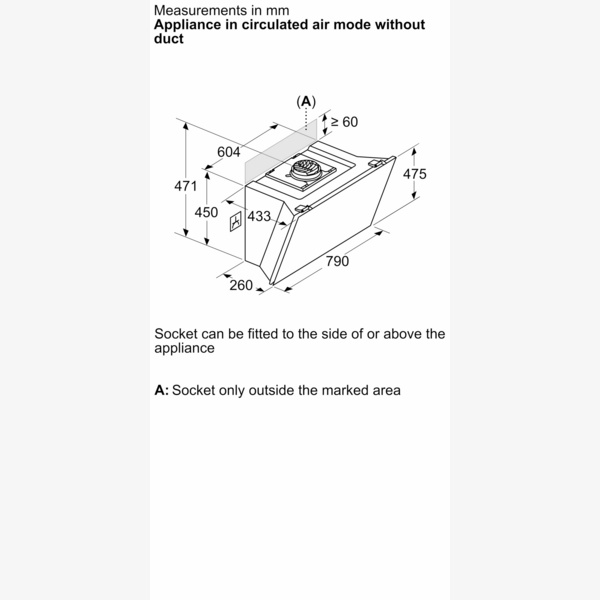

Dimensions recirculating, chimless (H×W×D)471 mm × 790 mm × 433 mm

Height of chimney420–663/457–750 mm

Height of appliance450 mm

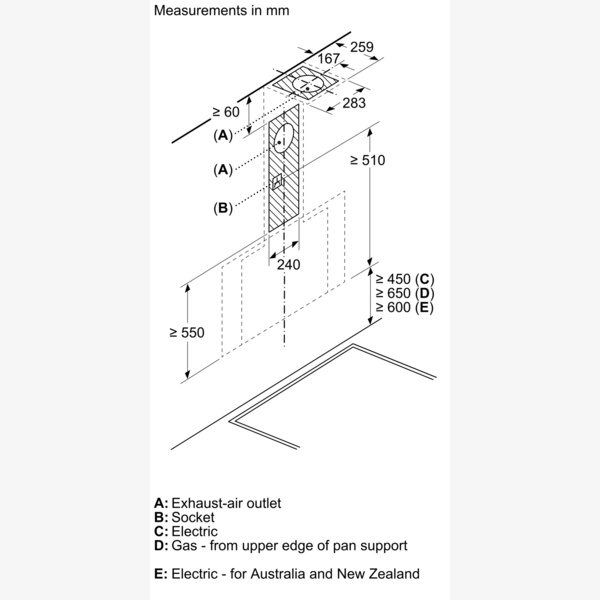

Minimum distance above electric hob450 mm

Minimum distance above gas hob650 mm

Diameter of air outlet150 mm (diameter pipe Ø 150 mm enclosed)

Length electrical supply cord130 cm (electrical cable length 1.3 m)

Net weight25.1 kg

Connection rating200 W (power rating 200 W)

Fuse protection10 A

Voltage220–240 V (nominal voltage 220–240 V)

Frequency50; 60 Hz

Plug typeGB plug

Back-pressure flapNo

Country of manufacture / sustainabilityMade in Germany at a CO² neutral production site; environmentally friendly packaging; efficient blower technology

EAN code4242005391264

Downloads

Download product documentation, manuals, and specification sheets.

DWK81AN60B Spec

PDF

Frequently Asked Questions

Can this cooker hood be used in both ducted and recirculating modes?

Yes. The DWK81AN60B is suitable for ducted or recirculating operation. In recirculation mode, chimless use is possible when using a Clean Air Plus recirculation kit or a Long Life recirculation kit, available as accessories.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 450 mm, and the minimum distance above a gas hob is 650 mm.

How powerful is the extraction on this hood?

In exhaust mode, the maximum air extraction is 432 m³/h, with a boost position air extraction of up to 915 m³/h. In recirculation mode, the maximum air recirculation is 438 m³/h, with a boost position output recirculating of 886 m³/h.

Is the lighting adjustable?

Yes. The hood features 2 x 3 W LED lights with a Softlight dimmer function and a dimmer for brightness. With the Temperature Light feature, you can adjust the LED light temperature from warm to cold white, including via the Home Connect app.

How easy is it to clean the filters?

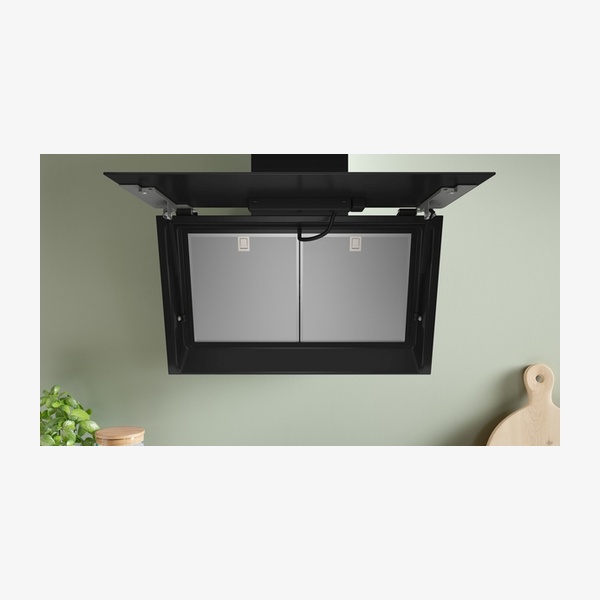

The hood has an extremely large opening angle for easy filter accessibility. It includes three removable metal grease filters made of washable stainless steel, which are dishwasher-safe for convenient cleaning.

Does this model support smart home features?

Yes. With Home Connect, you can operate, monitor and set preferences via smartphone or tablet in supported countries. The hood supports hob based hood control, Smart Hood Automatic, performance profiles, voice control where available, and software updates via a connected Home Connect account.
