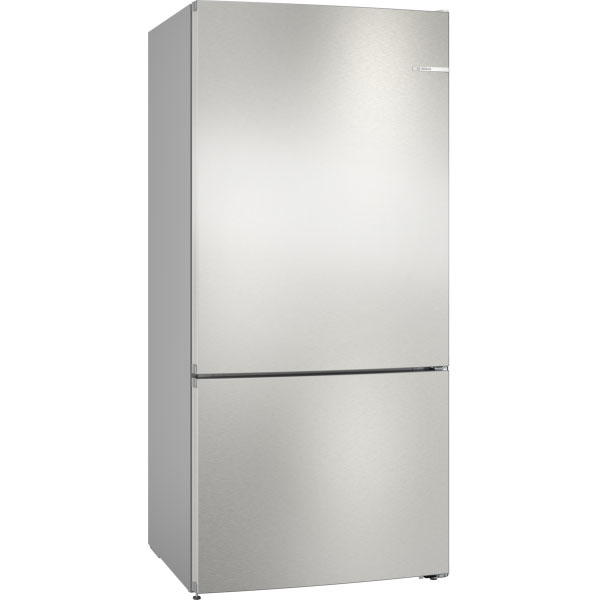

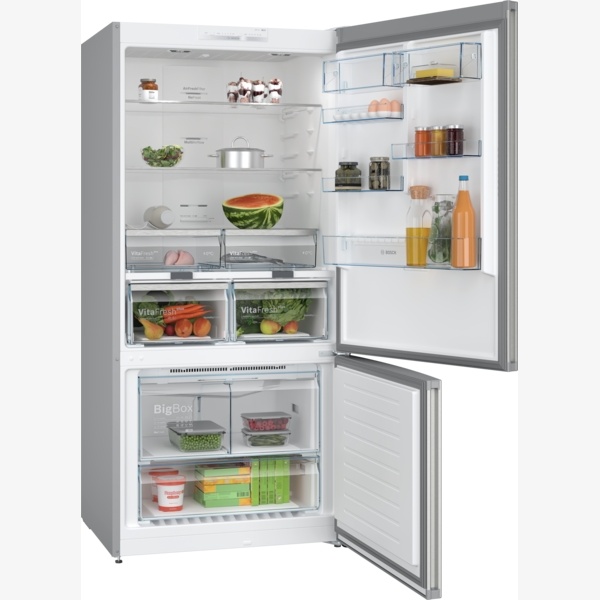

Bosch Series 4 KGN86VIEAG Fridge Freezer

The Bosch Series 4 KGN86VIEAG is a free–standing No Frost fridge–freezer with the freezer at the bottom and an XXL 631 l total capacity. Designed with brushed steel anti–fingerprint doors and a stainless steel look, it features Perfect Fit installation, bright interior LED lighting and convenient Easy Access shelving. VitaFresh drawers with temperature and humidity control help keep meat, fish, fruit and vegetables fresh for longer, while separate cooling circuits provide independent temperature control.

SKU:KGN86VIEAG

EAN:4242005528721

Category::Fridge Freezers

Quantity:

Key Features

XXL capacity – total volume of 631 l with 479 l fridge and 152 l freezer for extra storage space.

No Frost bottomfreezer – no need to defrost the freezer thanks to frost free system in fridge and freezer.

Perfect Fit design – place the appliance right next to walls or other appliances to save space.

LED lighting – bright interior LED fridge light keeps all items in clear view.

Easy Access Shelf – pull–out glass shelf for easier access to everything inside the fridge.

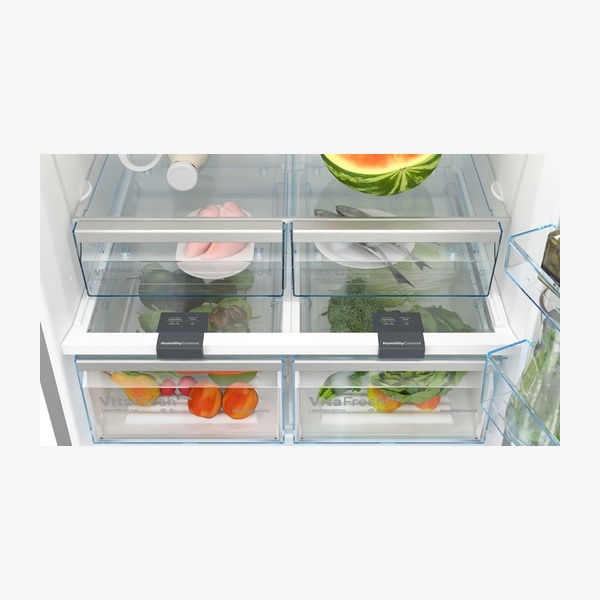

VitaFresh 0°C drawers – 2 drawers with temperature control so fish and meat stay fresh for longer.

VitaFresh humidity drawers – 2 drawers with humidity control so fruits and vegetables stay fresh and vitamin–rich up to 2 times longer.

Separate cooling circuits – independent temperature control and prevention of humidity transfer between fridge and freezer.

MultiAirflow system – improves air circulation around the fridge for more even cooling.

Super Cooling function – automatic deactivation after rapid cooling.

Right hinged, reversible door – right hinge as standard with reversible option and height adjustable front feet.

Low noise level – airborne acoustical noise emissions of 40 dB(A) re 1pW, noise emission class C.

Energy efficiency class E – average annual energy consumption of 307 kWh/annum.

Stainless steel look doors – brushed steel anti–fingerprint finish with Pearl grey side panels and integrated vertical handle.

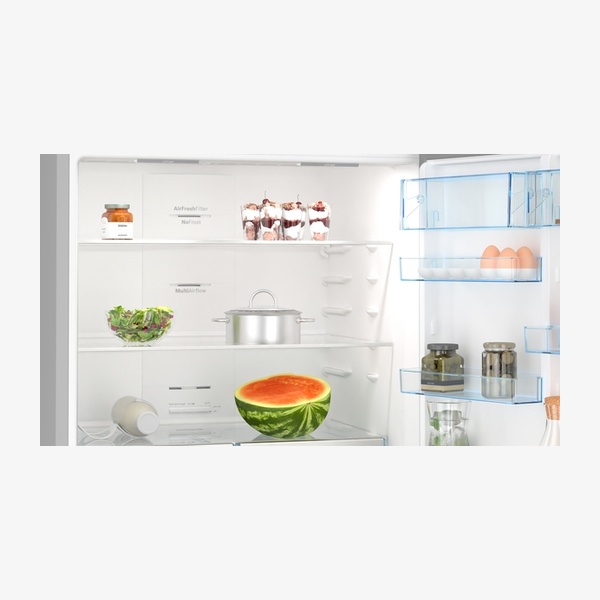

Flexible storage – 3 safety glass shelves (2 height adjustable), 3 wave bottle holder, and 1 large plus 3 small door shelves.

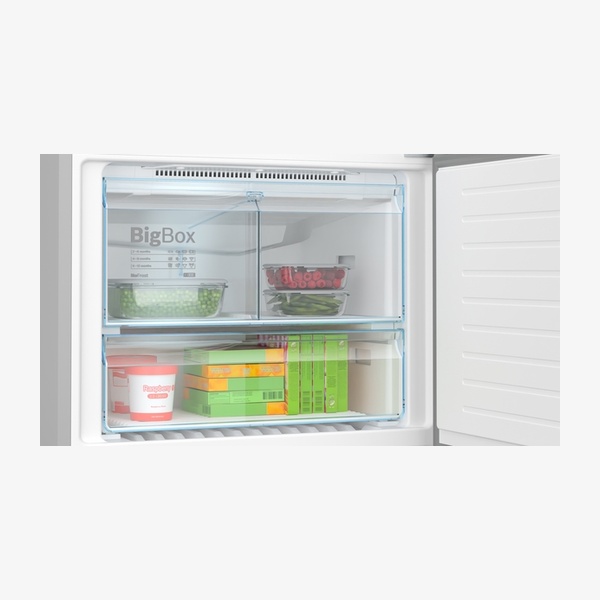

Practical freezer storage – 2 freezer drawers plus 3 x egg tray and 1 x ice cube tray.

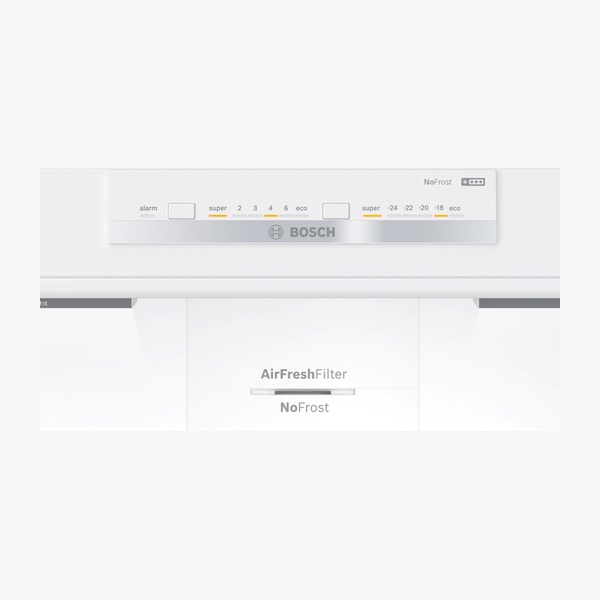

Optical and acoustical control – visual and audible indications for selected functions.

Technical Spec

Product name / modelSeries 4, free–standing fridge–freezer with freezer at bottom, KGN86VIEAG

Installation typologyFree–standing

Door panel optionsNot possible

FinishBrushed steel anti–fingerprint; stainless steel look doors and Pearl grey (VZF 07127) side panels

HandleIntegrated vertical handle

Energy Efficiency ClassE (EU19_EEK_D: E)

Annual energy consumption307 kWh/annum (307 kWh/a)

Total volume631 l

Net fridge volume479 l (sum of volume of chill compartments: 479 l)

Net freezer volume152 l (sum of volume of frozen compartments: 152 l)

Freezing capacity (24 h)10 kg

Climate classSN–T

Temperature rise time17 H (EU19_Temperature rise time_D: 17 H)

Noise level40 dB(A) re 1pW; noise emission class C (EU19_Noise emission class_D: C)

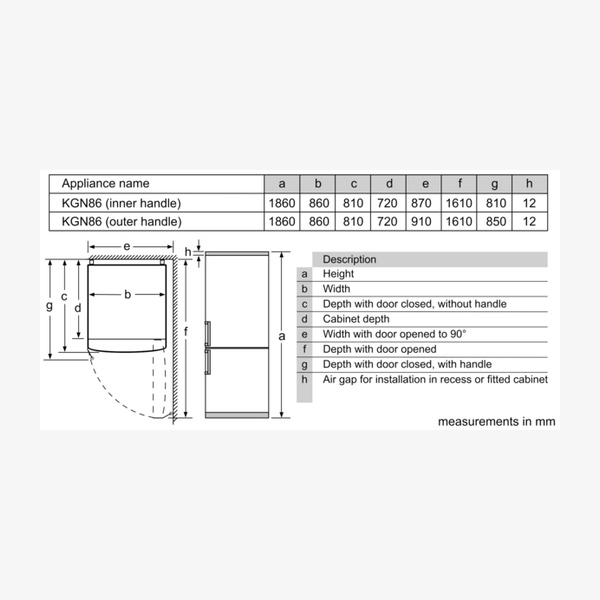

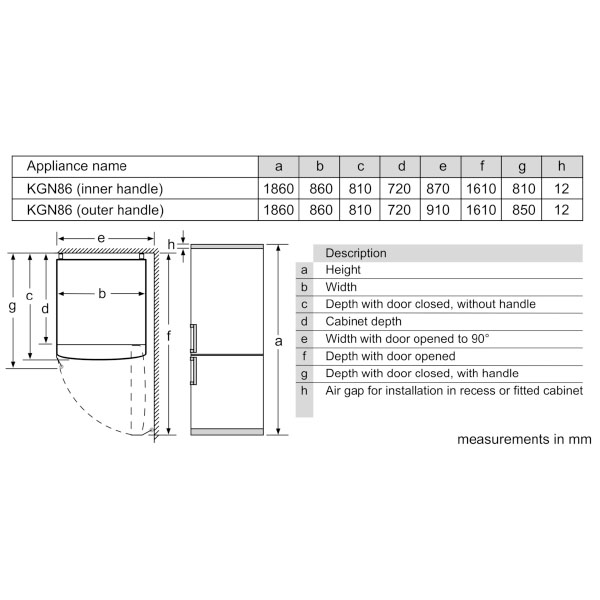

Height1860 mm (186 cm)

Width860 mm (86 cm)

Depth810 mm (81 cm)

Net weight106.8 kg

Door hingeRight reversible; Reversible Door Hinge: Yes

Built–in / Free–standingFreestanding / Free–standing

Voltage220–240 V

Frequency60 Hz

Fuse protection10 A

Length of electrical supply cord240.0 cm (Length of power cord: 240 cm)

Number of compressors1

Number of independent cooling systems2

Interior ventilatorNo

Frost free systemFridge and freezer (No Frost, Fridge freezer)

Number of adjustable shelves in fridge2 (3 safety glass shelves, 2 height adjustable)

Shelves for bottlesYes – 3 wave bottle holder

Door shelves in fridge1 large and 3 small

Freezer drawers2 freezer drawers

Accessories3 x egg tray, 1 x ice cube tray

EAN code4242005528721

Additional energy noteBased on standard 24–hour test. Actual consumption depends on usage and position. Using distance holders increases depth by about 3.5 cm and achieves declared energy consumption; appliance is fully functional without them but with slightly higher energy consumption.

Downloads

Download product documentation, manuals, and specification sheets.

KGN86VIEAG Spec

PDF

Frequently Asked Questions

Do I ever need to defrost the freezer?

The appliance has a No Frost bottomfreezer and a frost free system in both the fridge and freezer, so there is no need to defrost the freezer.

What is the total capacity of the fridge–freezer?

The total volume is 631 l, with a net fridge volume of 479 l and a net freezer volume of 152 l.

Can this model be placed directly next to a wall or other appliances?

Yes. The Perfect Fit design allows the fridge–freezer to be placed right next to walls or other appliances to save space.

How does VitaFresh help keep food fresh?

There are 2 VitaFresh 0°C drawers with temperature control so fish and meat stay fresh for longer, and 2 VitaFresh drawers with humidity control so fruits and vegetables stay fresh and vitamin–rich up to 2 times longer.

What is the noise level of this fridge–freezer?

Airborne acoustical noise emissions are 40 dB(A) re 1pW, and the noise emission class is C.

Is the door reversible?

Yes. The door is right hinged as standard and reversible, with Reversible Door Hinge stated as Yes.
