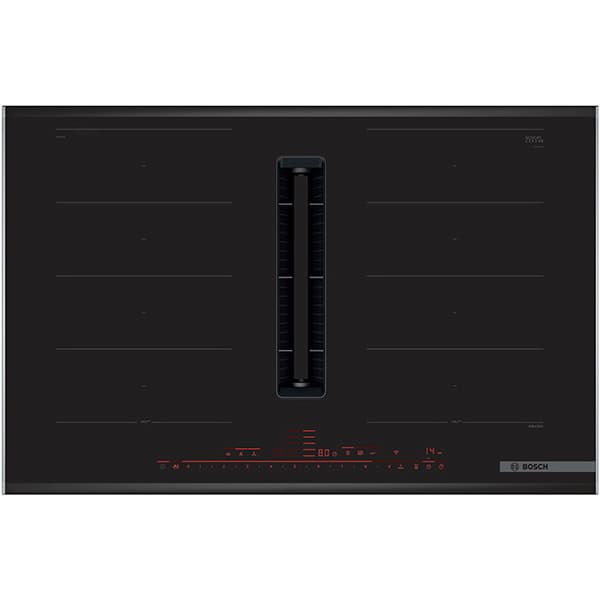

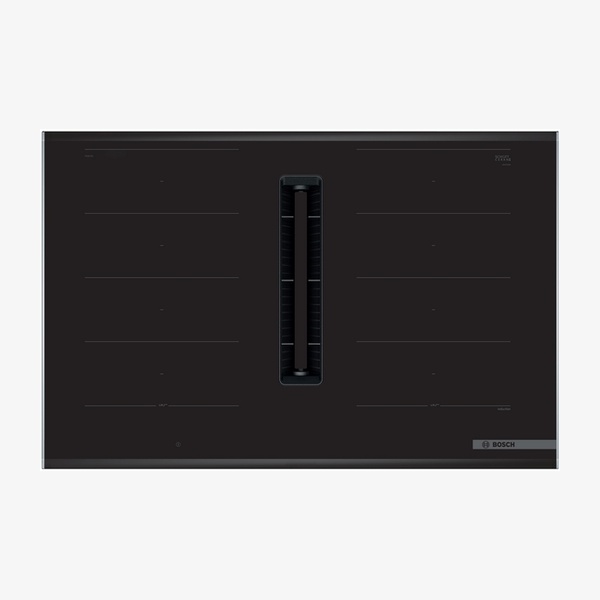

Bosch Serie 8 PXX875D67E Venting Induction Hob

The Series 8 PXX875D67E is an 80 cm built–in induction hob with a fully integrated downdraft ventilation system, designed for installation into a 60 cm base cabinet. It offers four cooking zones with two FlexInduction areas, DirectSelect Premium touch control and advanced functions such as PowerBoost, PerfectAir sensor and PerfectFry. A Clean Air Plus odour filter and slider for unducted recirculation are included for convenient ducted or recirculated extraction configurations.

SKU:PXX875D67E

EAN:4242005192540

Category::Hobs

Quantity:

Key Features

Integrated ventilation module – extracts steam and cooking odours directly at the source via a fully integrated downdraft extractor.

80 cm width – provides space for 4 pots or pans across four induction cooking zones.

2 FlexInduction zones – use cookware of any shape or size anywhere within the 40 cm long zone, with automatic connection of zones for large cookware.

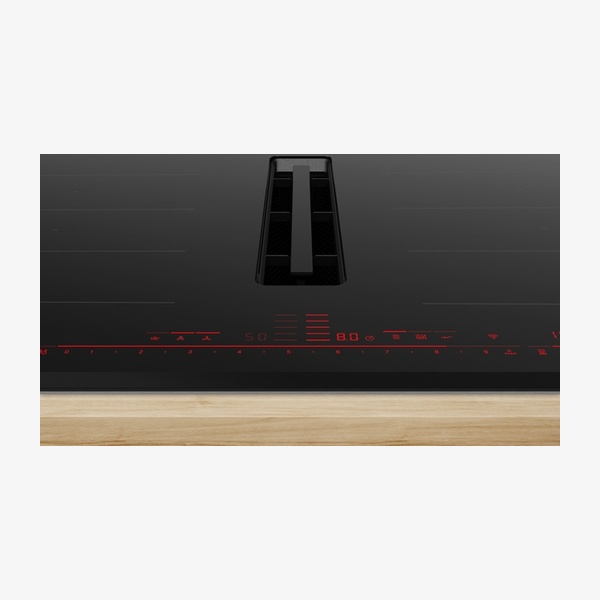

DirectSelect Premium touch control – directly control power via an extra large illuminated touch bar that is invisible when switched off.

PerfectAir sensor – automatically controls hood settings for maximum extractor performance with minimal noise.

PerfectCook sensor ready – prevents overboiling by automatically regulating temperature via an additional sensor (sensor sold separately).

PerfectFry with 5 frying and 5 cooking levels – helps prevent overcooking with automatic temperature regulation using an integrated sensor.

PowerBoost for all zones – boils water faster with 50% more energy than the highest standard level.

PanBoost function – heats pans faster than the highest standard level while helping to protect pan coatings.

17–stage power settings – precise heat control with 9 main levels and 8 intermediate levels for each zone.

Keep warm function – keeps dishes warm at a preset low power level.

Home Connect enabled – allows checking if the hob is switched off, and provides access to recipes and additional functions via the app.

Automatic ventilation control – sensor–based, fully automatic adjustment of fan power levels with 17 fan stages plus 2 Boost/Intensive levels.

Energy–efficient BLDC blower – delivers high extraction rates at low noise with psycho–acoustically and aerodynamically optimised interior design.

High–performance grease filtration – stainless–steel filters with 12 filtration layers and 94% grease filtration efficiency.

Clean Air Plus odour filters – optimised for complex odours such as fish, with anti–pollen functionality and 360 hours lifetime (non–regenerative).

Comprehensive liquid management – 200 ml upper liquid collector plus 700 ml liquid safety collector for a total capturing capacity of 900 ml.

Two–stage residual heat indicators – show which zones are still hot or warm for added safety.

Control panel lock and Freeze function – prevent unintended activation and allow wiping spills without changing settings.

Energy consumption display – shows the electricity consumption of the last cooking process.

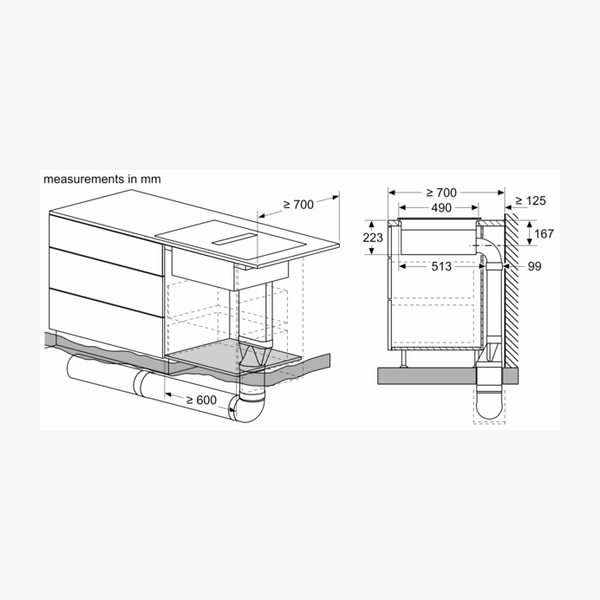

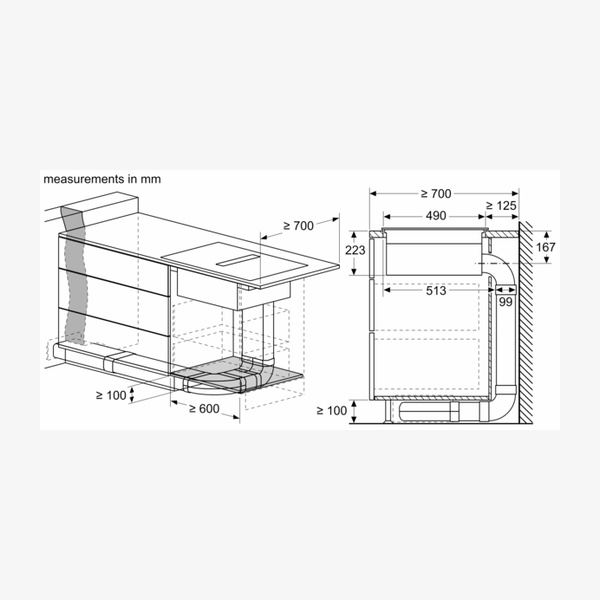

Suitable for ducted or recirculated installation – supports unducted, partly and fully ducted recirculation or ducted extraction.

Energy Efficiency Class B – with Fluid Dynamic Efficiency class A and grease filtration efficiency class B for the ventilation system.

Included accessories – slider for unducted recirculation and Clean Air Plus odour filter.

Optional accessories range – compatible with wireless food thermometer, pans, pots, Teppan Yaki plates, exhaust and recirculation kits, ducting parts and more (see Technical Specifications).

Technical Spec

Product nameSeries 8, Induction hob with integrated ventilation system, 80 cm, surface mount with frame

Model codePXX875D67E

Appliance typeCooking zone ceramic

InstallationBuilt–in, suitable for installation into a 60 cm base cabinet

Heating typeElectric hob (induction)

Number of cooking zones4

Flex zones2 Flex zones, each 40 cm long

Cooking zone front left200 mm, 240 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone rear left200 mm, 240 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone rear right200 mm, 240 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone front right200 mm, 240 mm, 2.2 kW (max. power 3.7 kW)

PowerBoostPowerBoost function for all zones (50% more energy than highest standard level)

PanBoostPanBoost function for faster pan heating

Power levels17–stage power settings for each zone (9 main + 8 intermediate)

ControlsDirectSelect Premium touch control, front control panel

Convenience timersTimer for all zones, count up timer per cooktop, usage time display and acoustic alarm

Keep warm functionYes (preset low power level)

Automatic functionsAutomatic zone connection on Flex zone, MoveMode (3 levels), automatic setting transfer, automatic zone selection, QuickStart and ReStart functions

ConnectivityHome Connect enabled; Dish assistant via Home Connect app

Cooking assistancePerfectCook sensor ready (sensor sold separately), PerfectFry with 5 frying and 5 cooking levels

Ventilation typeFully integrated downdraft extractor, suitable for ducted or recirculated extraction (convertible air circulation)

Fan power settings17 electronically controlled fan power levels + 2 Boost/Intensive levels with automatic revert

Max. air extraction (ducted)500 m³/h (max. normal), 622 m³/h (Boost/Intensive)

Min. air extraction (ducted)154 m³/h (min. normal, according to EN 61591)

Max. air recirculation499 m³/h (max. normal), 595 m³/h (Boost/Intensive)

Min. air recirculation132 m³/h (min. normal, according to EN 61591)

Noise level (ducted)42 dB re 1 pW (min. normal), 69 dB re 1 pW (max. normal), 74 dB re 1 pW (Boost/Intensive)

Noise level (recirculated)41 dB re 1 pW (min. normal), 68 dB re 1 pW (max. normal), 72 dB re 1 pW (Boost/Intensive)

Odour filterClean Air Plus odour filters for recirculation; saturation indication and reminders via user interface and Home Connect app

Grease filterIntegrated stainless–steel grease filters with 12 filtration layers; grease filtration efficiency 94%

Grease filtration efficiency classB (according to Regulation (EU) No 65/2014)

Energy Efficiency Class (ventilation)B (range from A+++ to D)

Fluid Dynamic EfficiencyA

Average energy consumption (ventilation)57 (unit not stated in source)

Residual heat indicatorSeparate, 2 stage residual heat indicator for each zone

Basic surface materialCeramic glass with floating, heat–resistant glass ceramics air intake element

Surface colourBlack, Stainless steel

Frame colourStainless steel (profile trim with front facette and side trim)

Dimensions (H x W x D)223 x 816 x 527 mm

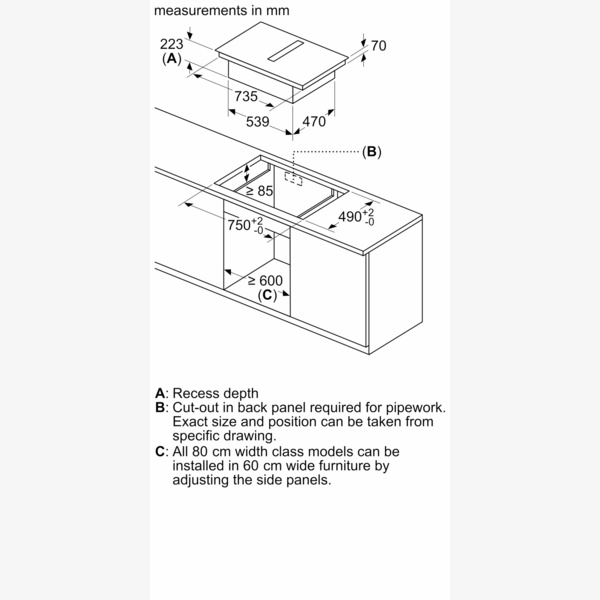

Required niche size (H x W x D)223 x 750–750 x 490–490 mm

Minimum worktop thickness16 mm (top mounted and flush installed with standard installation system)

Max. immersion depth223 mm below worktop surface

Dimensions of packed product (H x W x D)430 x 940 x 660 mm

Net weight28.7 kg

Gross weight33.4 kg

Overall appliance weight (planning notes)26 kg (bearing capacity and stability must be supported as required)

Electrical connectionConnected load 7.4 kW; power management options for 16A, 13A or 10A connection

Voltage220–240/380–415 V

Frequency50–60 Hz

Power cordLength 1.1 m; cable included

Sealed burnersNo

Heating with boosterAll zones

Power of 2nd heating element3300.0 W

Noise level (general spec)69 dB(A) re 1 pW

Clean filter remindersYes

Safety featuresControl panel lock, Freeze function, main on/off switch, automatic safety shut off, watertight blower system, Needle Flame Test compliant (IEC 60695–11–5), V2 flammability class (UL94)

Liquid collectionUpper liquid collector 200 ml; liquid safety collector 700 ml; total capturing capacity 900 ml, easily detachable and dishwasher safe

Included accessories1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter

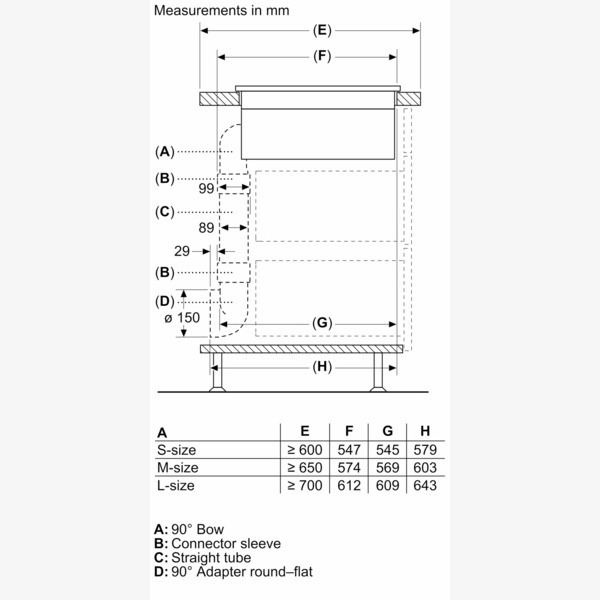

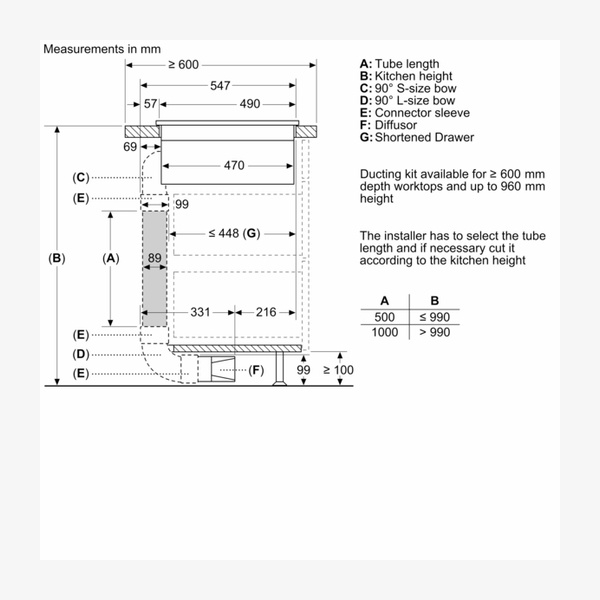

Optional accessoriesHEZ32WA00 Wireless food thermometer; HEZ390011 Stainless Steel roaster with glas lid; HEZ390012 Steaming Rack for Stainless Steel roaste; HEZ39050 Wireless temperature sensor for cooktop; HEZ390512 Teppan Yaki (large); HEZ390522 Griddle Plate; HEZ9CF240 Fry pan, coated 24cm Ø; HEZ9CF280 Fry pan, coated 28cm Ø; HEZ9ES100 Espresso maker 4 cups; HEZ9FE280 Iron pan Ø 18 / 28 cm; HEZ9FF010 Flex Pan, large; HEZ9FF030 Flex Pan set, 3 pcs.; HEZ9FF040 Flex Pan set, 4 pcs.; HEZ9SE030 Set of 2 pots and 1 pan; HEZ9SE040 4 pieces Set; HEZ9SE060 6 pieces Set; HEZ9TY010 Teppan Yaki; HEZ9VDKE1 Exhaust kit; HEZ9VDKR0 Recirculation kit 2 L–bow (70cm); HEZ9VDKR1 Recirculation kit S and L–bow (60cm); HEZ9VDKR2 Recirculation kit 1x L–bow; HEZ9VDSB1 90° flat duct bend horizontal; HEZ9VDSB2 90° flat duct L vertical; HEZ9VDSB3 90° flat duct M vertical; HEZ9VDSB4 90° flat duct S vertical; HEZ9VDSI0 Adapter round–flat; HEZ9VDSI1 90° Adapter round–flat; HEZ9VDSM1 Straight tube 500mm; HEZ9VDSM2 Straight tube 1000mm; HEZ9VDSS1 Connector sleeve (female); HEZ9VDSS2 Flex sleeve (female); HEZ9VEDU0 Acoustics Filter; HEZ9VRCR1 Clean Air Plus odor filter (replacement); HEZ9VRPD1 Plinth Diffusor

Downloads

Download product documentation, manuals, and specification sheets.

PXX875D67E Spec

PDF

Frequently Asked Questions

Can this hob be used with both ducted and recirculated extraction?

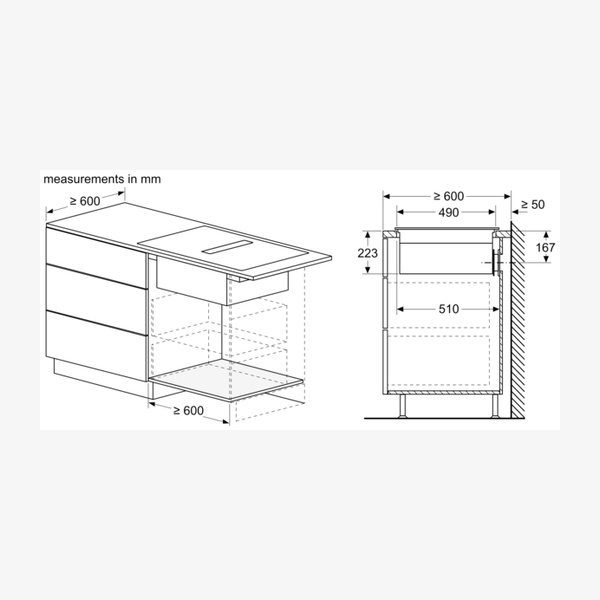

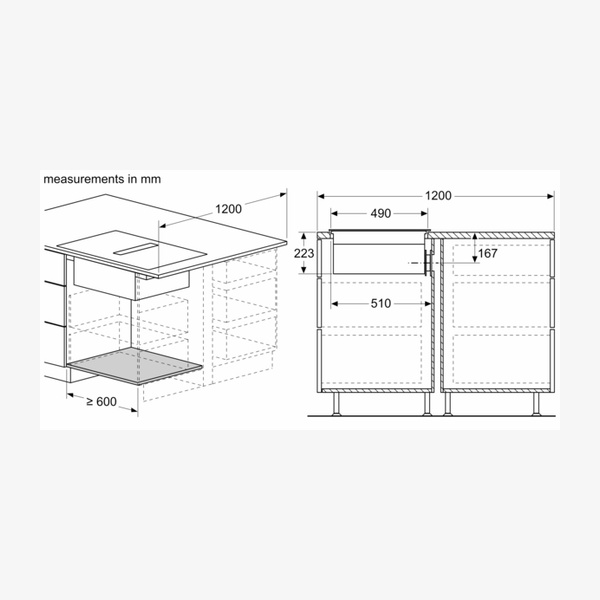

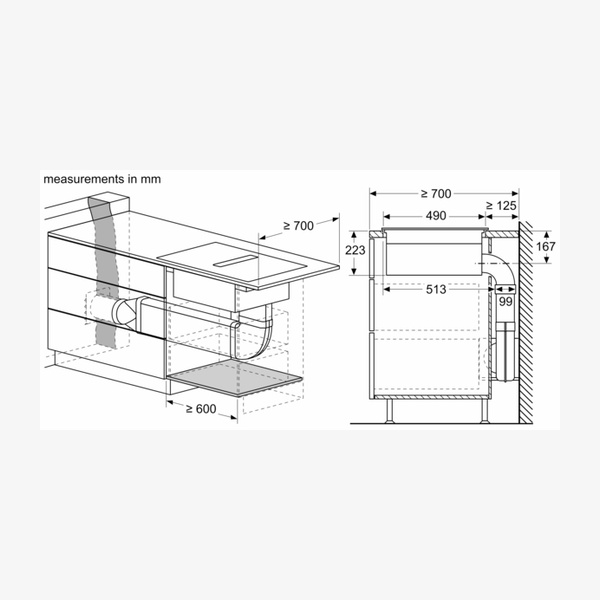

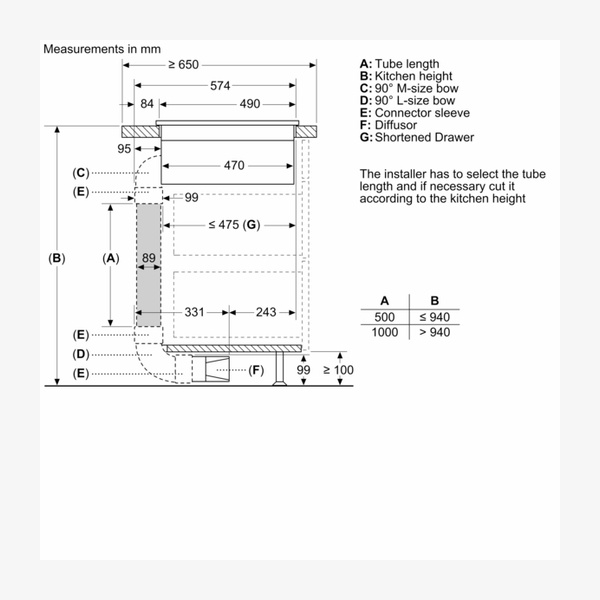

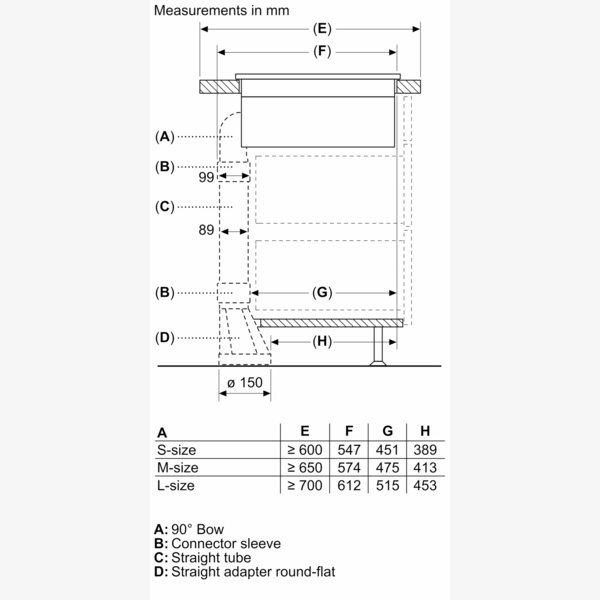

Yes. The integrated ventilation system is suitable for ducted or recirculated extraction and supports four options: unducted, partly ducted recirculation, fully ducted recirculation and ducted extraction. Installation accessories for unducted recirculation are included, while additional kits are recommended for other configurations.

What filters are included and how are odours handled?

A slider for unducted recirculation and a Clean Air Plus odour filter are included. For recirculation, the system uses 2 x 2 batteries of directly integrated Clean Air odour filters with a large surface and high odour reduction capabilities, optimised for complex odours such as fish. They also provide anti–pollen functionality and have a lifetime of 360 hours of cooking.

Is the hob compatible with smart home functions?

The hob is Home Connect enabled. This allows you to check if the hob is switched off when you are not at home and to access recipes and additional functions, including the Dish assistant and filter saturation notifications for the Clean Air filters, via the Home Connect app.

How easy is it to clean the ventilation components?

The grease filter and liquid collector unit can be removed easily with one hand using the floating glass ceramics handle. The stainless–steel grease filters, upper liquid collector and lower liquid safety collector are fully dishwasher safe and heat resistant. The system also features a powerful drainage system and a watertight blower.

What safety features does this hob offer?

Safety features include 2 stage residual heat indicators for each zone, a control panel lock, Freeze function, main on/off switch, automatic safety shut off and a watertight blower system. The appliance and its accessories meet the Needle Flame Test requirements (IEC 60695–11–5) and V2 flammability class (UL94).

What is the minimum worktop requirement for installation?

The minimum worktop thickness is 16 mm for both top mounted and flush installations using the standard installation system. The maximum immersion depth of the appliance is 223 mm below the worktop surface, and it is suitable for worktop depths of at least 60 cm when using the included unducted recirculation accessories.
