Bosch Series 4 PVS811B16E Venting Hob

This 80 cm Series 4 induction hob with integrated downdraft ventilation (PIE811B15E) combines induction cooking with a fully integrated high-performance extractor. It offers four cooking zones with TouchSelect controls, PowerBoost and 17-stage power settings. Suitable for ducted or recirculated extraction, it includes accessories for unducted recirculation and Clean Air Plus odour filtration, making it a practical built-in solution for modern kitchens.

SKU:PVS811B16E

EAN:4242005433698

Category::Hobs

Quantity:

Key Features

80 cm induction hob with 4 zones – space for 4 pots or pans across front and rear left/right cooking zones.

Integrated downdraft ventilation system – induction cooktop with fully integrated high-performance extractor for ducted or recirculated operation.

TouchSelect control – control the power with imprinted +/− touch buttons and front-located control panel.

17-stage power settings for each zone – 9 main levels and 8 intermediate levels for precise heat control.

PowerBoost for all zones – up to 50 % more power for faster heating, e.g. boil water faster than at the highest standard level.

QuickStart and ReStart functions – automatic zone selection when cookware is detected and restoration of previous settings after unintentional switch-off (within 4 seconds).

Timer with switch-off function – timer for all zones that turns off the assigned cooking zone at the end of the set time.

Child safety and control panel lock – handy ChildLock and control panel lock to prevent unintended activation and changes.

2-stage residual heat indicator – indicates which cooking zones are still hot or warm for added safety.

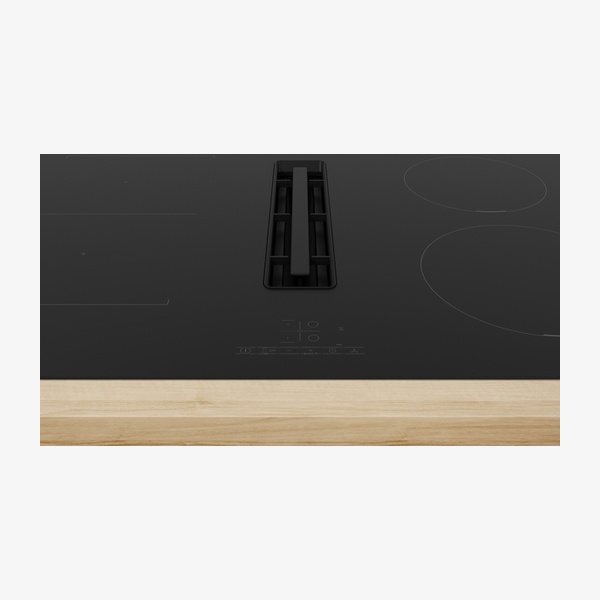

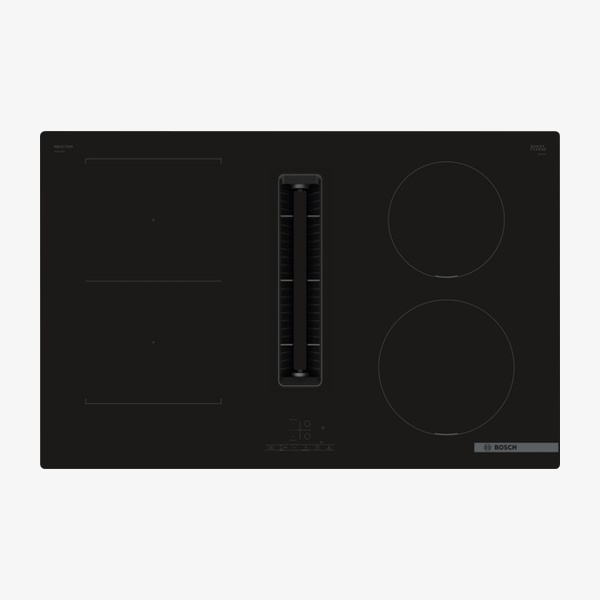

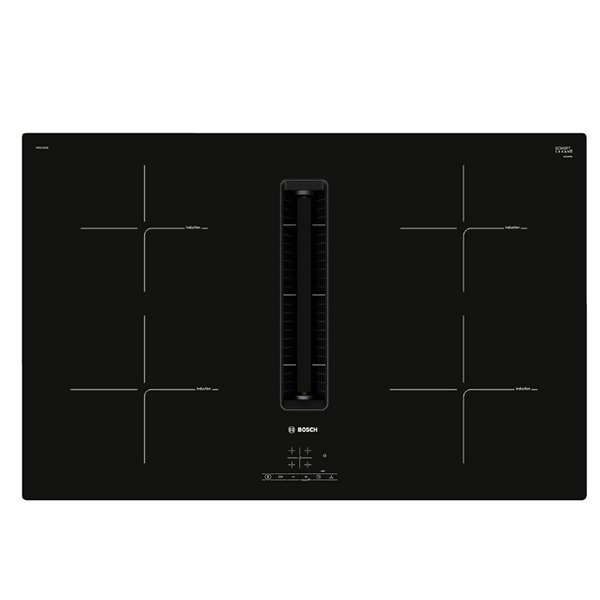

Frameless black ceramic glass design – surface mount without frame with basic surface material in ceramic glass and colour black.

High-performance, low-noise blower – BLDC technology with high extraction rates at very low noises and psycho-acoustically optimised interior.

3 fan levels plus Boost/Intensive – 3 electronically controlled fan power levels and 1 Boost/Intensive level with automatic revert.

Automatic ventilation control – automatic switch-on with cooking, delayed shut-off to erase residual odours, and fully manual control via TouchSelect.

Efficient stainless-steel grease filters – integrated, large-scale grease filters with 12 filtration layers and 94 % grease filtration efficiency.

Easy cleaning of filter and liquid collector – convenient one-hand removal, all parts dishwasher safe and heat resistant.

Liquid collector and safety collector – 200 ml upper liquid collector plus 700 ml liquid safety collector, giving 900 ml overall capacity.

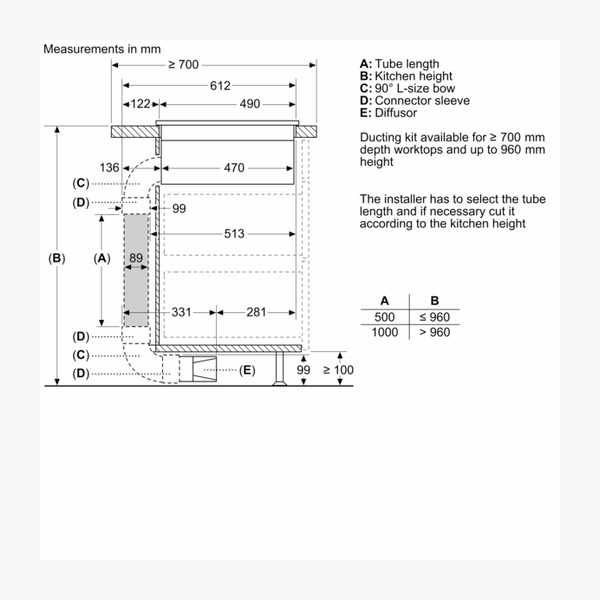

Convertible air circulation – suitable for unducted, partly and fully ducted recirculation or ducted extraction with appropriate accessories.

Included ventilation accessories – installation accessories for unducted recirculation with four cleanAir odour filters and a telescopic slider element.

Energy-efficient extractor – Energy Efficiency Class B, Fluid Dynamic Efficiency A, grease filtration efficiency class B.

CleanAir odour filters for recirculation – directly integrated high-performance filters optimised for complex odour molecules with lifetime of 360 hours of cooking.

Power management options – connected load 7.4 kW with options for 16 A, 13 A or 10 A connection to limit maximum power.

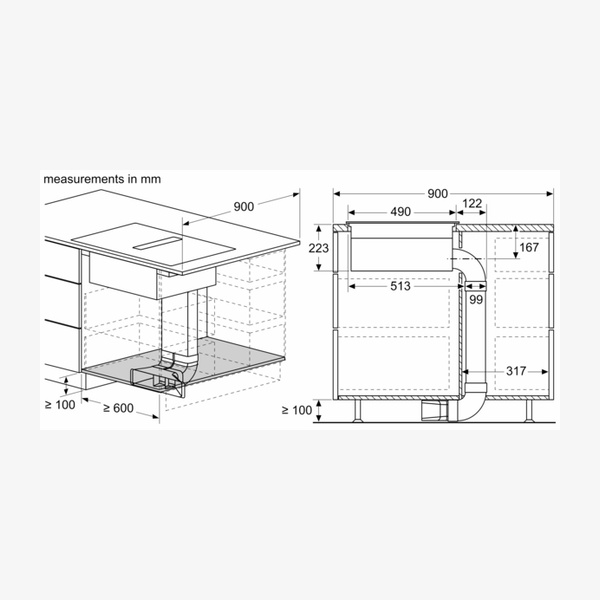

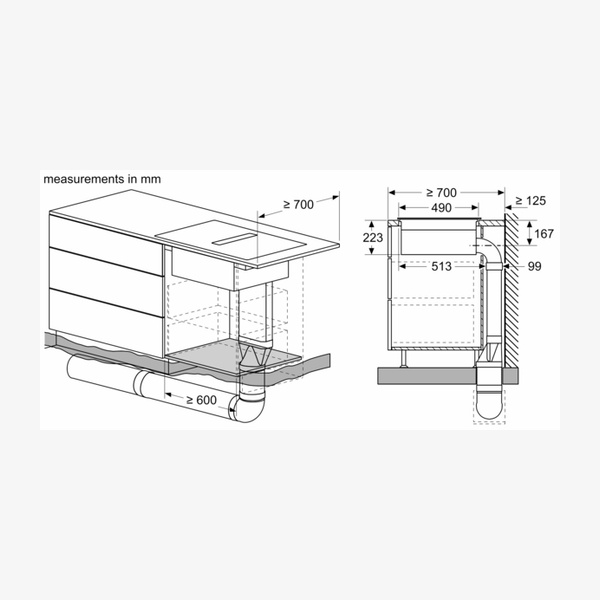

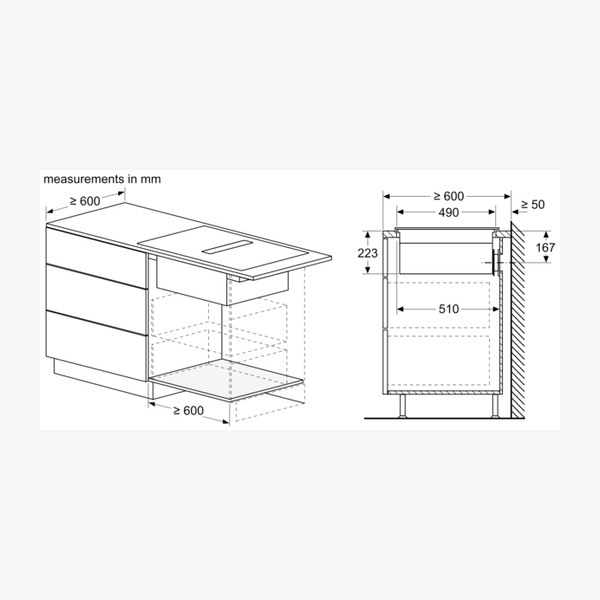

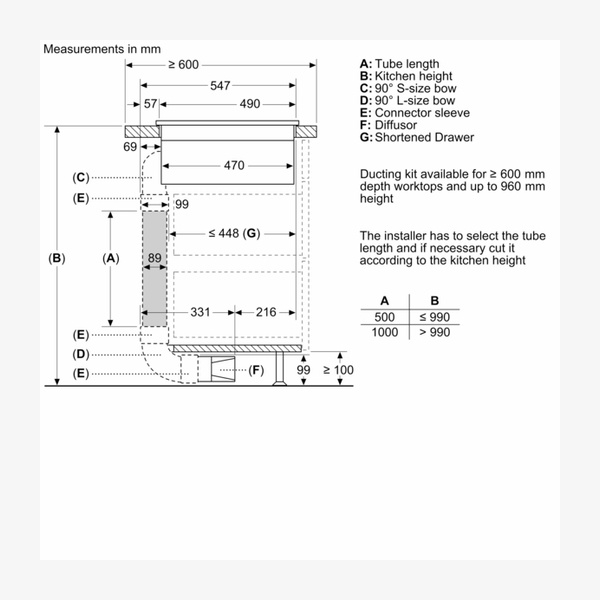

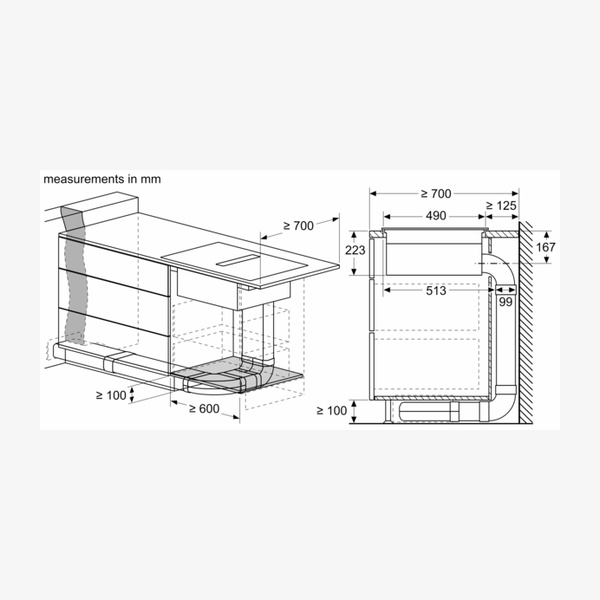

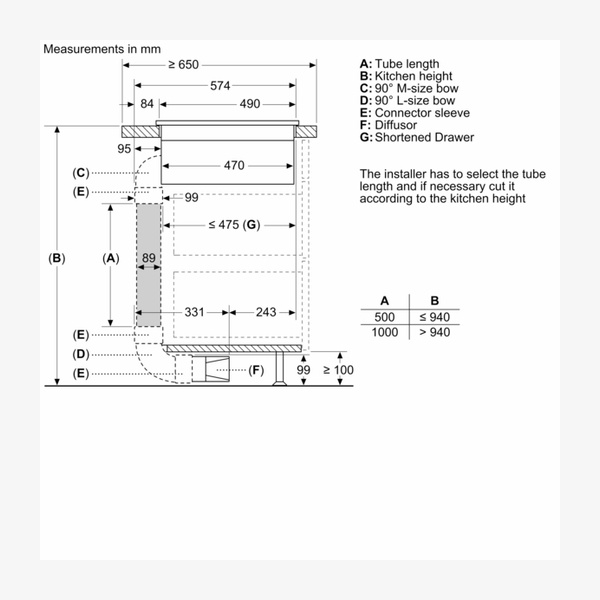

Flexible installation planning – suitable for island or wall-oriented configurations, with accessories for various ducting layouts.

Safety features for cooking and ventilation – main on/off switch, automatic safety shut-off and watertight blower system.

Included accessories – 1 x Slider for unducted recirculation and 1 x Clean Air Plus odour filter.

Technical Spec

Product nameSeries 4, Induction hob with integrated ventilation system, 80 cm, surface mount without frame, PIE811B15E

Appliance typeCooking zone ceramic

Built-in / Free-standingBuilt-in

Heating typeElectric hob, induction cooktop with integrated downdraft extractor

Number of cooking zones4

Cooking zone front left210 mm, 2.2 kW (max. power 3.7 kW)

Cooking zone rear left180 mm, 1.8 kW (max. power 3.1 kW)

Cooking zone rear right180 mm, 1.8 kW (max. power 3.1 kW)

Cooking zone front right210 mm, 2.2 kW (max. power 3.7 kW)

Heating with boosterAll

Power of heating element2.2 kW

Power of 3rd heating element1.8 kW (3.1 kW in boost)

Power of 5th heating element1.8 kW

Control typeTouchSelect with imprinted +/− touch buttons; front control panel

Power levelsVariable 17-stage power settings for each zone (9 main levels and 8 intermediate levels)

Timer functionsTimer for all zones with switch-off; usage time display; acoustic alarm

Width of appliance802 mm

Product dimensions (H x W x D)223 x 802 x 522 mm

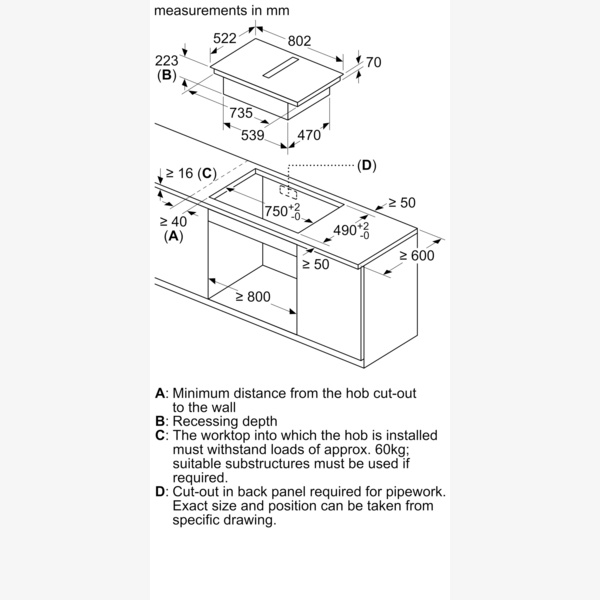

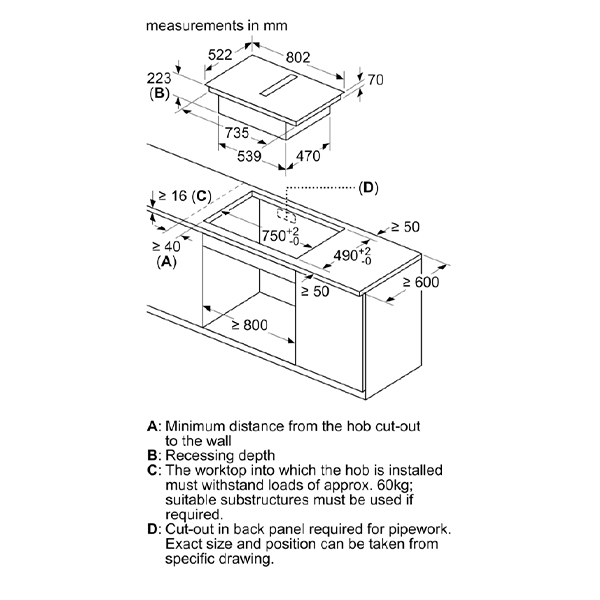

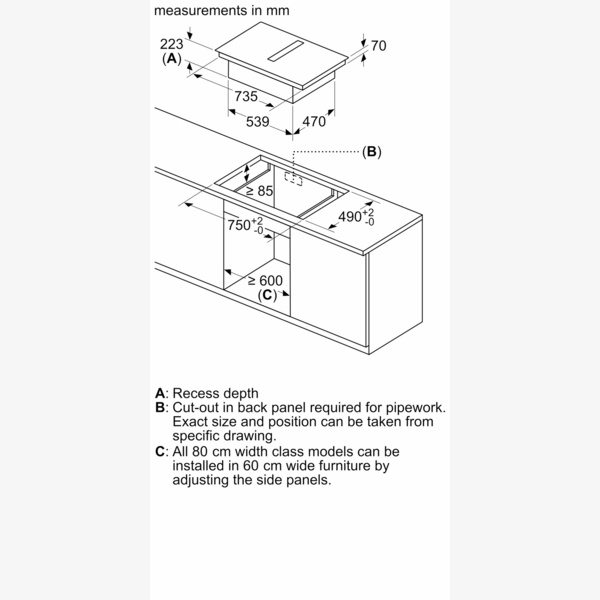

Required niche size (H x W x D)223 x 750 x 490–500 mm

Min. worktop thickness16 mm

Packed product dimensions (H x W x D)430 x 940 x 660 mm

Net weight24.7 kg

Overall appliance weight26 kg

Gross weight31.0 kg

Residual heat indicatorSeparate; 2 stage residual heat indicator for each zone

Basic surface materialCeramic glass

Colour of surfaceBlack

DesignFrameless design; aesthetically integrated fully flush air intake with floating, heat resistant glass ceramics element

Length of electrical supply cord110.0 cm (power cord 1.1 m, cable included)

Voltage220–240/380–415 V

Frequency50; 60 Hz

Connected load7.4 kW

Power management optionsPower management options for 16 A, 13 A or 10 A connection

Number of speed settings (ventilation)3-stages + intensive setting (Boost-/Intensive level)

Max. air extraction (ducted)500 m³/h (max. normal setting)

Boost air extraction (ducted)622 m³/h (max. Boost-/Intensive setting)

Min. air extraction (ducted)330 m³/h (min. normal setting)

Max. air recirculation441 m³/h (max. normal setting)

Boost air recirculation595 m³/h (max. Boost-/Intensive setting)

Min. air recirculation252 m³/h (min. normal setting)

Noise level (ducted)61–69 dB(A) re 1 pW normal settings; 74 dB(A) re 1 pW Boost-/Intensive setting

Noise level (recirculated)55–66 dB(A) re 1 pW normal settings; 72 dB(A) re 1 pW Boost-/Intensive setting

Grease filter efficiency94 % (according to EN 61591); grease filtration efficiency class B

Energy Efficiency Class (ventilation)B (range A+++ to D)

Fluid Dynamic EfficiencyA

Average energy consumption57 (unit not stated in source)

Odour filterNo (general spec); for recirculation configuration: integrated cleanAir odour filters

Air circulation typeConvertible; suitable for ducted or recirculated extraction

Clean filter remindersYes

Max. immersion depth below worktop223 mm

Included accessories (cooking)1 x Slider for unducted recirculation, 1 x Clean Air Plus odour filter

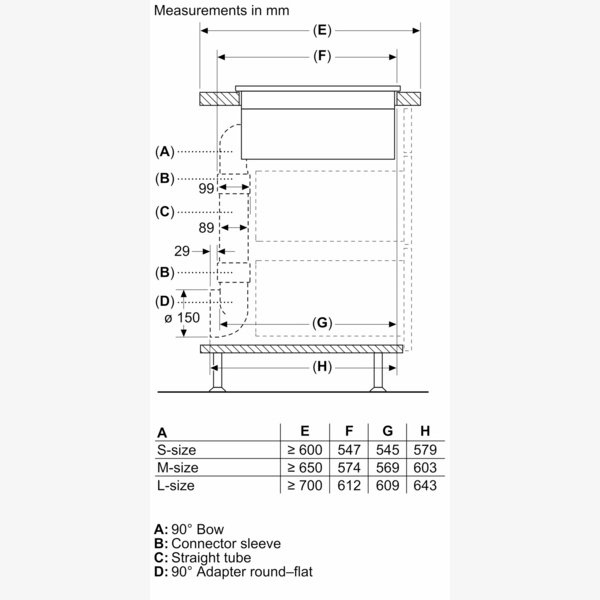

Optional accessories (examples)HEZ390230 System pan (21 cm), HEZ9ES100 Espresso maker 4 cups, HEZ9FE280 Iron pan Ø 18/28 cm, HEZ9SE030, HEZ9SE040, HEZ9SE060 cookware sets; HEZ9VDKE1, HEZ9VDKR0, HEZ9VDKR1, HEZ9VDKR2 ducting kits; HEZ9VDSB1, HEZ9VDSB2, HEZ9VDSB3, HEZ9VDSB4 duct bends; HEZ9VDSM1, HEZ9VDSM2 straight tubes; HEZ9VDSS1 connector sleeve, HEZ9VDSS2 flex sleeve; HEZ9VEDU0 acoustics filter; HEZ9VRCR0 and HEZ9VRCR1 cleanAir filter sets; HEZ9VRPD1 plinth diffusor

Sealed burnersNo

Compliance (flammability)Complies with Needle Flame Test (IEC 60695-11-5) and V2 flammability class (UL94)

Downloads

Download product documentation, manuals, and specification sheets.

PVS811B16E Spec

PDF

Frequently Asked Questions

How many cooking zones does the PIE811B15E have and what sizes are they?

The hob has 4 cooking zones. The front left and front right zones are 210 mm with 2.2 kW power (max. 3.7 kW). The rear left and rear right zones are 180 mm with 1.8 kW power (max. 3.1 kW).

Can this induction hob be used with both ducted and recirculating extraction?

Yes. The integrated ventilation system is suitable for ducted or recirculated extraction and can be installed in unducted, partly and fully ducted recirculation or ducted extraction configurations, using the appropriate accessories.

What safety features are included on the hob?

The hob includes a control panel lock, ChildLock, 2 stage residual heat indicators for each zone, Freeze function, main on/off switch and automatic safety shut-off that stops heating after a preset time if not used.

How easy is it to clean the integrated ventilation system?

The grease filter and liquid collector unit can be removed with one hand using the floating glass ceramics handle. All parts of the unit, including the stainless-steel grease filters and the liquid collectors, are fully dishwasher safe and heat resistant.

What is included with the hob for recirculation installation?

Installation accessories for unducted recirculation are included, among these four cleanAir odour filters and a telescopic slider element. Additionally, 1 x Slider for unducted recirculation and 1 x Clean Air Plus odour filter are listed as included accessories.

What is the energy efficiency rating of the ventilation system?

According to Regulation (EU) No 65/2014, the ventilation system has Energy Efficiency Class B, Fluid Dynamic Efficiency A, and grease filtration efficiency class B.
