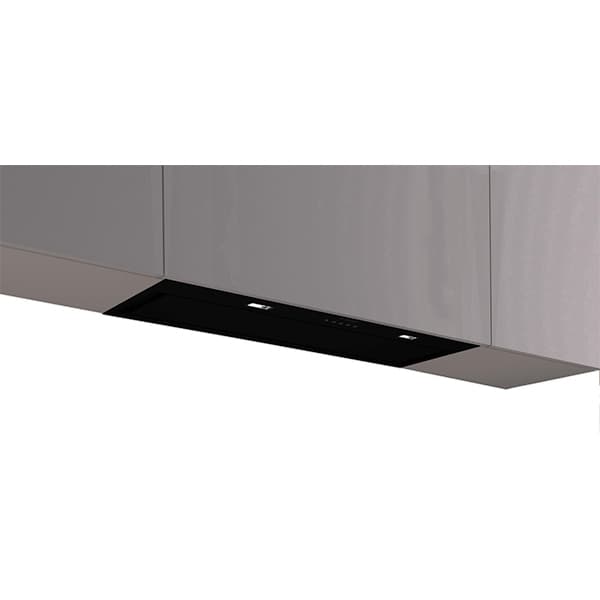

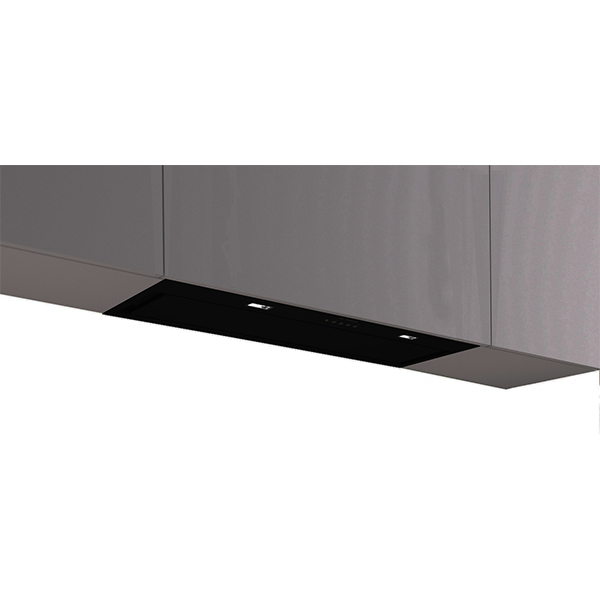

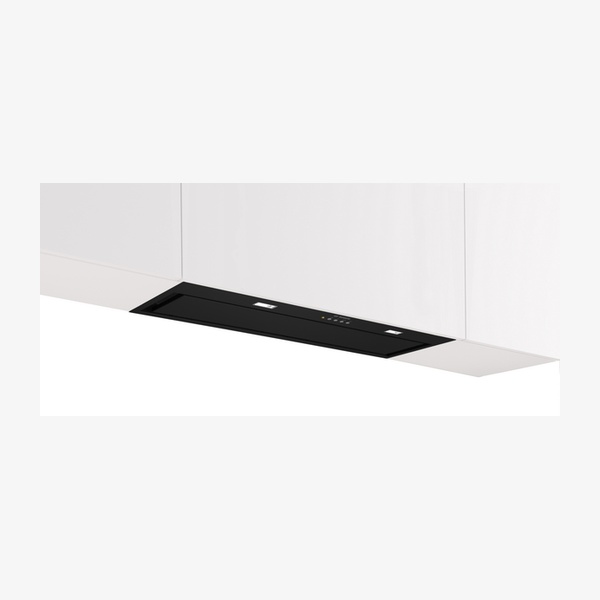

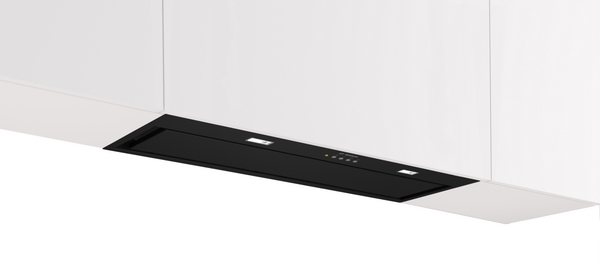

Bosch Series 6 DLN87AC60B Canopy Hood

The Series 6 DLN87AC60B is an 86 cm black canopy cooker hood designed to fit neatly under an overhead unit or cabinet, providing discreet extraction while using valuable space effectively. Suitable for both ducted and recirculating operation, it offers a high extraction rate, quiet performance and an intensive setting for intense steam. Energy–saving LED lighting delivers clear, bright illumination for the hob, while dishwasher–safe metal grease filters support easy cleaning.

SKU:DLN87AC60B

EAN:4242005526659

Category::Cooker Hoods

Quantity:

Key Features

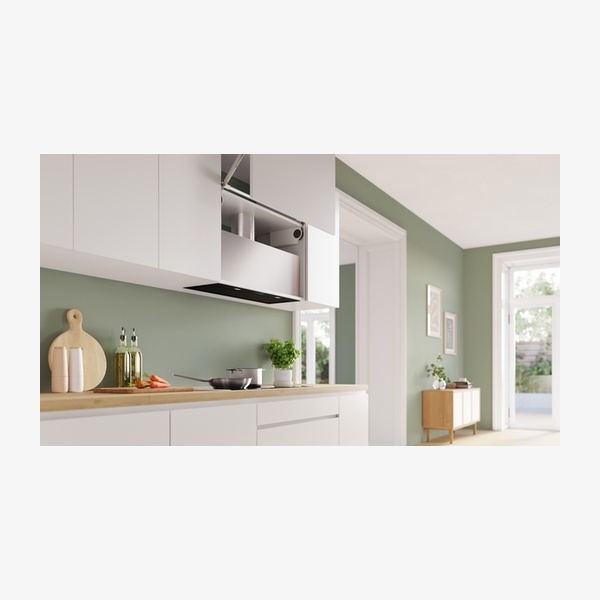

Canopy hood design – fits neatly under an overhead unit or cabinet for discreet, space–efficient installation.

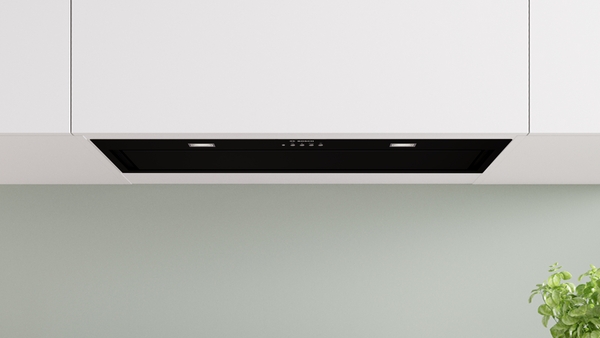

Seamless integration – flush–fitted installation for almost invisible integration in wall cupboards or upper cabinets.

High extraction rate – maximum air extraction of 600 m³/h, with boost position air extraction up to 745 m³/h.

Quiet extraction with powerful performance – noise level from 45 dB(A) re 1pW at Speed 1 in exhaust mode.

LED illumination – 2 × 1 W LED lights with 4000 K colour temperature and 400 lux for clear, bright hob lighting.

Intensive setting – powerful mode to combat intense steam, with automatic reset to normal setting after 6 minutes.

Multiple power levels – 3 power levels plus intensive setting to match different cooking needs.

Soft touch button control – electronic display and soft touch buttons for convenient operation.

Dishwasher–safe metal grease filters – removable filters for easier cleaning and maintenance.

Suitable for ducted or recirculating operation – compatible with standard and Clean Air Plus recirculation kits (optional accessories).

Energy efficiency class A – average energy consumption 50.1 kWh/year (A+++ to D scale).

Environmentally friendly packaging – with optional regenerative Long Life odour filter offering up to 10 years lifetime.

Washable aluminium grease filter material – supports long–term use and easy upkeep.

GB plug and 1.5 m electrical cable – designed for connection to a 220–240 V supply in Great Britain.

Back–pressure flap included – 150 mm diameter pipe with 120 mm adapter enclosed.

Available optional accessories – Clean Air Plus and Long Life recirculation kits, plus standard and Clean Air Plus odour filters.

Technical Spec

Product nameSeries 6, Canopy cooker hood, 86 cm, Black

Model referenceDLN87AC60B

TypologyBuilt-in / Built-under canopy hood

InstallationCabinet; flush-fitted installation in wall cupboards

Operation typeSuitable for ducted or recirculating operation

ColourBlack

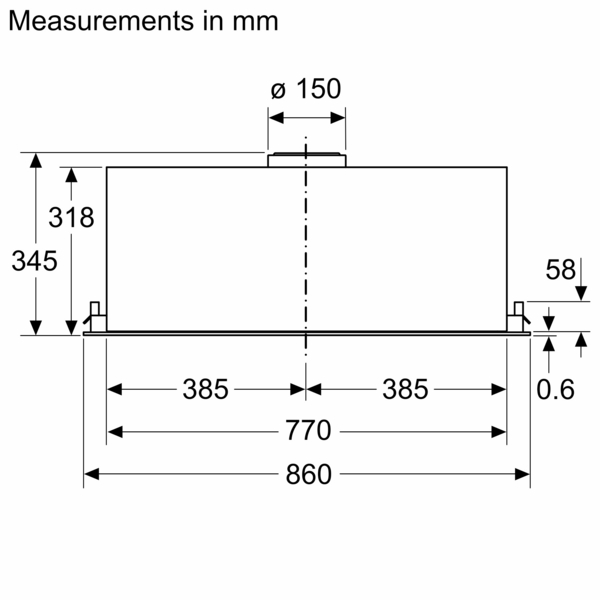

Appliance dimensions (H × W × D)345 x 860 x 282 mm

Recirculating dimensions (H × W × D)345–345 x 860 x 282 mm

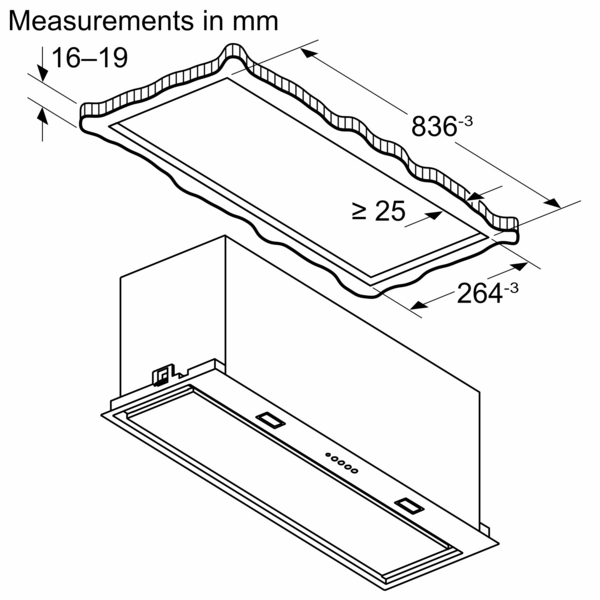

Built-in dimensions (H × W × D)345 x 676 x 264 mm

Required niche size (H × W × D)345 mm x 676.0 mm x 264 mm

Height of appliance345 mm

Width86 cm

Minimum distance above electric hob500 mm

Minimum distance above gas hob650 mm

Net weight9.8 kg

Type of controlElectronic; soft touch button control with electronic display

Number of speed settings3 stages + intensive setting

Max. air extraction (exhaust)600 m³/h

Boost position air extraction (exhaust)745 m³/h

Max. air recirculation580 m³/h

Boost position output recirculating700 m³/h

Maximum air flow600 m³/h

Noise level (exhaust mode)Speed 1: 45 dB(A) re 1pW; Speed 2: 51 dB(A) re 1pW; Speed 3: 61 dB(A) re 1pW; Intensive 1: 65 dB(A) re 1pW

Noise level (general)61 dB(A) re 1pW

Performance recirculation (standard kit)Speed 1: 200 m³/h; 59 dB(A) re 1pW. Speed 2: 370 m³/h; 71 dB(A) re 1pW. Speed 3: 440 m³/h; 73 dB(A) re 1pW. Intensive: 460 m³/h; 74 dB(A) re 1pW.

Performance recirculation (Clean Air Plus kit)Speed 1: 270 m³/h; 51 dB(A) re 1pW. Speed 2: 390 m³/h; 71 dB(A) re 1pW. Speed 3: 580 m³/h; 69 dB(A) re 1pW. Intensive: 700 m³/h; 74 dB(A) re 1pW.

Number of lights2 x 1 W LED

Light colour temperature4000 K

Light intensity400 lux

Motor typeCapacitor motor

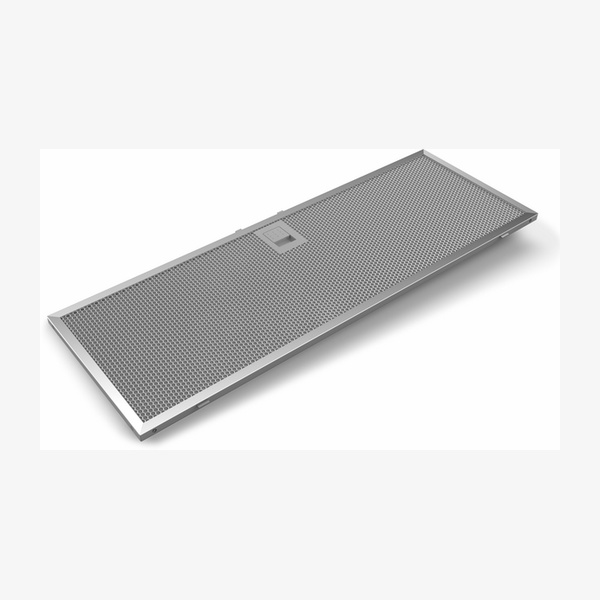

Grease filters2 metal grease filters; removable and dishwasher–safe

Grease filter materialWashable aluminium

Diameter of air outlet150 mm (120 mm enclosed)

Back-pressure flapYes

Energy efficiency classA (range from A+++ to D)

Average energy consumption50.1 kWh/year*

Blower efficiency classA*

Lighting efficiency classA*

Grease filtering efficiency classD*

Connection rating252 W

Fuse protection3 A

Voltage220–240 V (nominal)

Frequency50; 60 Hz

Plug typeGB plug

Electrical cable length1.5 m

EAN code4242005526659

Sustainability featuresEnvironmentally friendly packaging; available odour filter as regenerative Long Life filter with 10 years lifetime

Downloads

Download product documentation, manuals, and specification sheets.

DLN87AC60B Spec

PDF

Frequently Asked Questions

Is the DLN87AC60B suitable for both ducted and recirculating operation?

Yes. The canopy hood is suitable for ducted or recirculating operation. For recirculated extraction, various recirculation kits, including standard and Clean Air Plus options, are available as optional accessories.

What is the maximum extraction rate of this cooker hood?

The maximum air extraction in exhaust mode is 600 m³/h, and the boost position air extraction reaches up to 745 m³/h. In recirculation mode with the Clean Air Plus kit, the intensive setting can achieve up to 700 m³/h.

How noisy is the hood during operation?

In exhaust mode, noise levels are 45 dB(A) re 1pW at Speed 1, 51 dB(A) at Speed 2, 61 dB(A) at Speed 3 and 65 dB(A) at Intensive 1, according to EN 61591 and EN/IEC 60704-2-13.

Are the grease filters easy to clean?

Yes. The hood includes two removable metal grease filters made from washable aluminium. These filters are dishwasher–safe, and the smooth surfaces and materials are described as easy to clean.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 500 mm, and the minimum distance above a gas hob is 650 mm.

What is the energy efficiency rating and annual energy consumption?

The hood has an energy efficiency class of A on a scale from A+++ to D. The average energy consumption is 50.1 kWh per year.
