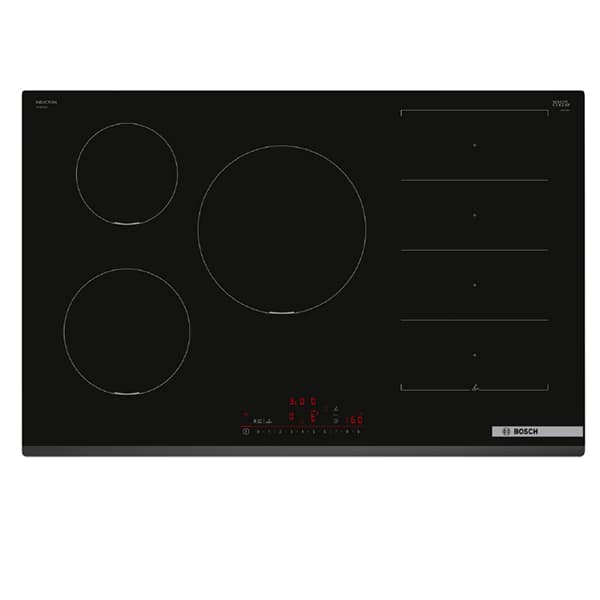

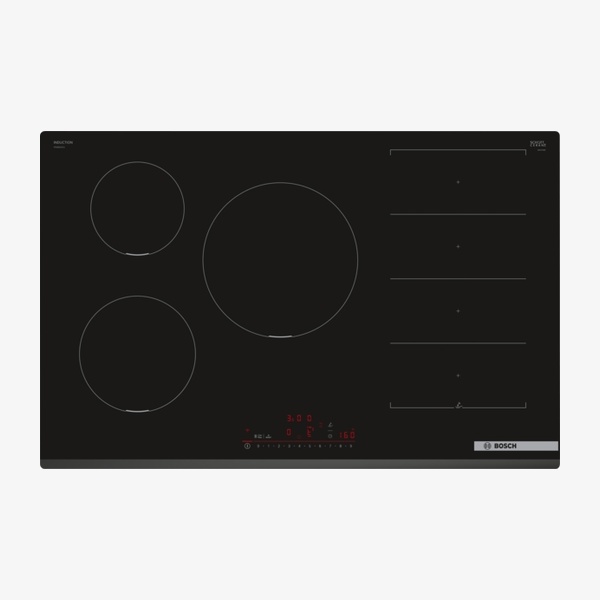

Bosch Series 6 PXV831HC1E FlexInduction Hob

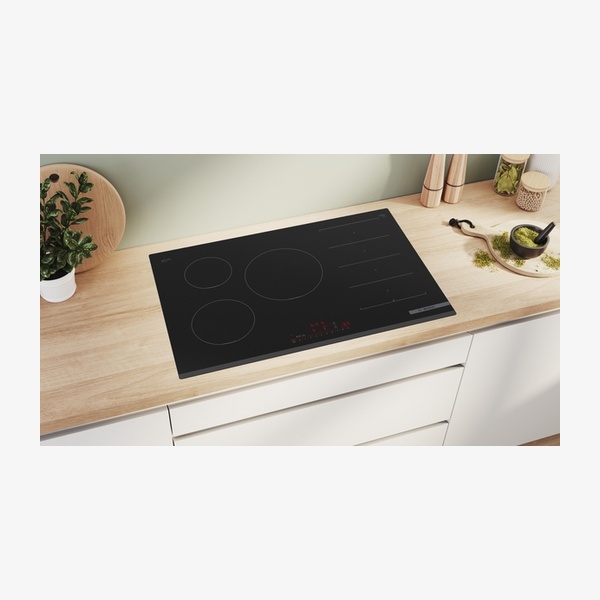

The Series 6 PXV831HC1E is an 80 cm built–in induction hob with space for up to five pots or pans. It offers FlexInduction for versatile cookware placement, DirectSelect control and Multitouch+ for simple operation. Features such as PerfectFry Plus, 11 frying levels and PowerBoost support precise and efficient cooking, while Home Connect and Smart Hood Automatic enable connected, automated kitchen use. Safety functions and flexible power management support everyday cooking needs.

SKU:PXV831HC1E

EAN:4242005394494

Category::Hobs

Quantity:

Key Features

80 cm width with 5 cooking zones – offers space for up to 5 pots or pans.

FlexInduction zone – use cookware of any shape or size anywhere within the 40 cm long zone.

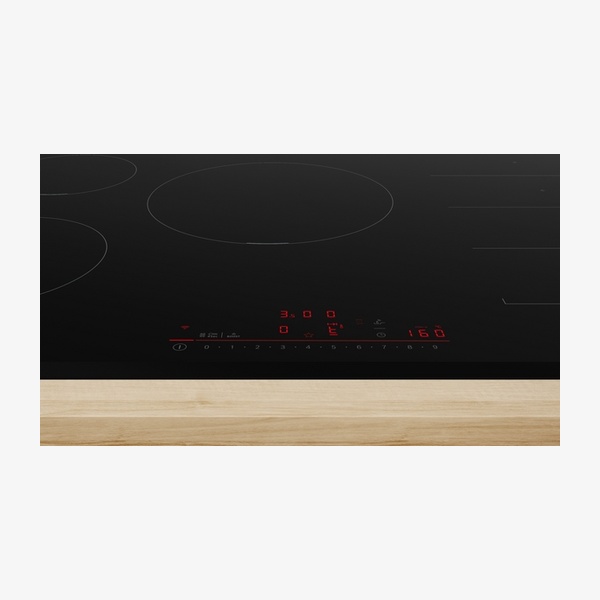

DirectSelect control – direct, simple selection of cooking zone, power and additional functions.

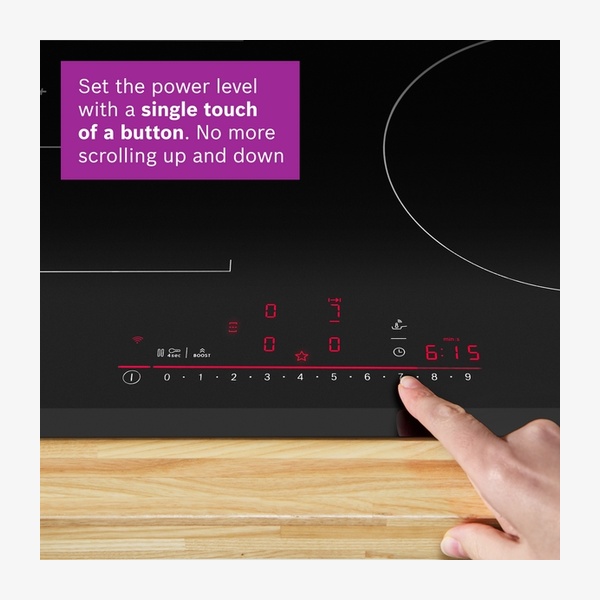

Multitouch+ – directly control power with the imprinted touch bar.

PerfectFry Plus with 11 frying levels – automatic temperature regulation helps prevent scorching and overcooking.

Easy Flex Zones – adjusts cooking zones to suit different cookware and layouts.

Variable 17–stage power settings – 9 main levels and 8 intermediate levels for precise heat control on each zone.

PowerBoost for all zones – boil water faster with up to 50% more energy than the highest standard level.

PanBoost function – heat pans faster than the highest standard level while helping to protect pan coating (via Favourite button/Home Connect app for connected appliances).

Automatic flex zone connection – when large cookware is placed on the Flex zone, the hob automatically connects two zones into one continuous area.

Automatic setting transfer – move a pot to another zone and transfer previous settings at the touch of a button.

Automatic zone selection – automatically selects the cooking zone on which new cookware is placed.

QuickStart and ReStart functions – quickly select zones with cookware and restore previous settings after unintentional switch–off within 4 seconds.

Keep warm function – keeps dishes warm at a preset low power level (via Home Connect app/MyButton).

Favourite Button – configurable button to access favourite functions (with connected Home Connect account).

Home Connect enabled – check if the hob is switched off when away and access recipes or additional functions in the app.

Hob Hood Control with Smart Hood Automatic – automatically activates and adjusts a suitable Wi–Fi enabled hood when cooking.

Updateable appliance – keep software up to date via a connected Home Connect account.

Front facette design – ceramic glass surface in black with front facet styling.

2–stage residual heat indicator – shows which zones are still hot or warm.

Control panel lock and pause function – help prevent unintended operation and allow temporary pausing of cooking.

Main on/off switch and automatic safety shut–off – switch off all zones at once and stop heating after a preset time if not used.

Power management options – limit maximum power output for 16 A, 13 A or 10 A connections depending on electrical installation.

Wide choice of optional accessories – including wireless food thermometer, system pans, wok set, Teppan Yaki, griddle plate, flex pans, fry pans, roaster and espresso maker.

Technical Spec

Product seriesSeries 6

ModelPXV831HC1E

Appliance typeCooking zone ceramic

Installation typeBuilt–in, surface mount without frame

Heating typeElectric hob (induction)

Number of cooking zones5

Width of appliance802 mm

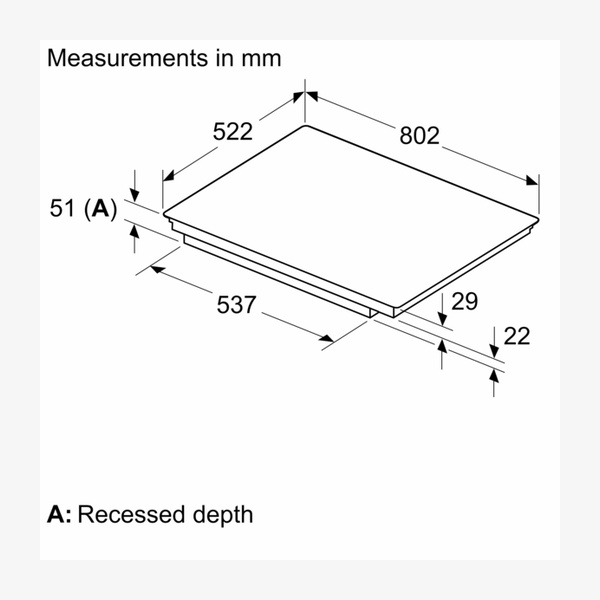

Dimensions (H x W x D)51 x 802 x 522 mm

Required niche size (H x W x D)51 x 750–750 x 490–500 mm

Dimensions of packed product (H x W x D)130 x 953 x 608 mm

Net weight16.1 kg

Gross weight17.5 kg

Basic surface materialCeramic glass

Colour of surfaceBlack

Residual heat indicatorSeparate, 2 stage for each zone

Location of control panelFront

Length of electrical supply cord110 cm

Voltage220–240 V

Frequency50; 60 Hz

Connected load7.4 kW

Min. worktop thickness16 mm

EAN code4242005394494

Cooking Zones, Functions and Installation

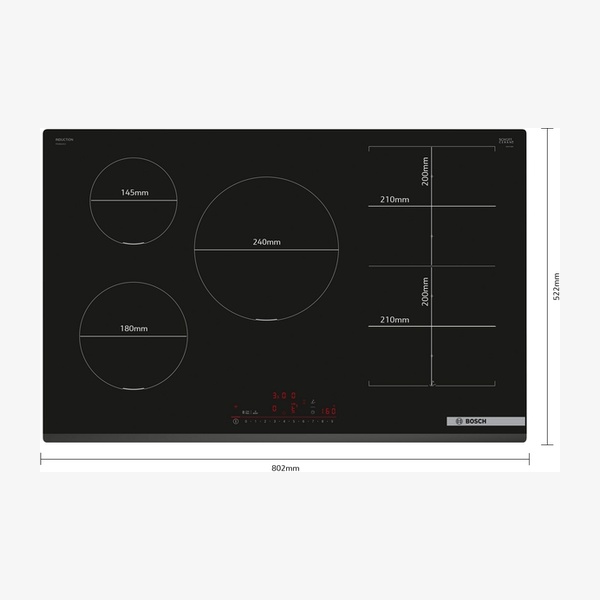

Cooking zones and power

FlexInduction zone: cookware of any shape or size can be used anywhere within the 40 cm long zone.
Front left zone: 180 mm, 2 kW (max. power 3.1 kW).
Rear left zone: 145 mm, 1.6 kW (max. power 2.2 kW).
Middle zone: 240 mm, 2.5 kW (max. power 3.7 kW).
Rear right zone: 200 mm, 210 mm, 2.2 kW (max. power 3.7 kW).
Front right zone: 200 mm, 210 mm, 2.2 kW (max. power 3.7 kW).

Usage convenience

Favourite Button for direct access to favourite functions (with connected Home Connect account).
Keep warm function via Home Connect app/MyButton at a preset low power level.
Switch–off timer that turns off a zone at the end of the set time (for example for boiled eggs).
Alternative timer mode with an acoustic alarm at the end of the set time (for example for pasta).
Sound volume can be adapted to personal preference and needs.

Time saving and efficiency

PowerBoost function for all zones for faster boiling.
Pan Boost selectable via Favourite button/Home Connect app (for appliances connected to Home Connect account).
Automatic connection of two zones into one large continuous zone when large cookware is placed on the Flex zone.
Automatic setting transfer when moving cookware to another zone.
Automatic zone selection when new cookware is placed on the hob.
Instant setting adjustment on the Flex zone when moving a pot; the zone adapts to the size of the cookware.
QuickStart function: on switching on, the hob automatically selects the zone with cookware already placed.
ReStart function: restores all previous settings if the hob is unintentionally switched off and switched on again within 4 seconds.

Cooking assistance and connectivity

11 frying levels with automatic temperature regulation using the integrated sensor.
Dish assistant to find suitable temperature settings for certain dishes via the Home Connect app.
Home Connect for remote checking, recipes and additional functions.
Hob Hood Control with Wi–Fi enabled hood for automatic hood activation.
Smart Hood Automatic: hood fan speed automatically adapts using hob cooking data (with matching hood and connected Home Connect account).
MyButton opens access to partner services from the cooktop.
Updateable appliance via connected Home Connect account for the latest software status.

Safety features

2 stage residual heat indicator for each zone.
Control panel lock to help prevent unintended activation.
Pause function to temporarily pause the heating process.
Main on/off switch to switch off all zones at the touch of a button.
Automatic safety shut off: heating stops after a preset time if not used.

Installation notes

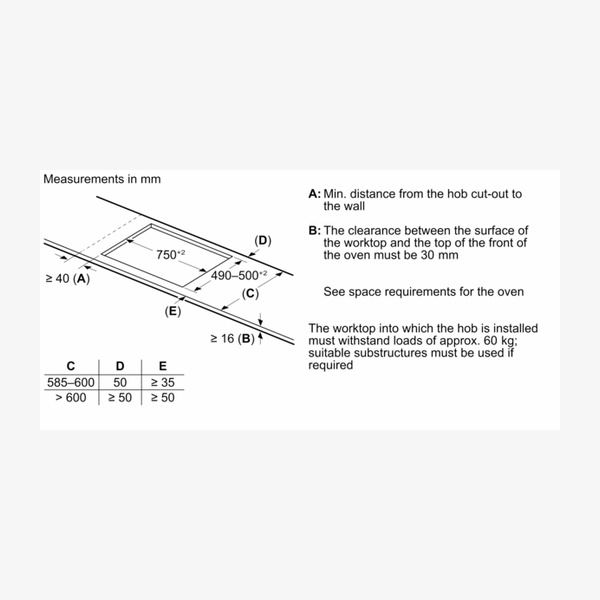

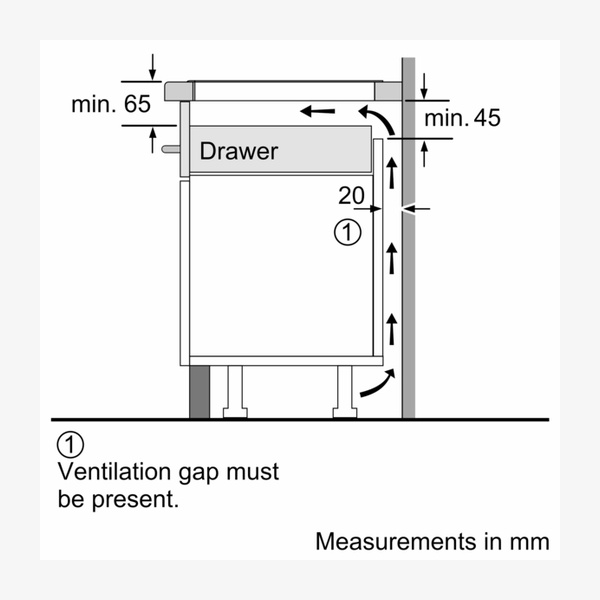

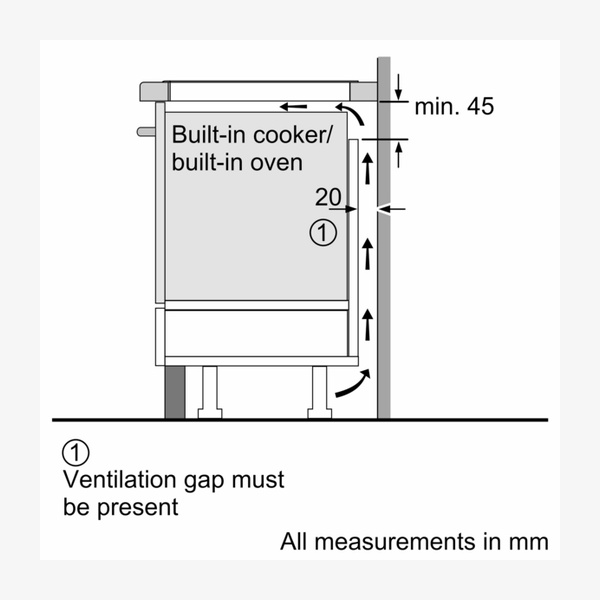

The hob is designed for built–in installation with a minimum worktop thickness of 16 mm and requires a niche size of 51 x 750 x 490–500 mm. A ventilation gap must be present according to the dimensional drawings. Power management options allow configuration for 16 A, 13 A or 10 A connections, depending on the fuse protection of the electrical installation.

Downloads

Download product documentation, manuals, and specification sheets.

PXV831HC1E Spec

PDF

Frequently Asked Questions

How wide is the PXV831HC1E hob and how many zones does it have?

The hob is 80 cm wide with overall appliance width of 802 mm and provides five cooking zones, including a FlexInduction zone.

What installation space is required for this induction hob?

It requires a niche size of 51 x 750 x 490–500 mm (H x W x D) and a minimum worktop thickness of 16 mm. A ventilation gap must be present beneath the hob.

Does the hob support flexible cooking zones for large cookware?

Yes. The FlexInduction zone allows cookware of any shape or size to be used anywhere within the 40 cm long zone and can automatically connect two zones into one large continuous zone when large cookware is placed on it.

Which connectivity features are available?

The hob is Home Connect enabled, allowing you to check if it is switched off, access recipes and additional functions via the app. It also supports Hob Hood Control and Smart Hood Automatic with suitable Wi–Fi enabled hoods and can receive software updates through a connected Home Connect account.

What safety features are included?

Safety features include a 2–stage residual heat indicator for each zone, control panel lock, pause function, main on/off switch and automatic safety shut off after a preset time if the hob is not used.

Are there dedicated functions to speed up cooking?

Yes. The hob offers PowerBoost on all zones for faster boiling, Pan Boost for rapid pan heating (via Favourite button/Home Connect app on connected appliances), QuickStart to automatically select zones with cookware and features such as automatic setting transfer and automatic zone selection.
