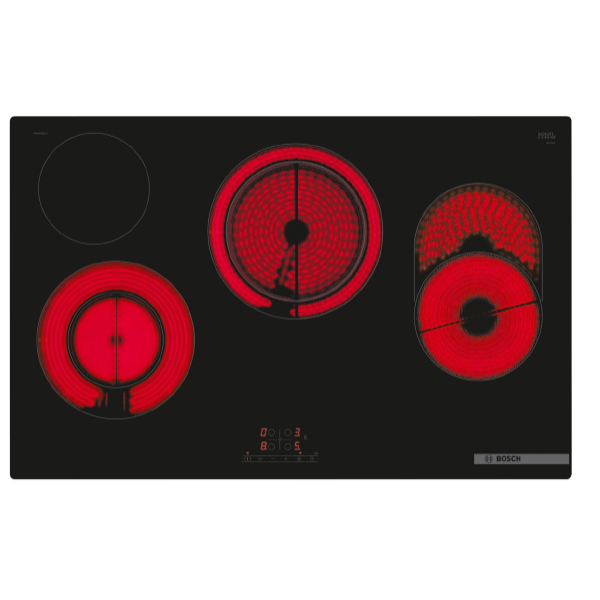

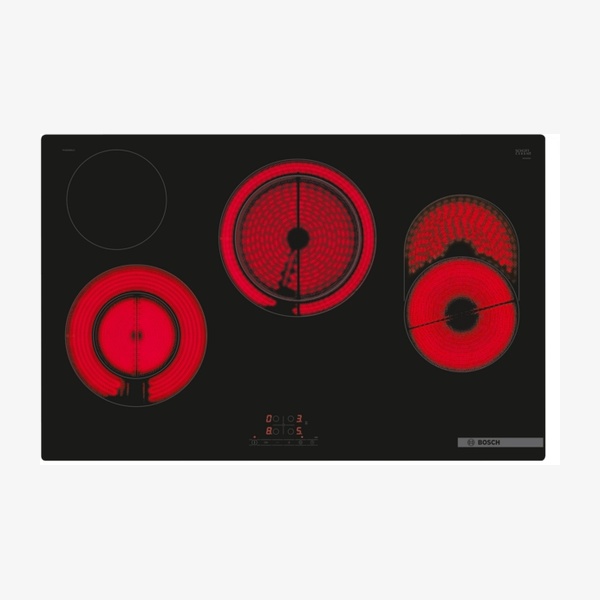

Bosch Series 4 PKH811BB1D Ceramic Hob

The Series 4 PKH811BB1D is an 80 cm built–in electric glass–ceramic radiant hob offering space for 4 pots or pans. It features TouchSelect controls, 17–stage power settings and flexible extendable cooking zones including a RoasterZone and double ring zone. Frameless, surface–mounted design and ceramic glass make cooking and cleaning especially easy, while multiple safety functions add reassurance during everyday use.

SKU:PKH811BB1D

EAN:4242005512140

Category::Hobs

Quantity:

Key Features

Glass–ceramic radiant hob – makes cooking and cleaning especially easy.

80 cm width – provides space for 4 pots or pans.

TouchSelect controls – select the desired cooking zone and set the power level with imprinted +/– touch buttons.

RoasterZone – extra extendable cooking zone for larger cookware such as roasters.

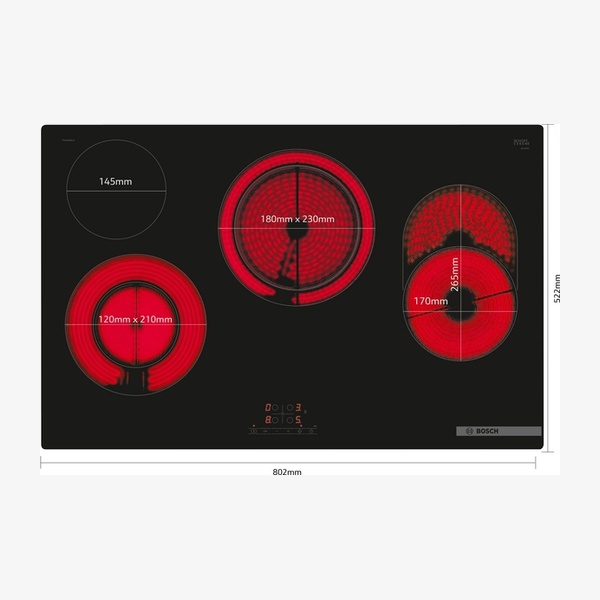

Double ring zones – extendable 21 cm and 23 cm cooking zones for regular or larger cookware.

17–stage power settings – 9 main and 8 intermediate levels for precise heat control on each zone.

Timers for each zone – switch–off timer and count–down timer with acoustic signal.

ReStart function – restores all previous settings after unintentional switch–off if reactivated within 4 seconds.

Quick Stop – quickly switch off a cooking zone with one longer touch.

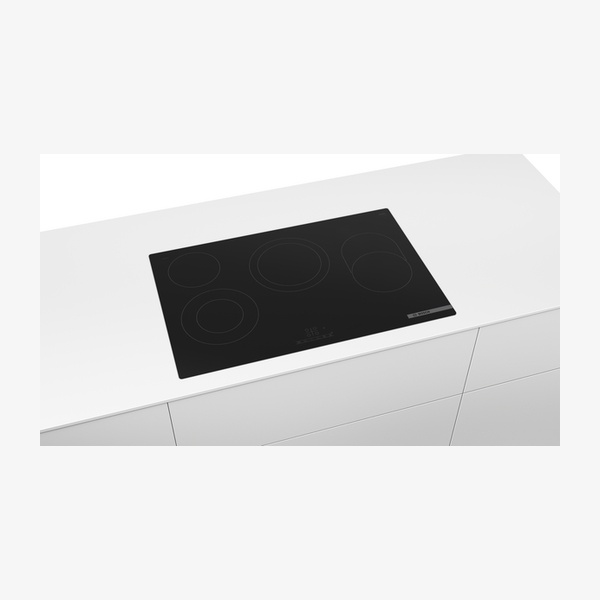

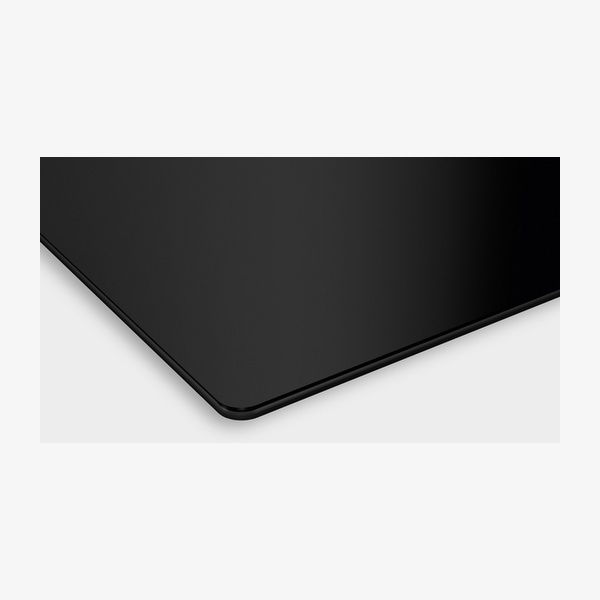

Frameless, surface–mounted design – hob surface is slightly elevated, separating the cooking space from the worktop.

Separate residual heat indicators – 2–stage display for each zone showing which areas are still hot or warm.

Control panel lock – helps prevent unintended activation of the hob.

Main on/off switch – switches off all cooking zones at the touch of a button.

Power on indicator light – clearly shows when the hob is heating.

Automatic safety shut–off – heating stops after a preset time if the hob is not used.

Optional accessories – compatible wireless food thermometer, intermediate bottom and cookware sets (pots and pans).

Technical Spec

Appliance typeCooking zone ceramic

Built–in / Free–standingBuilt–in

Heating typeElectric hob

Number of cooking zones4

Dimensions (HxWxD)45 x 802 x 522 mm

Width of the appliance802 mm

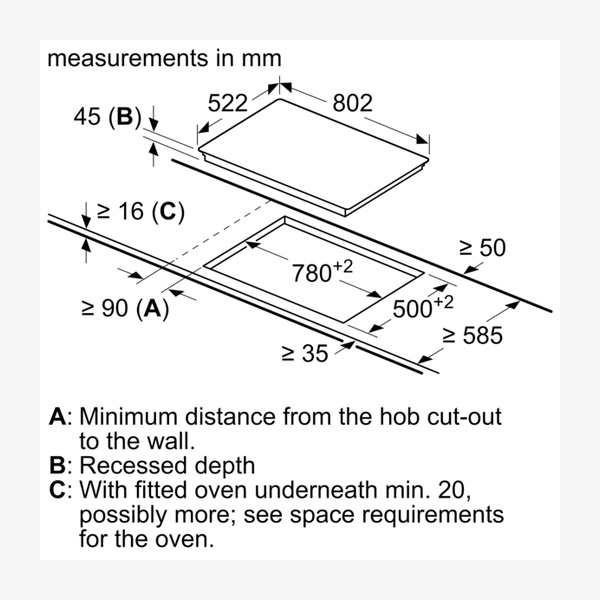

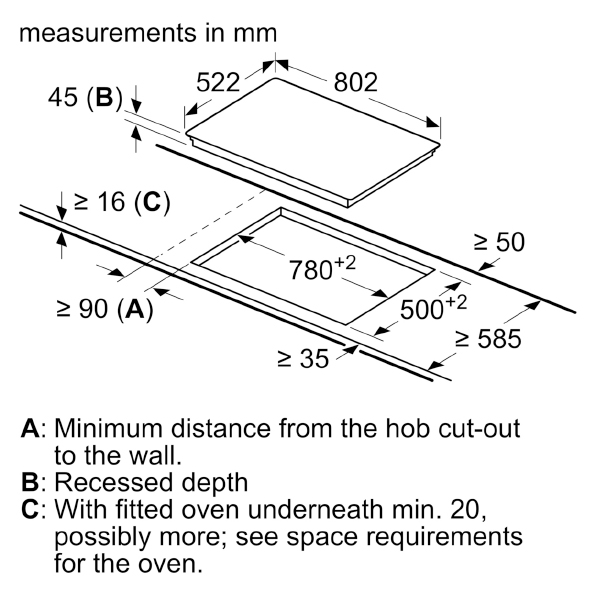

Required niche size (HxWxD)45 x 780–780 x 500–500 mm

Min. worktop thickness16 mm

Dimensions of packed product (HxWxD)100 x 1020 x 630 mm

Net weight10.4 kg

Gross weight12.0 kg

Basic surface materialCeramic glass

Colour of surfaceBlack

Residual heat indicatorSeparate, 2 stage for each zone

Location of control panelFront

Connected load7.4 KW

Voltage220–240 V

Frequency50; 60 Hz

EAN code4242005512140

Downloads

Download product documentation, manuals, and specification sheets.

PKH811BB1D Spec

PDF

Frequently Asked Questions

How many cooking zones does the PKH811BB1D have?

The hob has 4 cooking zones, including extendable double ring zones and a RoasterZone for larger cookware.

What is the width of this electric hob?

The appliance is 80 cm wide, with overall dimensions of 45 x 802 x 522 mm, providing space for 4 pots or pans.

How is the power level controlled?

Power is controlled using TouchSelect with imprinted +/– touch buttons. Each zone has variable 17–stage power settings with 9 main and 8 intermediate levels.

Does the hob have safety features?

Yes. It includes 2 stage residual heat indicators for each zone, a control panel lock, main on/off switch, power on indicator light and automatic safety shut off.

Are there any compatible accessories?

Optional accessories include the HEZ32WA00 wireless food thermometer, HEZ392800 intermediate bottom, HEZ9FE280 iron pan Ø 18 / 28 cm, and HEZ9SE030 set of 2 pots and 1 pan.
