Bosch Serie 2 DWP74BC50B Chimney Hood

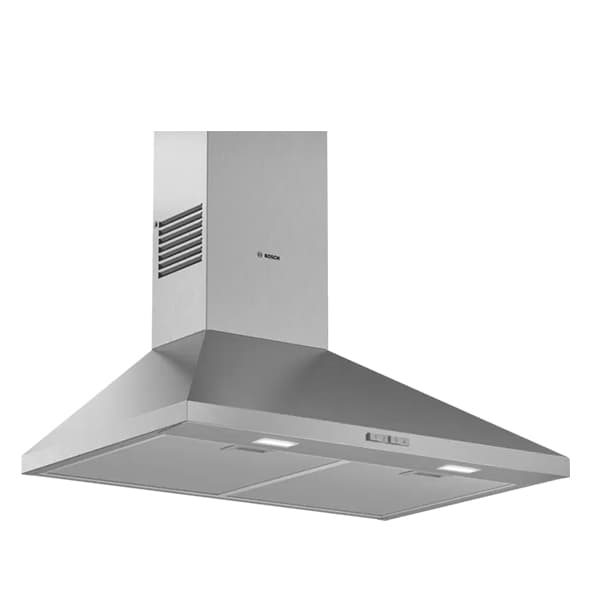

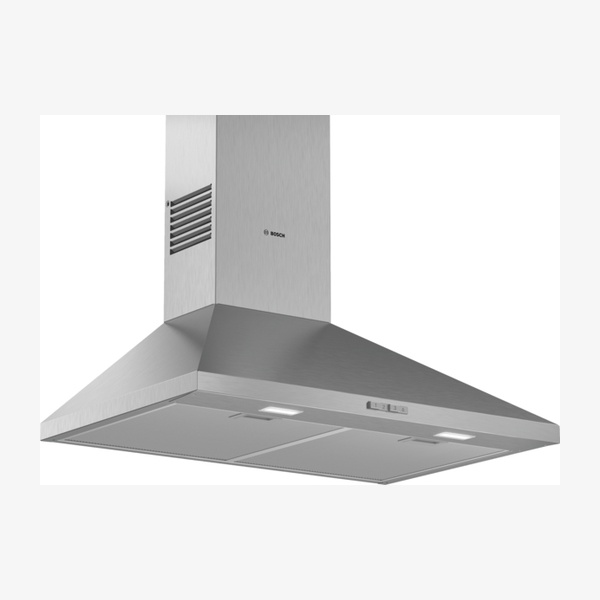

The Series 2 DWP74BC50B is a 75 cm stainless steel wall–mounted pyramid cooker hood designed for effective extraction or recirculation. It offers a maximum extraction rate of 365 m³/h, quiet performance and bright LED illumination of the hob area. With mechanical push button control and 3 power levels, it allows you to adjust extraction intensity according to your cooking needs. Dishwasher–safe metal grease filters support easy maintenance.

SKU:DWP74BC50B

EAN:4242005031993

Category::Cooker Hoods

Quantity:

Key Features

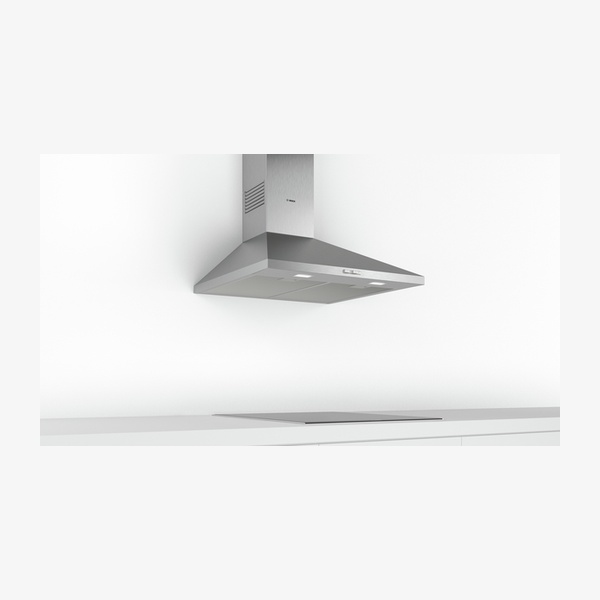

Wall–mounted pyramid chimney design in stainless steel for installation above the hob.

Quiet extraction with powerful performance for continuously clean air in the kitchen.

LED Illumination with 2 × 1.5 W LEDs providing bright, clear lighting for the hob area.

3 power levels controlled by push buttons to match extraction intensity to your cooking.

High extraction rate with maximum air extraction of 365 m³/h.

Suitable for ducted or recirculating operation , with a recirculating kit required for recirculation.

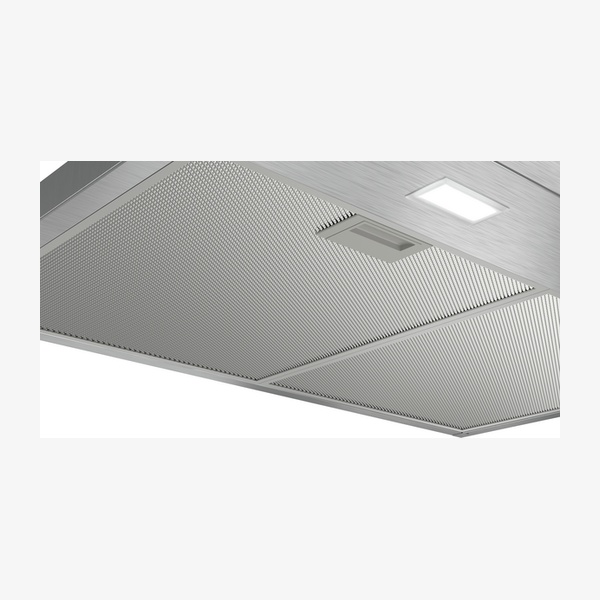

Dishwasher–safe, washable metal grease filters with 2 removable aluminium cassette filters.

Energy Efficiency Class D (on a scale from A+++ to D) with average energy consumption of 53.1 kWh/year*.

LED lighting efficiency Class A* and Grease Filtering Efficiency Class D*.

Mechanical controls with GB plug connection for simple operation and installation.

Optional accessories available , including chimney extensions and recirculation/odour filter kits.

Technical Spec

Product name / codeSeries 2, Wall–mounted cooker hood, 75 cm, Stainless steel – DWP74BC50B

TypologyWall–mounted / Chimney extractor hood

Colour chimneyStainless steel

Installation typologyWall–mounted, suitable for ducted or recirculating operation

Energy Efficiency ClassD (range A+++ to D)

Blower Efficiency ClassE*

Lighting Efficiency ClassA*

Grease Filtering Efficiency ClassD*

Average energy consumption53.1 kWh/year*

Max. air extraction (exhaust)365 m³/h (according to EN 61591)

Max. air recirculation213 m³/h (max. normal use in recirculation mode)

Maximum air flow365 m³/h

Noise level exhaust air65 dB(A) re 1 pW at max. normal use (according to EN 60704–3 and EN 60704–2–13)

Noise level recirculationMax. normal use: 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)

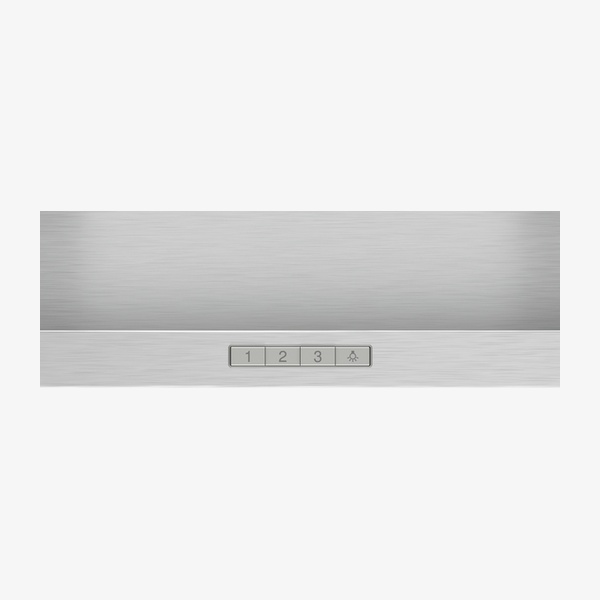

Type of controlMechanical, push button control

Number of speed settings3 power levels

Lighting2 × 1.5 W LED lights, Colour Temperature 3500 K, light intensity 94 lux

Number of lights2

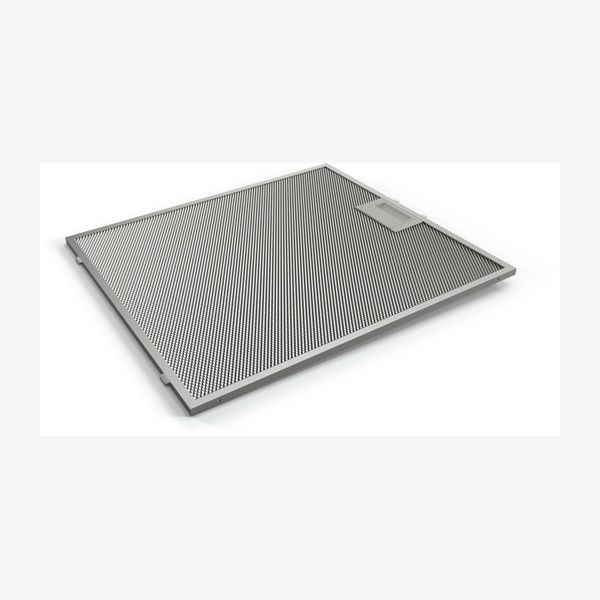

Grease filter materialWashable aluminium, 2 removable metal grease filter cassettes

Diameter of air outletØ 150 mm (Ø 120 mm enclosed)

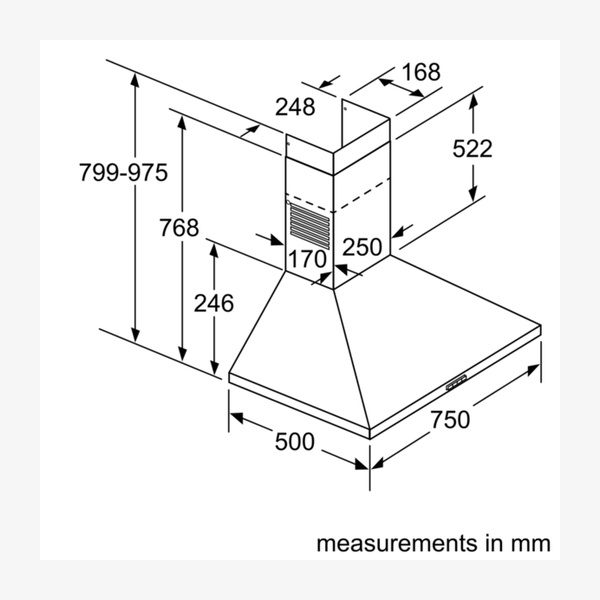

Dimensions (exhaust air, H×W×D)799–975 × 750 × 500 mm

Dimensions (recirculating, H×W×D)799–975 × 750 × 500 mm

Height of the chimney553–730 / 573–730 mm

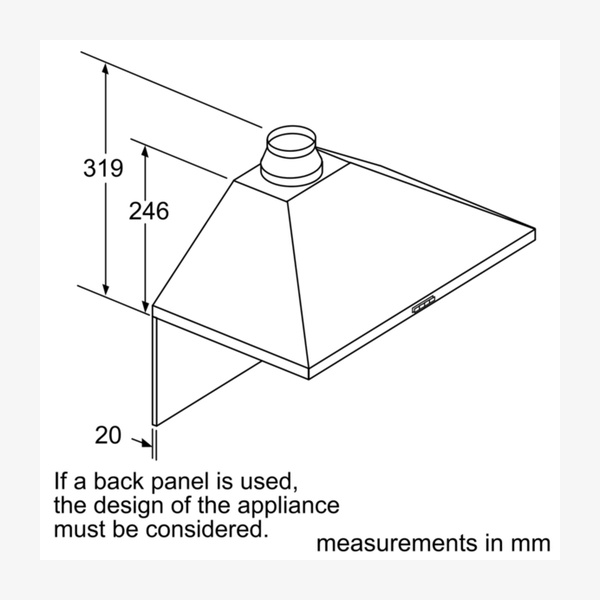

Height of the appliance246 mm

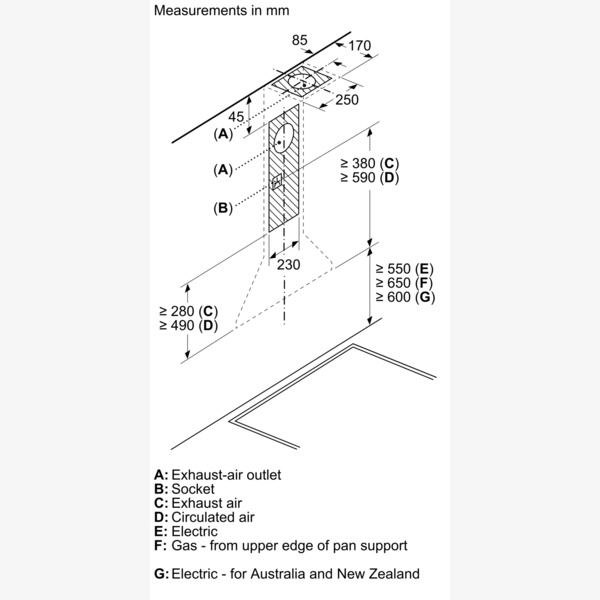

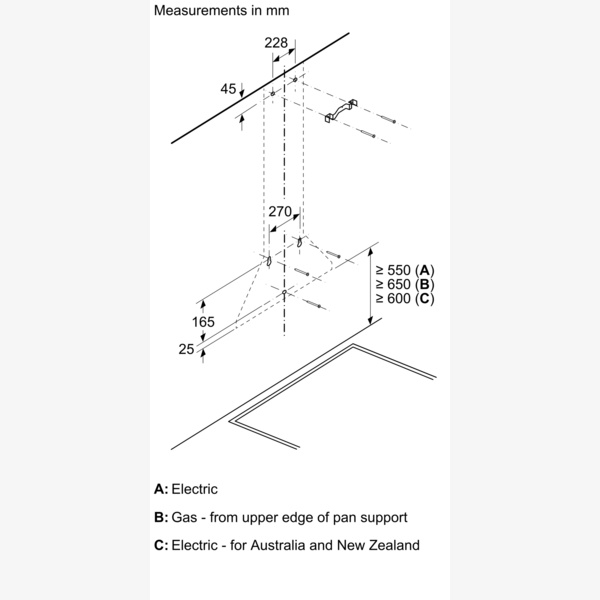

Minimum distance above electric hob550 mm

Minimum distance above gas hob650 mm

Net weight11.1 kg

Connection rating100 W (power rating 100 W)

Fuse protection10 A

Voltage220–240 V

Frequency50; 60 Hz

Plug typeGB plug

Length of electrical supply cord130 cm (electrical cable length 1.3 m)

EAN code4242005031993

Downloads

Download product documentation, manuals, and specification sheets.

DWP74BC50B Spec

PDF

Frequently Asked Questions

Is the DWP74BC50B suitable for both ducted and recirculating use?

Yes. The hood is suitable for ducted exhaust air or recirculating operation. For recirculated extraction, a recirculating kit (accessory) is needed.

What is the maximum extraction rate?

The maximum extraction rate in exhaust air mode is 365 m³/h according to EN 61591, with maximum air flow also stated as 365 m³/h.

How noisy is the cooker hood during use?

In exhaust air mode, the noise level at maximum normal use is 65 dB(A) re 1 pW. In recirculation mode, the maximum normal use noise level is 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure).

Are the grease filters dishwasher safe?

Yes. The metal grease filters are made from washable aluminium and are described as dishwasher safe metal grease filters. There are 2 removable metal grease filter cassettes.

What lighting does this cooker hood use?

The hood uses 2 × 1.5 W LED lights with a colour temperature of 3500 K, providing energy–saving bright and clear lighting for the hob area. The lighting efficiency class is A*.

What are the minimum installation heights above the hob?

The minimum distance above an electric hob is 550 mm, and the minimum distance above a gas hob is 650 mm.
